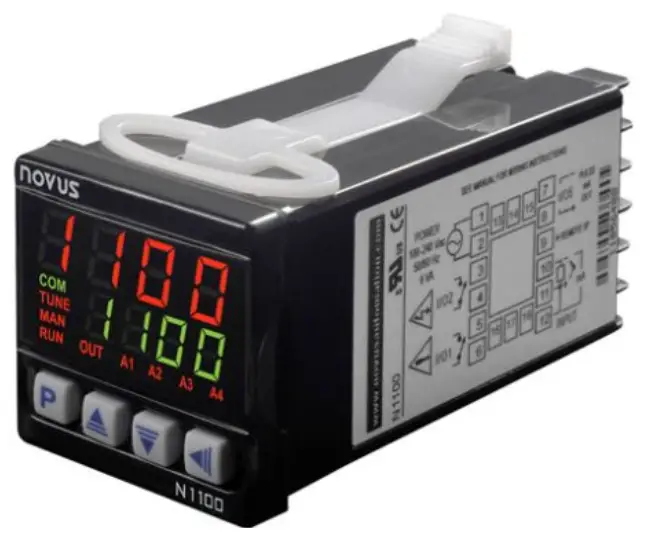

NOVUS N1100 Universal Process Controller

Features and specifications

Universal multi-sensor input without the need for hardware change or recalibration.

• Outputs: 2 SPST relays, 1 SPDT relay (optional), linear 4-20 mA and up to 3 logic pulse outputs (2 optional).
• The outputs can be configured as control, alarm and analog retransmission (4-20 mA).
• Up to 2 timer relay alarms, settable from 0 to 6500 s, ideal for servo-positioning with up/down function.
• Alarm functions: low, high, differential, low differential, high differential, sensor break, ramp and soak event, and inoperable.
• PV or Setpoint 0-20 mA analog retransmission.
• Auto/Manual “bumpless” transfer.
• Up to 3 digital inputs with 5 programmable functions.
• Sensor break protection in any condition.
• 4 to 20 mA Remote Setpoint input.
• Programmable Soft Start (0 to 9999 seconds).
• Ramp and Soak: Seven 7-segment profiles, can be linked to make longer programs of up to 49 segments.
• RS-485 digital Communication, MODBUS RTU protocol, 19200 baud rate.
• Heater break protection (option).
• Up to 247 slave controllers in a network.
• Auto tuning PID.
• Consistent menu adapts to the installed options.
• Unique electronic 8-digit serial number can be viewed at the display.
• Silicone rubber keypad.
• Front panel: IP65, Polycarbonate UL94 V-2.
• Back panel: IP20, ABS+PC UL94 V-0.
  Keypad protection prevents unauthorized parameters changes.
• Circuitry can be removed from the front panel.
• Terminal connection: 18 screws accepting 6.3 mm fork lugs.
• Accepts J, K, T, N, R, S thermocouples; Pt100, 4-20 mA, 0-50 mVdc, 0-5 Vdc.
• Internal resolution: 32.767 levels.
• Measuring resolution: 12000 levels.
• Dual LED display: red 10 mm height PV upper display, green 8 mm height SV display.
• Sampling rate: 5 per second.
• Control output update: 200 Ms.
• Isolated 4-20 mA output with 1500 level high resolution,550 Ohms maximum load.
• 2 SPST relays and 1 SPDT relay (optional) 3A @250 Vac.
• Power supply: 85 to 250 Vac, 50/60 Hz; optionally 24 Vdc/ac.
• Maximum consumption: 3 VA.
• Ambient conditions: 0 to 55ºC, 20 to 95% RH
• Dimensions: 48 x 48 x 110 mm.
• Panel cutout: 45,5 x 45,5 mm.
• Weight: 150 g.

Electrical Connections

How to Specify

The basic unit includes universal input, 2 SPST relays and one 4-20 mA output that can be configured as logic pulse output or digital input.
Option 1: SPDT relay (for control or alarm output). Option 2: 2 Digital I/Os. Option 3: Heater break detection. Option 4: RS-485 digital communication.
Note: Options 1, 2 e 3 are exclude.
Accessory 1: Current transformer for heater break protection.
A factory manufacturing Calibration Certificate can be issued under request.
