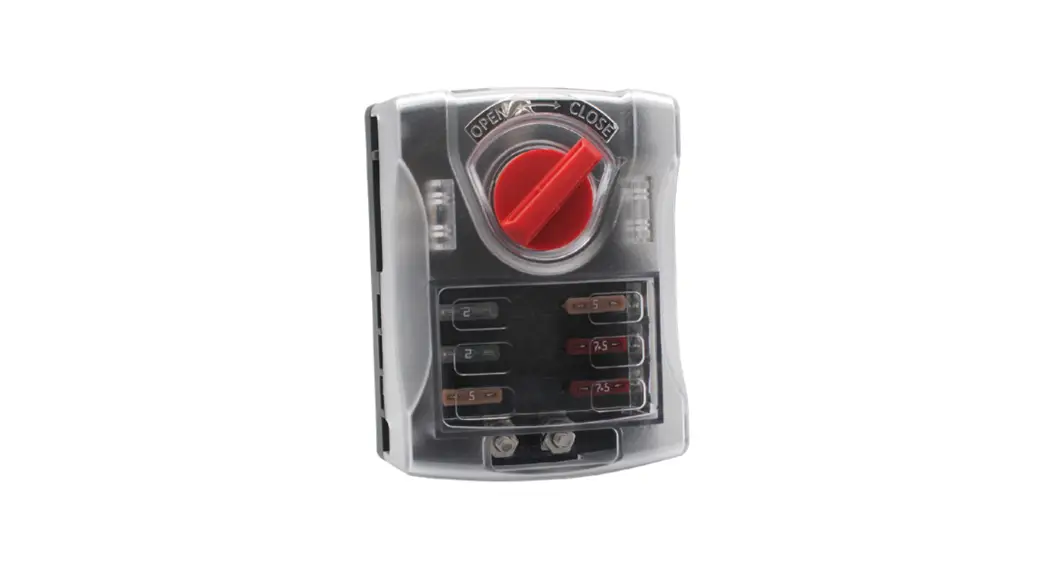

SD MINI® SERIES
FUSE BLOCK WITH LED INDICATORS
Owner’s Manual
Description
SD MINI® Fuse Blocks provide a cost-effective, consolidated circuit protection solution. Designed to accept standard MINI® fuses, these products ensure the safe distribution of power throughout an application. Integrated LED blown fuse indicators allow for quick maintenance, preventing troubleshooting & equipment downtime. These products are RoHS compliant. Fuses sold separately.
Features
- LED blown fuse indicators
- Snap-on insulating cover included

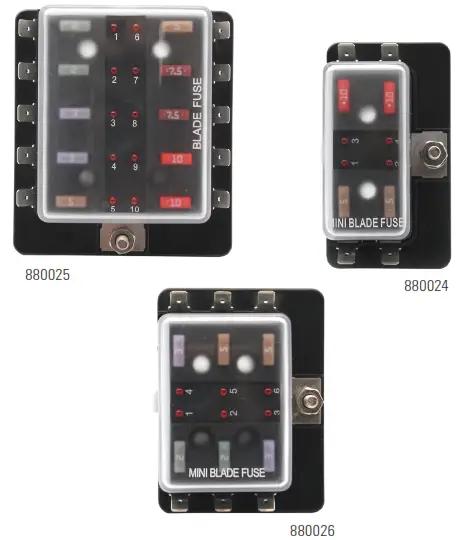

Ordering Information
| PART NUMBER | DESCRIPTION | PACKAGING |
| 880024 | 4 MINI® Fuse Block w/ LED | Bulk |
| 880024-BP | 4 MINI® Fuse Block w/ LED Blister Pack | Blister Pack |
| 880025 | 6 MINI® Fuse Block w/ LED | Bulk |
| 880025-BP | 6 MINI® Fuse Block w/ LED Blister Pack | Blister Pack |
| 880026 | 10 MINI® Fuse Block w/ LED | Bulk |
| 880026-BP | 10 MINI® Fuse Block w/ LEDBlister Pack | Blister Pack |
Specifications
| Current Rating Max: | 100A |
| Current Rating Max Per Circuit: | 30A Max |
| Fuse Type: | MINI®Blade Fuse |
| Housing: | PBT |
| Input Terminals: | 10-32 Stud |
| Mounting Method: | Bolt-Down; 4xM5 |
| Number Of Cavities: | 4, 6, or 10 Circuits (varies by part number) |
| Output Terminals: | 6.3mm Blade |
| Recommended Torque: | 8 in-lb (0.9Nm) Max. |
| Temperature: | -20°C to 85°C |
| Max Voltage Rating: | 32V DC |
Applications
- Centralized distribution for accessory circuits
- Ideal solution for DIY projects
Benefits
- Centralizes wiring to a convenient location
- The insulating cover provides circuitry protection
- Continuous current rating of 100A
 | |

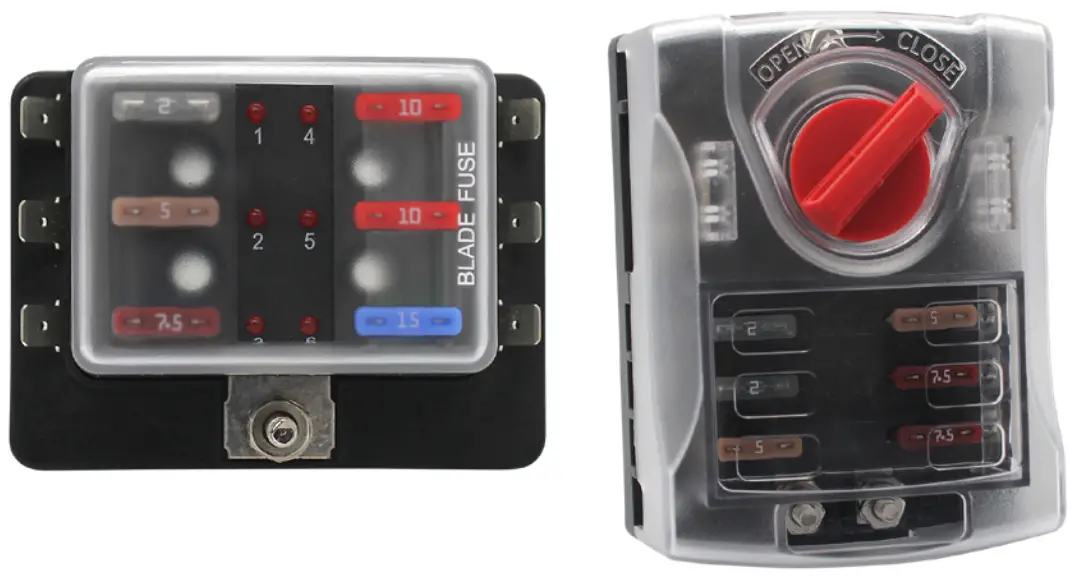

| SD ATO®Fuse Blocks Designed to accept ATO® fuses. | ST ATO® Fuse Blocks (Screw Termination) Designed to accept ATO® fuses. |
Web Resources
Download the 2D print, installation guide and technical resources at: littelfuse.com/SD-MINI
Littelfuse.com
© 2021 Littelfuse, Inc.
082721-B
