IRFP360
Vishay Siliconix

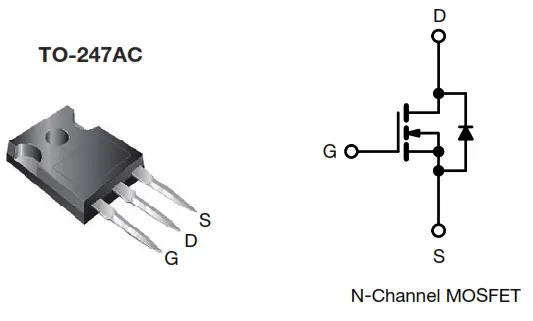

IRFP360PBF Power Mosfet Transistor

Power MOSFET

FEATURES

• Dynamic dV/dt rated
• Repetitive avalanche rated
• Isolated central mounting hole
• Fast switching
• Ease of paralleling
• Simple drive requirements
• Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
  Note
  * This datasheet provides information about parts that are RoHS-compliant and/or parts that are non-RoHS-compliant. For example, parts with lead (Pb) terminations are not RoHS-compliant. Please see the information/tables in this datasheet for details

DESCRIPTION

Third-generation Power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance, and cost-effectiveness.
The TO-247AC package is preferred for commercial-industrial applications where higher power levels preclude the use of TO-220AB devices. The TO-247AC is similar but superior to the earlier TO-218 package because of its isolated mounting hole. It also provides greater creepage distance between pins to meet the requirements of most safety specifications.

Notes

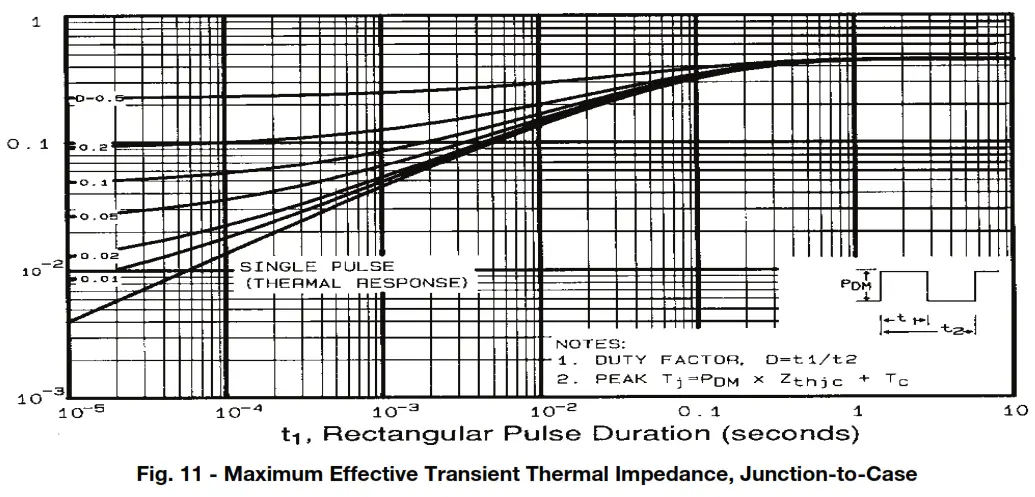

a. Repetitive rating; pulse width limited by maximum junction temperature (see fig. 11)

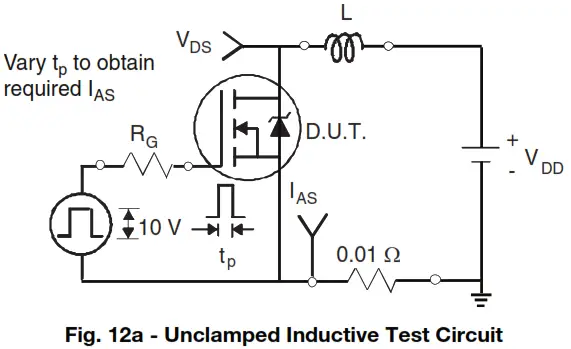

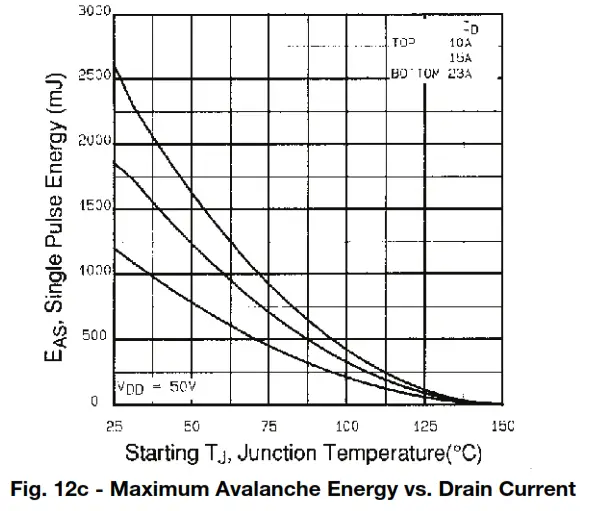

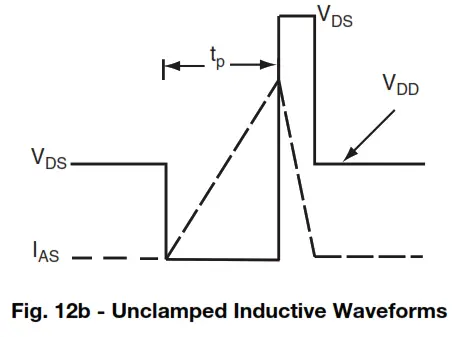

b. VDD = 50 V, starting TJ = 25 °C, L = 4.0 mH, Rg = 25 Ω, IAS = 23 A (see fig. 12)
c. ISD ≤ 23 A, dI/dt ≤ 170 A/μs, VDD ≤ VDS, TJ ≤ 150 °C
d. 1.6 mm from the case

SPECIFICATIONS (T j = 25 °C, unless otherwise noted)
PARAMETER	SYMBOL	TEST CONDITIONS		MIN.	TYP.	MAX.	UNIT
Static
Drain-source breakdown voltage	VDS	VGS = 0 V, ID = 250 pA		400	–		V
VDS temperature coefficient	_I Vos/TJ	Reference to 25 °C, ID = 1 mA		–	0.56	–	V/°C
Gate-source threshold voltage	VGS(th)	VDS = VGS, ID = 250 pA		2.0	–	4.0	V
Gate-source leakage	IGSS	VGS = ± 20 V		–		± 100	nA
Zero gate voltage drain current	loss	VDs = 400 V, VGs = 0 V				25	pA
		VDs = 320 V, VGs = 0 V, T j = 125 °C				250
Drain-source on-state resistance	Roston)	VGs = 10 V	I          ID = 14 A b			0.20	Q
Forward transconductance	grs	VDs = 50 V, ID = 14 A b			–		S
Dynamic
Input capacitance	Cass	VGS = 0 V, DVDs = 25 V, f = 1.0 MHz, see fig. 5		–	4500		pF
Output capacitance	Coss			–	1100
Reverse transfer capacitance	CRS,			–	490	–

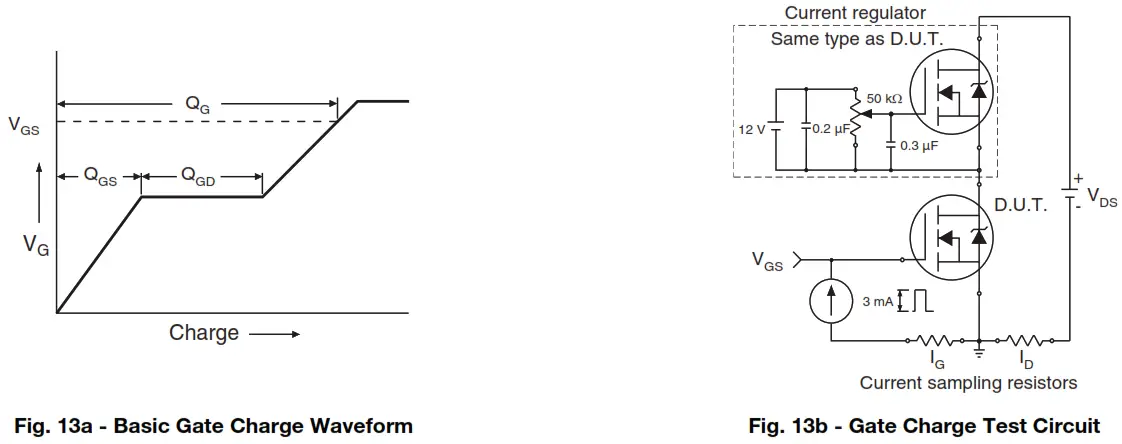

Total gate charge	09	VGS = 10 V	23 A, = DVDs 320 ID see fig. 6 a = and 13 b V,		–	210	NC
Gate-source charge	Tags				–	30
Gate-drain charge	Ow				–	110

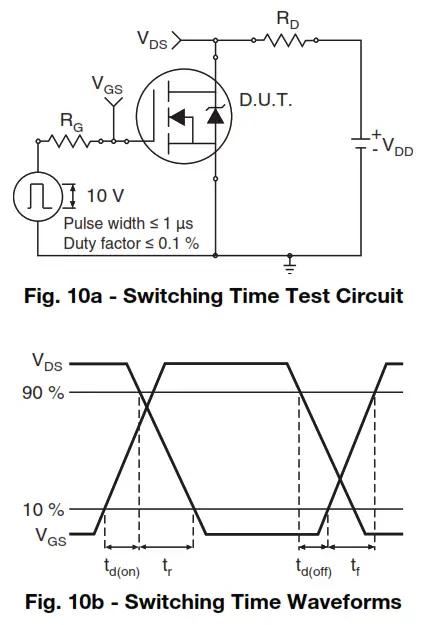

Turn-on delay time	Ltd(on)	VDD = 200 V, ID = 23 A , R9 = 4.312, RD = 8.3 Q, see fig. 10 b			18	–	ns
Rise time	t,				79	–
Turn-off delay time	td(oft)				100
Fall time	tf				67
Internal drain inductance	Lo	Between lead, 6 mm (0.251) from package and center of die contact			5.0
Internal source inductance	Ls				13	NH
Drain-Source Body Diode Characteristics
Continuous source-drain diode current	is	MOSFET symbol showing the integral reverse p – n junction diode		–		23	A
Pulsed diode forward current a	Ism				–	92
Body diode voltage	Video	Tj = 25 °C, Is = 23 A, VGs=0Vb		–	–	1.8	V
Body diode reverse recovery time	t,	Tj = 25 °C, IF = 23 A, dl/dt = 100 A/ps b		–	420	630	ns
Body diode reverse recovery charge	OFT			–	5.6	8.4	PC
Forward turn-on time	ton	Intrinsic turn-on time is negligible (turn-on is dominated by Ls and LS

Notes
a. Repetitive rating; pulse width limited by maximum junction temperature (see fig. 11)
b. Pulse width ≤ 300 μs; duty cycle ≤ 2 %

TYPICAL CHARACTERISTICS (25 °C, unless otherwise noted)

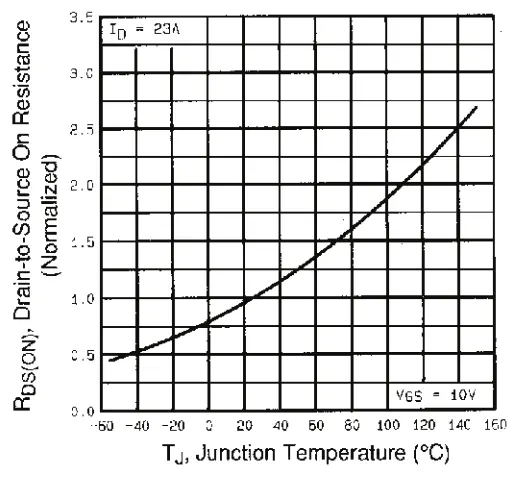

Fig. 1 – Typical Output Characteristics, TC = 25 °C	Fig. 4 – Normalized On-Resistance vs. Temperature

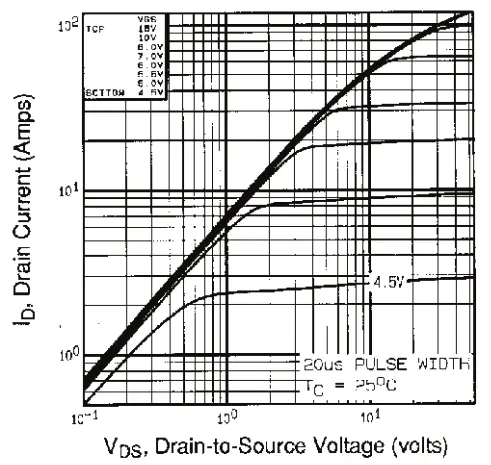

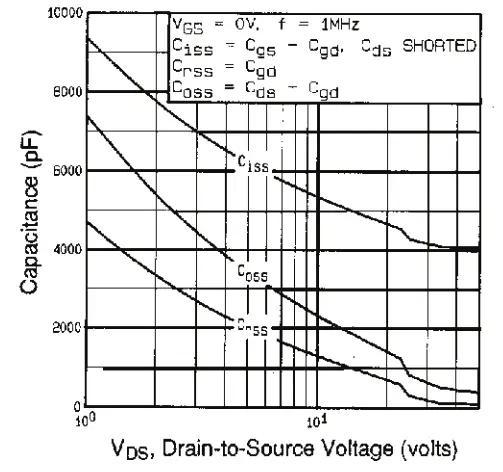

Fig. 2 – Typical Output Characteristics, TC = 150 °C	Fig. 5 – Typical Capacitance vs. Drain-to-Source Voltage

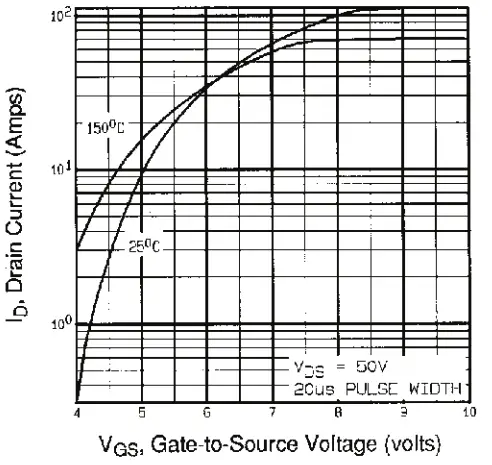

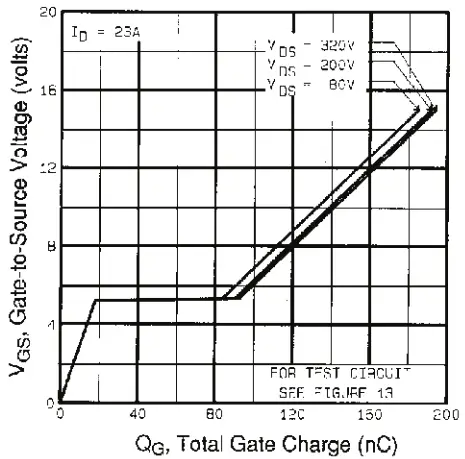

Fig. 3 – Typical Transfer Characteristics	Fig. 6 – Typical Gate Charge vs. Gate-to-Source Voltage

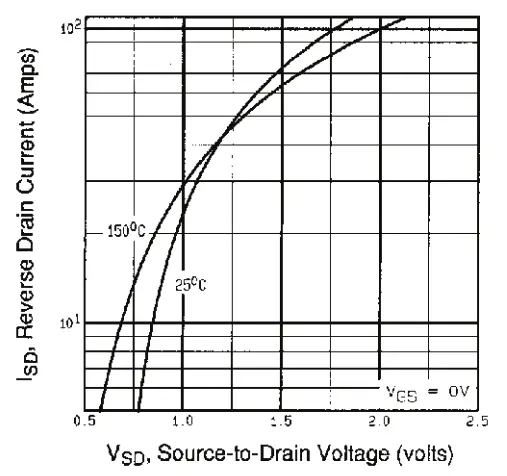

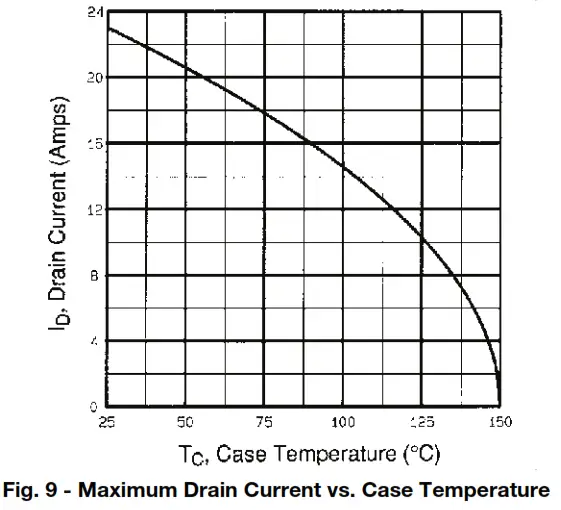

Fig. 7 – Typical Source-Drain Diode Forward Voltage	Fig. 9 – Maximum Drain Current vs. Case Temperature

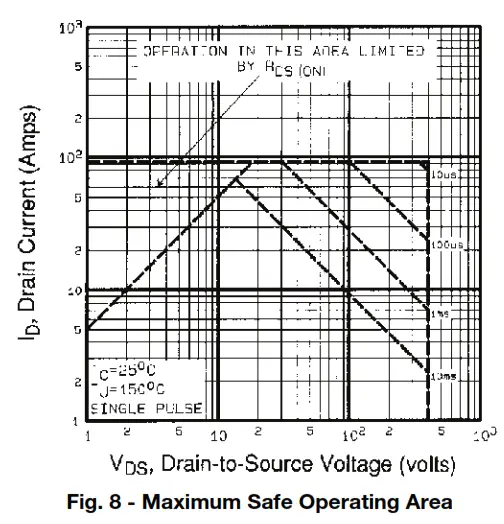

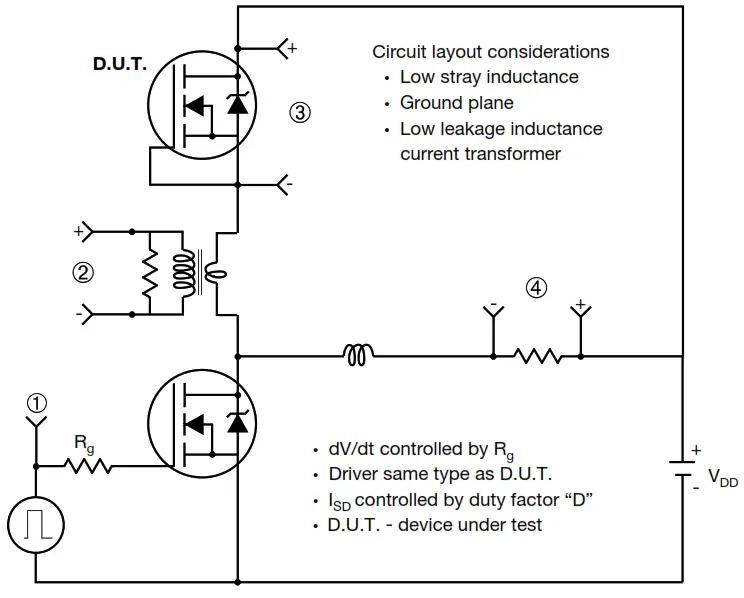

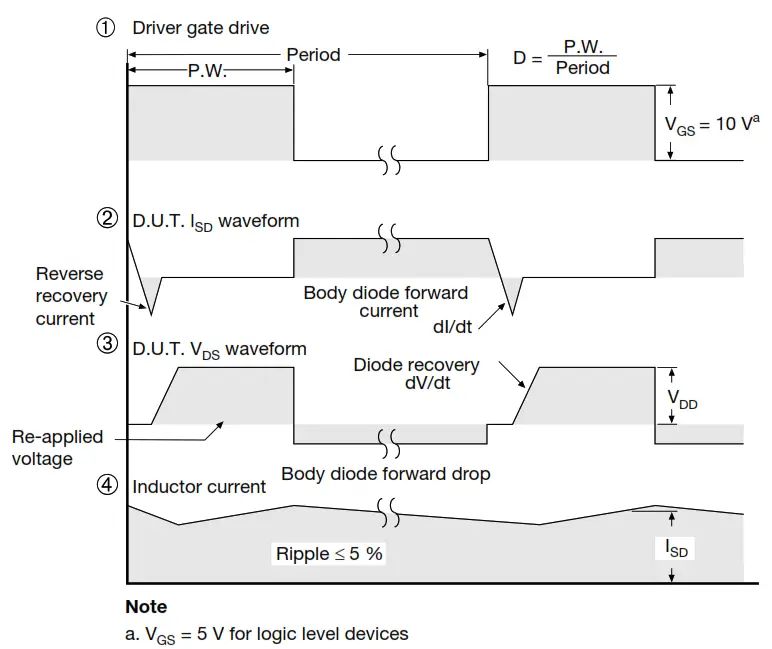

     Fig. 14 – For N-Channel

Vishay Siliconix maintains worldwide manufacturing capability. Products may be manufactured at one of several qualified locations. Reliability data for Silicon Technology and Package Reliability represent a composite of all qualified locations. For related documents such as package/tape drawings, part marking, and reliability data, see www.vishay.com/ppg?90292.

Package Information

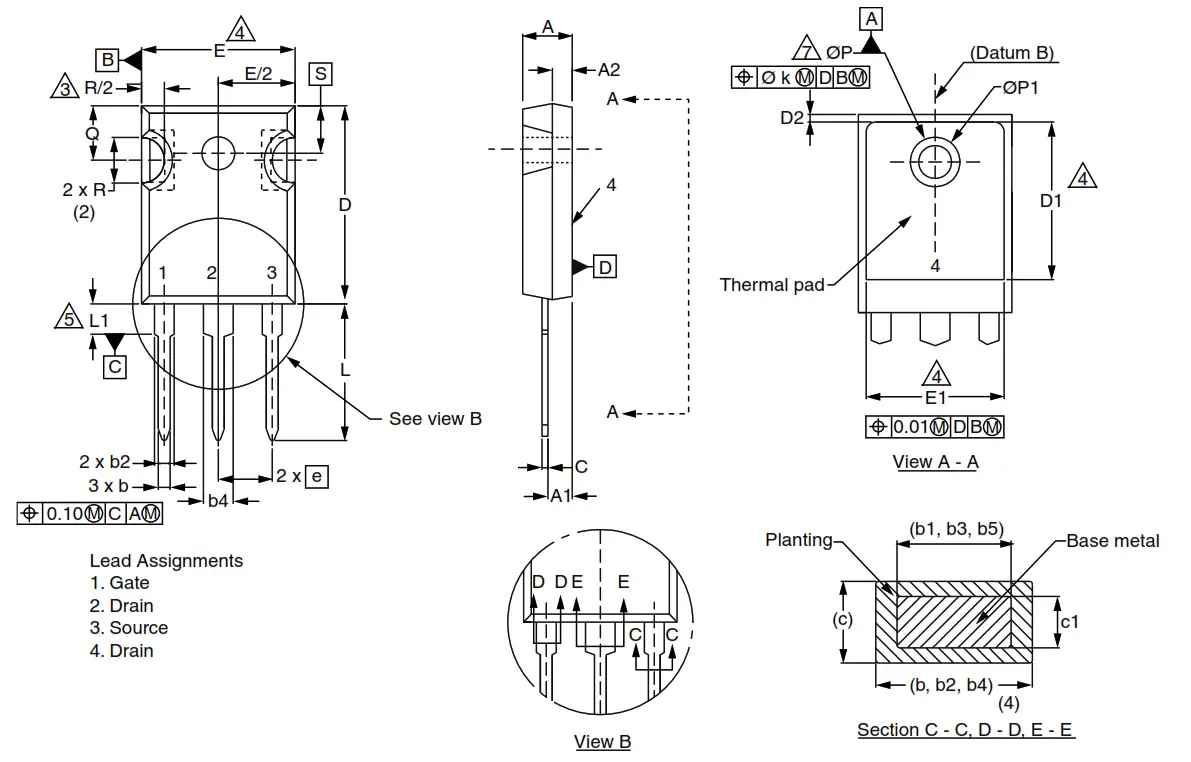

TO-247AC (High Voltage)

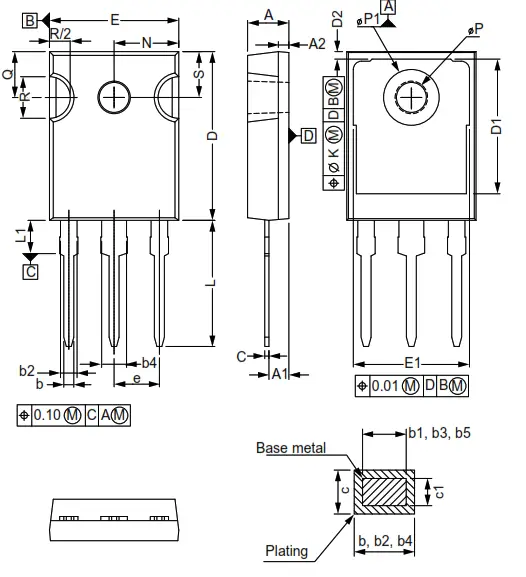

VERSION 1: FACILITY CODE = 9

Notes
(1) Package reference: JEDEC ® TO247, variation AC
(2) All dimensions are in mm
(3) Slot required, notch may be rounded
(4) Dimensions D and E do not include mold flash. Mold flash shall not exceed 0.127 mm per side. These dimensions are measured at the outermost extremes of the plastic body
(5) Thermal pad contour optional with dimensions D1 and E1
(6) Lead finish uncontrolled in L1
(7) Ø P to have a maximum draft angle of 1.5° to the top of the part with a maximum hole diameter of 3.91 mm
(8) Dimension b2 and b4 do not include dambar protrusion. Allowable dambar protrusion shall be 0.1 mm total in excess of b2 and b4 dimension at the maximum material condition

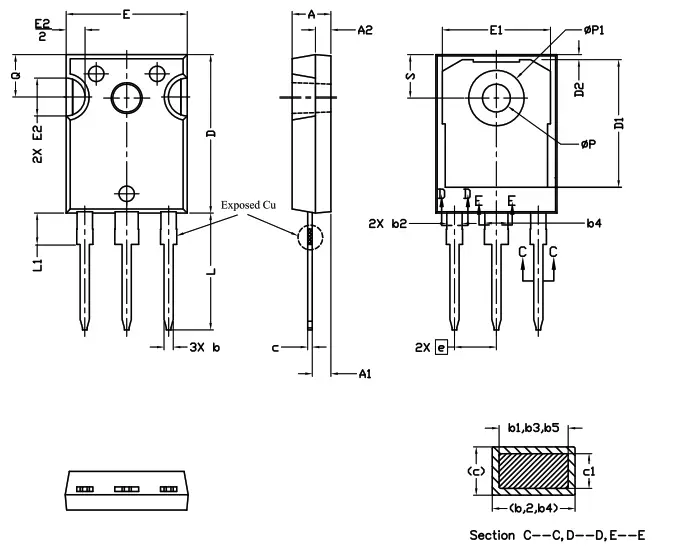

VERSION 2: FACILITY CODE = Y

Notes
(1) Dimensioning and tolerancing per ASME Y14.5M-1994
(2) The contour of slot optional
(3) Dimensions D and E do not include mold flash. Mold flash shall not exceed 0.127 mm (0.005″) per side. These dimensions are measured at the outermost extremes of the plastic body
(4) Thermal pad contour optional with dimensions D1 and E1
(5) Lead finish uncontrolled in L1
(6) Ø P to have a maximum draft angle of 1.5 to the top of the part with a maximum hole diameter of 3.91 mm (0.154″)
(7) Outline conforms to JEDEC outline TO-247 with exception of dimension c

VERSION 3: FACILITY CODE = N

Notes
(1) Dimensioning and tolerancing per ASME Y14.5M-1994
(2) The contour of slot optional
(3) Dimensions D and E do not include mold flash. Mold flash shall not exceed 0.127 mm (0.005″) per side. These dimensions are measured at the outermost extremes of the plastic body
(4) Thermal pad contour optional with dimensions D1 and E1
(5) Lead finish uncontrolled in L1
(6) Ø P to have a maximum draft angle of 1.5 to the top of the part with a maximum hole diameter of 3.91 mm (0.154″)

Legal Disclaimer Notice

Disclaimer

ALL PRODUCTS, PRODUCT SPECIFICATIONS, AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN, OR OTHERWISE.
Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors,  inaccuracies, or incompleteness contained in any datasheet or in any other disclosure relating to any product.
Vishay makes no warranty, representation, or guarantee regarding the suitability of the products for any particular purpose or the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for a particular purpose, non-infringement, and merchantability.
Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase, including but not limited to the warranty expressed therein.
Hyperlinks included in this datasheet may direct users to third-party websites. These links are provided as a convenience and for informational purposes only. The inclusion of these hyperlinks does not constitute an endorsement or approval by Vishay of any of the products, services, or opinions of the corporation, organization, or individual associated with the third-party website.
Vishay disclaims any and all liability and bears no responsibility for the accuracy, legality, or content of the third-party website or for that subsequent links.
Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining applications or for any other application in which the failure of the Vishay product could result in personal injury or death.
Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.

Downloaded from Arrow.com.
Revision: 19-Oct-2020
Document Number: 91360
For technical questions, contact: [email protected]
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE.
THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS,
SET FORTH AT www.vishay.com/doc?91000
