Midiplus B084dsyxz6 Portable 88 Key Folding Electric Piano User Manual

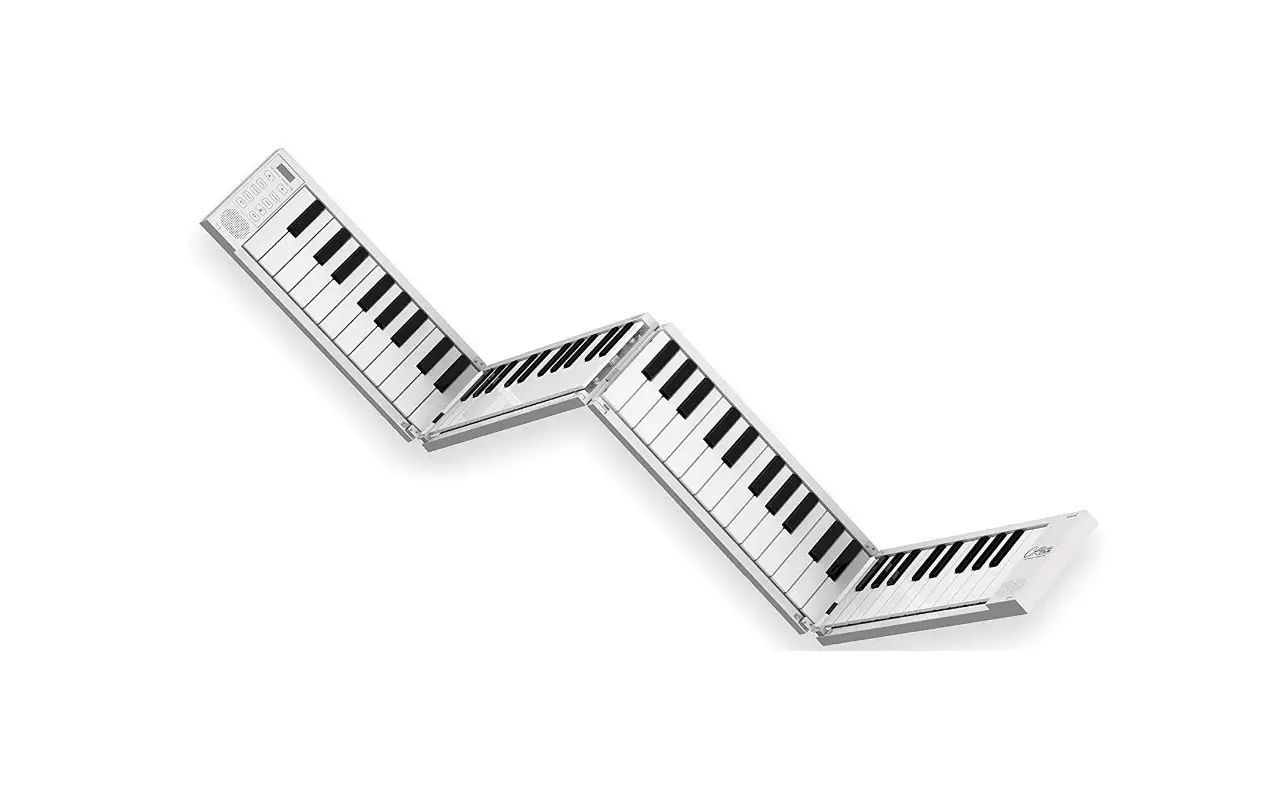

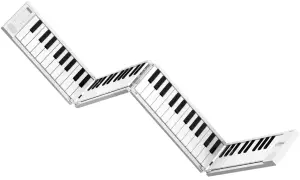

MiDiPLUS B084DSYXZ6 Portable 88 Key Folding Electric Piano

Introduction

Thank you for purchasing Folding Piano. This is a folding electronic piano, compact and portable with rich functions. Features 128 voices, 128 rhythms, 30 demo songs and metronome,you can also use Folding Piano as a MIDI input device by connect to the computer. The folding piano is an ideal tool for beginners, music educators and travelling musicians. In order to utilise the many functions of the Folding Piano, please read this manual carefully before use and keep it safe for future reference. This manual refers to both Folding Piano 88 and Folding Piano 88 Air. There is no other difference between the two instruments, apart for the BLE MIDI and the keyboard velocity sensitivity features.

Unfolding and folding instructions

How to unfold your Folding Piano

Important: Lay the piano on a flat surface before unfolding.To prevent damage, do not unfold the Piano on an uneven surface. To get understand better, 4 parts of Folding Piano express in A, B, C, D, and two hinge locks express in E and F below.

STEP 1:
Place the Folding Piano to the left of your flat playing surface, with the keys facing towards you and the wiring connector on the right side.

STEP 2:
Lift up parts C and D together, then lift up part B, move them towards the right and lay them flat as shown below.

STEP 3:
Lift up the remaining section (part D), unfold it to the right and lay flat.

STEP 4:
After unfolding all sections of the piano, to secure the Folding piano fully, you will need to lock the hinges down in place. Locate the two small white switches on each side of the hinge. Pull both switches outwards at the same time, push the hinge down into place and release the switches.

Your piano is now ready for use.

How to fold your Folding Piano

STEP 1:
Before folding the piano, pull the locks on both sides of the hinge outwards at the same time to release it (as pictured below). Repeat for each hinge.

STEP 2:
Extend the two small fold-out supports located between sections Band C. Lift part D and fold on top of part C as shown.

STEP 3:
Lift up parts C and D and fold over to part A. Your piano is now safely folded for transport or storage.

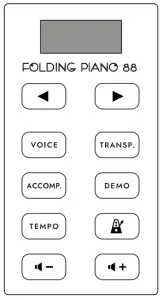

Front panel buttons

		Previous select
		Next select
		Voice select
		Transpose setting
		Accompaniment On/Off
		Demo On/Off
		Tempo setting
		Metronome On/Off
		Volume decrease
		Volume increase

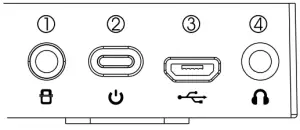

Rear panel

1. Sustain pedal socket: Used for connecting the supplied sustain pedal.
2. Power switch: Turn the piano on/off.
3. Micro USB port: Use the supplied USB cable connect to a USB power adapter ( not supplied ) to power and charge the device, or connect to a computer to transmit MIDI data.
4. Connect to the headphone or active speaker

Instructions

1. Power On/Off
   Long press [] button for 0.5s to turn on the power, long press [] button for 1.5s to turn off the power.
2. Voice selection
   Press the button to enter the Voice selection menu.Use the arrow buttons and to select the voice (see Voice table at end of Manual).
3. Transpose
   Press the button to enter the transposition menu. Use the arrow buttons and to transpose up or down. Range: -6, +6 semitones, default: 0.
4. Play Accopaniment (automatic accompaniment)
   Press the button to play the current selected rhythm. Use the arrow buttons to select the rhythm, then press any piano key from AO – F#3 (the first to 34th keys on tfieleft) to play the automatic accompaniment. Press the button again to stop the rhythm playing. Range: 1-128, default: 1.
5. Play chords with the Accompaniment
   Press the keys between AO – F#3 (the first to 34th keys on the left) when an Accompaniment is playing and the chord will synchronous to the accompaniment.To hear a major chord, press the root key, to hear a minor chord,press the root key and a black key to its left.
   For a seventh chord, press the root key and a white key to its left.For a minor-seventh chord, press the root key and a white and black key to its left.
6. Play the demo
   Press the button to play the current selected demo song. Use the arrow buttons and to select the demo song. Press the button again to stop the demo song playing.
   Range: 1-30, default: 1.
7. Adjust the tempo of Accompaniment (auto accompaniment), Demo song and Metronome Press the  button to enter the tempo adjustment menu. Use the arrow buttons and to adjust the tempo of the automatic accompaniment, Demo songs and Metronome.
   Range: 1-16 (30-180 BPM).
8. Metronome
   Press the button to turn on the metronome. Use the arrow buttons and to adjust the accent of the Metronome. Press the button again to turn off the metronome.
9. Adjust volume
   Press the   button to turn down the volume.Press the button to turn up the volume.
   Range: 0-10.
10. Use as a MIDI input device
    Use the supplied USB cable connect the Folding Piano 88 to a computer,the driver will be installed automatically while you turn on the Piano, then you can select the “FOLDING PIANO” as a MIDI input device from the MIDI Input port of DAWs.
11. Connect to your iOS devices via BLE MIDI (Only Folding Piano 88 Air)
    The BLE MIDI will always visible after you turn on the power. iOS devices can be connected through the Settings in the APP. Here is an example for the GarageBand APP, just simply go to the Settings – Advanced – Bluetooth MIDI Devices, find the “FOLDING PIANO” and connect.
12. Reset to factory settings
    Press the[] button when the power is on, while the display flashes ““, press [] button again to reset.

Charging instructions

• The Folding Piano is built-in rechargeable lithium battery, which can provide up to 2.5~3 hours of normal performance when it is fully charged.
• The Folding Piano is powered and charged via the Micro USB port and a suitable 5V connected power supply.
• When the battery power is low,the screen will blink once per second, and will turn off after 3 minutes (unless a power supply is connected).
• Continual use of the Folding Piano while the battery power is low may impair its performance and can decrease the life- span of the battery.Please connect and charge the piano with a suitable power supply immediately.
• While the Folding Piano is charging.three flashing indicators will appear at the bottom of the screen. The three indicators will stop flashing once the piano is fully charged.
• To save power.the Folding Piano will automatically turn off after 30 minutes of no operation.
• Unplug the charging cable when the Folding Piano will not be used for a long period of time or during a thunderstorm.

Warning

In order to avoid possible injury to the user or others when using the product,as well as damage to the Folding Piano or other external equipment.Precautions include but are not limited to:

• Please use dry and soft rag to wipe the Folding Piano when cleaning. Do not use paint thinners, organic solvents, detergents or other wipes soaked in aggressive chemicals so as not to discolor the panel or keyboard.
• Do not place the Folding Piano near other electrical appliances, such as TV, radio, etc., to avoid mutual interference between electrical appliances.
• Do not place the Folding Piano in a dusty, vibrating, cold or high temperature environment, so as not to damage the surface and internal components of the Folding Piano.
• Please avoid strong collision of the Folding Piano, or it may cause damage to the Folding Piano and personal injury.
• Do not place the Folding Piano on an unstable place.so as to avoid falling damage of the Folding Piano.
• Do not place heavy objects on the Folding Piano, also do not use excessive force to press the keys.
• When using the power adapter, please select the power adapter that is FCC/CE certified and content the standard requirements.
• Do not disassemble, impact, squeeze or throw the battery. If there is serious expansion, please do not continue to use it.
• Do not place the equipment into high temperature, also if the battery leak, do not continue to use it.
• Use the wrong type of battery will caused a risk of explosion. Be sure to dispose of the battery according to the instructions.
• Please avoid using this product for children under three years old.

Specifications

Voice List

Demo Song List

Accompaniment List
