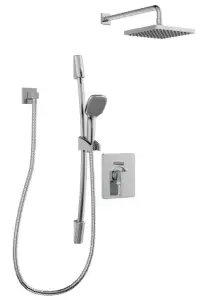

SHOWER FAUCET-COMPLETE MODEL
essentials* KIT-QUA130CCP
For warranty and to register your product Garantie et enregistrement de votre produit
belangerH20.com
Customer Service
Monday to Friday: 8 a.m.- 4:30 p.m. E.S.T.
Tel: 1400-361-5960
Fax : 1488-533-831 3
[email protected]
Replacement parts are available on order
CARE INSTRUCTIONS
Rinse the product with clear water. Dry the product with a soft cloth.
DO NOT:
Use abrasive cleaners, cloths, or paper towels. Use any cleaning agents containing acid, polish, wax, alcohol, ammonia, bleach, solvent or any other corrosive or harsh chemical cleansers.

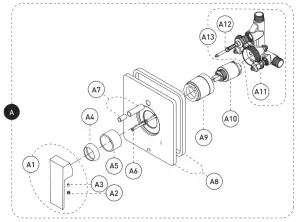

SLIDING BAR AND WATER SUPPLY ELBOW
| No | Description | Part Piece |
| A | Pressure balanced diverter valve | N/A |
| A-1 | Handle kit | FCKTS2045 |
| A-2 | Index | FCHDL4016 |
| A-3 | Allen screw | 923001 |
| A-4 | Trim Cap | FCDEC4007 |
| A-5 | Trim sleeve | FCDEC5005 |
| A-6 | Plate screw | FC94680-7A |
| A-7 | Diverter knob kit | FCKTS9014 |
| A-8 | Faceplate with seal joint | C, F DEC7054 |
| A-9 | Threaded Sleeve | N/A |
| A-10 | Ceramic cartridge | FC9AC010 |
| A-11 | Check/stop valves kit | FC9100005 |
| A-12 | Diverter | FCDIVA008 |
| A-13 | Valve | 98VSR2 |
| B | Sliding bar kit with flexible hose | B90-230 |
| B-1 | Flexible hose | 96179 |
| B-2 | Hand shower holder | B93-200 |
| C | Hand shower | FCSPS2026 |
| D | Water supply elbow | B92-003 |
| E | Shower arm and flange kit | FCDEC0004 |
| F | Showerhead | FCSPS3003 |

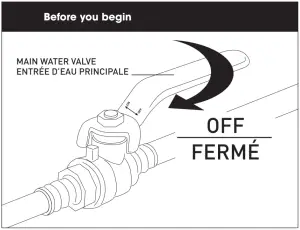

IMPORTANT
Bollinger recommends using a professional plumber for all installation and repair. Please inform yourself about the Canadian Plumbing Code’s regulations and your local municipality plumbing codes before installation. The Canadian Plumbing Code requires the installation of surge arresting devices to eliminate water hammering. ALLOW AN ADEQUATE OPENING IN ORDER TO EASILY ACCESS CONNECTIONS OR OTHER PLUMBING DEVICES FOR MAINTENANCE OR REPAIR.

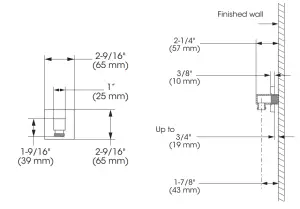

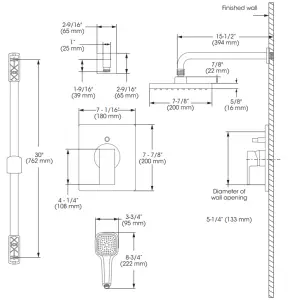

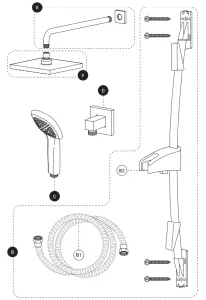

Technical drawing
RECOMMENDED TOOLS
* Apply plumber’s putty under the plastic cover deck plate to seal your installation.
** Apply Belanger thread seal tape on threaded connections.
The model shown in the installation steps may differ from the one in the box however connection type and installation steps are the same.

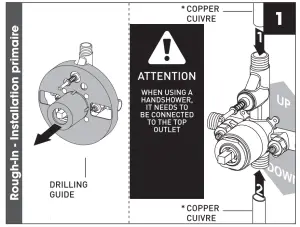

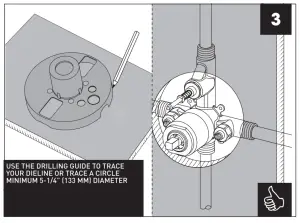

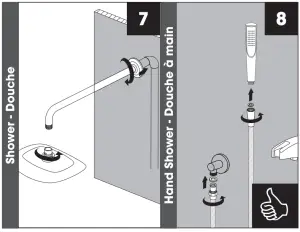

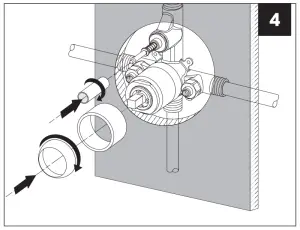

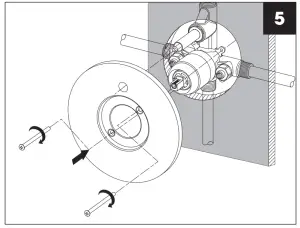

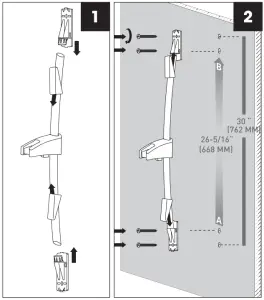

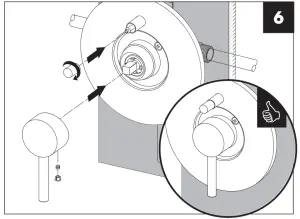

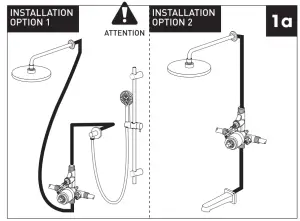

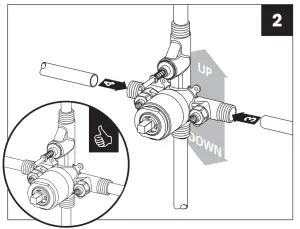

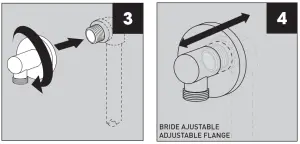

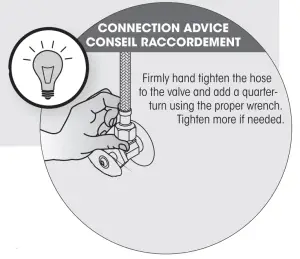

Installation steps
 |  |
 |  |
 |  |
 |  |
 | |
