ASCENT 16-T1 Summit Control Cellular Telephone Entry System

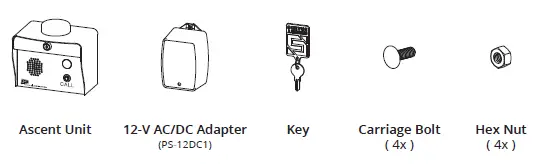

Carefully unpack box and make sure you have all items

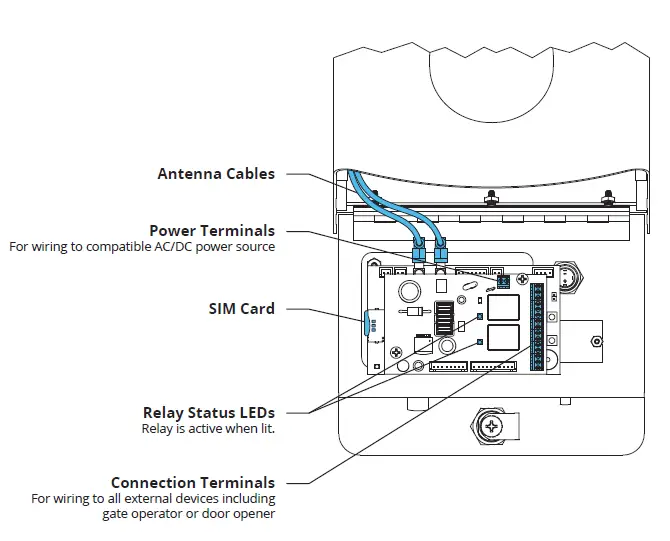

What’s what? Important components labeled
Unit shown with front panel fully open. Internal wiring not shown for clarity.
IMPORTANT!
Ascent WILL NOT WORK until the activation process is COMPLETE! Follow the Activation Guide or call Summit Control at (972) 474-6422 to activate your unit.
STOP!
This is a cellular accessory for a gate/door, so an uninterrupted cellular connection CANNOT BE GUARANTEED. An emergency egress or primary entry mechanism SHOULD ALWAYS BE USED (transmitter, fire box, mechanical release). Consult with your dealer, distributor, and/or system designer for more information.
WARNING!
AUTOMATIC GATES CAN CAUSE SERIOUS INJURY OR DEATH! ALWAYS CHECK that the GATE PATH IS CLEAR BEFORE OPERATING! REVERSING or other SAFETY DEVICES SHOULD ALWAYS BE USED!
2 Unlock and open front panel
CAUTION!
Please use all four screws when mounting unit to pedestal. Leave “hockey puck” antenna in place, even if using extension. Seal any holes or gaps created in unit enclosure. Failure to follow instructions can damage unit!
QUICK START GUIDE
STOP!

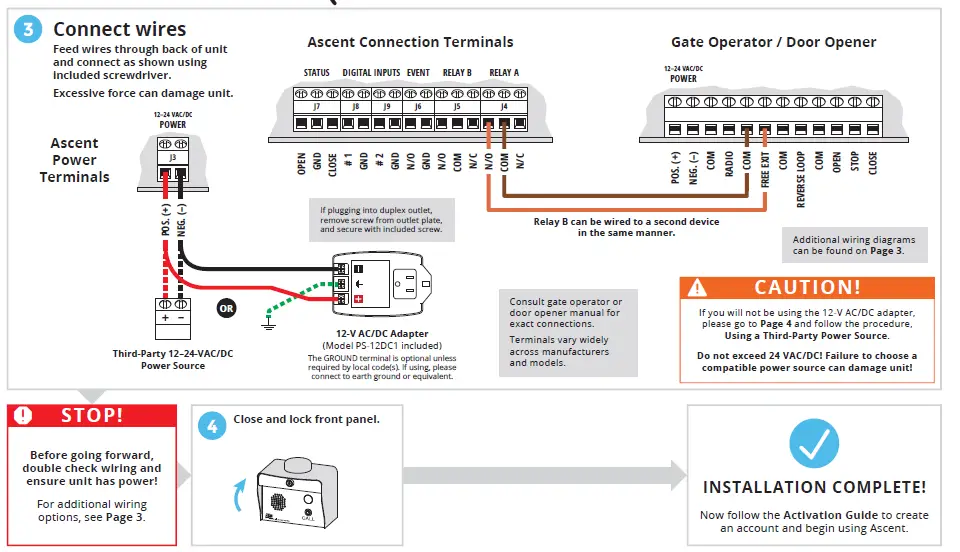

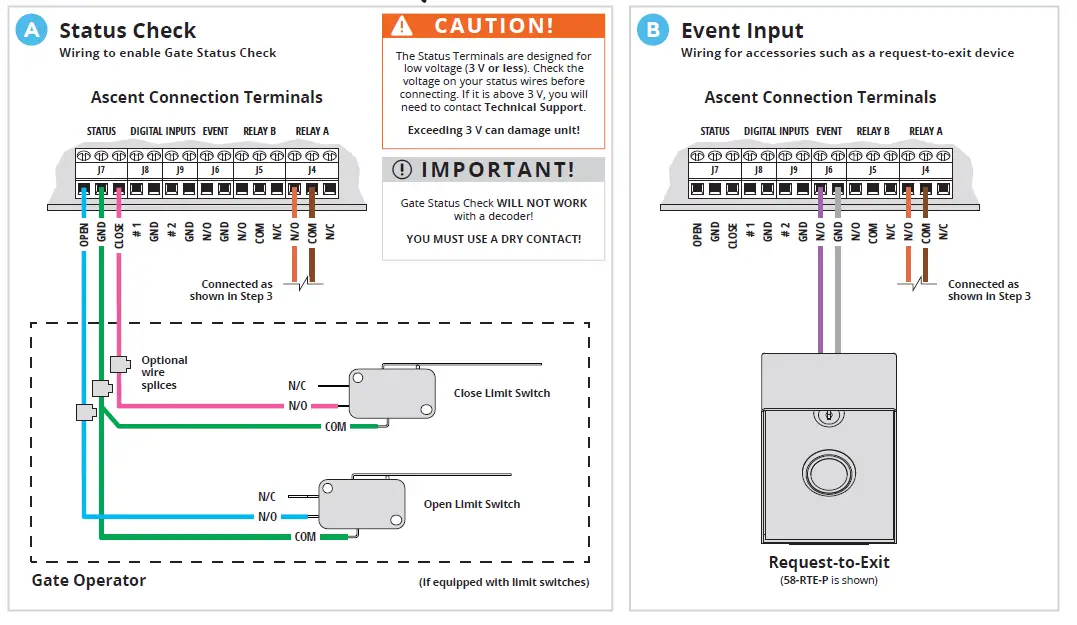

Before going forward, double check wiring and ensure unit has power! For additional wiring options,
4 Close and lock front panel
INSTALLATION COMPLETE
Now follow the Activation Guide to create an account and begin using Ascent.
IMPORTANT
If you would like to use a third-party power source, such as solar, verify that it conforms to the following specs
Input
12–24 VAC/DC no more than 10% beyond this range
Current Draw
less than 260 mA @ 12 VDC less than 160 mA @ 24 VDC
Connect wires to your power source, making sure you connect positive to positive and negative to negative.
CAUTION
Double check that you’ve wired from positive on Ascent to positive on your power source and negative on Ascent to negative on your power source. Reverse polarity can damage unit!
IMPORTANT
We recommend mounting Ascent inside the gate operator or other weatherproof enclosure when possible. If mounting inside a metal enclosure, the 4G LTE Antenna Extension Kit (p/n 16-ANTX-1) should be purchased and installed.Failure to do so may result in no signal!
Call (972) 474-6422 Email [email protected] We are available Mon–Fri / 8am–5pm Central
