one LIGHT 20030 12-24V Constant Voltage Wireless Dimmer Instruction Manual
RECEIVER SPECS
Voltage input: 12-24V DC
Max output: 3Ch x 3A
Max output power: 36W/ch@12V / 72W/ch®24V
Working temp: -30-55°C
Dimensions: L135*W30*H20 (mm)
Weight: 47g (N.W)

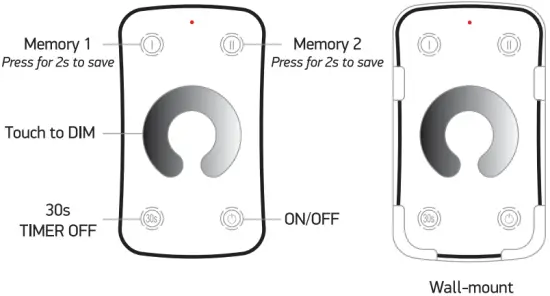

REMOTE SPECS
Working voltage: 3V (battery CR2032)
Working frequency: 433.92MHz
Operating range: 40-50m
Working temp: -20-55°C
Dimensions: L104*W58*H9 (mm)
Holder dimensions: L108*W63*H14 (mm)
Weight: 42g (N.W)
SLEEP MODE
The remote will enter sleep mode after 30s of inactivity. Press any key to exit sleep mode.

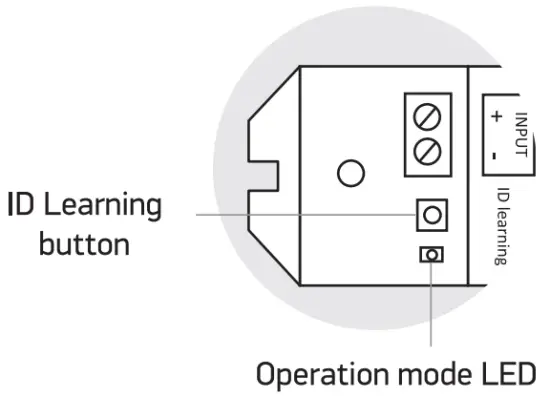

LEARNING ID
- Short press ID learning button on receiver.
- Operation mode LED is on.
- Press any key on the remote.
- Operation mode LED flashes to confirm pairing.
Note: The remote has been paired with the receiver before shipment.
CANCELLING ID:
To delete ID, press ID learning button on receiver for more than 5s. This will delete all paired remote controllers.

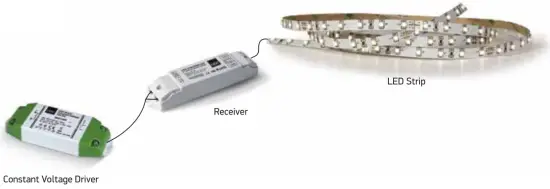

WIRING DIAGRAM
NOTE: All channels are behaving in exactly the same dimming manner.
Warnings:
- Make sure that the product is installed properly before connecting to electricity.
- Do not cover the fitting.
- Maintenance and installation should only be carried out by a professional electrician.
www.1-light.eu
