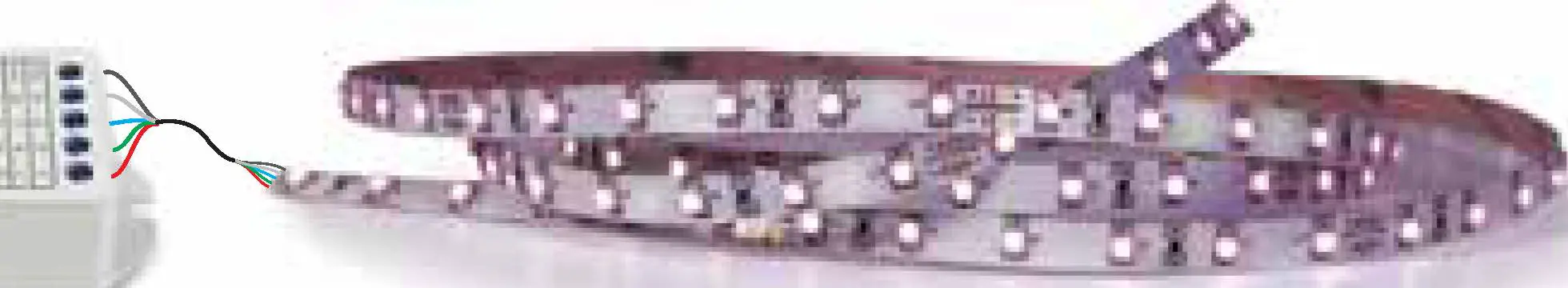

one LIGHT 20036 12-24V RGB+W Wireless Controller and Dimmer
RECEIVER SPECIFICATION
- Voltage input: 12~24V DC
- Max output: 4Ch x 3A
- Max output power: 36W/ch@12V / 72W/ch@24V Working temp: -30~55°C
- Dimensions: L 125*W33*H20 (mm)
Weight: 60g (N.W)
REMOTE SPECIFICATION
- Working voltage: 3V (battery CR2032) Working frequency: 433.92MHz
- Operating range: 40~50m
- Working temp: -20~55°C
- Dimensions: L 104*W58*H9 (mm)
- Holder dimensions: L 108*W63*H14 (mm) Weight: 42g (N.W)
SLEEP MODE
The remote will enter sleep mode after 30s of inactivity. Press any key to exit sleep mode.

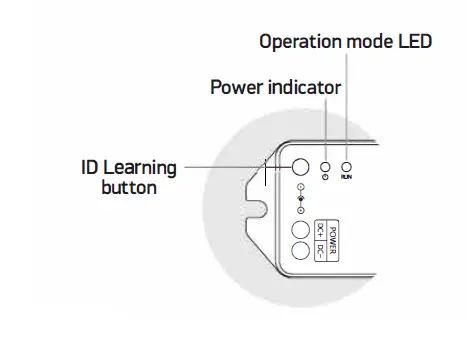

LEARNING ID
1) Short press ID learning button on receiver.
2) Operation mode LED is on.
3) Press any key on the remote.
4) Operation mode LED flashes to confirm pairing.
Note: The remote has been paired with the receiver before shipment.
CANCELLING ID
To delete ID, press ID learning button for more than 5s. This will delete all paired remote controllers.

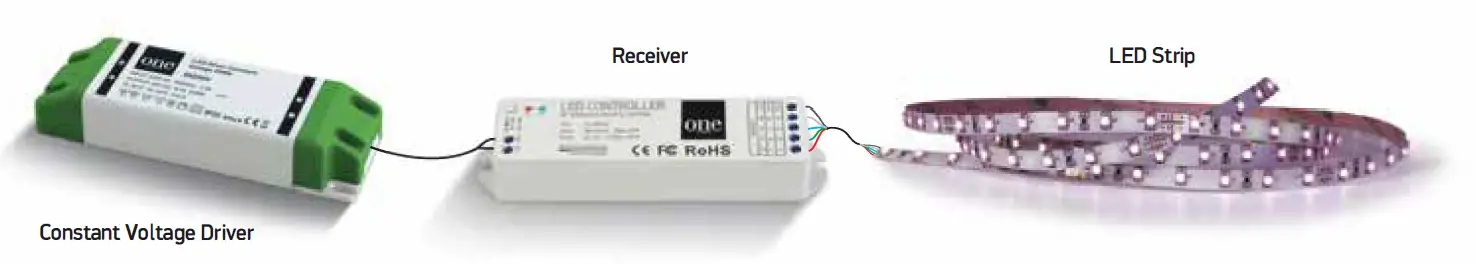

WIRING DIAGRAM

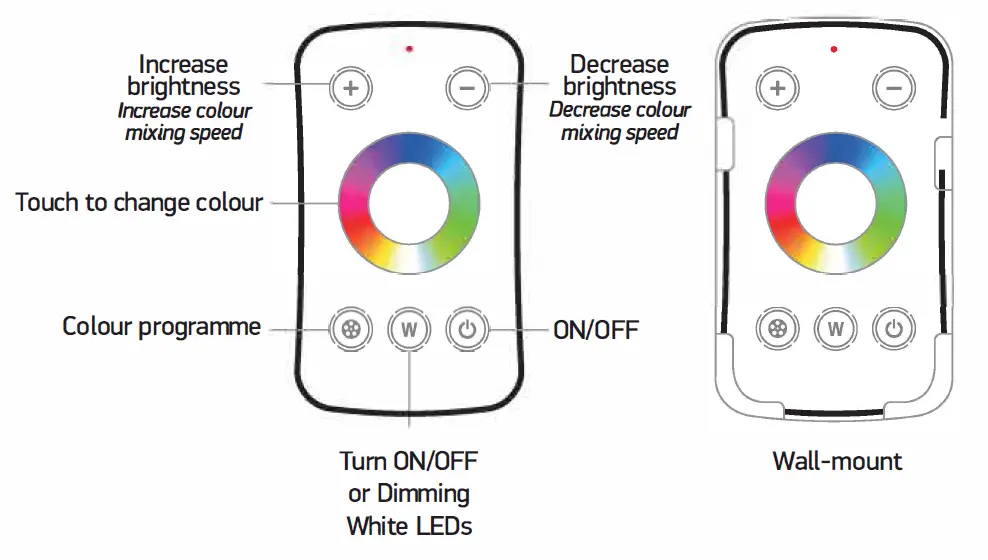

COLOUR PROGRAMME: Colour programme button provides options that include constant colours as well as colour mixing modes.
MODES
Constant colour mode: Red, Green, Blue, Yellow, Violet, Cyan, White.
RGB Skipping
7 Colors Skipping
RGB Color Smooth
Full-color Smooth
Warnings
- Make sure that the product is installed properly before connecting to electricity.
- Do not cover the fitting.
- Maintenance and installation should only be carried out by a professional electrician
