namron 3220234 Alfa Eco Downlight 8W matt hvit 8-pack

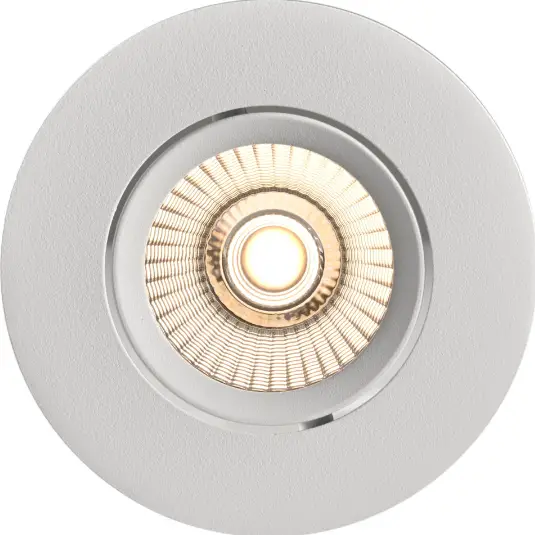

namron-3220234-Alfa-Eco-Downlight-8W-product-image

ALFA ECO DOWNLIGHT 8W 8-PACK

220-240V~50/60Hz LED 8W 180mA IP44

The downlight is dimmable all the way down completely flicker-free.
Low altitude. External driver with quick connector for faster and easier installation.
Dimmable with trailing edge dimmer.
Can be mounted direct into insulation sheet.
Easy installation. Mounting without tools.

  • Total Power: LED power:
  • Lumen chip:
  • Lumen downlight: Ra:
  • SDCM:
  • LED Chip:
  • Colour Temperature:
  • Beam Angle: 38°
  • IP Rating: Lifetime:


8W
6W
715lm 620lm
98
≤3
Luminus 2700K
Tilt: 30°
IP44
50,000 hours L90

namron-3220234-Alfa-Eco-Downlight-8W-01

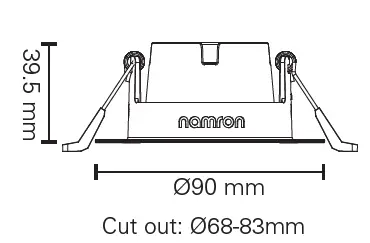

MEASURES

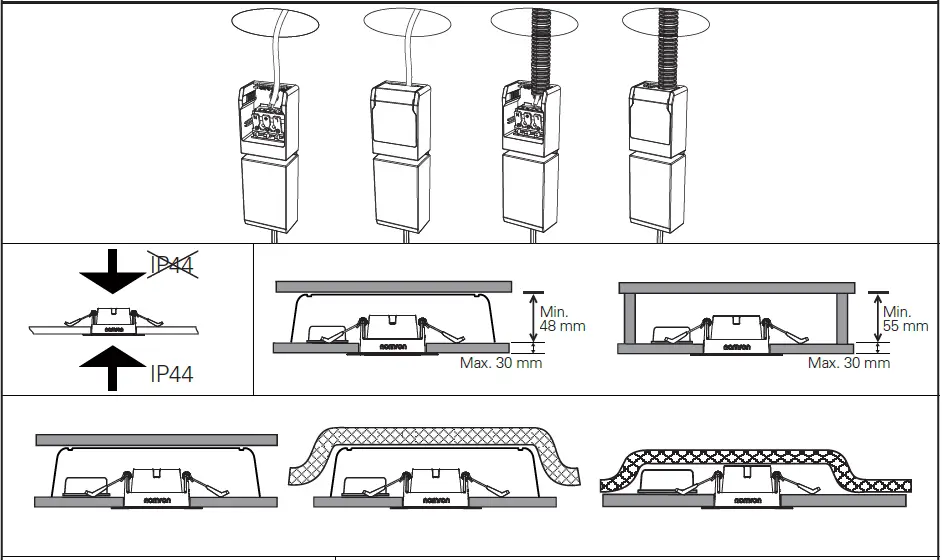

namron-3220234-Alfa-Eco-Downlight-8W-02Minimum distance to flammable material in the beam direction

namron-3220234-Alfa-Eco-Downlight-8W-03Must be installed by registered electrical company.

This product contains a light source of energy efficiency class: see table or label.

El-nrProduktEffekt(W)energieffektivitetsklasse forlys
3220234Alfa Eco Downlight 8W matt hvit 8-pack8F

Namron AS – Nedre Kalbakkvei 88B, 1081 Oslo – NORWAY
