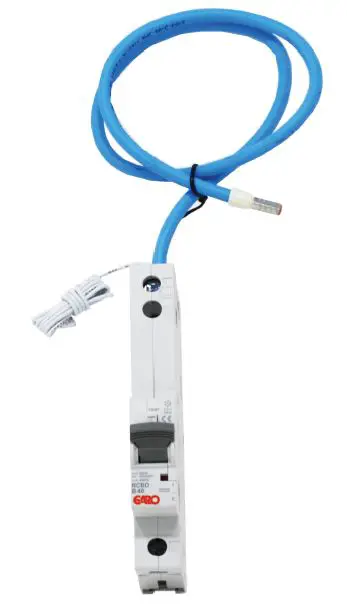

GARO RCBOLIB…R RCBO 10kA 1 Module 2-Pole B or C Characteristic
Technical data
| Rated voltage Un | 230V AC |
| Rated current In | 6 – 45A |
| Minimum supply voltage Umin | 230V |
| Rated frequency fn | 50 Hz |
| Rated short-circuit capacity | 6 kA |
| Back-up fuse | 100A gG |
| Tripping characteristic | B, C |
| Type | A |
| Rated residual current IΔn | 30, 100 mA |
| Rated residual making & breaking capacity IΔn | 6000A |
| Terminals | 1-25mm², max. 3Nm |
| Width | 18 mm |
| Standards | IEC 61009 |
Supplier
- GAROAB
- Box 203
- S-335 25GNOSJO
- Sweden
Telephone: +46 (0)370 33 28 00
Telefax: +46 (0)370 33 28 50
Supplier established within EU
instruction
Supplier of equipment: Earth leakage circuit breaker with overcurrent protection
Trade Mark: GARO
Type Designation: RCBOLI…R
We hereby declare that our product fulfils the requirements of following EC directives
- The Low Voltage Directive (LVD) 2014/35/EU
- Electromagnetic compatibility (EMC) 2004/108/EU
- RoHS Directive (RoHS) 2011/65/EU
- No electromagnetic compatibility (EMC) immunity or emission tests are required on the assembly
- The following harmonized standards (latest edition) or technical specifications which comply with good engineering practice in safety matters in force within the EU have been used in the design
- The equipment conforms completely with the above-stated harmonized standards or technical specifications.
- The equipment confirms only partially with the above-stated harmonized standards or technical specifications but complies with good practice in safety matters in force within the EU.
- We have product surveillance according to CENELEC’s harmonized requirements, and documents CCA-201.
