Connected Universal Rotary Dimmer LED

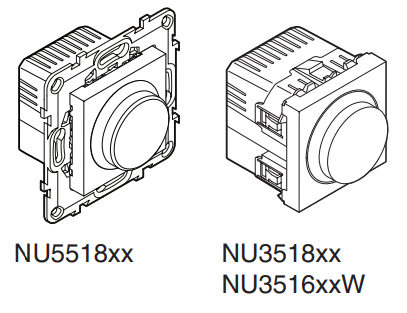

About this product
With the Connected Universal Rotary Dimmer LED (hereinafter referred to as dimmer), you can switch and dim ohmic, inductive or capacitive loads.
Control options
Direct operation: The dimmer can always be controlled directly on-site. You can also connect any number of mechanical push-buttons.
Functions

Automatic load detection
Device self-protection: Thermal protection, overload-resistant, short-circuit protection, soft start, soft stop.

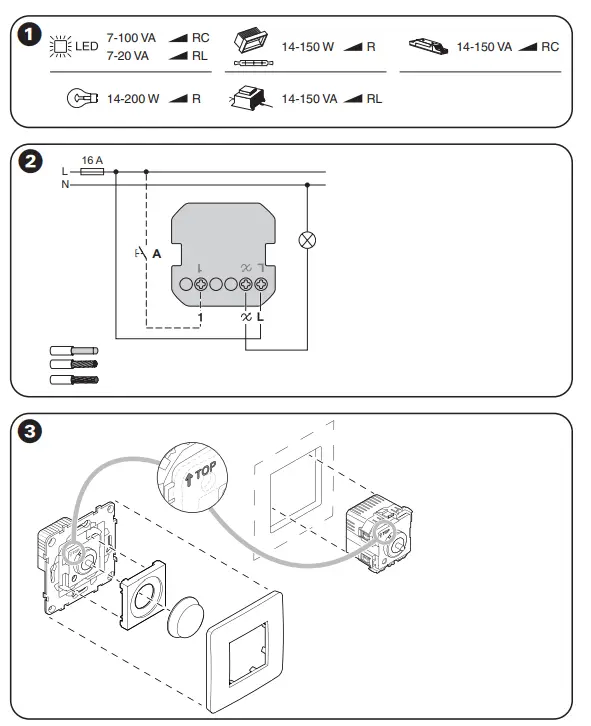

Loads
Electrical Connections

DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
Safe electrical installation must be carried out only by skilled professionals. Skilled professionals must prove profound knowledge in the following areas:

Connecting to installation networks.
Connecting several electrical devices.
Laying electric cables.
Safety standards, local wiring rules and regulations.

Failure to follow these instructions will result in death or serious injury.

DANGER
RISK OF FATAL INJURY FROM ELECTRIC SHOCK
The output may carry electrical current even when the load is switched off.
Disconnect the device from the supply by means of the fuse in the incoming circuit before working on the device.
Failure to follow these instructions will result in death or serious injury.
CAUTION
THE DEVICE MAY BE DAMAGED
Only connect dimmable loads.
Failure to follow this instruction can result in injury or equipment damage.
A Mechanical push-button at extension unit connection (optional)

Mounting

4 Reading the full device guide online
Scan the QR code and choose your language for complete information about the device, including operation, configuration and using the product with a Wiser system.

Technical data

Nominal voltage:	AC 230 V ~, 50 Hz
Nominal power:	See ! Loads
Standby:	max 0.4 W
Neutral conductor:	not required
Connecting terminals:	Screw terminals for max. 2 x 2.5 mm2, 0.5 Nm
Ambient temperature:	5 °C to 25 °C (occasional 35 °C)
Storage temperature:	-10 °C to 50 °C
Transport temperature:	-25 °C to 70 °C
Extension unit:	Single push-button, unlimited number, max. 50 m
Fuse protection:	16 A circuit breaker
Operating frequency:	2405-2480 MHz
Max. radio-frequency power transmitted:	< 10 mW
Communication protocol:	Zigbee 3.0 certified

Trademarks

Wiser™ is a trademark and the property of Schneider Electric SE, its subsidiaries and affiliated companies.
Zigbee® is a registered trademark of the Connectivi- ty Standards Alliance.
Other brands and registered trademarks are properties of their relevant owners.

EU Declaration of Conformity
Hereby, Schneider Electric Industries, declares that this product is in compliance with the essential requirements and other relevant provisions of RADIO EQUIPMENT DIRECTIVE 2014/53/EU. Declaration of conformity can be downloaded on: se.com/docs.
Schneider Electric Industries SAS
If you have technical questions, please contact the Customer Care Centre in your country. se.com/contact

NNZ42626-01 01/22
