UNYKA PRO UK56009 Thermal Printer
Description
The new POS5 thermal printer is an advanced solution for printing tickets and receipts with partial cut. Thanks to its USB, RJ12, RJ11 and LAN connections, this printer is fully compatible and can be used without complicated installations. It is compatible with the main operating systems on the market, such as Windows, JPOS, OPOS, Linux, Android and Mac, as well as applications developed for them. In addition, its compact design makes it perfect for the retail sector, being ideal for businesses such as hospitality, hairdressers, clothing stores, bakeries, supermarkets, bookstores, among others.

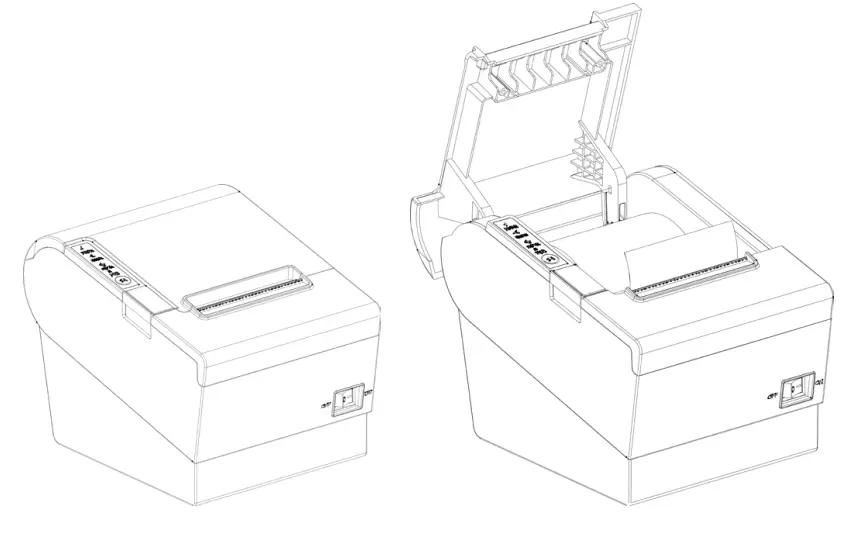

Scheme
The POS5 uses standard 80mm wide thermal paper, requires no cartridges and allows barcode and logo printing for professional document presentation. With the POS5 thermal printer, the process of printing receipts and tickets is fast, simple and efficient.

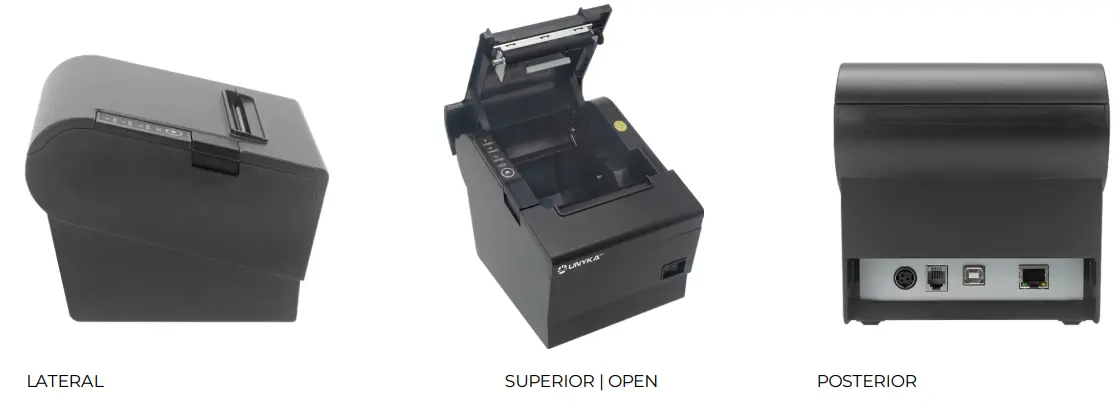

Gallery
TECHNICAL SPECIFICATIONS | Thermal Printer POS5
| DIMENSIONS | 194 (L)x 145 (W) x 146 (H) mm |
| WEIGHT | 1 kg |
| COLOUR | Black |
| MATERIAL | Metal / Plastic |
| POWER SUPPLY | INPOUT: AC 100-240V / 50-60HZ – OUTPUT: DC 24V/2.5A |
| CONNECTOR | USB / RJ12 / RJ11 / LAN |
| PRINT METHOD | Hot line printing |
| PRINT SPEED | 230mm / sg ± 10% |
| PAPER TYPE / PAPER WIDTH | Receipt 80 mm |
| PAPER FORMAT / ROLL DIAMETER | 72 mm / 64 mm / 52 mm / 48 mm |
| SIZE OF THE LETTER | A: 1,5 x 5,0 mm / B: 1,1 x 2,1 mm |
| CHARACTERS PER INCH | A: 12 x 24 cpp / B: 9 x 17 cpp |
| POINT DENSITY | 576 ppp / line (adjustable) |
| TYPES OF BARCODES | UPC-A / UPC-E / JAN13(EAN15) / JAN8(EAN8) / CODE59 / ITF / CODABAR / CODE93 / CODE128 2D Barcode QRCODE / PDF417 |
| CUTTING UNIT | Partial |
| PRINT COMMANDS | ESC / POS compatible |
| LINE DISTANCE | 3.75mm (adjustable) |
| COLUMN NUMBER | 80 mm Paper A – 42 columns o 48 columns B – 56 columns o 64 columns Chino, Chino Tradicional: 21 columns o 24 columns |
| CHARACTERS | PC347(Standard Europe) / Katakana / PC850(Multilingual) / PC860(Portuguese) / PC863(Canadian-French) / PC865(Nordic) / West Europe / Greek / Hebrew / East Europe / lran / WPC1252 / PC866(Cyrillic#2) / PC852(Latin2) / Pc858 / Iranll / Latvian / Arabic / PT151(1251) |
*All specifications and features, as well as color and software versions, may subject to manufacturing changes.
*The availability of the products may vary according to the market. Consult your supplier for promotions and special offers.
*All brands are registered according to the law
TECHNICAL SPECIFICATIONS | Thermal Printer POS5
| PRINTER INPUT | DC 24V / 2.5 A |
| CASH DRAWERS | DC 24V / 1 A |
| CACHE | 128 Kbytes |
| NV MEMORY | 256 Kbytes |
| LIFESPAN | Cutting mechanism: 1.5 million cuts / Printer head: 150 km |
| COMPATIBILITY | Windows / JPOS / OPOS / Linux / Android / Mac |
| TEST UTILITY | Windows / Linux |
| SDK | IOS / Android / Windows |
PACKAGING
| DIMENSIONS | 284 (L) x 170 (W) x 180 (H) mm |
| WEIGHT | 1,65 kg |
| CUBIC CAPACITY | 0,0086 m3 |
| COLOUR | Brown |
| MATERIAL | Paperboard |
| PACKAGE CONTENTS | Printer / Manual / Drivers / Power Adapter / Cables |
| CERTIFICATIONS | CE / ROSH |
