WSSFC-ULC Sigfox-Ready Ultrasonic Level Sensor
User Manual

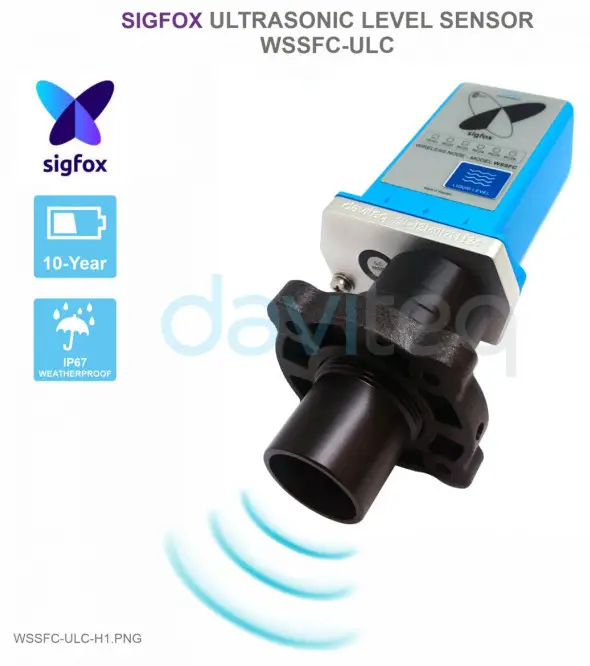

WSSFC-ULC Sigfox-Ready Ultrasonic Level Sensor
WSSFC-ULC is a Sigfox-Ready Ultrasonic Level Sensor to measure the level of liquid surface of water, oil… This level sensor utilises the ultrasonic technology to measure the surface of liquid, the principle is to measure the time of flight of the ultrasound pulse in the air environment. The ultrasound pulse will be ejected from ultrasonic transducer, go thru the air and reaching the surface of liquid, then reflected back to the ultrasonic transducer, the measuring circuit will measure the time of flight of the Pulse then calculate the distance from transducer to the surface. With Ultra-low Power design and smart firmware allow the sensor can last up to 10 years with 02 x AA-type batteries (depends on configuration). WSSFCULC can support all regions of Sigfox network in over the World, RC1, RC2, RC4.
SIGFOX READY
Device are best operating performance on the SIGFOX network” 10 YEAR BATTERY
Ultra-low power sensing technology from Daviteq with Ultralow power wireless technology allow the sensor can last up to 10 years with 02 x AA-Type batteries. HIGH ACCURACY & STABLE
Advanced ultrasonic sensor with digital signal processing to deliver high accuracy and stable measurement of level or distance for liquid or solid surface OUTDOOR & EASY CLEANING
IP68 design for both Indoor and Outdoor applications and easy cleaning
SPECIFICATION
SENSORS SPECIFICATION:
| Sensor | Ultrasonic sensor |
| Measurement range | 280 .. 7500 mm |
| Resolution | ±5.0mm |
| Accuracy | ±10 mm + S*0.3% (with S is the measured value) |
| Sensor sampling rate | configurable from 10s up to 3600s |
| Alarm setting | setting the alarm threshold for calculated value |
| Sigfox SPECIFICATION: | |
| Sigfox zones | select RC2-RC4 or RC1 |
| Antenna | Gain 2dbi |
| Battery | 02 x AA Type 1.5VDC, working time up to 10 years (depends on configuration) |
| RF Module complies to | CE, FCC, ARIB |

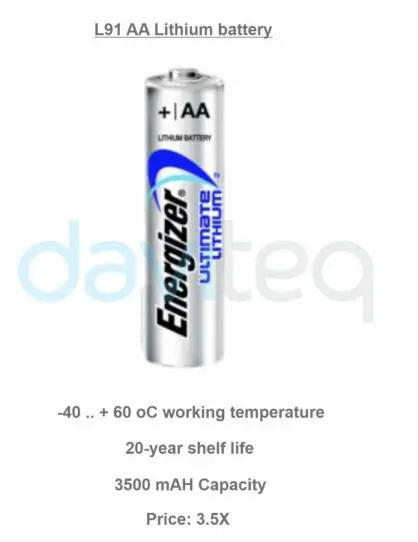

| Working temperature | -40°C..+60°C (with AA L91 Energizer) |

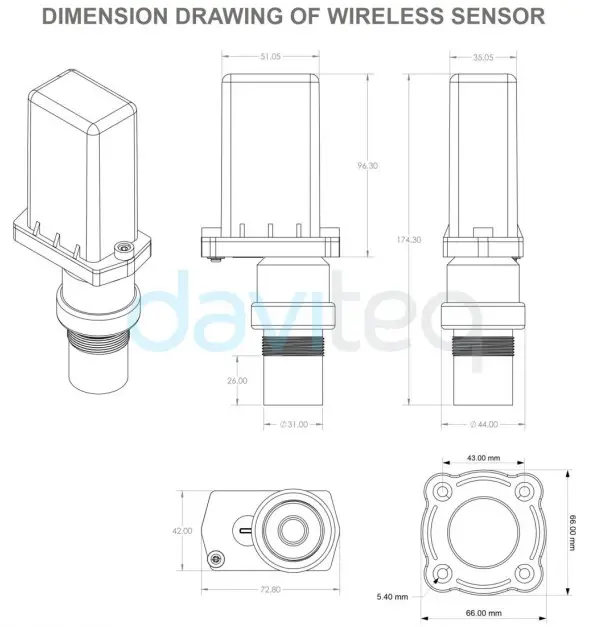

| Dimensions | H180xW50xD40 |
| Net-weight | 250 grams |
| Housing | Polycarbonate & POM plastic, IP68 |
 |  |
 |  |
 |  |
ORDERING INFORMATION
| ITEM CODE | DESCRIPTIONS |
| WSSFC-ULC-9-01 | Sigfox-Ready Ultrasonic Level Sensor for General Level/Distance Measurement, 30-600CMS, Internal antenna, Type AA battery 1.5VDC, IP68, RC2-RC4 zones |
| WSSFC-ULC-8-01 | Sigfox-Ready Ultrasonic Level Sensor for General Level/Distance Measurement, 30-600CMS, Internal antenna, Type AA battery 1.5VDC, IP68, RC1 zones |
DAVITEQ TECHNOLOGIES INC
No.11 Street 2G, Nam Hung Vuong Res., An Lac Ward, Binh Tan Dist., Ho Chi Minh City, Vietnam
+84.28.6268.2523 / 6268.2524
[email protected]
www.daviteq.com
OCT-2021 | Doc No: WSSFC-ULC-DS-EN-10
