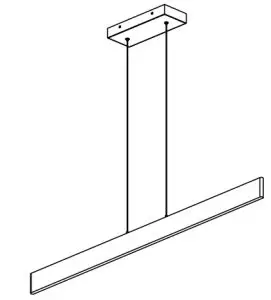

Secure Holm Pendant 24896ledd Installation Guide (+ PDF)

Before assembling your ACCESS LIGHTING fixture, please make sure that you carefully read through this instruction sheet. Save this instruction sheet and refer to it when additions to or changes in the fixture configuration are made.

CONSULT A QUALIFIED ELECTRICIAN TO ENSURE THE CORRECT BRANCH CIRCUIT CONDUCTOR.
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE
INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
NOTE: The important safeguards and instructions that appear in this manual are not meant to cover all possible conditions and situations that may occur. It must be understood that common sense, caution, and care, are factors that can’t be built into any product. These factors must be supplied by the person(s) caring for and operating the fixture.
Read all instructions
Do not install this fixture in hazardous locations.
Do not install any fixture assembly closer than 6 inches from any curtain or similar combustible material.
“WARNING Risk of Fire and Electric Shock.”

GENERAL INFORMATION

All electrical connections must be in accordance with all ordinances, Local and the U.S. National Electrical Codes (NEC). These fixtures are intended for mounting to a standard 4” metal octagon outlet box. The box must be directly supported by the building structure and U.L. Recognized.

STEP BY STEP INSTRUCTIONS

Before starting your installation disconnect the Power by turning off the Circuit Breaker or by removing the fuse at the fuse box. Just turning the light off at the light switch is not sufficient to prevent electrical shock.

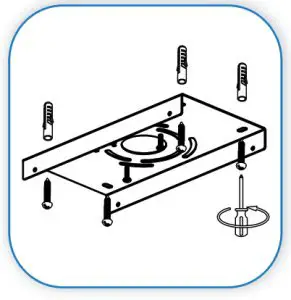

ATTACH MOUNTING BRACKET

If there is an existing fixture remove it.
Position the mounting bracket into the J-box and secure with the supplied screws.

MAKE WIRE CONNECTION AND MOUNT THE CANOPY

Expose the supply wires from the J-box. Gently pull the supply wires through the hole in the mounting bracket. Connect the black supply wire to the black fixture wire. Secure with the supplied wire nuts. Connect the white supply wire to the white fixture wire. Secure with the supplied wire nuts. Attach the green J-Box wire around green hexagonal head screw or connect it to the green supply grounding wire of the fixture. Secure all wires with electrical tape (not supplied).
Tuck all wires carefully into the J-Box.

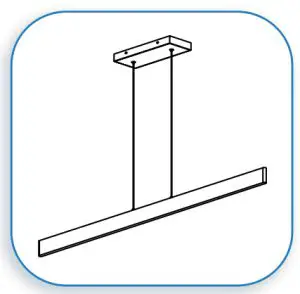

Align the fixture canopy up to the mounting bracket. Align the holes of the canopy and mounting bracket. Secure with the supplied screws.

RESTORE THE ELECTRICITY AND CHECK THE OPERATION OF YOUR NEW ACCESS LIGHTING FIXTURE

CAUTION
If the fixture is to be removed or replaced, please ensure that the electricity is switched off and that the fitting is cool before touching it.
