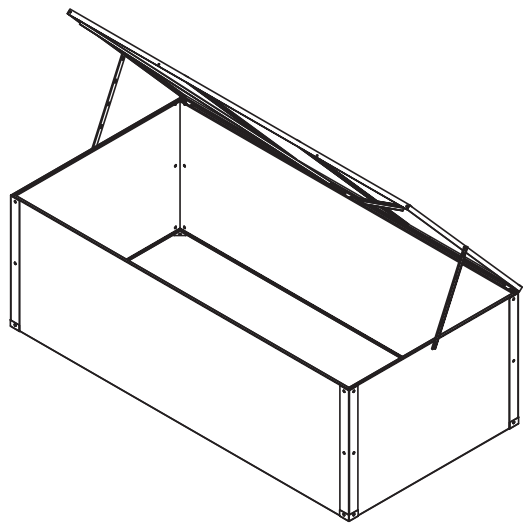

G21 Hotbed GZ11 XL

Thank you for purchasing our product.

Before using this unit, please read this manual.

Assembly instructions:

Prior to the assembly please read all instructions and information carefully. The hotbed has to be anchored to its base in order to prevent damage. The base is not included in the delivery and it has to be built separately.
Check whether you have all parts which are necessary for the assembly.
Please mind your own safety.

1. 2-3 persons are required for the assembly of this hotbed.
2. Use protective clothing and gloves as some parts might be sharp.
3. During the assembly no children or pets should be present in the working area.
4. Do not stand on the roof with all your weight.
5. For better strength and durability we recommend to seal the transition between construction and polycarbonate with silicone (silicone is not part of the delivery).

Care and maintenance:

1. Clean the hotbed using cloth and water
2. In case of snowfall remove the snow from the roof regularly.

Notes:

1. Remove approximately 5 cm of film from all sheet edges before installing. Remove all film immediately after the constructions completed.
2. The UV-protected side of the sheet is covered with opal white film and must face towards the sun.

On bottom side, don‘t tighten bolts and nuts until polycarbonate panels were inserted into aluminium channel totally.

The English version of the manual is an exact translation of the original manufacturer‘s instructions.
Images used in this manual are for illustrational purposes only and may differ from the actual product.

Tools you will need

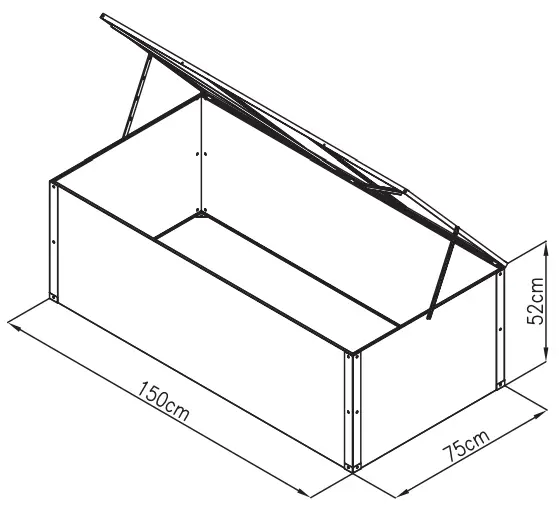

Dimensions

Parts list

Nh-1a		746mm	x2		Nh-11			x3
Nh-2a		1492mm	x1		Nh-12		ST4x10	x4
Nh-3a		1492mm	x1		Nh-13		ST4x10	x12
Nh-4a		498mm	x4		Nh-13a		ST4x14	x2
Nh-5			x4		Nh-14		ST4x12	x2
Nh-6		1499mm	x1		Nh-15		M4	x4
Nh-6a		1499mm	x1		Nh-16		ST5.5×40	x4
Nh-7		749mm	x2		Nh-17		M6x10	x24
Nh-8		720.5mm	x2		Nh-18		M6x10	x10
Nh-9		980mm	x2		Nh-19		749×488.5mm	x3
Nh-10		350mm	x2

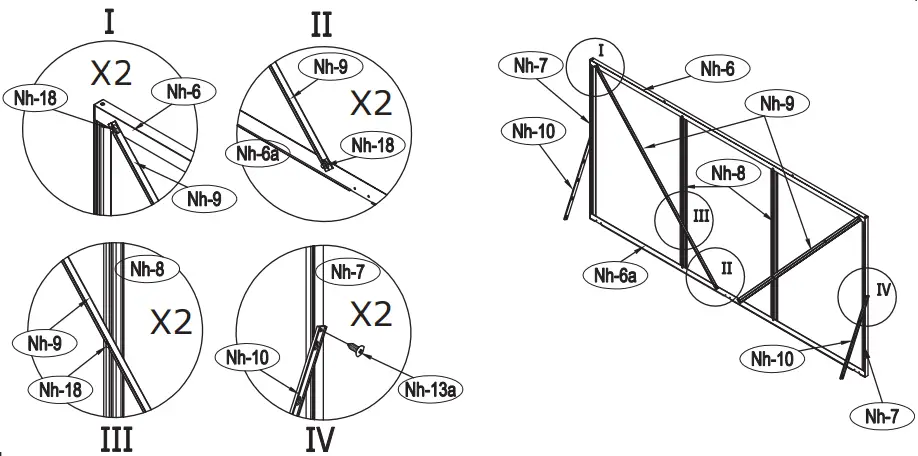

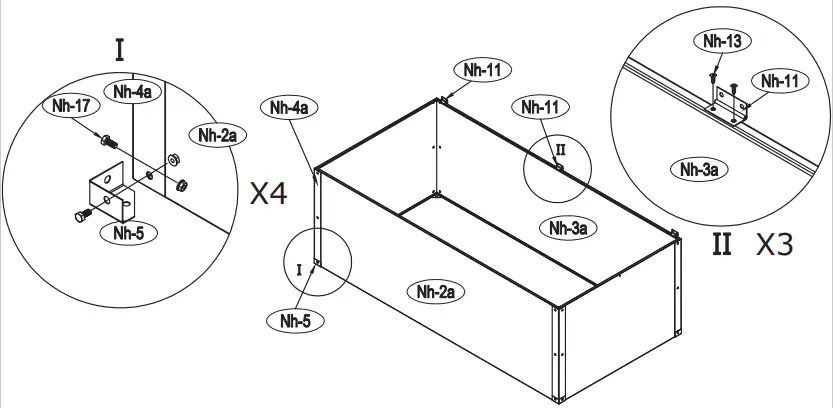

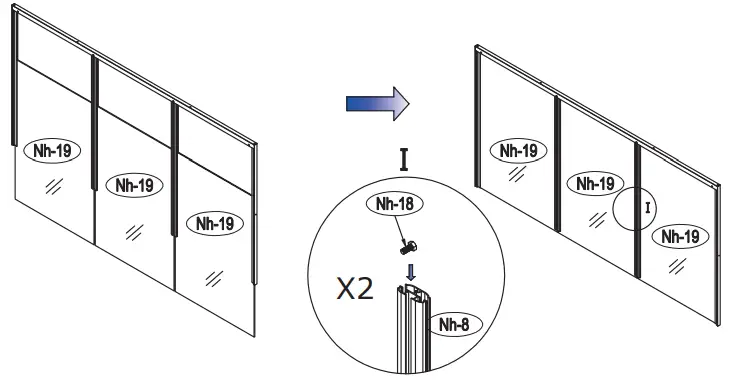

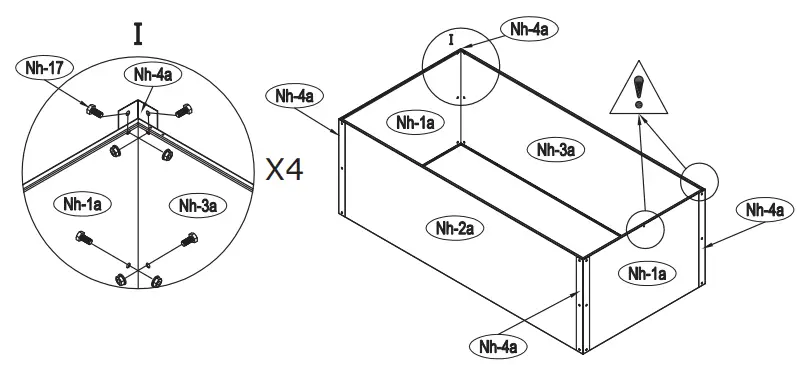

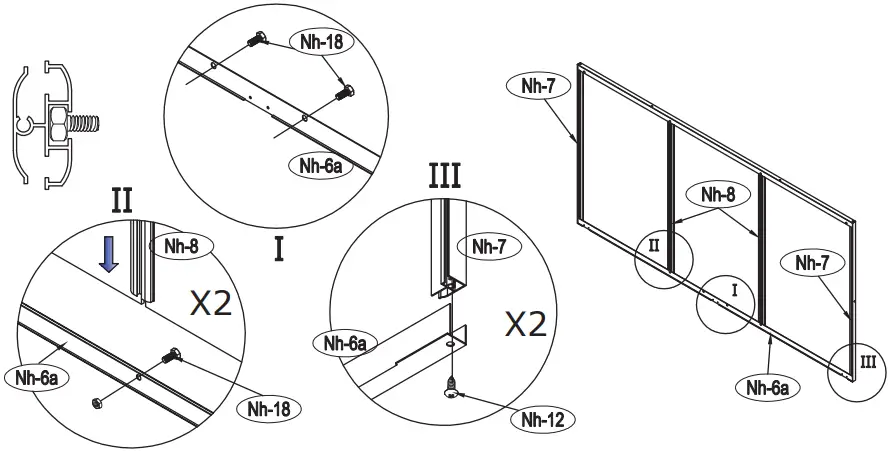

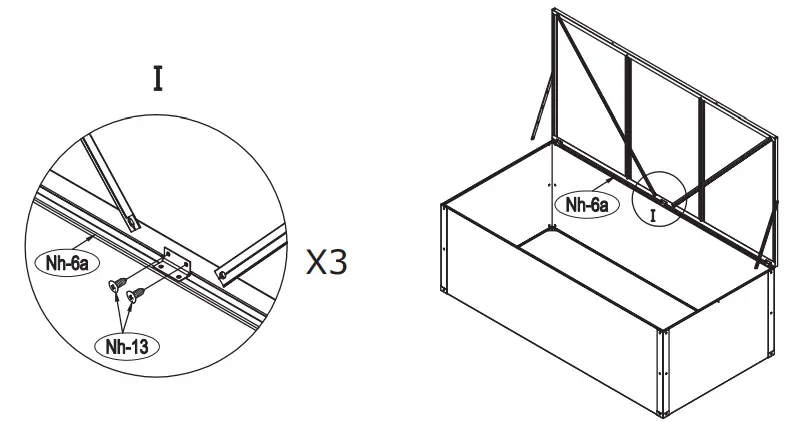

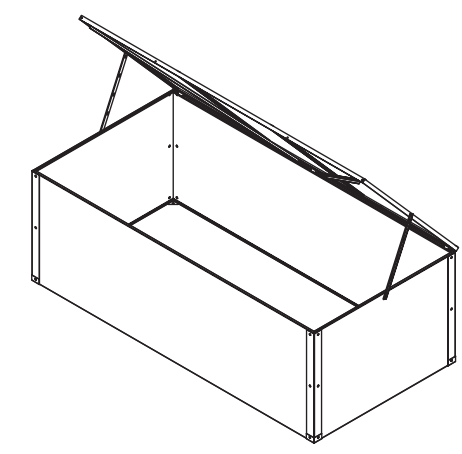

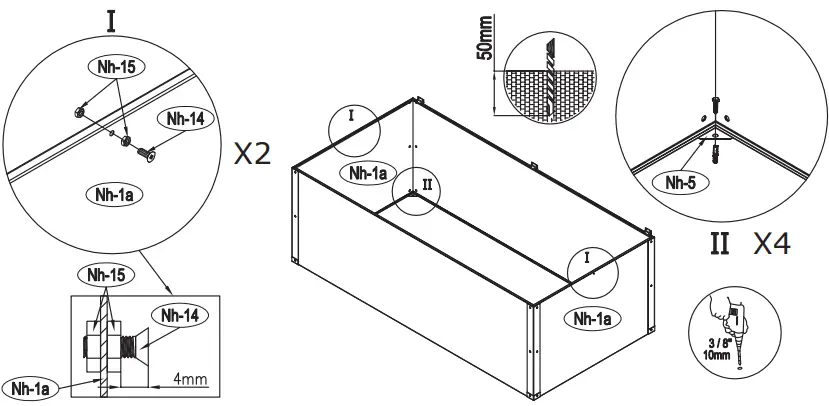

Installation
