Mounting instructions

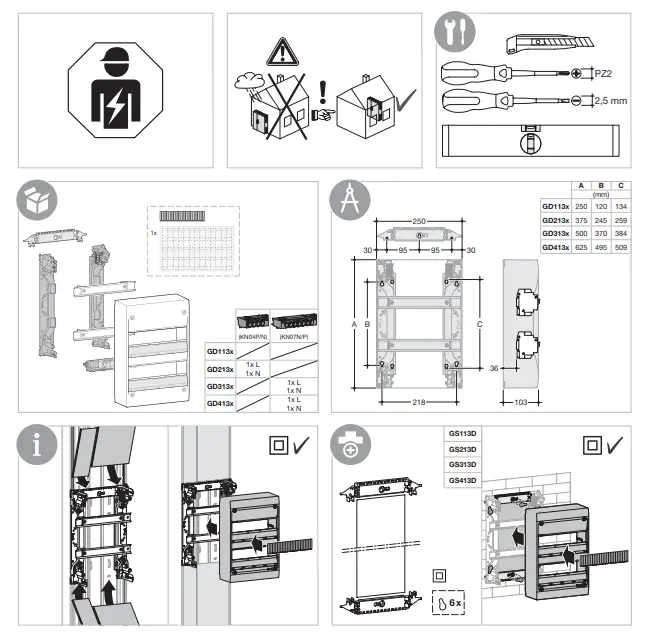

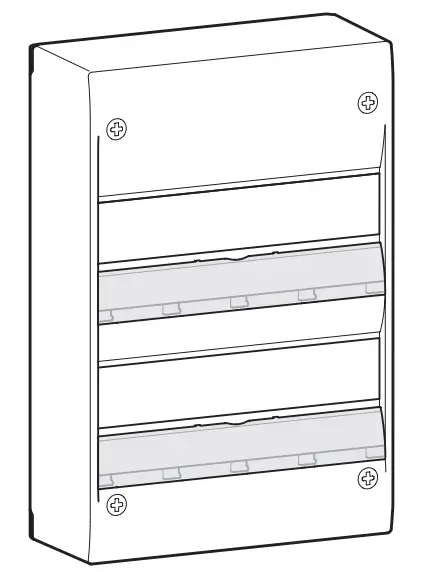

GDx13x Gamma 13

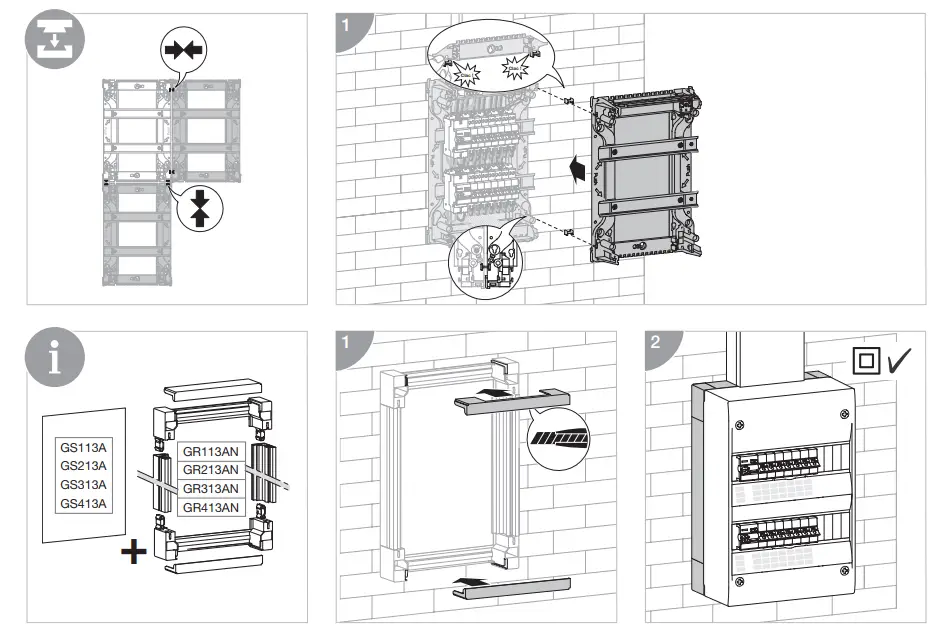

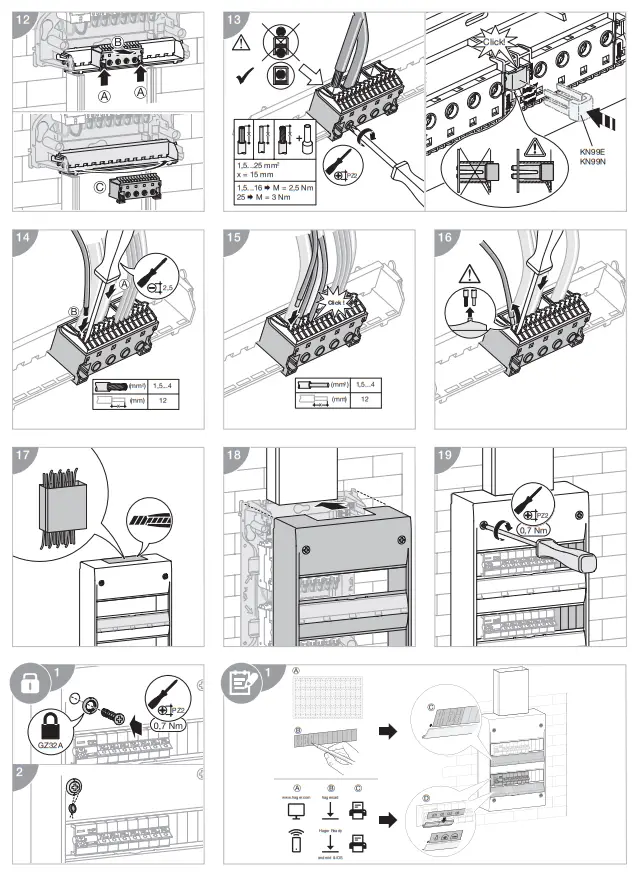

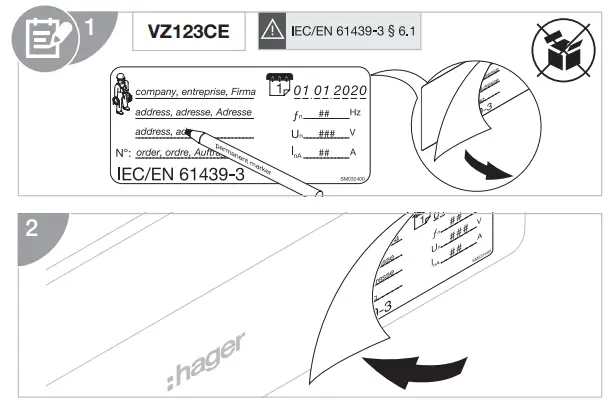

The Assembly (DBO) designated markings must be completed as specified in IEC/EN 61439 – 3 clause 6.1.
| Reference | Admissible thermal dissipation loss for wall mounted distribution boards at temperarture rise ∆T* | ||||
| 10K W | 15K W | 20K W | 25K W | 30K W | |
| GD113x | 4,9 | 8,2 | 11,7 | 15,4 | 19,3 |
| GD213x | 6,4 | 10,5 | 15,1 | 19,9 | 24,9 |
| GD313x | 7,8 | 13,0 | 18,5 | 24,5 | 30,7 |
| GD413x | 9,3 | 15,4 | 22,0 | 29,1 | 36,5 |
*) ∆T is the temperature difference between the upper limiting temperature of the installed equipment and the ambient air temperature of the distribution board.
