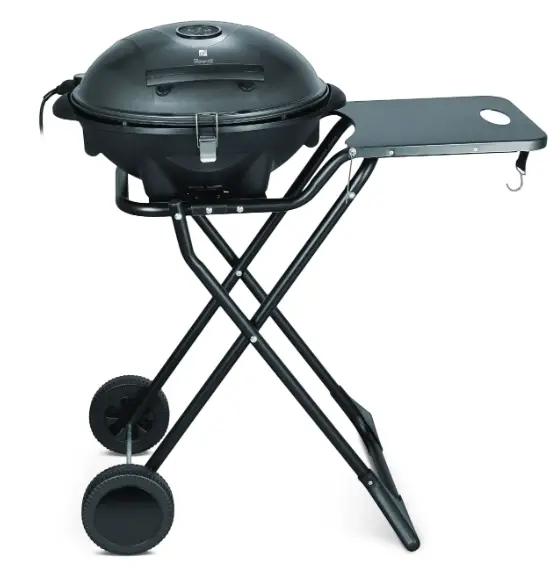

G21 Hawaii Electric Grill

G21-Hawaii-Electric-Grill-PRODUCT-IMAGE

Thank you for purchasing our product!
Please read these instructions carefully before using this product. The appliance must be used for the intended purpose only according to these instructions.

Components

G21-Hawaii-Electric-Grill-01

1Handle
2Lid
3Grill plate
4Connection of the lid and the bottom cover
5Power cord input
6Grill plate feet
7Fat collecting bowl
8Butterfly nut
9Control knob
10Bottom cover plate
11Side table
12Power cord
13Bottom cover mounting tube
14Hook
15Pole of lock up
16Supporting tubes
17Wheels
18Wheel axle
19Standing leg
Before using the appliance for the first time
  • Remove all the packaging materials and wash the grill plate, grease collecting cup and metal lid thoroughly. The grill plate and the grease collecting cup are both dishwasher safe.
  • Important: Dry all the parts thoroughly. Never immerse the detachable temperature regulator in water.
  • Preheat the grill to its maximum setting for about 3-5 minutes with the lid closed and without any food on the grill plate. Residues left from the manufacturing process may cause some smell and smoke when the appliance is used for the first time – it is a normal phenomenon.
Operating the appliance
  • Connect the appliance to the electricity supply.
  • Set the temperature regulator to the required temperature level (it usually takes about 3 minutes to heat up).
  • The temperature indicator lamp will go out as soon as the required temperature has been reached.
  • Place the food you want to grill on the grill grid or on a foil tray first and then on the grill grid.

Cooking times
The following are recommended cooking times. Different times will be required for different weights and sizes of food and depending on whether you are grilling with or without the lid.

Food to be grilledTemperature grade settingCooking time
Steak/Beef515-20 mins
Lamb512-18 mins
Chicken drumsticks525-30 mins
Chops520-25 mins
Chicken wings515-20 mins
Fillet of pork4-59-10 mins
Whole fish512-15 mins
Kebabs3-410-12 mins
Various sausages3-412-15 mins

Tips for grilling

  • Your meat will be tendered if you marinate it overnight before cooking.
  • Always use tongs or some form of scoop to turn the grilled food (using a fork to turn the food will dry it out and damage the non-stick coating).
  • Only turn meat and fish once during grilling. You do not need to turn it more than once since excess turning cause drying the meat out.If cooked food sticks to the grill plate, rub the plate with a piece of kitchen paper soaked in oil from time to time to renew the non-stick coating.

Cleaning and looking after the appliance

  • Disconnect the appliance from the electricity supply.
  • Allow the grill to cool down completely before cleaning it.
  • Take the detachable temperature regulator out of the appliance socket.
  • Wash the grill plate and fat collecting bowl with hot water. Do not use steel wool pads or abrasives.
  • Wipe the base of the appliance with a damp cloth. Fat splashes can be removed with a mild cleaning detergent.
  • The grill plate has a non-stick coating. Be careful not to scratch it during cooking or cleaning stages.
  • Use a washing brush with plastic bristles to clean the grill plate.
  • Protect the appliance from dust and dirt when it is not in use for a long time (wrap it in a plastic bag and store it in a dry place).

Disposal
Stop using a malfunctioning or broken device immediately for safety. In the event of a fault, contact an authorized service center G21, who will either arrange for a repair or dispose of the device in an environmentally friendly manner. If you want to dispose of the malfunctioning device yourself, take it to the nearest collection point.

Safety regulations

Read carefully!

  • Plug the appliance only in an outlet that corresponds with the rating label and only to an grounded socket.
  • This appliance is not a toy for children. Children are not aware of the hazards of electrical appliances. Therefore close supervision is necessary when the appliance is used by children. Do not allow power cable to hang down within easy reach. Keep children away from packing materials.
  • Do not use this appliance near water contained bath-tubes, washbasins or other receptacles neither expose it to rain or high humidity.
  • Regularly check whether the power cord or wire is defective. In this case, the appliance must not be used (immediately unplug the appliance and send it to authorized G21 service center).
  • The appliance must not be operated when the appliance, casing or cable is damaged, when the appliance shows visible signs of damage or when a fault is suspected after a fall.
  • Disconnect the main plug in case of faults during use, before cleaning or moving the appliance and after use.
  • Never pull the plug out of the socket by the flex or with wet hands.
  • Never immerse the main cord or the thermostat plug in water or any other liquids.
  • Use extension lead only after making sure their condition is faultless and use an grounded wise with a minimum capacity of 10 mA.
  • Never bring the extension wire in touch with the hot grill plate.
  • Always switch off the appliance before removing the power cord.
  • Before removing attachments or cleaning the grill, allow it to cool down completely.
  • Beware! The grill plate will get very hot and it stays hot for a while after it has been switched off – beware of burns! Do not touch any hot surfaces and take care when handling the appliance after use.
  • Do not place the appliance near gas or electrical burner or in a heated surroundings.
  • Only use this appliance when it is placed on a stable and dry surface and away from any walls at least for 10 cm.
  • Do not leave the appliance unattended.
  • Always switch off the appliance when it is not in use.
  • Do not use without the grease collecting cup or the bottom cover.
  • Never cover the grill plate with aluminum foil (this might damage the non-stick coating or scratch the plate).
  • Make sure the device is installed correctly before you start using it.
  • The grill plate must not touch the heating element – injury danger!
  • Beware of fat spitting while grilling fat or juicy meat.

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
