Hotbed aluminum roofing sheet 100 x 120 cm
Instructions

GA 12 – 100 x 120 cm

Thank you for purchasing our product.
Before using this unit, please read this manual.
Assembly instructions:
Prior to the assembly please read all instructions and information carefully. The hotbed has to be anchored to its base in order to prevent damage. The base is not included in the delivery and it has to be built separately.
Check whether you have all parts which are necessary for the assembly.
Please mind your own safety.

1. 2-3 persons are required for the assembly of this hotbed.
2. Use protective clothing and gloves as some parts might be sharp.
3. During the assembly, no children or pets should be present in the working area.
4. Do not stand on the roof with all your weight.
5. For better strength and durability we recommend sealing the transition between construction and polycarbonate with silicone (silicone is not part of the delivery).

Care and maintenance:

1. Clean the hotbed using cloth and water
2. In case of snowfall remove the snow from the roof regularly.

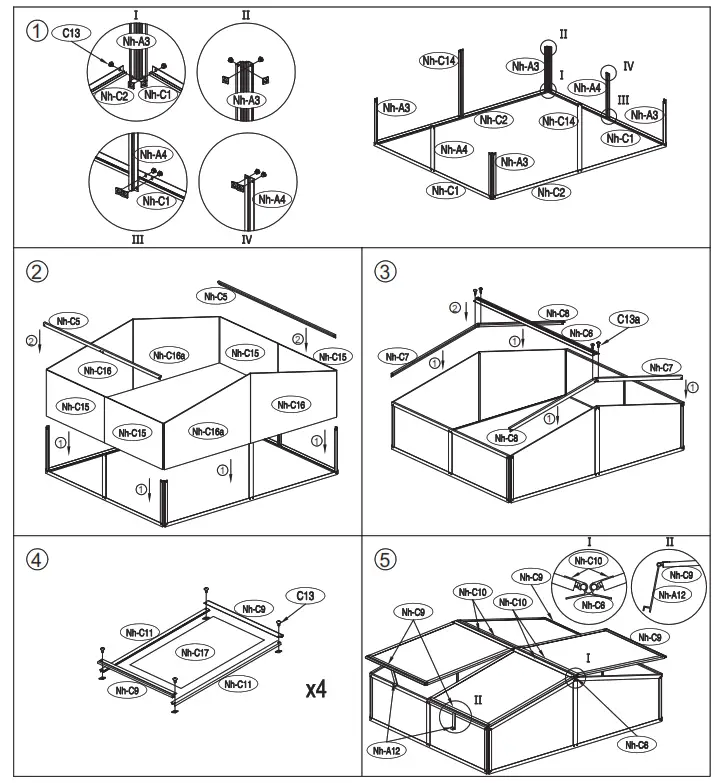

Installation

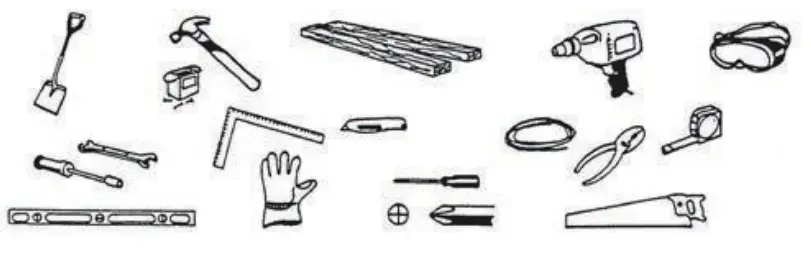

Tools you will need

Nh-C1		978mm	x2
Nh-C2		1178mm	x2
Nh-05		978mm	x2
Nh-A3		255mm	x4
Nh-A4		255mm	x2
Nh-C14		385mm	x2
Nh-C6		998mm	x1
Nh-C7		604mm	x2
Nh-C8		604mm	x2
Nh-C9		500mm	x4
Nh-C10		500mm	x4

Nh-C11		595mm	x8
Nh-Al2		20mm	x4
C13		M5x6	x48
C13a		ST3.5×10	x4
Nh-C15		487×264 mm	x4
Nh-C16		587×400 mm	x2
Nh-C16a		587×400 mm	x2
Nh-C17		472x603mm	x4

Notes:
On the bottom side, don‘t tighten bolts and nuts until polycarbonate panels were inserted into the aluminum channel totally.
The English version of the manual is an exact translation of the original manufacturer‘s instructions. Images used in this manual are for illustrational purposes only and may differ from the actual product.
