Fieldmann Fzg1103b Charcoal Grill User Manual

FZG110
User Manual

Checklist before starting

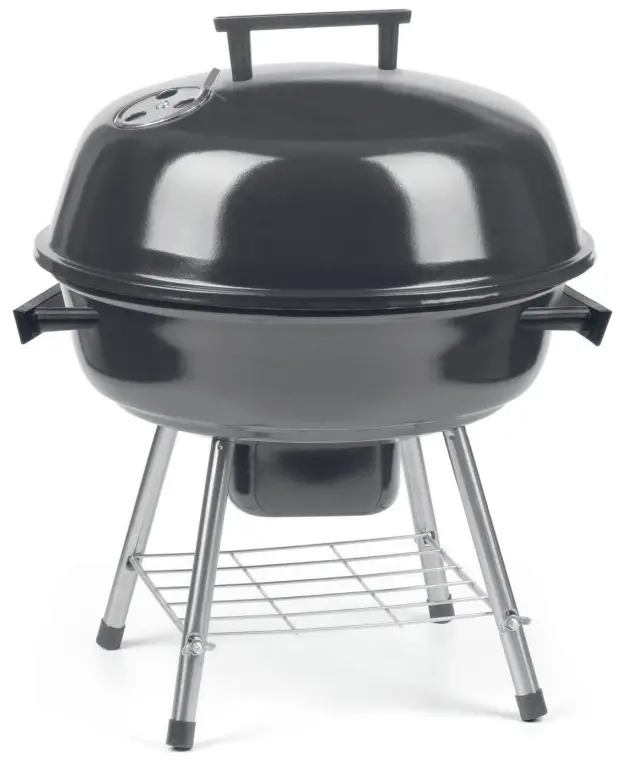

FZG1103B Charcoal Grill

Read these instructions carefully
Carefully dispose of all plastic bags and keep them out of the reach of children.
Please read the “Safety” section of this instruction booklet on the safety precautions to take before using your charcoal barbecue.
Check the components and ensure that you have all the parts listed. If not, contact your local shop, which will be able to help you
Take a moment to familiarize yourself with the content and before beginning assembly, check that all of the holes are clean and that there is no paint residue in them.
When you are ready to start assembly, ensure that you have lots of space and that the area is clean.

Do not use the barbecue in a confined and/or habitable space e.g. houses, tents, caravans. motor homes. boats. Danger of carbon monoxide poisoning fatality.
Take note of all of the following instructions:

1. The barbecue must be installed on a horizontal and stable surface before use.
2. The barbecue must be hot and the charcoal must remain lit for at least 30 minutes before beginning to cook the food. When the charcoal forms a grey layer of ash, you can start to cook.
3. Before starting to cook, wait until a layer of ash covers the charcoal.
4. WARNING! This barbecue will become very hot, do not move it during operation!
5. WARNING! Do not use this barbecue indoors!
6. Do not use spirit or petrol for lighting or re-lighting! Use only firelighters complying to EN 1860-3!
7. WARNING! Keep children and pets away from this barbecue.
8. This barbecue complies with the regulations in force.
9. However, using it requires a minimum amount of monitoring and precautions.
10. In particular, do not use alcohol, petrol or any other flammable liquid to light or rekindle the fire, and do not let children near the burner.
11. Regrettably, a large number of accidents occur each year. The resulting burns are particularly serious in children: because of their size, their faces are more often than not at the same height as the burner.
12. Do not increase the flames in a charcoal barbecue using a fire lighting product or any other flammable product. Regularly clean the cooking grills.
13. To avoid ingesting significant amounts of benzopyrene (a decomposition product from carcinogenic fats), keep the barbecue grill as far as possible from the heat source, or opt for an upright cooking model.
14. Fuel to use: charcoal.
15. Maximum quantity to be used: 0.7 kg
    Precautions:
16. Use potholders, gloves or a utensil to adjustor move a part of the barbecue (for example, the air control lid or the handle, ash tray or non-adjustable cooking grill) during use.
17. Use protective gloves to assemble the barbecue.

Any change in the text and specification reserved.
The user’s manual is in the languages version.
Changes in text, design and technical specifications may vary without prior notification and We reserve the right of their change.

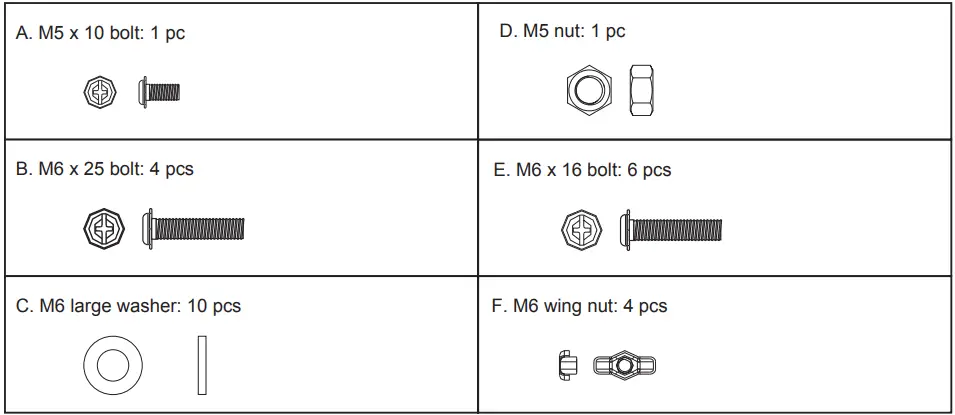

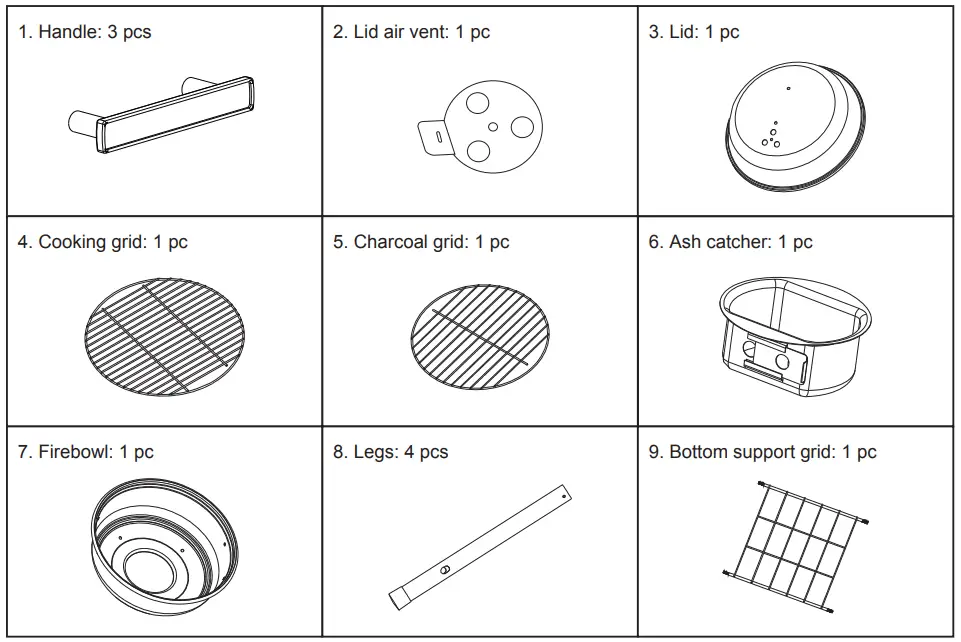

Parts & Hardware List

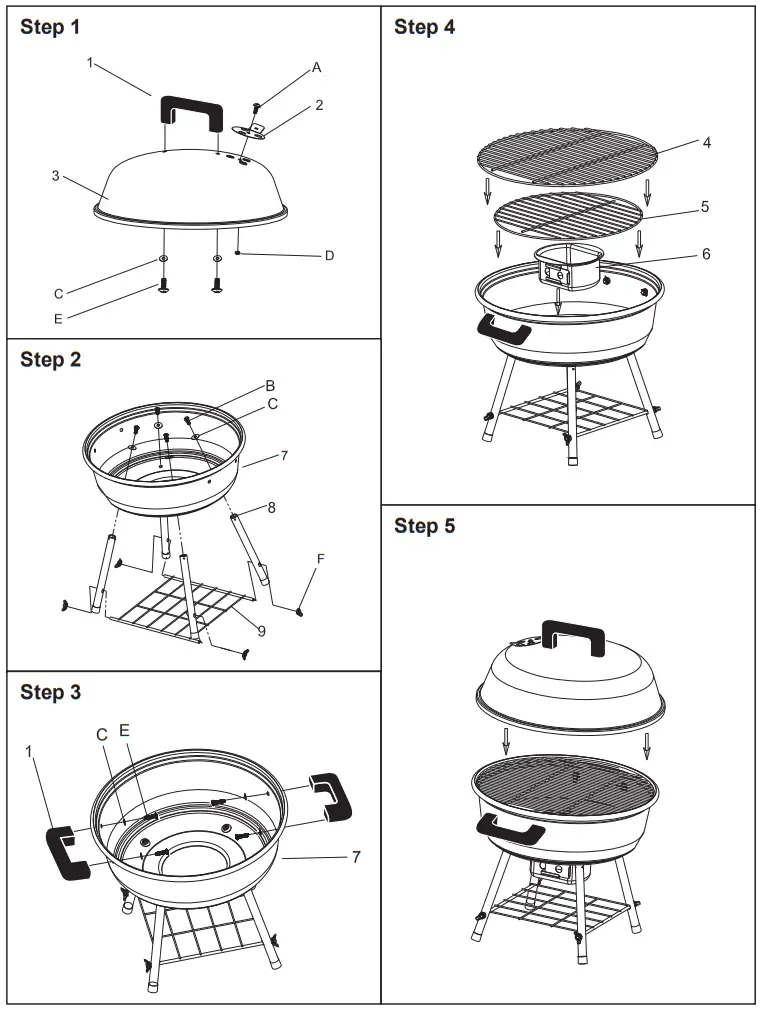

Charcoal Grill Assembly Instructions
