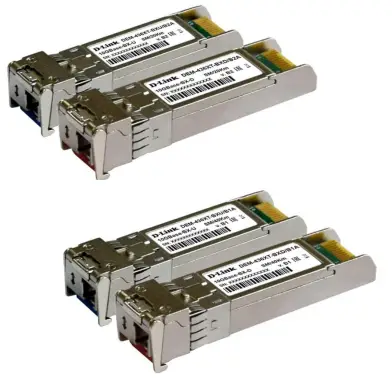

DEM-436XT-BXU 10GBase-BX-U Single-Mode WDM SFP+ Transceiver
Installation Guide
Product Highlights
Data transmission
Maximum distance of up to 40 km
High performance
High-speed data transmission
Hot-Pluggable
Hot-swap capability allows network administrators to plug or unplug them from the SFP slots without having to turn off the power of the connected device
Features
- Enhanced Small Form-Pluggable (SFP+) form factor
- Compliant with MSA (Multi-Source Agreement)
- Transmission distance of up to 40 km
- Hot-pluggable
D-Link’s 10G SFP+ Module series are hot-swappable SFP+ transceivers that plug into SFP+ slots on switches and support 10G Ethernet. The D-Link 10GBASE SFP+ Module Series transceivers offer customers a wide variety of 10G Ethernet connectivity options for data centers, enterprise wiring closets, and service provider transport applications.
The DEM-436-BXU/40KM and DEM-436-BXD/40KM transceivers are used in pair. The DEM-436BXU/20KM and DEM-436-BXD/20KM transceivers are used in pair.
Hot-Pluggable
All D-Link transceivers are hot-pluggable. Hot-swap capability allows network administrators to plug or unplug it from the SFP slot without having to turn off the power of the connected device.
10 Gigabit Ethernet speeds
The transceivers support 10 Gigabit Ethernet, which results in very fast data transmissions of up to 10 Gbit/s, that enables the switches to handle fast and heavy data transmissions, making it suitable for business needs.
Bi-directional WDM transmission
Bi-directional WDM transmission allows data to be received and transmitted simultaneously in both directions on a fiber cable. This helps to save on the cost of deploying extra fiber cables and allows for more flexible bandwidth allocation.
Distance Capacity
The DEM-436XT-BXU transceiver operates at a distance of up to 40 km. The operation at shorter distances is possible only with the use of attenuator (not included in package contents).
General features
| Standard | • IEEE802.3ae, 10GBASE-ER |
| Wavelength | • Tx: 1270 nm, Rx: 1330 nm |
| Data Rate | • 10 Gbps |
| Connector | • Simplex LC |
| Fiber Type | • 9/125 um Single-mode Fiber |
| Maximum Fiber Cable Length | • 40 km1 (DEM-436XT-BXU/40KM) • 20 km (DEM-436XT-BXU/20KM) |
| Transmit Power Range | • 5 to 1 dBm (DEM-436XT-BXU/40KM) • 2 to -2 dBm (DEM-436XT-BXU/20KM) |
| Receive Power Range | • -1 to -15 dBm (DEM-436XT-BXU/40KM) • -1 to -14 dBm (DEM-436XT-BXU/20KM) |
| Sensitivity | • -15 dBm (DEM-436XT-BXU/40KM) • -14 dBm (DEM-436XT-BXU/20KM) |
| Polish Type | • UPC |
| Supported Features | • Hot swap • MSA compliant • RoHS compliant |
Physical Parameters
| Power Support | • 3.3 V |
| Power Consumption | • 1.5 W (max.) |
| Supply Current | • 450 mA |
| Temperature | • Operating: 0° to 70°C • Storage: -40° to 85°C |
| Humidity | • Operating: 0% to 85% • Storage: 0% to 85% |
| Dimensions | • 55.9 mm х 13.7 mm х 8.5 mm |
| Certificates | • Class 1 laser: EN 60825-1 • FDA 21 CFR 1040.10 и 1040.11 |
Order info
| DEM-436XT-BXU/40KM | 10GBase-ER Single-Mode WDM SFP+ transceiver (up to 40 km¹), Tx:1270 nm, Rx:1330 nm |
| DEM-436XT-BXU/20KM | 10GBase-ER Single-Mode WDM SFP+ transceiver (up to 20 km), Tx:1270 nm, Rx:1330 nm |
1 The operation at shorter distances is possible only with the use of attenuator (not included in package contents).
Specifications are subject to change without notice.
