Boss Audio Systems Atv Chasing Led Whip - 48-inch 360-degree Rgb Illumination Owner's Manual

XP4/XP6
USER’S MANUAL

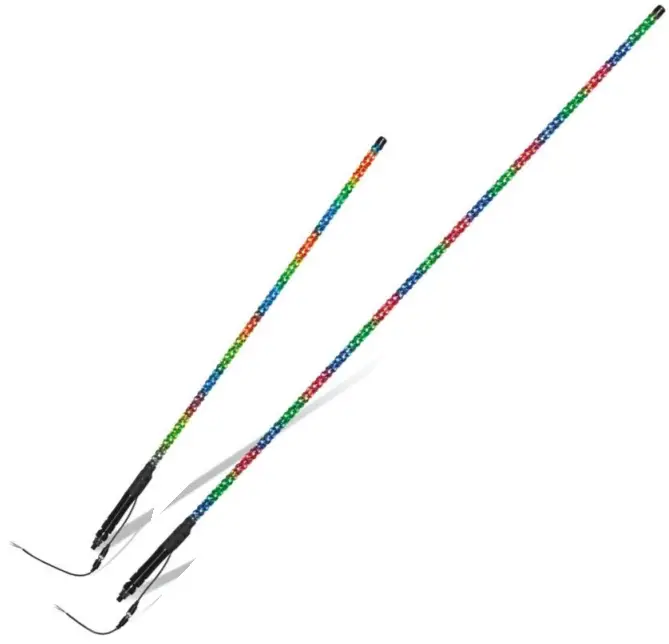

XP6 – 72″ 360° RGB CHASING LED WHIP
XP4 – 48″ 360° RGB CHASING LED WHIP
FEATURES ILLUMINATION CONTROL APP
FOR FULLY CUSTOMIZABLE COLORS,
PATTERNS, AND EFFECTS

ILLUMINATION CONTROL APP (PHONE NOT INCLUDED)

Get the APP

http://qr07.cn/A9M4xq

SCAN FOR APP
Or go to the Apple App Store or Google Play Store to download the app “BLEDIM2”

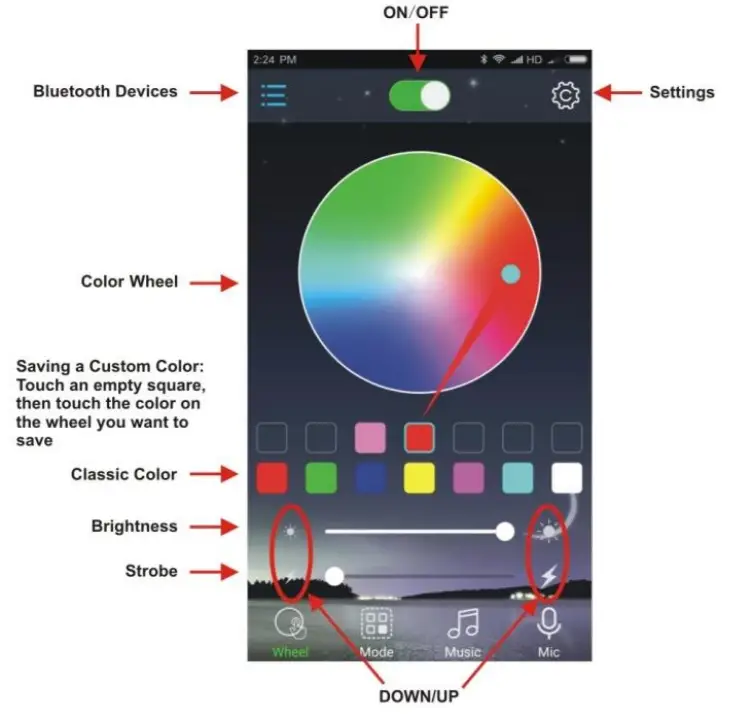

Main Interface

Connect to device or Group

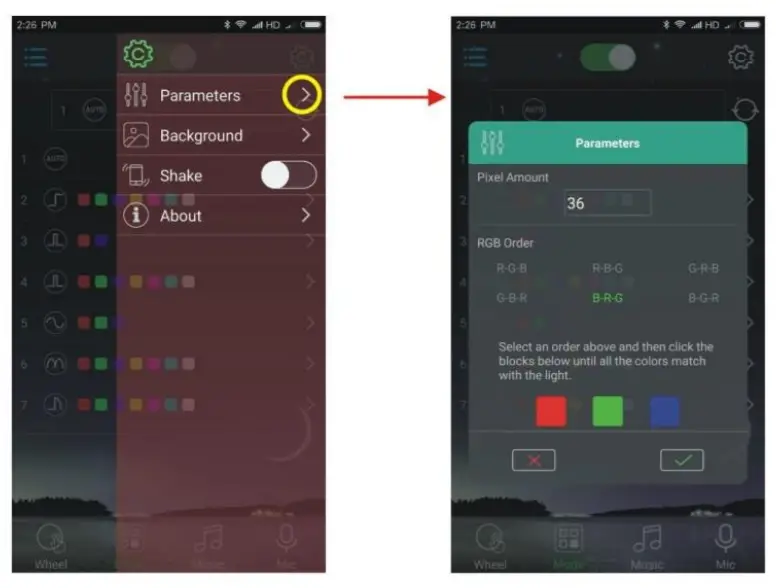

Parameters Settings

The parameters settings are only for LED-PIXELS, not for LED-RGB

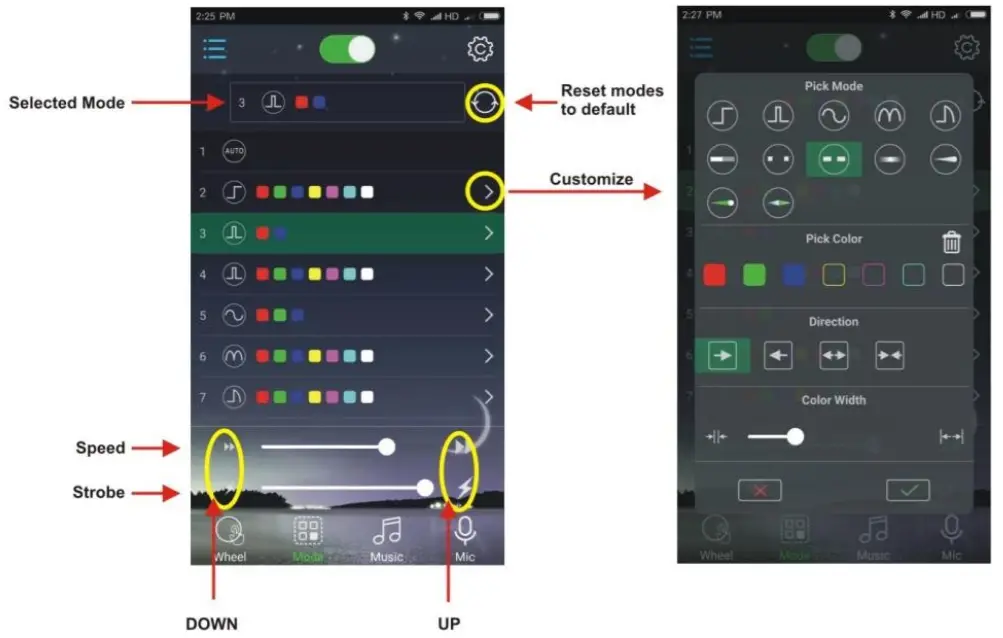

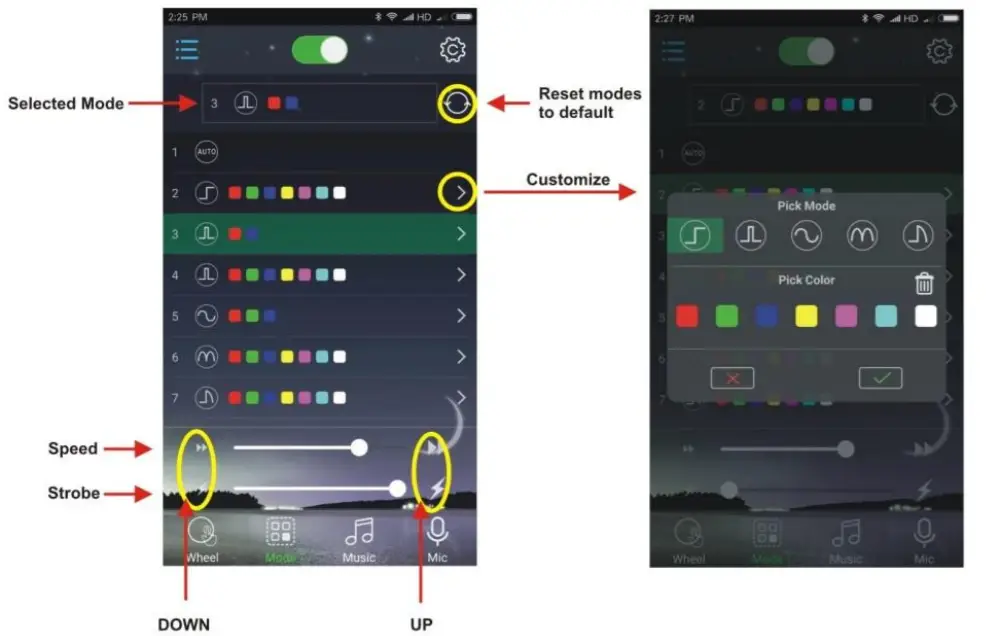

Mode Customization for LED -RGB devices

Mode Customization for LED-PIXELS devices

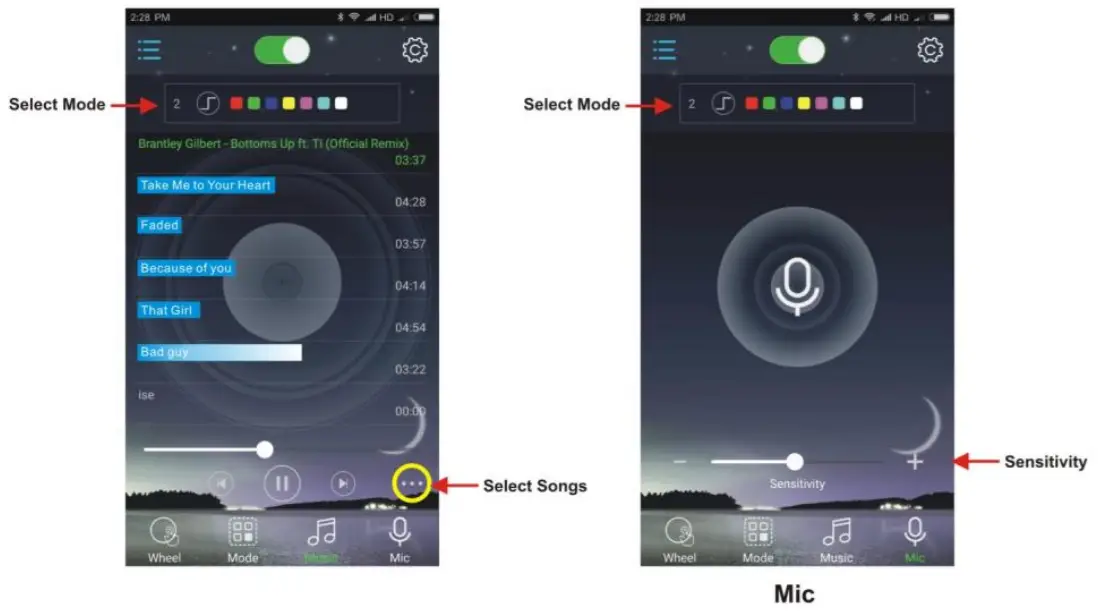

Music and Microphone Control

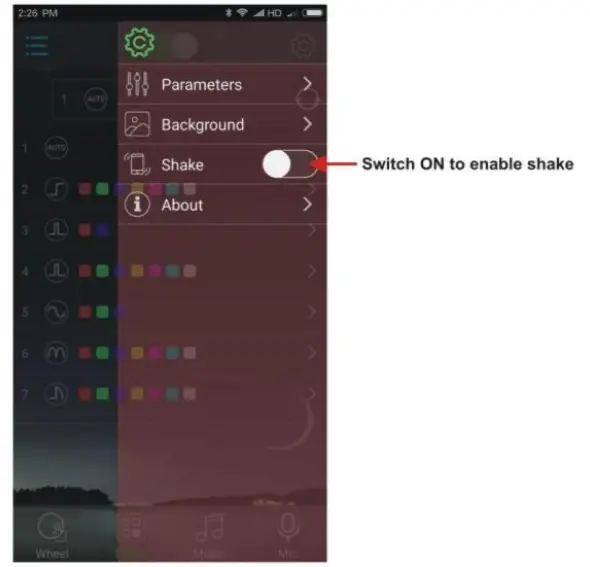

Shake Feature

When Switched ON:

1.  Wheel Page: Shake for a random color

2.  Mode Page: Shake for a random mode

3.  Music Page: Shake for a random mode

4. Mic Page: Shake for a random mode

Troubleshooting

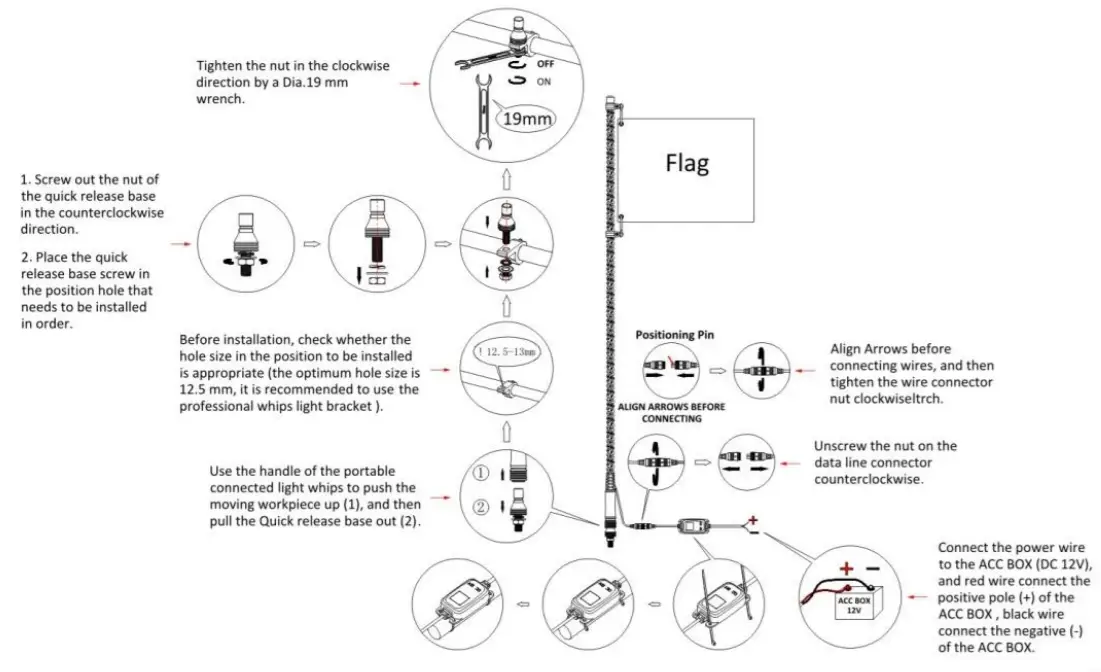

LED WHIPS INSTALLATION MANUAL

BOSS Audio Systems
3451 Lunar Court. Oxnard, CA 93030 www.bossaudio.com
805-751-4853 Customer Service
Tech Support: www.bossaudio.com/support

0920
