BOSS Audio Systems BRRC27 27 Inch ATV UTV Sound Bar

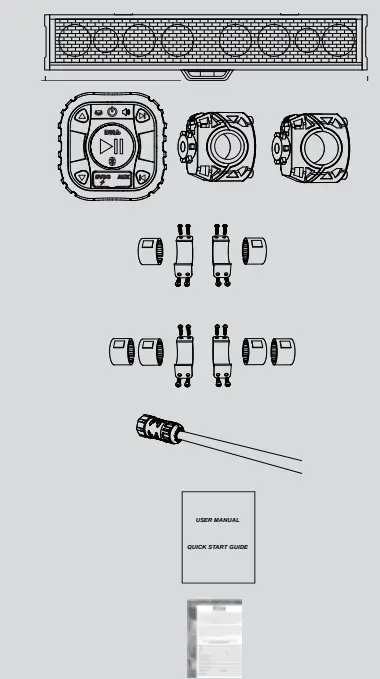

PACKAGE CONTAINS

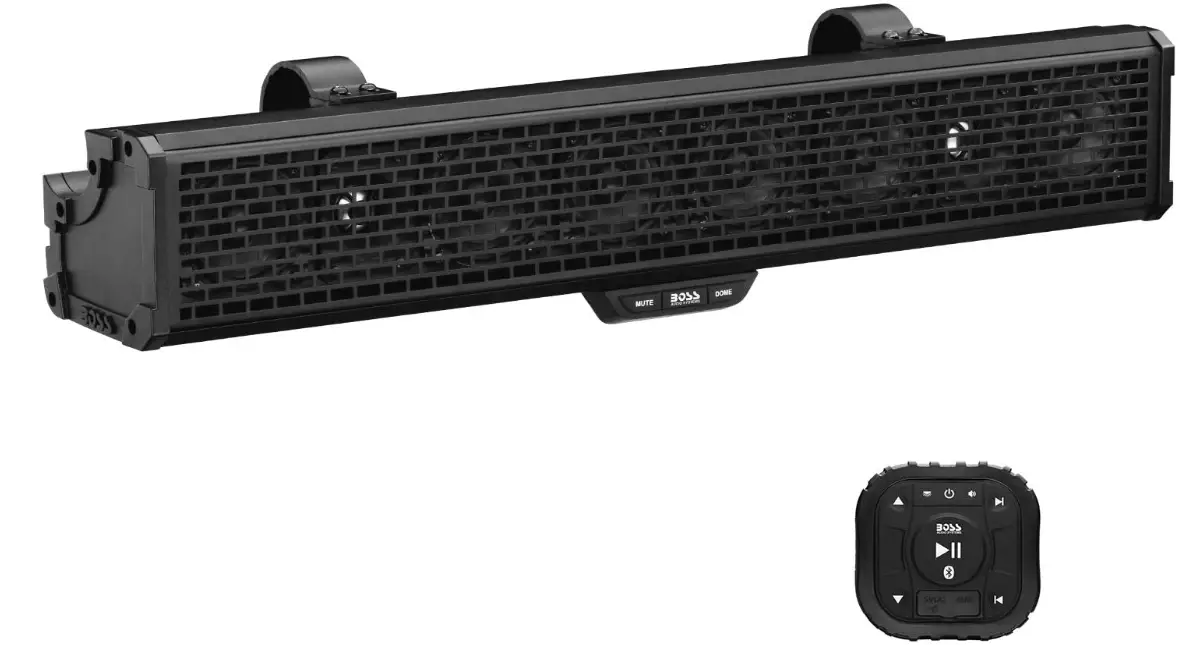

1. BRRC27 Soundbar Speaker System
2. Bluetooth Multi-Function Controller Kit
3. 1.50” Rollbar Mounting Kit
4. 1.75” / 2.00” Rollbar Mounting Kit
5. Quick Connect Power Cable
6. User Manual Quick Start Guide / Poster
7. Warranty Card / Facebook Card

INFORMATION TO THE USER
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks is under license. Other trademarks and trade names are those of their respective owners.

FCC COMPLIANCE STATEMENT

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. this device may not cause interference, and
2. this device must accept any interference, including interference that may cause undesired operation of this device.

This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. The Bluetooth antenna cannot be removed (or replaced) by the user. This equipment complies with FCC/ IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated keeping the radiator at least 20 cm or more away from the person’s body (excluding extremities: hands, wrists, feet and ankles). Alteration or modifications carried out without appropriate authorization may invalidate the user’s right to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment  does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Relocate or reorient the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CAUTION!!
ADJUSTMENT OR ALTERATIONS OF THIS DEVICE MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

BEFORE YOU START

IMPORTANT SAFETY PRECAUTIONS

• Do not operate mobile equipment while driving a motorized vehicle – safe driving and safety consideration of others should always be your highest priority
• In the event you should notice smoke, strange noises or odor from this product, or any other abnormal signs, immediately turn off the power and consult your dealer or the nearest authorized BOSS AUDIO Service Center. Using this product in this condition may result in permanent damage to the system
• Set your volume control at a low setting, then slowly increase the sound until you can hear it comfortably without distortion, or ear discomfort
• BE SURE TO OBSERVE THE FOLLOWING GUIDELINES:
  • Do not turn up the volume so high that you can’t hear what’s around you
  • Use caution or temporarily discontinue use in potentially hazardous situations

INSTALLATION PRECAUTIONS
WARNING – Always consult a professional installer

• Do not attempt to install or service this product by yourself. Installation or servicing of this product by persons without professional training and experience in electronic equipment and motorized vehicle accessories may be dangerous and could expose you to the risk of electric shock, injury or other hazards
• Refer any repairs to a qualified BOSS AUDIO SYSTEMS Service Center
• The BRRC27 should be hard wired directly to the main vehicle battery

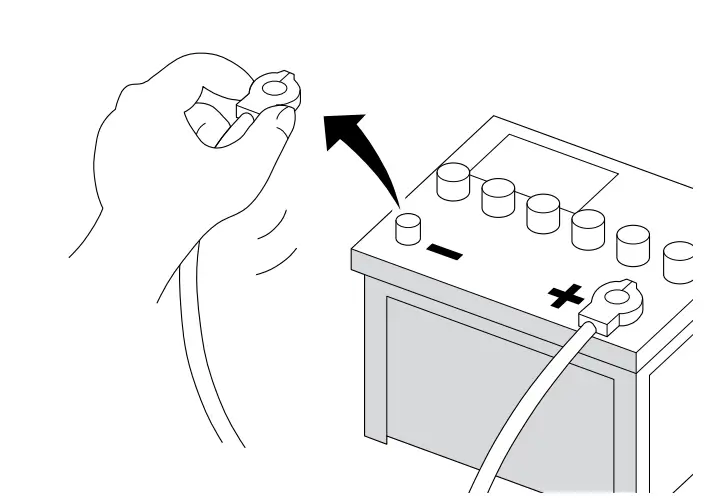

• When wiring directly to the vehicle’s battery, be sure to disconnect the batteries negative terminal wire before starting any wiring procedures
• The ground cable length should be short as possible (See wiring diagram)
• The BRRC27 has a weather-resistant design, it should not be under any circumstances submerged in, or underwater
• Use only the supplied installation parts provided with the BRRC27
• Wash with a mild detergent and lukewarm water using a clean sponge or a soft cloth
• Rinse well with clean water “DO NOT’S” – Very Important
• Don’t clean in hot sun or on very hot days
• Don’t use abrasive or highly alkaline cleaners on the main body
• Don’t scrape the main body with razor blades, or other sharp instruments
• Don’t ever use, gasoline, acetone or carbon tetrachloride
• Don’t ever use a pressure washer aimed at the speakers
  CAUTION! Using other mounting methods may void this warranty.

GETTING STARTED

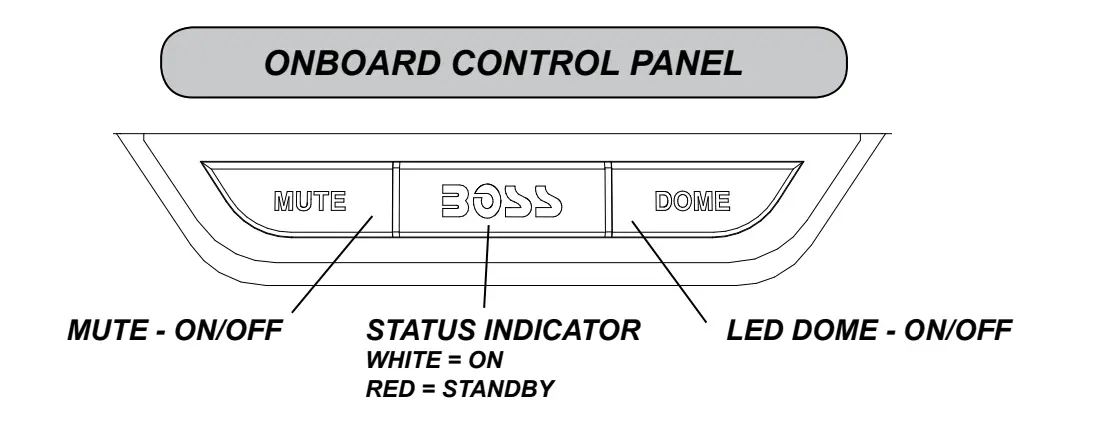

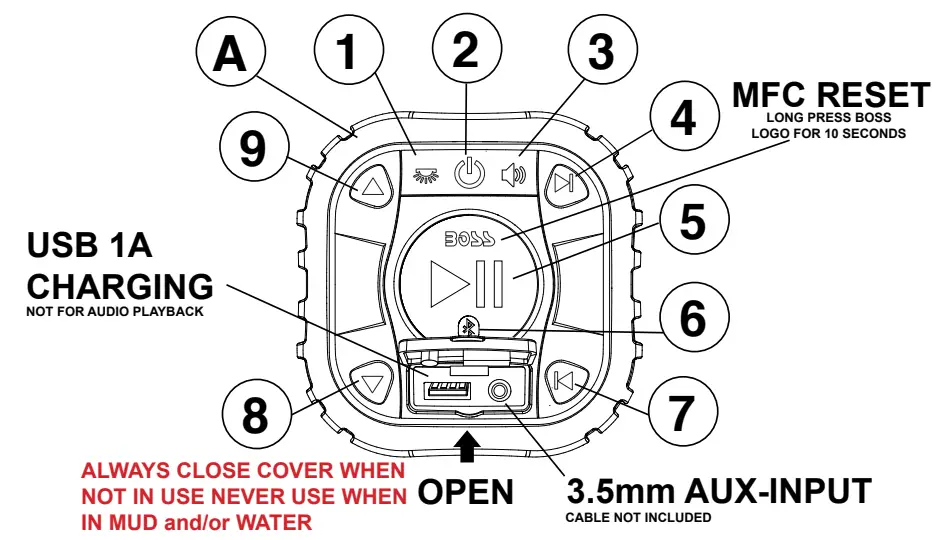

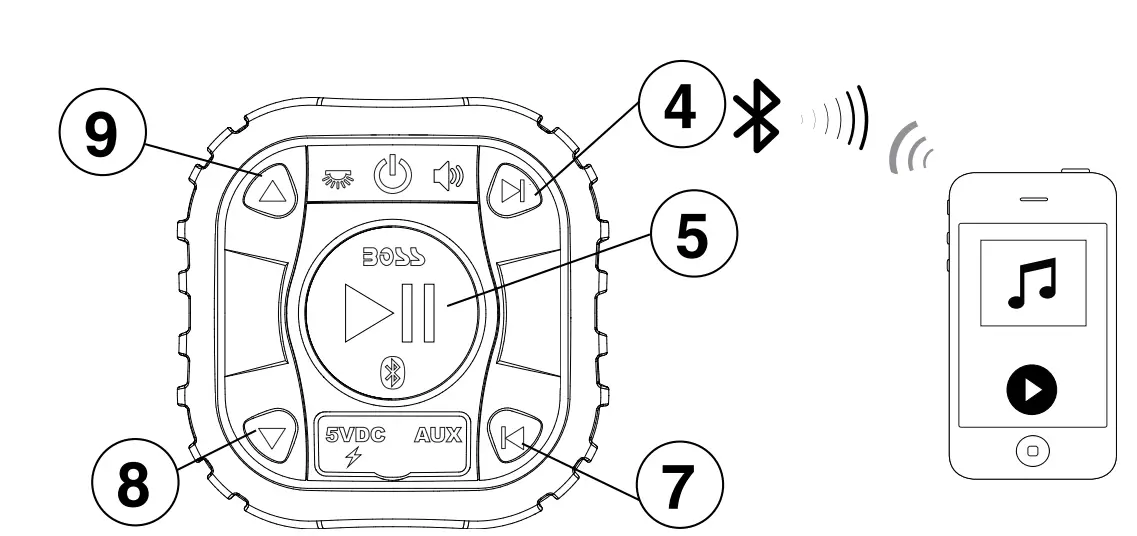

1. MFC – MULTIFUNCTION CONTROLLER
2. DOME LIGHT ON/OFF – (Auto 10 minute timer when MFC ACC is turned OFF)
3. POWER ON – Press and hold for 3 seconds
4. EQ – EQ1 | EQ2 | EQ3 | FLAT – EQ1 Default Press and hold for 3 seconds
5. NEXT TRACK – FF press and hold
6. PLAY/PAUSE – AUX MUTE
7. BLUETOOTH PAIRING INDICATOR LED – BLUE / AUX RED COLOR
8. PREVIOUS TRACK – FR press and hold
9. VOLUME DOWN – Ramp DOWN press and hold
10. VOLUME UP – Ramp UP press and hold

BLUETOOTH OPERATION

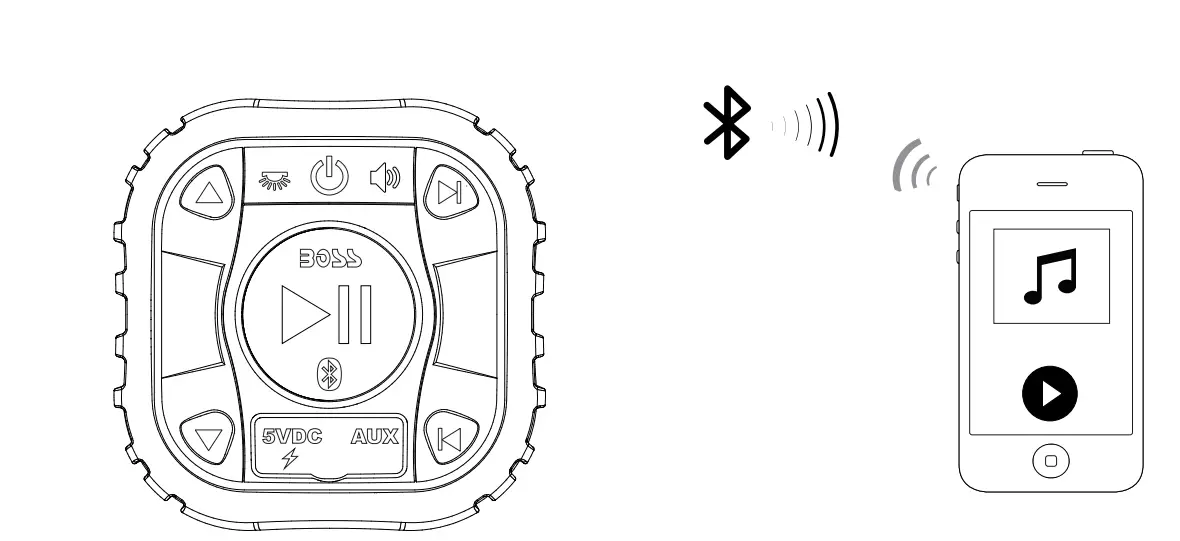

PAIRING & DISCOVERING A NEW BLUETOOTH CONNECTION

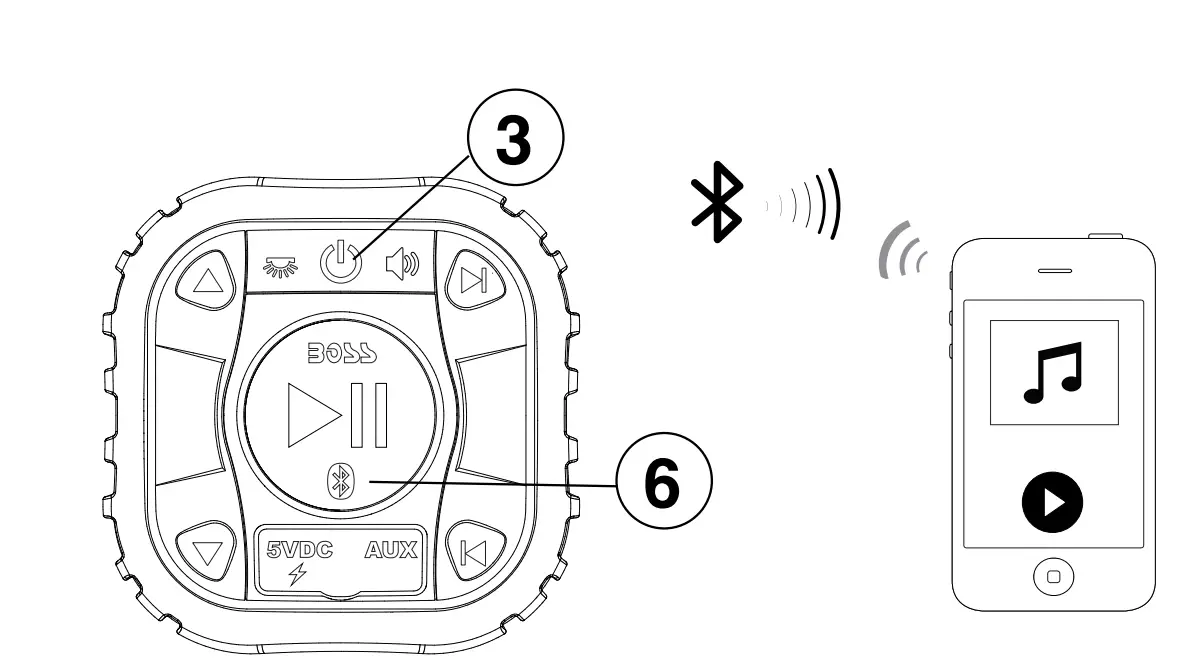

1. Power on the MFC by long-pressing the 3 Power button for 3 seconds, long-press the 6 Bluetooth button for 3 seconds, the BLUE LED will start to rapidly flash, signalling that the MFC is now ready for Bluetooth pairing
   NOTE: You have 2 minutes before you must restart this procedure over again.
2. The MFC is now in pairing mode:
   ANDROID users:
   • Go into the Settings Menu of your device
   • Enter the Bluetooth Menu
   • TURN ON Bluetooth and press SCAN
   • “BOSS REBEL UTV” will now be displayed under AVAILABLE DEVICES
   • If prompted, enter passcode: “0000” iOS users:
     • Go into the Settings Menu of your iOS device
     • Enter the Bluetooth Menu
     • TURN ON Bluetooth
     • “BOSS REBEL UTV” will now be displayed
     • If prompted, enter passcode: “0000”
3. If BOSS REBEL UTV is not seen, repeat the above steps to refresh the “Device List”
4. When the connection is successful a tone will be heard, and the Bluetooth LED indicator will light solid, you are now ready to stream music from your favorite media player to the MFC

RECONNECTION

1. Power on the MFC and your last paired device Bluetooth.
2. Ensure you are within range of the MFC, the unit will now automatically reconnect
3. If the device is out of range from the MFC, it will disconnect automatically:
   • The MFC will reconnect automatically to your device when in range
4. If your device was previously paired with the MFC, but it wasn’t the last paired device:
   • Ensure no other devices are currently paired
   • Enter the Bluetooth Menu on your device being paired
   • “BOSS REBEL UTV” will display under AVAILABLE DEVICES
   • Choose the “BOSS REBEL UTV” to reconnect
5. To clear all previously paired devices from memory, press and hold the MFC Bluetooth button for 10 seconds
   NOTE: Some devices may require a manual Bluetooth reconnection once the devices Bluetooth is powered OFF / ON and/or back in range, repress the BOSS REBEL UTV button in BLUETOOTH settings on your device

TIPS
Using this product without running the engine can drain the battery. To avoid battery exhaustion, be sure to occasionally run the vehicle’s engine while using this product.

STREAMING MUSIC

MULTIFUNCTION CONTROLLER BLUETOOTH OPERATION

1. Press the 5 PLAY/PAUSE once to start playing music or press the PLAY button from your devices touch screen
2. To skip songs or advance, press the 4 NEXT TRACK button
3. To select the previous song, press the 7 PREVIOUS TRACK button VOLUME CONTROL
4. To raise the volume press the 9 VOLUME UP button or use your device’s controls
5. To lower the volume press the 8 VOLUME DOWN button or use your device’s controls
   NOTE: If BLUETOOTH or AUX is disconnected for more than 10 minutes the MFC will automatically turn OFF, however, when not in use the ACC switch should be manually turned OFF to keep the vehicles main battery from draining

Make sure your device’s Bluetooth volume is set at 100% level before stowing your device.

AUX-INPUT

MULTIFUNCTION CONTROLLER AUX-IN OPERATION

1. Power on the MFC by pressing and holding down the 3 POWER button for 3 seconds
2. Disconnect any paired Bluetooth device by turning off Bluetooth in your devices Settings Menu
3. Connect your 3.5mm AUX-IN cable located on front side of the MFC to your devices headphone jack
4. Route the wire back to MFC, secure your device in a safe location VOLUME CONTROL
5. To raise the volume press the 9 VOLUME UP button
6. To lower the volume press the 8 VOLUME DOWN button
7. To MUTE the volume press the 5 PLAY/PAUSE button

BEFORE YOU START THE INSTALLATION

To avoid potential shorts in the electrical system, be sure to disconnect the (–) battery cable before installation. Use this unit with a 12-Volt battery and negative grounding only. Failure to do so may result in a fire or malfunction.

When replacing the fuse, be sure to only use a fuse of the rating specified on this product. To avoid short-circuiting, cover any disconnected leads with insulating tape. It is especially important to insulate any unused wires, which if left uncovered may cause a short circuit. When connecting other devices to this product, refer to the manual for the product to be connected. The black cable is ground, make sure to connect the ground wire first. Ensure that the ground wire is properly connected to metal parts of the vehicles body frame or direct to the battery if your vehicle does not have a grounded chassis frame The ground wire of this units power amp and a second powered system must be connected to the frame separately with different screws. If the screw for the ground wire loosens or falls out, it could result in fire or malfunction.

NOTE! – Hand saw or Jigsaw
To conserve battery life, the LED Dome light will automatically turn off after 10 minutes when MFC ACC is turned OFF

MOUNTING THE SOUNDBAR

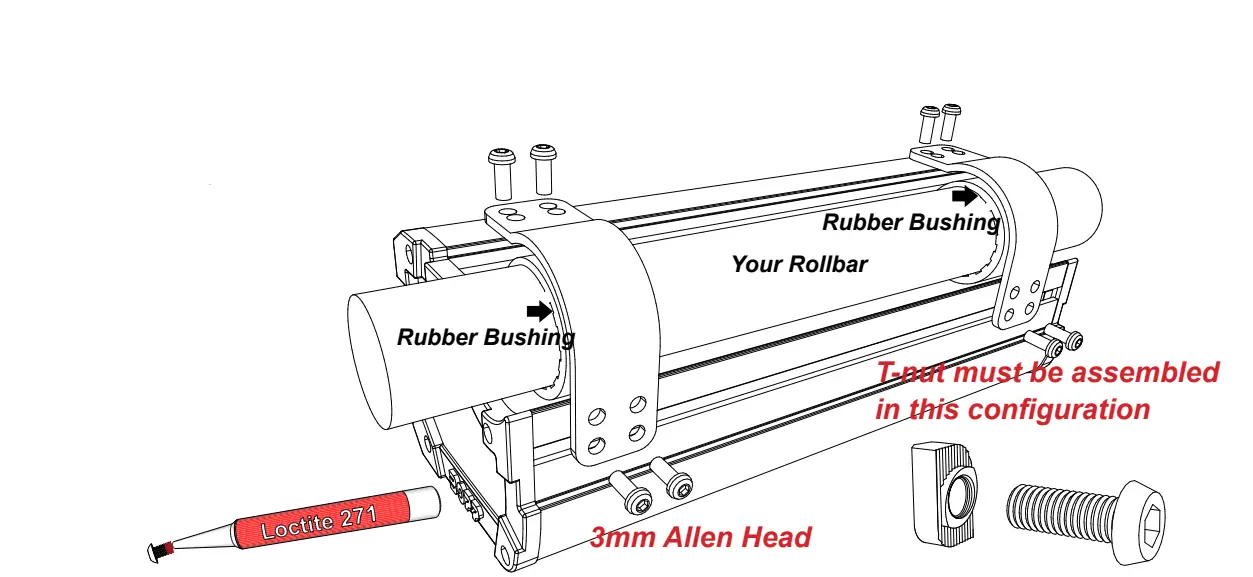

INSTALLATION PARTS

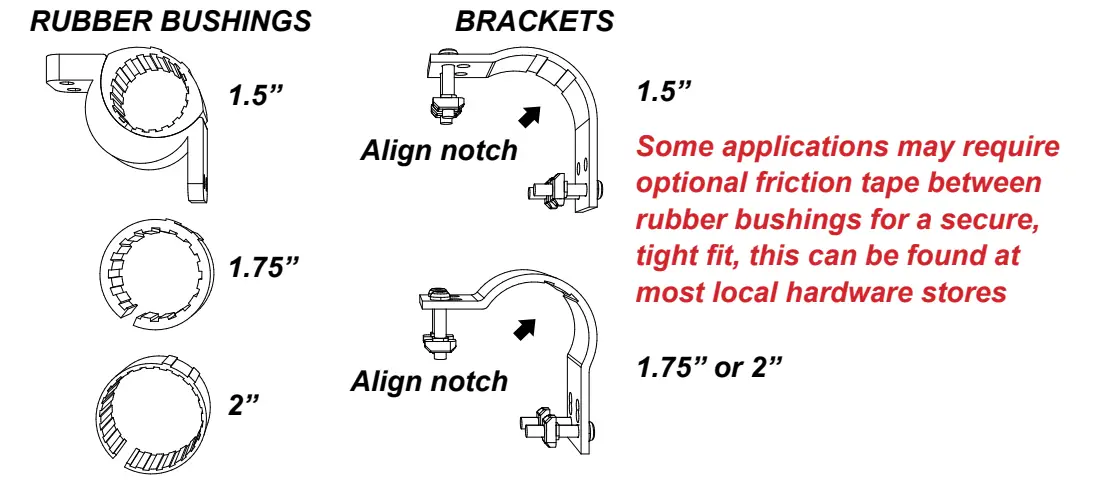

1. Determine the size rollbar for your vehicle, install rubber bushings on rollbar
2. Insert and align notch of rubber bushings into the aluminum brackets
3. Apply supplied Loc-Tight to allen bolt tips, let dry for 20 minutes, then align the allen bolts and T-nuts into the T-channel, firmly tighten
4. Recheck all allen bolts are tight, ensure T-nut’s are properly seated in the T-channel correctly

CAUTION!!
Mounting brackets should be periodically checked to be sure they are tight and secure before use of the vehicle.

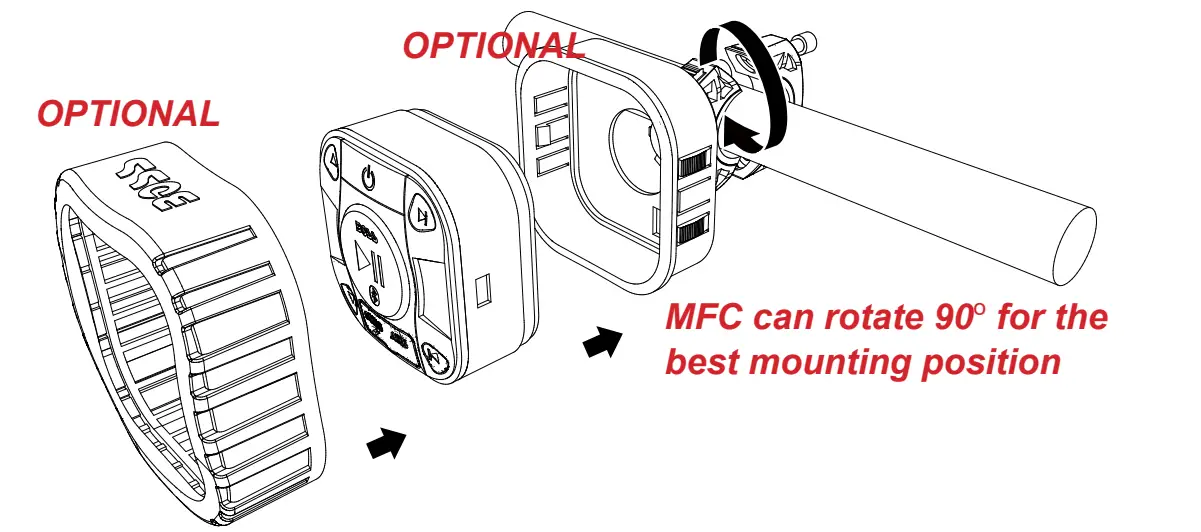

MULTI-FUNCTION CONTROLLER MOUNTING

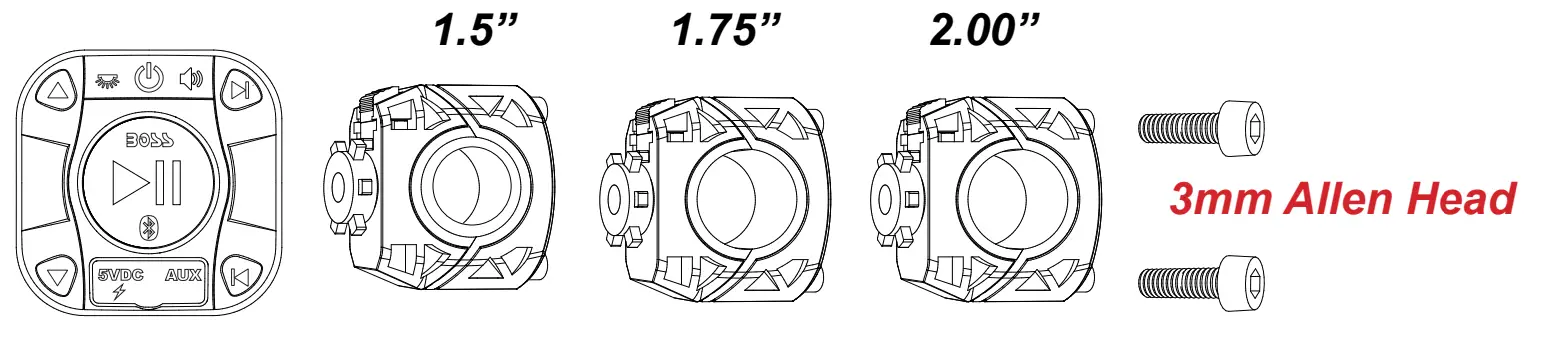

ROLLBAR / CAGE MOUNT

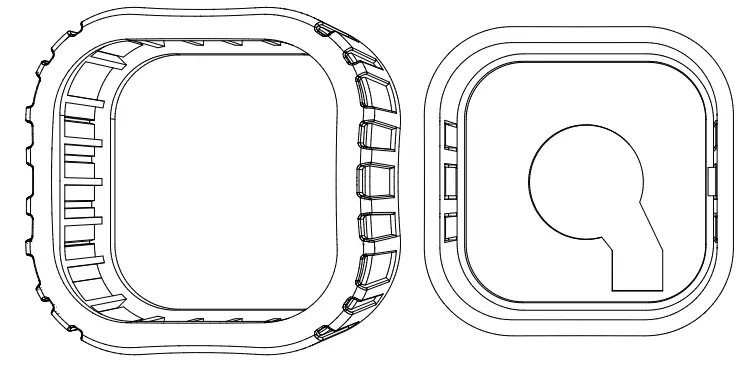

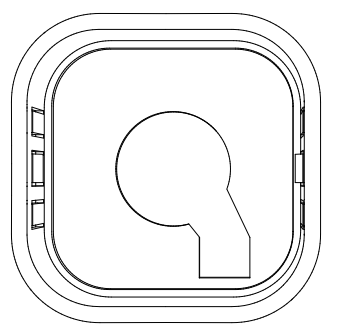

FLUSH MOUNT

1. Always check the mounting depth before cutting
2. Use the flush bezel as a template
3. Cutout hole exactly
4. Insert flush mount bezel, push side tabs outwards
5. Use optional silicon glue to give extra hold
6. Insert MFC

SURFACE MOUNT

1. Check mounting depth before drilling
2. Use the flush bezel as template
3. Drill or cut wire hole exactly
4. Insert rubber trim around flush bezel, screw in place
5. Insert MFC

TOOLS NEEDED

• Crimp Tool
• Wrench or Pliers
• 3mm Allen Wrench

OPTIONAL TOOLS NEEDED

NOTE!! – Hand saw or Jigsaw

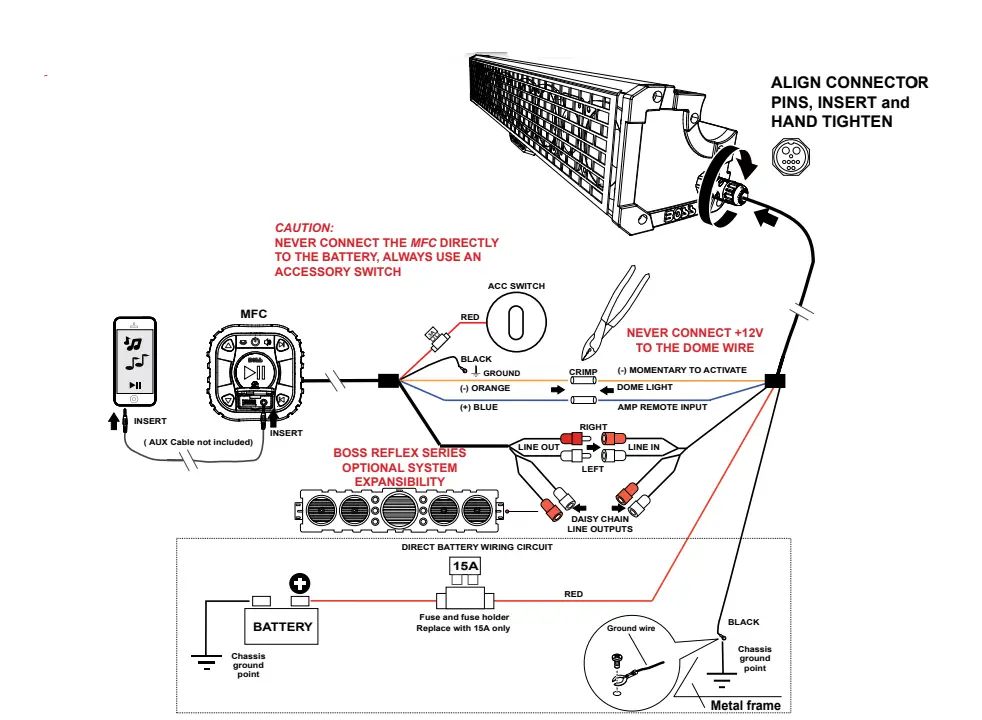

WIRE DIAGRAM

SPECIFICATIONS

• BLUETOOTH
  • Version: 4.1
  • A2DP / AVRCP / GATT
  • Range: 33ft (10m) Class 2
  • 20-Band DSP: 4 Preset EQ
  • RCA Line Output: 2V RMS
• SPEAKERS
  • Dimension: 3.0”
  • Cone Type: PP CARBON
  • Tweeter Size: 1” SOFT DOME
• AMPLIFIER
  • Maximum Output Power: 500 Watts
  • Input Impedance: 10kΩ
  • Frequency Response: 45Hz-25kHz
• GENERAL
  • Operational Power: 14.4VDC (10-16V allowable)
  • MAX Current Draw: 11.7A
  • USB Charging: 1A @ 5VDC +/- 5%
  • Replacement Fuse: 15A ATO TYPE
  • Cabinet Material: Aluminum Extrusion

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

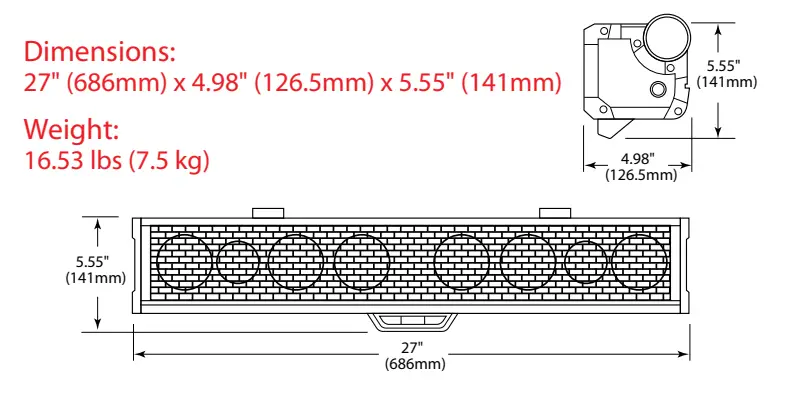

Dimensions: 27″ (686mm) x 4.98″ (126.5mm) x 5.55″ (141mm)
Weight: 16.53 lbs (7.5 kg)

• Color: Black Powder Coating
• Weight: 16.53lbs / 7.50kg
• Dimensions Inches WxHxD: 27.00 x 4.98 x 5.55
• Dimensions cm WxHxD: 68.6 x 12.6 x 14.1
• Storage Temperature: 5oF to 175oF / -15oC to 80oC
• Operation Temperature: 32oF to 140oF / 0oC to 60oC
