Pyle Pwpsb3202 32 Inch Powered Atv/utv Soundbar System User Guide (+ PDF)

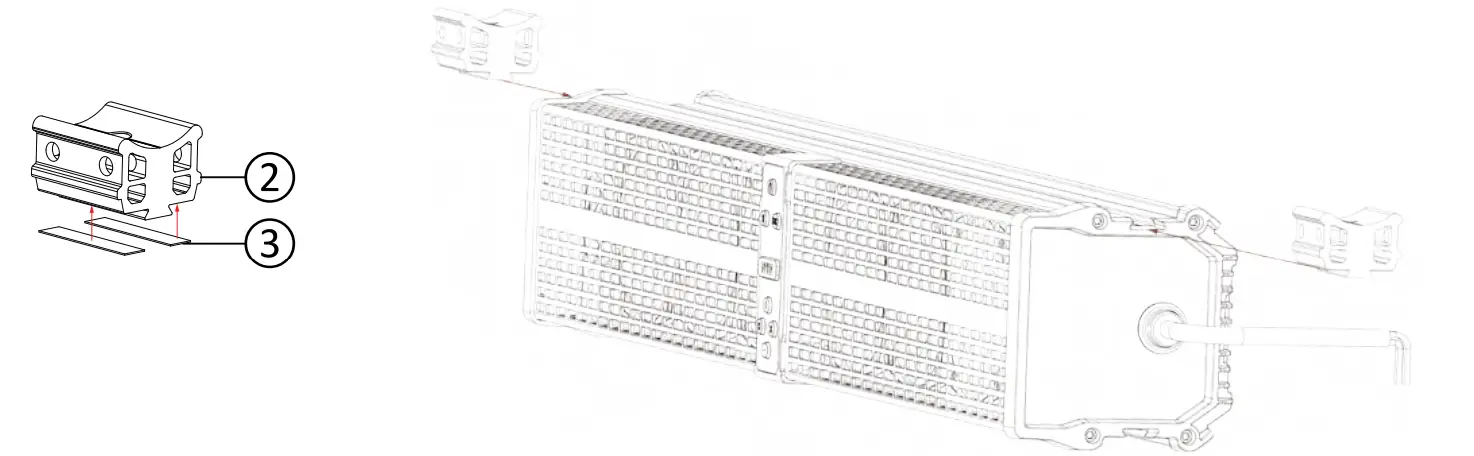

Stick the 45X10X0.5mm non-slip rubber strips (2 pieces) on the bottom of the clamps, then insert them into the slide

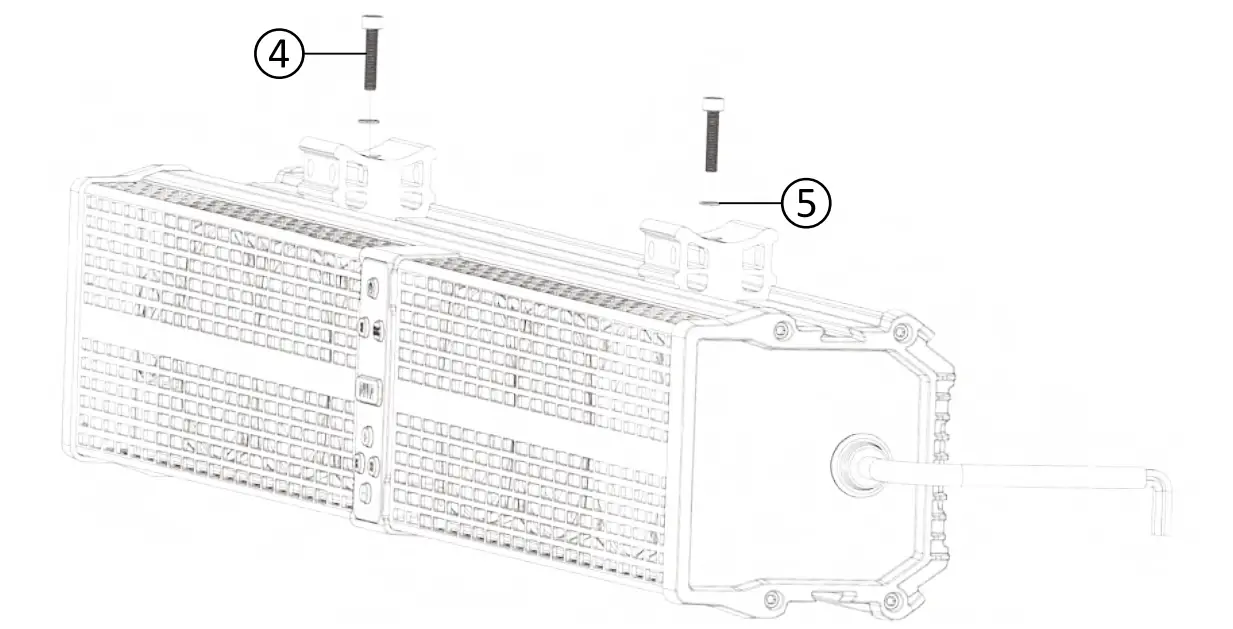

Align the screw holes at the bottom of the clamps with the positioning holes that have been made in the slider, and lock the M5X24mm screws and M5 spring washers to fix the clamps.

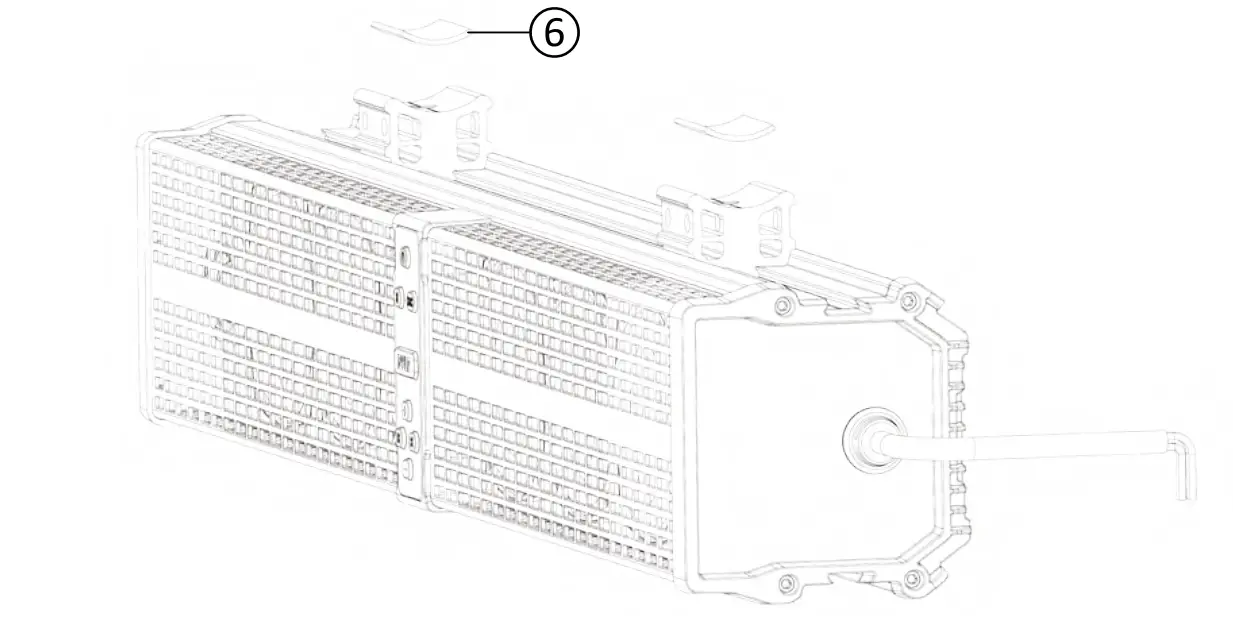

Stick 48X30X2mm rubber non-slip pads on clamps.

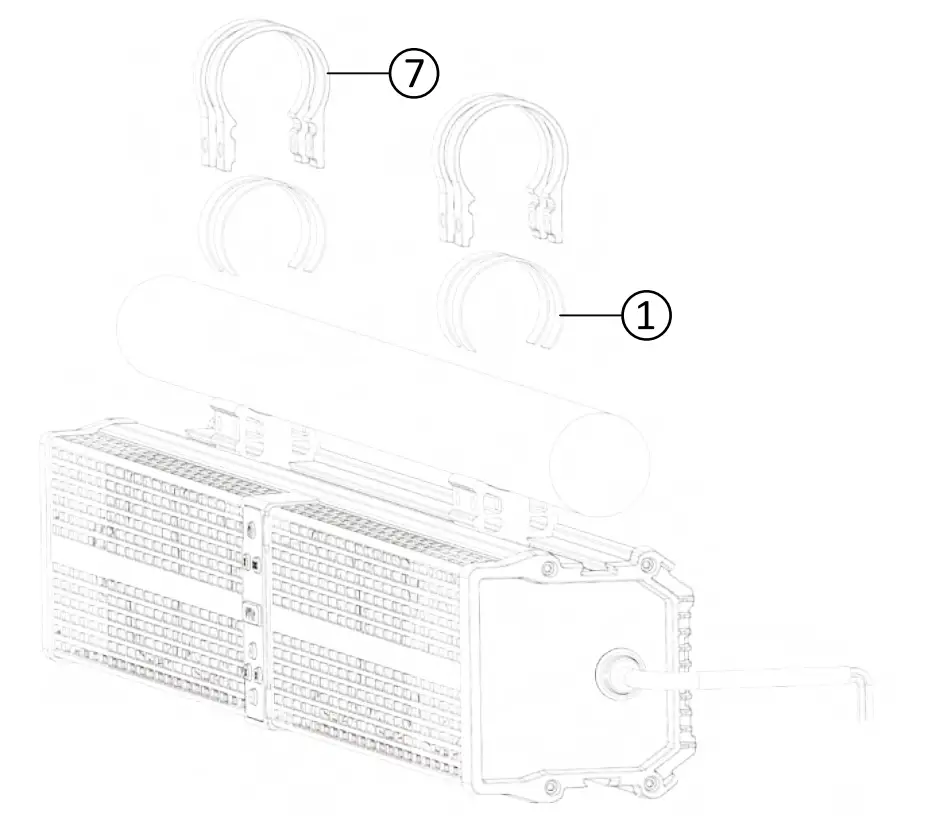

Installing on the cage bar of 1.5″ to 2.0″. Wrap the rubber strip on the cage bar to prevent being scratched. And then, press the aluminum rings on the rubber strip. The screw mounting holes of the aluminum ring are aligned with the base.
• 2” Cage bar are installed using 2” aluminum ring and 120X14X1mm rubber strip.
• 1.875” Cage bar are installed using 2” aluminum ring and 130X14X2mm rubber strip.
• 1.75″ Cage bar are installed using 1.75″ aluminum ring and 120X14X1mm rubber strips.
• 1.5″ Cage bar are installed using 1.75″ aluminum ring and 120X14X4mm rubber strips.

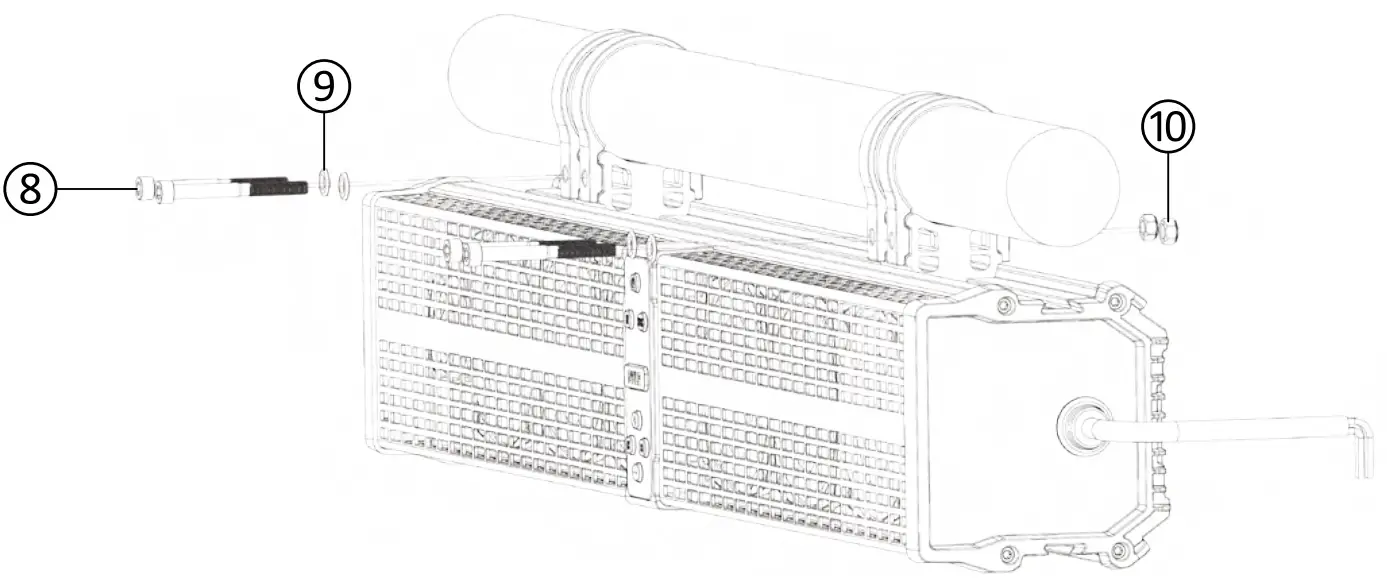

Use M6X60mm screws and M6 spring washers to pass through the aluminum ring and the base and the M6 non-slip nut at the back to fix the aluminum ring on the base as shown in the figure. Each nut should be installed in the hexagonal groove.

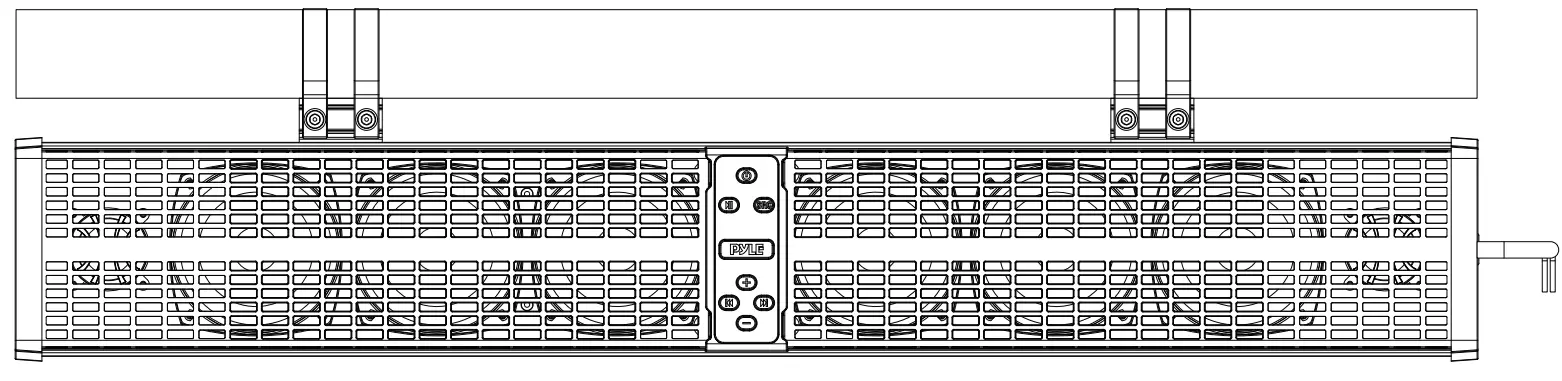

Complete the installation, the PWPSB3202 will be under the cage bar as shown in the figure.

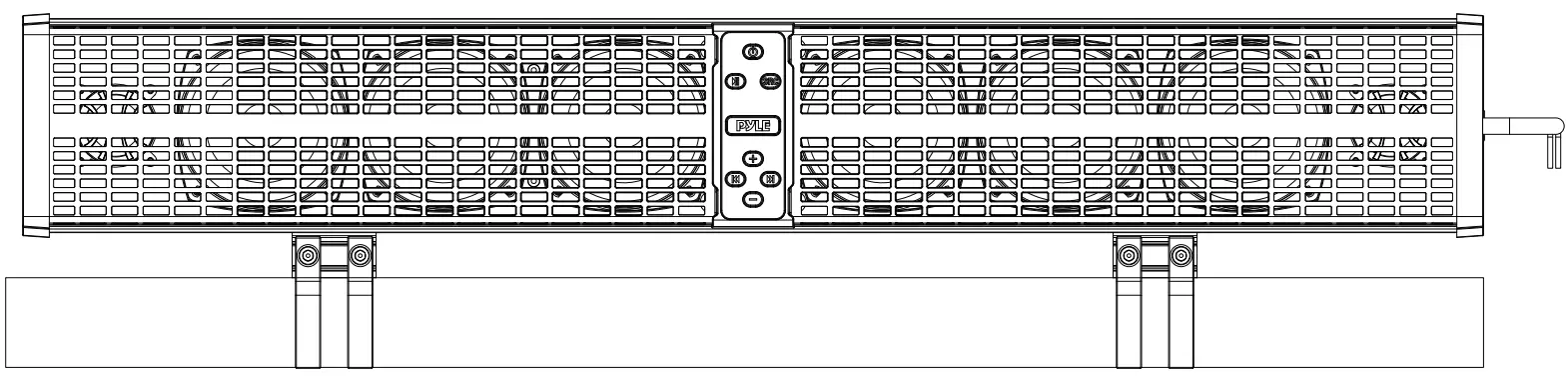

The installation steps of the aluminum ring below are the same as above, after complete installation, the PWPSB3202 will be above the cage bar as shown in the figure.

BT Pairing & Connection

*Power

Press and hold for 3 seconds for power on and off, when the powered ON, the background led will be white.

*BT Pairing

Turn on the BT, and search for “PyleUSA” to be paired. While waiting for being connected, the BT indicator light will be flashing as blue. No password needed.
When BT is connected, the BT indicator led will be blue constantlyZ
AUX-IN 1. Short press the SRC button for switching to Aux-In mode, the indicator led will turn green.

Parts List

①	Non-slip rubber pad (120 x 14 x 1mm) Non-slip rubber pad (120 x 14 x 4mm) Non-slip rubber pad (130 x 14 x 2mm)	4 PCS
		4 PCS
		4 PCS
②	Clamp base	2 PCS
③	Non-slip rubber strip (45 x 10mm)	4 PCS
④	M5x24mm screw	2 PCS
⑤	Spring washer for M5 screw	2 PCS
⑥	Non-slip rubber pad (48 x 30mm)	2 PCS
⑦	Aluminum ring 1.75”	4 PCS
⑦	Aluminum ring 2”	4 PCS
⑧	M6x60mm screw	4 PCS
⑨	Non-slip flat washer for M6 screw	4 PCS
⑩	Non-slip nut for M6 screw	4 PCS

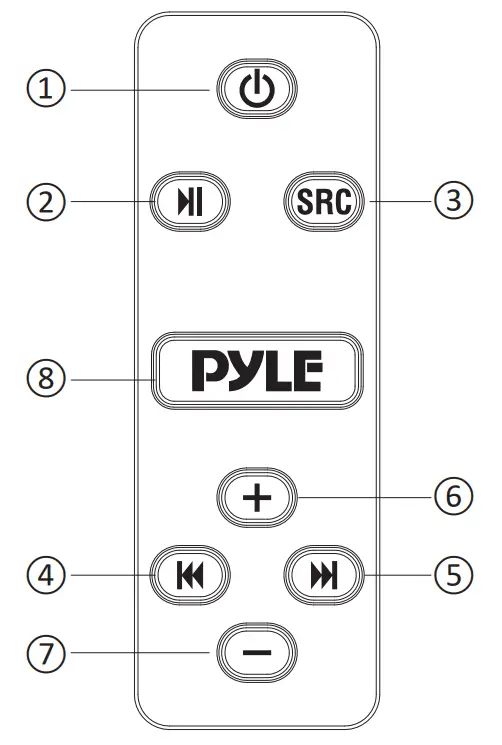

Button Function

①		Power On/Off: Long press 3 seconds
②		Play / Pause: Short press
③		Switching BT /Aux In mode BT Name: “PyleUSA”
④		Prevoious Song (Back): Short press
⑤		Next Song (Forward): Short press
⑥		Volume up: Short press for increasing by scale Long press for continuously increasing
⑦		Volume down: Short press for decreasing by scale Long press for continuously decreasing
⑧		Switching LED colors (Red / blue / purple / 3

Auto Connection

When the device is out of receiving distance range, the BT will disconnect automatically, and the BT indicator led will be flashing as blue.
When the device is back to the receiving distance range within 10 minutes, the BT will be auto connected, and the BT indicator led lights constantly.
If within 10 minutes, the device does not connect to the BT, then it needs to re-do BT connection steps.
If other device occupies the BT connection within 10 minutes, then its needs to re-do BT connection steps.

Wire Diagram

WARNING

This product can expose you to a chemical or group of chemicals, which may include “Di (2-ethylhexyl) phthalate (DEHP)” which is known in the state of California to cause cancer, birth defects, or other reproductive harm.
For more info, go to https://www.p65warnings.ca.gov/.

Features

Built-in Class D Stereo Power Amplifier
(4) 3.5” Mid-bass Drivers with Y35 Ferrite Magnets
(2) 3.5” Mid-range Drivers with Y35 Ferrite Magnets
Forward – firing Speakers for Maximum SPL and Sound Staging
(2) 1” PEI Dome Tweeters
Built-in BT Technology
Supports A2DP Audio Streaming
3.5mm Auxiliary Input
RCA Output for a Second Sound Bar, Subwoofer, Amplifier, or Powered Speakers
Built-in LED lights (Red, Blue, Purple)
LED Modes: Solid Color, Pulsating
Marine Rated with Rugged Weatherproof Exterior
IPX6 Waterproofing/Weatherproofing
Weather Resistant Grill and Hardware

Wireless BT Connectivity

Wireless Music Streaming Ability
Quick & Hassle-Free Device Pairing
Works with All of Your Favorite BT-Enabled Devices (Smartphones, Tablets, Laptops, Computers, etc.)
Wireless BT version 5.0
Wireless BT Network Name: ‘PyleUSA
