Wiltec 92671 Lifan 2 Cylinder Petrol Engine User Manual

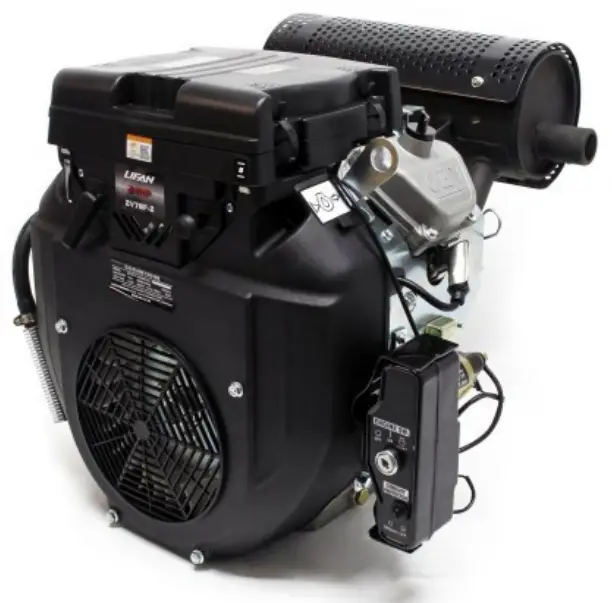

LIFAN 2-cylinder Petrol Engine
92671
User’s manual
Illustrations similar may vary depending on model

Please read and follow the operating instructions and safety information prior to the initial operation. Technical changes reserved!
Illustrations, functional steps, and technical data may deviate insignificantly due to continuous further developments.
The information contained in this document may alter at any time without prior notice. No part of this document may be copied or otherwise duplicated without prior written consent. All rights reserved.
WilTec Wildanger Technik GmbH cannot be held liable for any possible mistakes in this operating manual, nor in the diagrams and illustrations shown.
Although WilTec Wildanger Technik GmbH has made every possible effort to ensure that this operating manual is complete, accurate, and up-to-date, errors cannot be ruled out entirely.
If you have found an error or wish to suggest an improvement, we look forward to hearing from you. Send us an e-mail to:
[email protected] or use our contact form: https://www.wiltec.de/contacts/
The most recent version of this manual in several languages can be found in our online shop: https://www.wiltec.de/docsearch
Our postal address is:

WilTec Wildanger Technik GmbH
Königsbenden 12
52249 Eschweiler – Germany
To return your goods for an exchange, repair, or other purposes, please use the following address. Attention! To allow for a trouble-free complaint or return, it is important to contact our customer service team before returning your goods.
Retourenabteilung
WilTec Wildanger Technik GmbH
Königsbenden 28
52249 Eschweiler – Germany
E-mail: [email protected]
Tel: +49 2403 55592–0
Fax: +49 2403 55592–15

Introduction

Thank you for choosing to purchase this quality product. To minimize the risk of injury, we ask you to always take some basic safety precautions when using this product. Please read this operating manual carefully and make sure that you understand it.
Keep these operating instructions in a safe place.

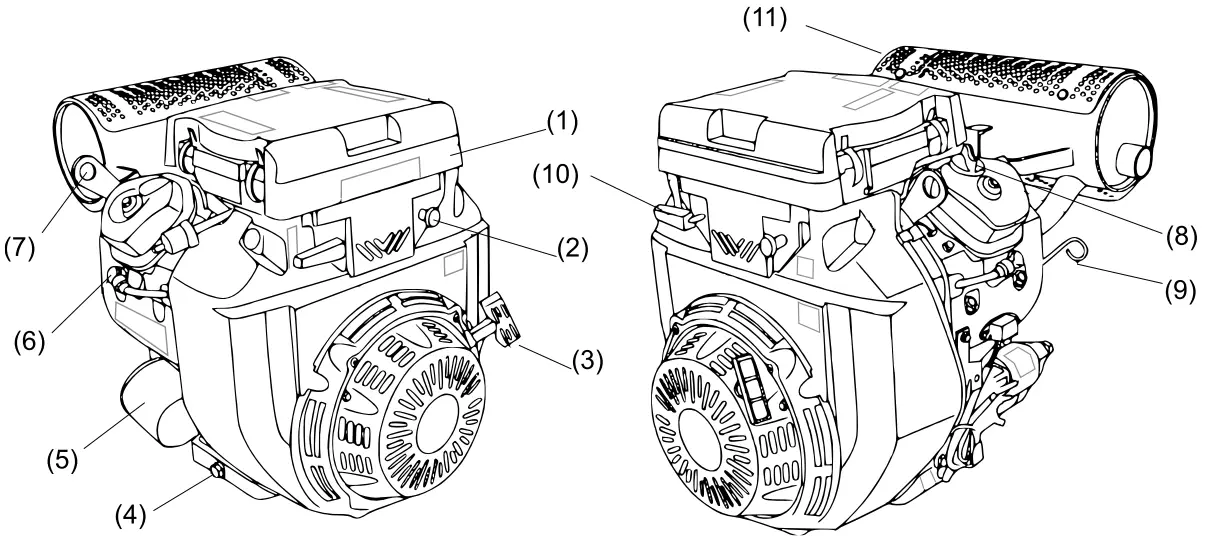

This petrol engine offers you:

• 2 cylinders, 4 strokes
• Hand starter and electronic starter
• Powerful cooling system
• TCI ignition module
• Fan guard made from special low-noise steel sheet

The leading point in the development of our series of air-cooled 4-stroke petrol engines has been the protection of material and saving of energy. By their compact design, the devices are easy to transport to every location and comfortable to handle. They offer the user a broad range of applications, including artisanry, industry, horticulture, agriculture, and household.
This user’s manual will assist you in optimally using the engine. Read it thoroughly before putting the device into operation. This will increase the lifetime of your device considerably.
Do not hesitate to contact us if you have any questions or proposals concerning this user’s manual. In some cases, the equipment of the device might vary from that described in the user’s manual present.

Safety instructions

For your own safety, obey the following instructions, for otherwise material damage and/or personal injuries might result.

• Make sure that the engine is only operated in well-aired conditions; otherwise, the exhaust gases might be harmful to your health.
• Near other persons, only operate the engine with the greatest care. Make sure that the exhaust pipe is free; it must not be covered, obstructed, or blocked.
• Before filling fuel into the tank, make sure to cut the engine off.
• The tank must not be filled to overflowing.
• In case fuel is spilled onto the casing of the device during filling fuel in, absolutely remove it before starting the engine.
• When exchanging the oil, make sure that the tank cover is closed lest oil gets into the tank.
• Do not operate the device near open flames, flammable or explosive materials or gases, and flying sparks.
• There should be a minimum distance of 1 m between the engine and the wall of a house or another permanent installation.
• Make sure that all moving and rotating parts are safely covered.
• During operation, certain components of the device (e.g., exhaust pipe) will heat up. When you touch these components, there is a risk of burns.
• Only operate the device in safe conditions and keep children away during operation.
• Only operate the engine on a level, solid surface. If inclined, fuel might leak.
• A major inclination (the device standing aslope) might impair the lubrication of the gearing mechanism even with full oil level. • When transporting the engine, make sure that no fuel can escape. It is advisable to empty the tank and close the fuel supply cock.

Connecting a battery (optional)

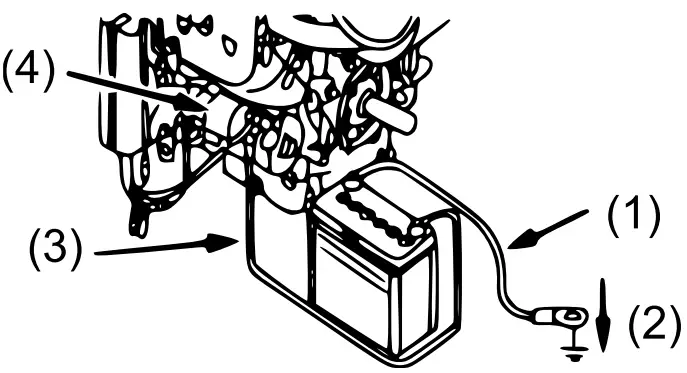

Only use 12 V batteries with a minimum of 45 Ah. Connect them to the positive cable of the relay and the negative cable to the housing of the engine. Make sure that there is no corrosion on the cable. Should there be corrosion on the cable, remove it first.

Attention!

• Only operate the engine in a well-ventilated area – with or without a battery.
• Avoid any kind of flying sparks, open flames, or the like. Explosion hazard!
• Batteries contain sulphuric acid (electrolyte). Any contact with your skin or eyes can cause serious injuries. Wear suitable protective clothing. Contact the furnisher of the battery used to read up on suitable measures.

Connecting a remote control (optional)

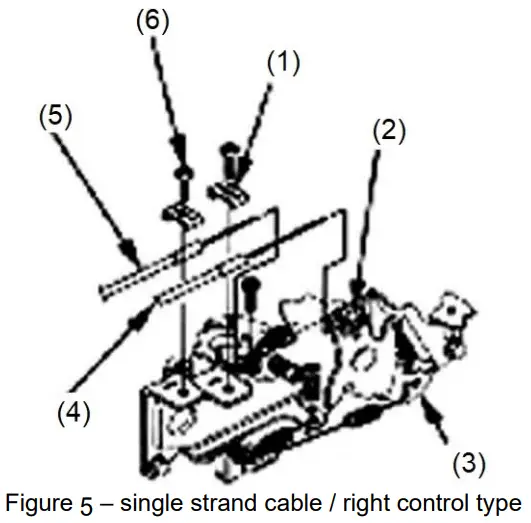

Throttle and choke levers have holes for optional cable accessories. The diagram shows the installation method of single-strand cable and woven cable.
a) Remote-controlled choke valve and remote-controlled throttle valve

c) Manually controlled throttle valve and manually controlled choke valve

Before operating the device

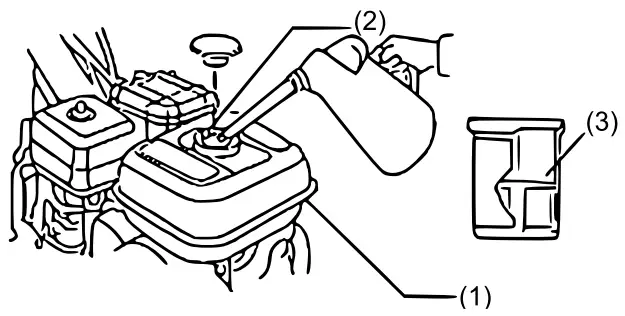

1. Make sure that all fuel lines are properly connected and safely fixed lest there be a fuel leak.
2. Make sure that all fixing screws and nuts are well-tightened.

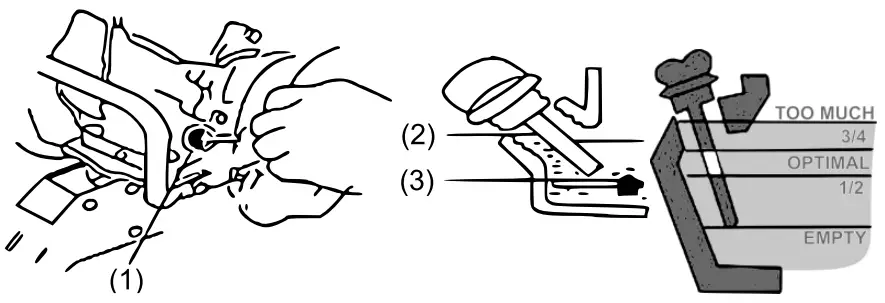

3. Check the fuel and oil levels and top up oil or fuel if necessary.

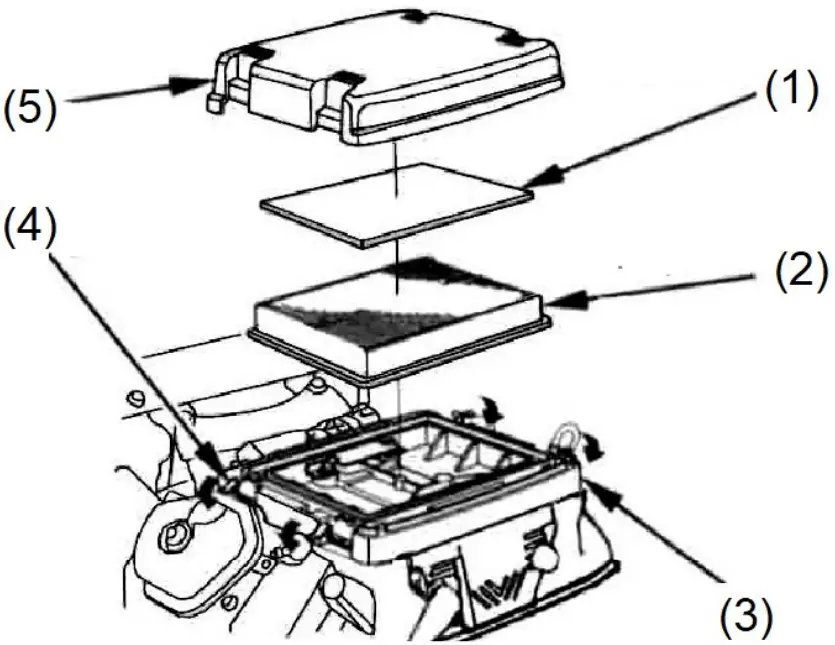

The air filter is to be checked and, if necessary, cleaned or replaced regularly.

The inclination of the output shaft
Allowable inclination	≤20°
Inclination of motor
Allowable inclination	≤20°

Starting the motor

Caution! You should put on a piece of protective equipment before starting the motor (hearing protection, gloves).

1. Put the fuel cock in the “ON” position (Fig. 9) (optional).

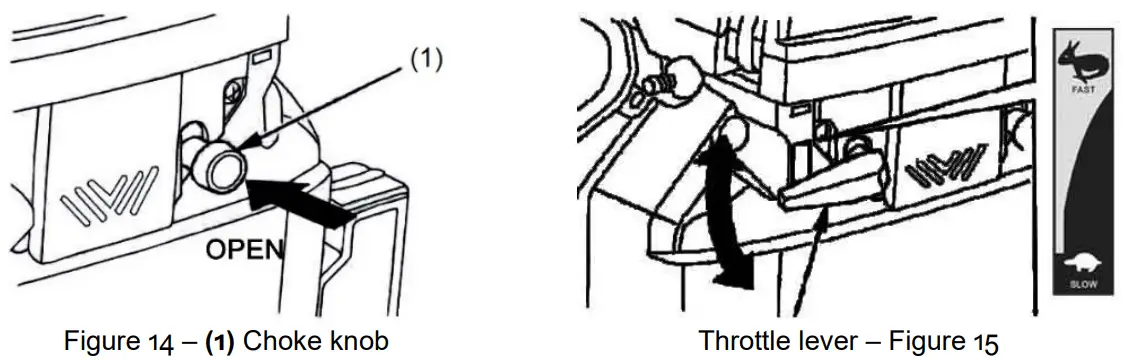

2. Put the choke lever in the “CLOSE” position (Fig. 10).
3. Put the throttle to the “FAST” position slowly.
4. Start the motor as follows:

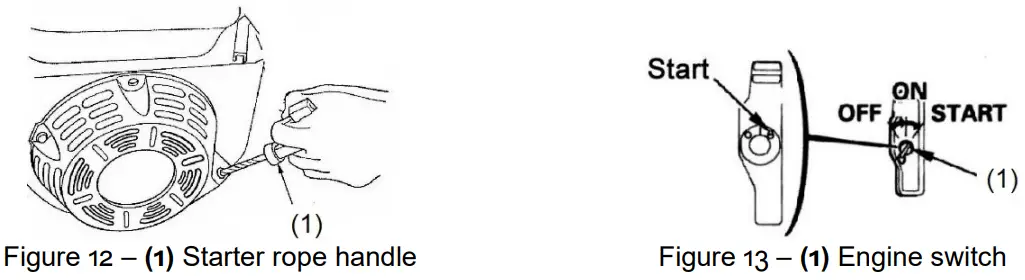

a) Hand starter: Slightly pull the starter rope handle upwards until you feel that it resists, then pull rapidly.

Attention! Should you let go of the handle suddenly, it might hit the motor. Instead, allow the starter rope to slide back slowly.
b) Electric starter
Push the engine switch to the “START” position and keep it pushed for 5 s until the motor starts.
Caution! Do not push the engine switch more than 5 s per start to avoid damage to the motor. Wait for 10 s before re-trying to start the motor, should the start be unsuccessful. As soon as the motor starts put the engine switch in the “ON” position.
c) If the motor dies off when the choke is set to a “CLOSE” position, immediately set the choke to“ON” as soon as the motor runs smoothly.

Set the throttle lever in the proper position to ensure the engine runs at the required velocity.
Oil deficiency switch/alarm
The oil deficiency switch reacts to an insufficient quantity of motor oil in the crankcase. Lacking motor oil may damage the motor. As soon as the oil level in the crankcase is too low, the motor oil alarm stops the engine automatically to protect it from damage during operation.
Attention! Should you not be able to restart the motor, first check the oil level before checking any other possible cause of the defect.
Mt5otor protection switch
The protection switch that protects the charging circuit of the battery switches off automatically if there is a short circuit or if the battery poles are connected improperly. The green indicator, jumping out, interrupts the circuit. Reset the indicator to its initial position after you have resolved the error that has triggered the indicator.
Stop/emergency stop
If there is an emergency, stop the motor by putting the engine switch to the “OFF” position. – To stop the engine in normal operation, proceed as follows:

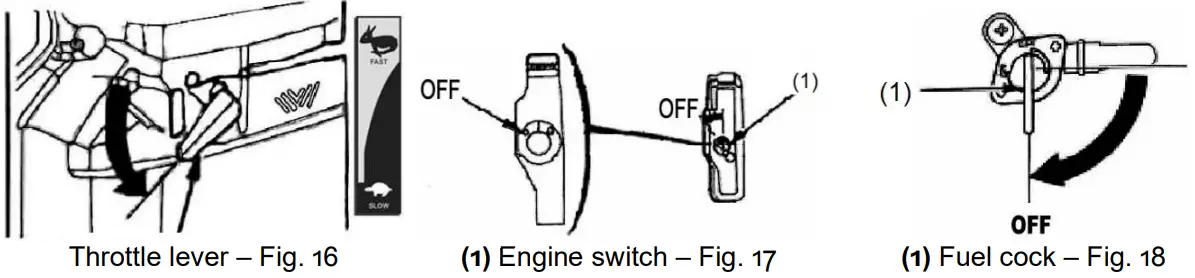

1. Put the throttle lever to the “SLOW” position slowly (Fig. 16).
2. Put the engine switch in the “OFF” position (Fig. 17).
3. Put the fuel cock to the “OFF” position (Fig. 18) (optional).

Attention! Never stop the motor suddenly when it operated with the throttle fully opened. Motor damages might result.
Exhaust regulation system
To keep the exhaust as low as possible, follow the steps mentioned below.
Maintenance
Maintain the motor regularly and according to the maintenance schedule of this manual. The maintenance schedule has been established on the basis of normal operation and normal conditions. If using the motor under heavy conditions, with a lot of dust generated, with ongoing humidity, or with high temperatures, you should maintain the motor more frequently.
Exchanging components
It is advisable to use spare parts produced by our establishment or with identical quality. Poor-quality parts might provoke an increase in the exhaust.
Modifications
Modifying the exhaust regulating system might lead to the actual exhaust emissions exceeding the legal values. The following are examples of inadmissible modifications:

• Dismantling or modifying any part of the air intake or exhaust system
• Modifying or taking off speed – adjusting the connection device or speed adjustment device to result in the engines running beyond the set parameters

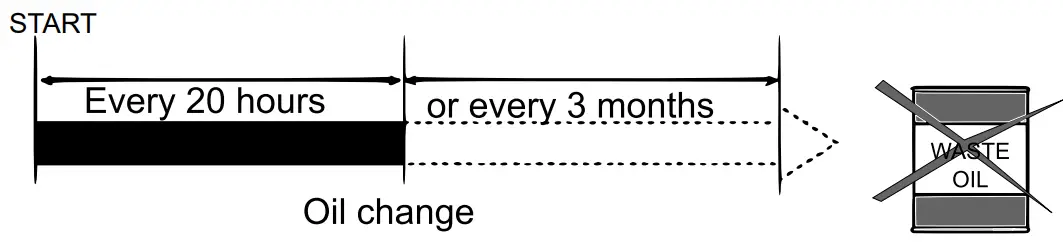

Regular maintenance – maintenance schedule

Technical data

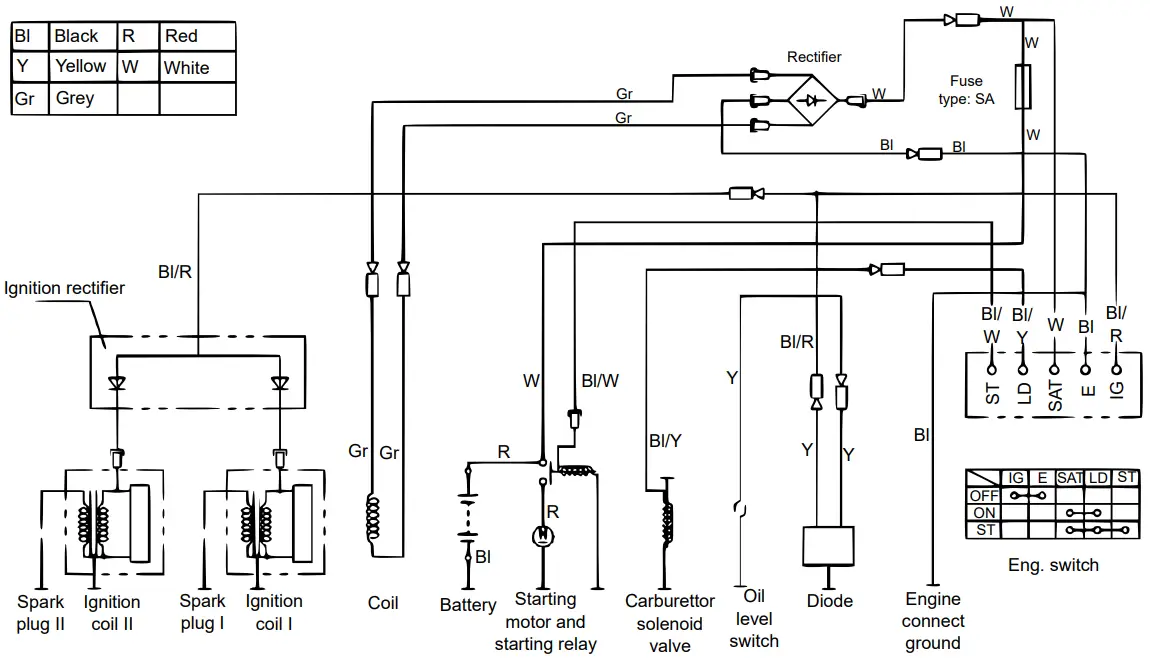

Connection diagram
Important Note:
Reproduction and any commercial use (of parts) of this operating manual, requires a written permission of WilTec Wildanger Technik GmbH.

© by WilTec Wildanger Technik GmbH
http://www.WilTec.de
http://www.aoyue.eu
http://www.teichtip.de
