Product brochure

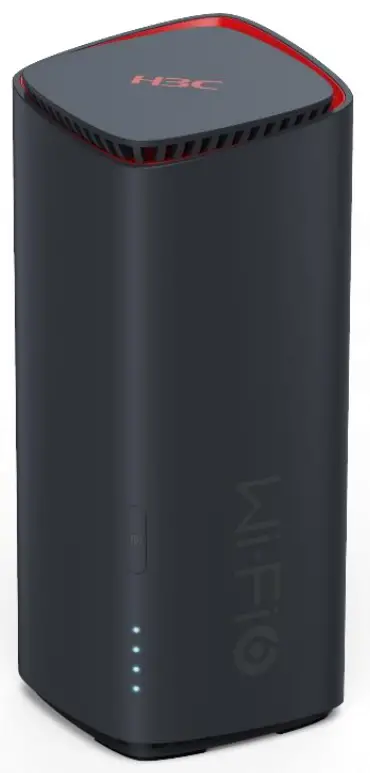

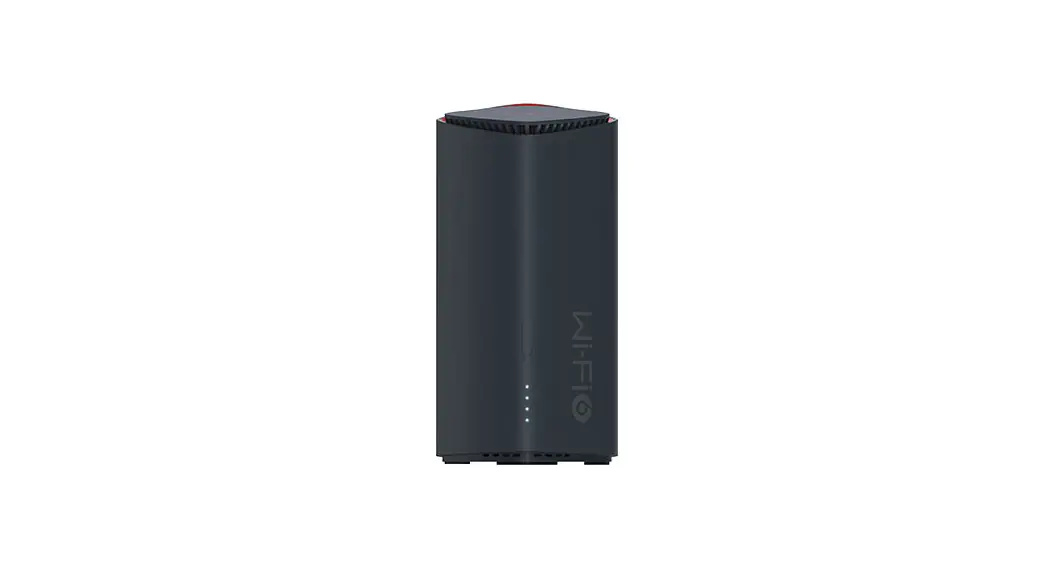

H3C BX54 Gigabit Dual Band Wireless Router
Overview
H3C BX54 Gigabit Dual Band Wireless Router is a new Wi-Fi 6 router designed by New H3C Intelligence Terminal Co., Ltd. for users requiring high-quality networks.BX54 uses the latest wireless protocol technology of Wi-Fi 6 (802.11ax). The wireless rate of the integrated machine is 5,378 Mbps, with the wireless rate of the 2.4 GHz frequency band increased to 574 Mbps and that of the 5 GHz frequency band increased to 4,804 Mbps. It uses four built-in high gain antenna and six independent ultra-high power Skyworks FEMs and supports EasyMesh. With larger, flexible network coverage, it meets a variety of household needs.BX54 uses the enterprise-level Qualcomm chip and comes equipped with a dual-core 1.0 GHz CPU and a standalone network acceleration engine NPU. It has a memory of 512 MB and supports access to up to 640 terminals, making your network more stable. Its unique CSA and SCS technologies as well as 2 MHz narrow bandwidth technology enhance the anti-interference capability of wireless networks. Functions such as wireless IDS, anti-Wi-Fi squatting, and the latest WPA3 encryption make your network more secure. In addition, it provides a built-in NetEase UU Game booster and other features. The latest H3C Wi-Fi 6 redefines quality. (EasyMesh and support for access of 640 terminals will be available upon software update..)
H3C BX54 Gigabit Dual Band Router
Product Features
Wireless rate of 5,400 Mbps
It supports 160 MHz bandwidth in 5 GHz and the 4T4R channel, with twice the wireless rate of the mainstream router AX3000.
Enterprise-level Qualcomm chip
Dual-core 1.0 GHz CPU with standalone network acceleration engine NPU, and concurrent processing of 12 network channels work with a standalone network acceleration engine, so the system runs more smoothly.
6 top-class high-performance signal amplifiers
Independent built-in high power FEM has larger signal coverage, solving the signal problem for remote terminals…
Multi-terminal concurrency
It supports OFDMA smart frequency division and upstream/ downstream MU-MIMO. Multiple terminals work concurrently for easing the queue. A maximum of 640 terminals can be connected to the Internet simultaneously.
NetEase UU all-terminal Game Booster
The built-in NetEase UU Game Booster delivers a smooth game experience.
Free from inter-neighbor Wi-Fi interference
The BSS Coloring technology enables each terminal to find its own organization, reducing inter-neighbor Wi-Fi interference.
Anti-Wi-Fi squatting/Anti-attack
IDS prevent external attacks and strangers from cracking into the software network.
Enterprise-level quality
H3C products serve more than 80% of the world’s top 500 enterprises, covering government, finance, energy, electricity, operators, and other fields.
Worry-free after-sales service
Smart cloud maintenance and one-click upgrade are available. Professional customer services are provided via WeChat, delivering support anywhere and anytime.
Product specifications
Item | Description |
| Hardware | |
| Fixed port | Four 10/100/1000Base-T Ethernet port Independent reset key, function keys (Mesh, wireless optimization) |
| Wireless | 4 built-in high gain omnidirectional antennas (2.4 GHz 3 dBi & 5 GHz dBi) |
| CPU | IPQ5018 |
| Memory | 512 MB |
| Indicator | Front LED: system status indicator The rear LED: 1 WAN port status indicator, 3 LAN port status indicators |
| Dimensions (W×D×H) | 95mm x 95mm x 226mm |
| Power supply | DC 12V/2A |
| Power consumption | ≤ 24W |
| Cooling method | Natural cooling |
| Product standard | YD/T 1096-2009 |
| Certification | China Compulsory Certification SRRC certification China RoHS, EU RoHS Network access license by the Ministry of Industry and Information Technology of the PRC. |
| Wireless | |
| Wireless protocol | 2.4 GHz: 802.11ax/n/g/b 5 GHz: 802.11ax/ac/n/a |
| Operating frequency band | 802.11ax/ac/n/a: 5.15-5.35 GHz, 5.725 GHz-5.850 GHz (China) 802.11ax/n/b/g:2.4 GHz–2.483 GHz (China) 2.4 GHz & 5 GHz, support dual-frequency combination, 5G preference |
| Spatial flow | 2.4 GHz 2×2 MIMO 5 GHz 4×4 MIMO |
| Wireless bandwidth | 2.4G HT20/HT40 5G HT20/HT40/HT80/HT160 |
| Wireless rate | Dual-frequency concurrency 5,378 Mbps 2.4 GHz: 574 Mbps & 5 GHz: 4,804 Mbps |
| Wireless roaming | Follow-up supporting of 11k/v |
| MU-MIMO | Upstream and downstream MU-MIMO |
| Software | |
| Internet connection | Routing mode: DHCP/PPPoE/Static IP Bridge mode: wired relay/wireless relay |
| EasyMesh | Available upon software update |
| IPv6 | Available upon software update |
| Blind-mating port | Available upon software update |
| Security features | WPA-PSK/WPA2-PSK//WPA3 encryption Anti-Wi-Fi squatting/anti-attack Firewall, DMZ, DoS attacks |
| Network management | Guest Wi-Fi, access allowlist/denylist, parental controls based on multiple periods, IP-based traffic control, Wi-Fi timing switch |
| Features | UU Game Booster, Qos traffic shaping, broadband password retrieval, packet fast-forwarding engine, virtual server, port triggering |
| Management method | Support H3C Magic App (iOS, Android), Web (http://192.168.124.1) |
| Fault diagnosis | Link detection Internet Diagnosis Smart cloud maintenance Professional customer service via WeChat |
| One-click uploading of fault information | |
| Operating environment | |
| Operating temperature | 0ºC–40ºC |
| Storage humidity | 10%–90%, RH non-condensing |
| Package | |
| Packing list | Integrated machine Quick Start Guide Power supply: DC 12V/2A Networking cable: Cat 5e cable |
Ordering information
Description | Quantity | Remarks |
| Data communication – H3C BX54-802.11ax 5400M, Gigabit Dual Band Wireless Router – Domestic Version | 1 |
