Geovision 8mp H.265 Low Lux Wdr Pro Face Detection Box Ip Camera Instructions

www.geovision.com.tw
GV-BX8700-FD 8MP H.265 Low Lux WDR Pro Face Detection Box IP Camera

• 1/2” progressive scan low lux CMOS
• Min. illumination at 0.03 lux
• Triple streams from H.265, H.264 and MJPEG
• Up to 30 fps at 3840 x 2160
• Megapixel varifocal lens
• P-Iris for auto iris adjustment
• Day and Night function (with removable IR-cut filter)
• Wide Dynamic Range Pro (WDR Pro)
• DC 12V / PoE (IEEE 802.3af)
• Two-way audio
• Built-in / external microphone
• Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I) for local storage
• Mini USB slot for WiFi adapter or USB hard drive
• One sensor input and alarm output
• TV-out support
• Face Detection
• 3D noise reduction
• Smart streaming
• Defog
• Privacy mask IP address filtering Recording assigned by GV-Edge Recording Manager (Windows, Mac version)
• Supports iPhone, iPad, Android & 3GPP
• 31 languages on Web interface
• ONVIF (Profile S) conformant
  * No Memory card slot & local storage function for Argentina.
  * Smart streaming requires GV-DVR / NVR V8.7.0, GV-VMS V16.10.3 or later software versions.
  * Face detection requires GV-VMS 18.1 or later.

Introduction

GV-BX8700-FD is specifically designed for face detection. The camera can support H.265 video codec to achieve better compression ratio while maintaining high picture quality at reduced network bandwidths. The camera is equipped with a low lux CMOS image sensor which allows the camera to provide a color live view in near darkness. The camera features a mini USB port that supports wireless connection through a GV-WiFi Adapter (optional) or external storage using a USB hard drive.

Active Tampering Alarm

	Tampered
	Focus Change
	Camera Shift

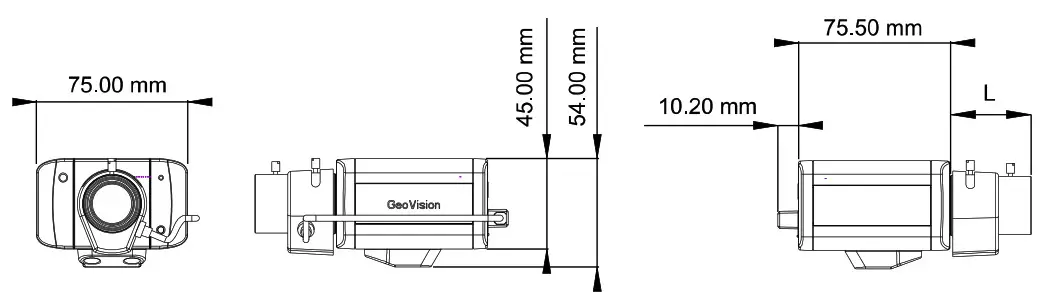

Dimensions
Specifications

1. It is required to apply patch files to some of the supported software.
2. The signal range and data throughput may vary depending on the network conditions and environmental factors.
3. Mind the following limitations and requirements for the mini USB port:
   • The USB hard drive must be of 2.5” or 3.5”, version 2.0 or above
   • The USB hard drive’s storage capacity must not exceed 2 TB
   • USB flash drives and USB hubs are not supported
   • External power supply is required for the USB hard drive
   • To connect a GV-WiFi Adapter, make sure it is connected before the camera is powered on.
4. Mind the following when using a memory card for recording:
   • Recorded data on the memory card can be damaged or lost if the data are accessed while the camera is under physical shock, power interruption, memory card detachment or when the memory card reaches the end of its lifespan. No guarantee is provided for such causes.
   • The stored data can be lost if the memory card is not accessed for a long period of time. Back up your data periodically if you seldom access the memory card.
   • Memory cards are expendable and their durability varies according to the conditions of the installed site and how they are used. Back up your data regularly and replace the memory card annually.
   • To avoid power outage, it is highly suggested to apply a battery backup (UPS).
   • For better performance, it is highly suggested to use Micro SD card of MLC NAND flash, Class 10.
   • Replace the memory card when its read/write speed is lower than 6 MB/s or when the memory card is frequently undetected by the camera.
5. Specifications are subject to change without notice.

Packing List

Accessories

Model No.	Name	Details
GV‐Housing102	Housing Box (with heater and fan)	Dimensions: 406 x 145 x 109 mm (16 x 5.7 x 4.3″) Weight: 4.69 kg (10.34 lb) (including Supporting Tube) Start‐up Temperature: ‐30°C ~ 50°C (‐22°F ~ 122°F) Operation Temperature: ‐40°C ~ 50°C (‐40°F ~ 122°F) Heater: 15°C (59°F) On / 25°C (77°F) Off Fan: 35°C (95°F) On / 25°C (77°F) Off Power board: 24V AC or 12V DC input
GV‐Housing103 (not supported by GV‐BX4700‐8F)	Housing Box (with IR)	Dimensions: 404 x 128 x 257 mm (15.91 x 5.04 x 10.12″) Weight: 7 kg (15.43 lb) (including Supporting Tube) Start‐up Temperature: ‐20°C ~ 50°C (‐4°F ~ 122°F) Operation Temperature:  ­30°C ~ 50°C (‐22°F ~ 122°F) IR: 6 IR LEDs with up to 60 m (196.85ft) IR effe ctive distance Power: 12V DC, 1A input

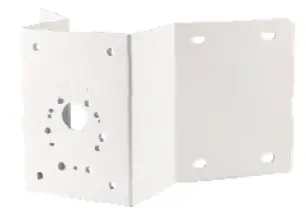

GV‐Mount300‐1	Convex Corner Adapter Kit	Dimensions: 238.6 x 395.2 x 210 mm (9.4’’ x 15.5” x 8.2”) Weight: 4.27 kg (9.41 lb)
GV‐Mount310‐1	Concave Corner Adapter Kit	Dimensions: 111.2 x 369.9 x 210 mm (4.37’’ x 14.5” x 8.2”) Weight: 2.96 kg (6.53 lb)
GV‐Mount400‐1	Pole Mount Bracket Kit (Ø 4″ ~ 6″)	Bracket: 68.4 x 240 x 163 mm (2.69” x 9.44’’ x 6.41”) Weight: 1.70 kg (3.75 lb) Steel Strap Diameter: Ø 4″ ~ 6″
GV‐Mount410‐1	Pole Mount Bracket Kit (Ø 6″ ~ 7.5″)	Bracket: 68.4 x 240 x 163 mm (2.69” x 9.44’’ x 6.41”) Weight: 1.70 kg (3.75 lb) Steel Strap Diameter: Ø 6″ ~ 7.5″
Supporting Rack		Dimensions: Ø 58 x 120 mm (2.28” x 4.72”) Weight: 0.1 kg (103 g)
GV‐PA191 PoE Adapter		Weight: 130 g / 0.29 lb Dimensions (H x W x D): 43 x 69 x 40 mm / 1.69” x 2.72” x 1.57”
GV‐POE Switch		The GV‐POE Switch is designed to provide power along with network connection for IP devices. The GV‐POE Switch is available in various models with different numbers and types of ports.
GV‐Relay V2		The GV‐Relay V2 is designed to expand the voltage load of GV IP devices. It provides 4 relay outputs, and each can be set as normally open (NO) or normally closed (NC) independently as per your requirement.
GV‐WiFi Adaptor V2		Weight: 0.01 kg (0.02 lb) Dimensions: 15 x 15 x 155 mm (0.59 x 0.59 x 6.10”) Supplied with Mini USB to standard USB adapter
Power Adapter		Contact our sales representatives for the countries and areas supported.

Note: GV‐Housing103 only works with GV‐Mount300‐1, GV‐Mount310‐1, GV‐Mount400‐1, GV‐Mount410‐1.
