HIKVISION DS-PDPC12PF-EG2-WB Wireless PIR-Camera Detector Instruction Manual

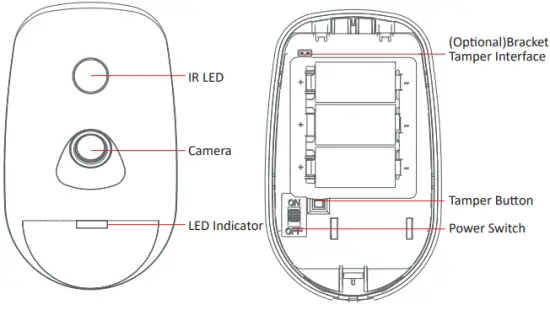

Appearance
CAUTION
IF THE BATTERY COMPARTMENT DOES NOT CLOSE SECURELY, STOP USING THE PRODUCT AND KEEP IT AWAY FROM CHILDREN.
CAUTION
CHEMICAL BURNING DANGER DO NOT SWALLOW THE BATTERY
KEEP NEW AND USED BATTERIES AWAY FROM THE CHILDREN.
IF YOU THINK BATTERIES MIGHT HAVE BEEN SWALLOWED OR PLACED INSIDE ANY PART OF THE BODY, SEEK IMMEDIATE MEDICAL ATTENTION.
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
REPLACEMENT OF A BATTERY WITH AN INCORRECT TYPE THAT
CAN DEFEAT A SAFEGUARD. REPLACE ALL BATTERIES AT THE SAME TIME.
DO NOT MIX OLD AND NEW BATTERIES.
CAUTION
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTION AND LOCAL REGULATION.
Enrollment
Note: The enrollment progress will be completed in 3 to 10 seconds normally.
- Log in to the APP Store, download and install the App.
- Power on the security control panel.
- Log in the APP and tap the icon “+” . Scan the QR code or input the control panel serial No. to add the control panel.
Enroll the Peripheral Locally

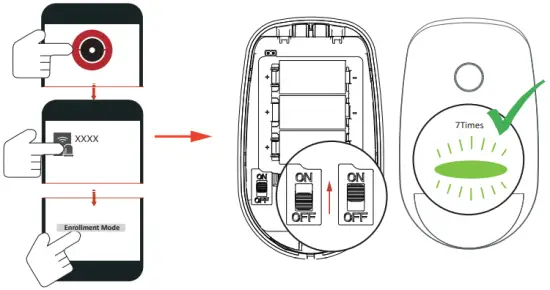

- In the APP, tap the “Enrollment Mode” button on the control panel page to make the control panel enter the enrollment status.
- Loosen the screw and remove rear panel.
- Power on the peripheral, and it will be automatically enrolled to the control panel.
Note: make the device power off, hold the tamper switch and then power on for re-enrollment synchronously.
The distance between the detector and AXPRO should be less than 50 cm.
Enroll the Peripheral with QR and serial No.

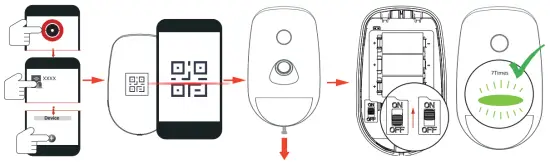

- In the APP, tap the icon “+”and scan the QR code or serial No. on the peripheral.
- Loosen the screw and remove rear panel.
- Power on the peripheral, and it will be automatically enrolled to the control panel.
Installation
- Check Signal Strength

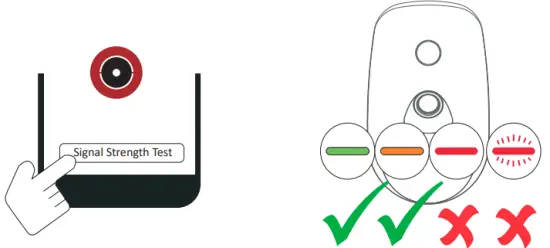

Enter the signal checking mode by operating on the control panel. Trigger the detector.
Solid Green for 3 s – Strong Signal
Solid Orange for 3 s – Medium Signal
Solid Red for 3 s – Weak Signal
Red light flashes for 3S – Failure

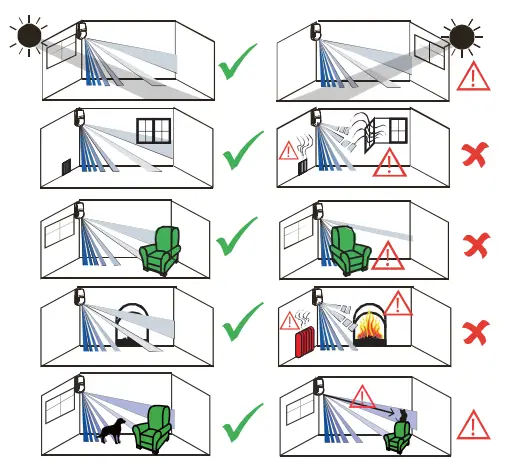

- Check the installation environment
- Install the Detector
Note: The additional force shall be equal to three times the weight of the equipment but not less than 50N. The equipment and its associated mounting means shall remain secure during the installation. After the installation, the equipment, including any associated mounting plate, shall not be damaged.
Make sure there is no obstacle sheltering the LENs and IR light.
with Screws

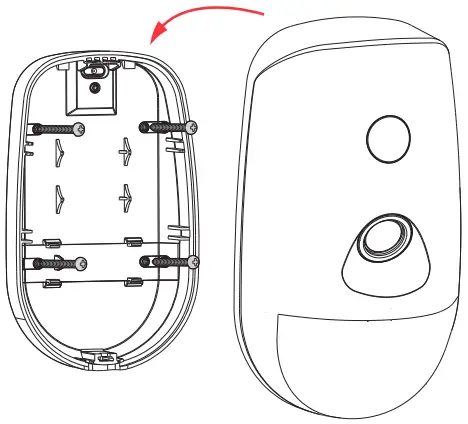

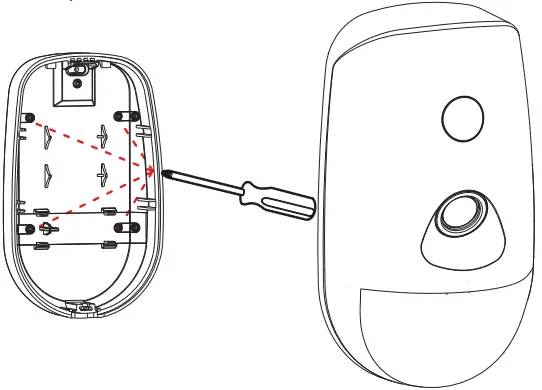

a. Knock out the screw holes on the rear panel.
b. Secure the rear panel on the wall with four screws.
with the Sponge Tape
Paste the device on the wall with sponge tape.
You can paste the detector on the wall or in the corner
Note: Installing with sponge tape is non EN compliant.
Bracket Installation

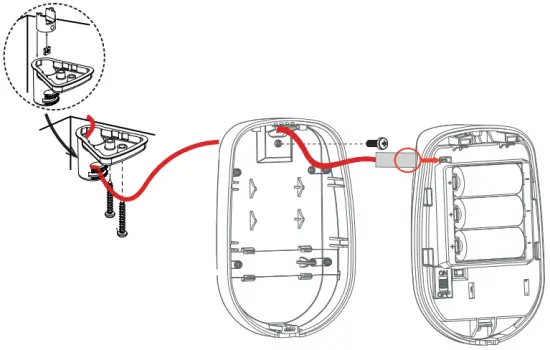

Ceiling Bracket Fitting (Non EN compliant)
Wall Bracket Fitting
Test
Detector zones and planes

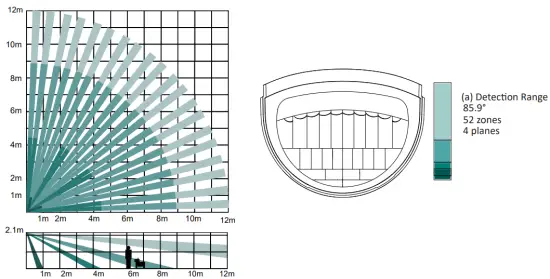

The zones and plans of the PIRCAM are shown below.

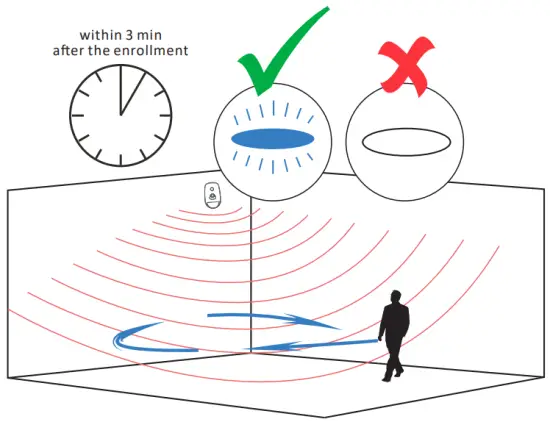

While the detector is disarmed, the detector will enter the walk test mode (within 3 minutes after being enrolled).
Trigger the detector within the detection range.
If the LED indicator turns blue, the installation position is properly. If the LED indicator is still off, adjust the position of the detector.
Note: while the detector is disarmed, power off and power on will make the detector enter the walk test mode.
Formatting
Hold the tamper switch for 8 s and power the device on at the same time. The red LED flashes 3 times when the formatting operation is completed.
Set up with App
Link the detector to the zone.
On the device list page, tap the AX PRO and then log in to the device (if required) to enter the Area page.
Tap Device, and tap the zone.
You can view the device status including temperature, battery status, signal strength, etc.
Tap the
button in the upper right corner to enter the Settings page.
| Function | Description |
| Zone Type | Select the zone type of the detector. |
| Stay Arm Bypass | Slide to green to bypass the zone from stay arming. |
| Forbid Bypass on Arming | Slide to green to forbid the zone with fault to be bypassed automatically when arming. |
| Chime | Slide to green to enable the chime. |
| Silent Alarm
| Slide to green to make the zone keep silent while alarm is triggered.
|
| Sounder Delay Time | Set the delay time. The sounder will be triggered immediately or after the set time. |
| Cross Zone | If the alarm triggered in both of the linked zones within the set time, two alarm messages will be reported. |
| Sensitivity | Set the sensitivity of the detector. Higher sensitivity makes the intruder easier to be detected. |
| Image Resolution | Set the resolution of the image. |
| Image in Series | Set the captured image number in series. |
| Swinger limit activations | Set the limit times of swinger activition . |
| Trigger Interval, sec | Set the interval of trigger, and the alarm message will not be repeated within the time. |
| LED | Turn On/Off the LED. |
| Polling Rate | Set the interval of heartbeat. |
| Signal Strength Test | Enter the test mode, and view the LED indication. |
| Detection Zone Test | Enter the test mode, and start walk test. |
| Find Me | Tap Find Me to make peripherals find the zone. |
| Bypass | Slide to green to bypass the zone. |
Operation Caution and Device Maintenance
- All the electronic operation should be strictly compliance with the electrical safety regulations, fire prevention regulations and other related regulations in your local region.
- Do not drop the device or subject it to physical shock, and do not expose it to high electromagnetism Avoid the equipment installation on vibrations surface or places subject to shock (ignorance can cause equipment damage).
- Please make sure that the power has been disconnected before you wire, install or dismantle the device.
- If smoke, odors or noise rise from the device, turn off the power at once and unplug the power cable, and then please contact the service center.
- Do not drop the device or subject it to physical shock, and do not expose it to high electromagnetism Avoid the equipment installation on vibrations surface or places subject to shock (ignorance can cause equipment damage).
- Do not place the device in extremely hot (refer to the specification of the device for the detailed operation temperature), cold, dusty or damp locations, and do not expose it to high electromagnetic radiation.
- The device for indoor use shall be kept from rain and Exposing the equipment to direct sun light, low ventilation or heat source such as heater or radiator is forbidden (ignorance can cause fire danger).
- Do not aim the device at the sun or extra bright A blooming or smear may occur otherwise (which is not a malfunction however), and affecting the endurance of sensor at the same time.
- Improper use or replacement of the battery may result in hazard of Replace with the same or equivalent type only. Dispose of used batteries according to the instructions provided by the battery manufacturer.
- Do not expose the device to the corrosive Otherwise the equipment damage may occur.
- Do not expose the device to the explosive situation.
Specification
| Model | DS-PDPC12PF-EG2-WB/WE | |
| Detection Performance | Detection Method | Passive Infrared,Video Verification |
| Sensor Model | SFG321-711 | |
| Detection Range | 12m | |
| Detection Angle | 85.9° | |
| Detection Zones | 52 | |
| Detectable Speed | 0.3 to 2m/s | |
| Sensitivity | Auto,High,Pet | |
| Pet Immunity | 30Kg | |
| White Light Filter | 6500lux | |
| Digital Temperature Compensation | Support | |
| Creep Zone Protection | Support | |
| Feature | Digital Processing | Support |
| Sealed Optics | Support | |
| Tamper Protection | Front,Rear | |
| Environment Temperature Indicator | Support | |
| Signal Strength Indicator | Support | |
| Video | Image Sensor | ASX340 |
| Field Angle | 88°(H), 68°(V) | |
| Image Type | JPEG | |
| Resolusion | 640*480,320*240,160*120 | |
| Frame Rate | 2 | |
| Fill Light | White Light | |
| Fill Range | 12m | |
| Day/Night Switch | Color | |
| Interface | Power Switch | Power Up Enrolling |
| LED Indicator | Blue(Alarm) | |
| Transmission | Transmission Technology | CAM-X Wireless |
| Transmission Method | Two-Way RF Wireless | |
| Transmission Frequency | 433MHz/868MHz | |
| Transmission Security | AES-128 Encryption | |
| Transmission Range(Free Space) | 800m | |
| Enrolling Method | Power up,Remote ID,QR Code | |
| Electrical Characteristics | Power Supply | Battery Powered |
| Battery Type | CR123A × 3 | |
| Typical Voltage | 3V | |
| Low Voltage Value | 2.45 V | |
| Consumption | Max. current: 1.5A Quiescent current: 10uA | |
| PS Type | Type C | |
| Standard Battery Life | 6 Years | |
| General | Operation Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Storage Temperature | -20 °C to 60 °C (-4 °F to 140 °F) | |
| Operation Humidity | 10% to 90% | |
| Dimension(WxHxD) | 72.2mm × 120.5mm × 56.7mm | |
| Weight | 220g | |
| Mounting Height | 1.8 to 2.4m | |
| Mounting Method | Wall | |
| Application Scenario | Indoor | |
| Bracket | Optional Wall & Ceiling Accessory | |
Reference Table
| 1st Photo transmission time | |
| – 160 x 120 | 5s (5KB per image) |
| – 320 x 240 | 6s (10KB per image) |
| – 640 x 480 | 12s (60KB per image) |
| Internal memory buffer | |
| – 160 x 120 | 160 images (5KB per image) |
| – 320 x 240 | 80 images (10KB per image) |
| – 640 x 480 | 25 images (30KB per image) |
