DS-PDC10AM-EG2-WE
Wireless External PIR Detector
- Slim design for window frame installation
- IP65 weather resistance for outdoor application
- Active IR anti-masking
- Multiple enrollment methods and easy installation
- Frequency hopping against jamming for reliable transmission
Specification
| Model | DS-PDC10AM-EG2-WE | |
|
Detection Performance | Detection Method | Passive Infrared |
| Detection Range | Wall Mount：10m Ceiling Mount：5m | |
| Detection Angle | 5° | |
| Detection Zones | 32 | |
| Detectable Speed | 0.3 to 2m/s | |
| Sensitivity | Auto, Pet | |
| White Light Filter | 6500lux | |
| Pet Immunity | Wall Mount：12Kg Ceiling Mount： None | |
| Digital Temperature Compensation | Support | |
| Creep Zone Protection | Support | |
| Anti-masking | Support | |
|
Feature | Digital Processing | Support |
| Sealed Optics | Support | |
| Tamper Protection | Front, Rear | |
| Environment Temperature Indicator | Support | |
| Signal Strength Indicator | Support | |
| Interface | Power Switch | Power Up Enrolling |
| LED Indicator | Blue(Alarm), Green+Orange(Mask) | |
|
Transmission | Transmission Technology | Tri-X Wireless |
| Transmission Method | Two-Way RF Wireless | |
| Transmission Frequency | 868MHz | |
| Transmission Security | AES-128 Encryption | |
| Transmission Range(Free Space) | 1.6Km | |
| Frequency Hopping | Support | |
| Enrolling Method | Power up, Remote ID, QR Code | |
|
Electrical Characteristics | Standard Battery Life | 5 years in work status (being triggered 20 times per day) |
| Power Supply | Battery Powered | |
| Battery Type | CR123A × 2 | |
| Typical Voltage | 3V | |
|
General | Operation Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Storage Temperature | -20 °C to 60 °C (-4 °F to 140 °F) | |
| Operation Humidity | 10% to 90% | |
| IP Rate | IP65 | |
| Dimension(WxHxD) | 29.2mm × 134.4mm × 39.5mm | |
| Weight | 118.5g | |
| Mounting Height | 2 to 3.5m | |
| Mounting Method | Wall, Ceiling | |
| Application Scenario | Indoor, Outdoor | |
| Bracket | L-shaped adapter included |

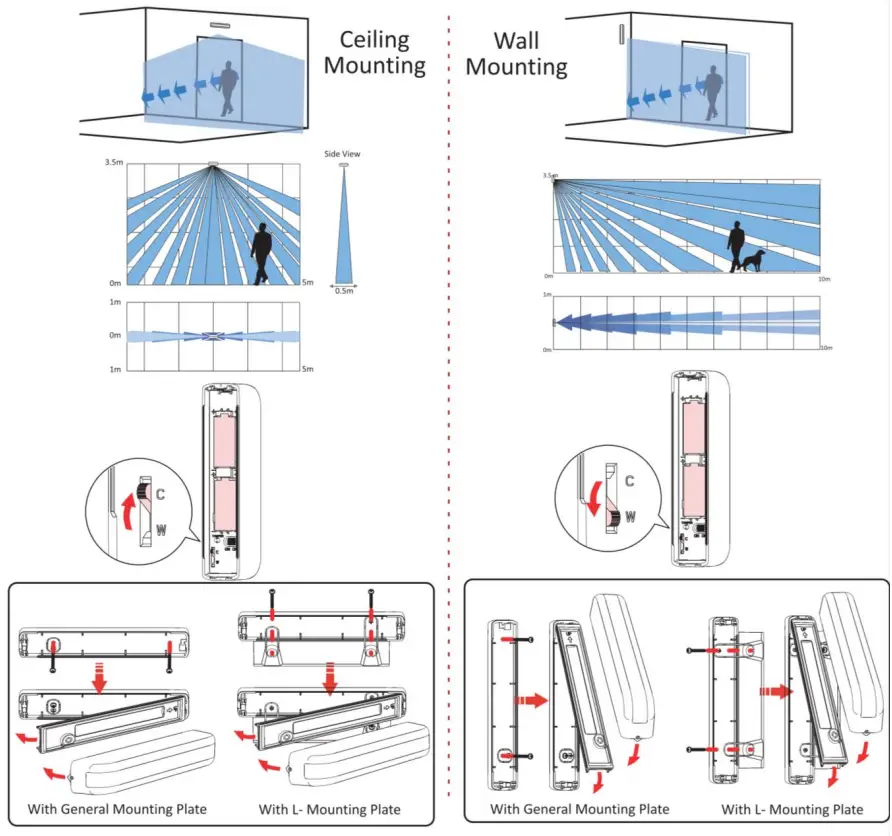

Installation
Available Model
DS-PDC10AM-EG2-WE
