WTC-ES / WTC-IS / WTC-ISMR
Installation and operating manual
Thermostat contact
Technical Characteristics
| Max. contact temperature | 110°C |
| Setting temperature range | 30 °C – 90°C |
| Differential | 5°C |
| Protection | IP40 |
| Materials Cover / Base | ABS V0 / Galvanised steel |
| Contacts rating | 16 (4)A 250VAC / 6 (1)A 400VAC |
| Product conformed to: Classification: Contribution: | UE 811/2013 and 2010/30/UE I  (1%) |
| Content of the packaging | The product, this manual |
| Weight of the product | WTC-IS: 0.188kg, WTC-ES: 0.193kg, WTC-ISMR: 0.187kg |
| Dimensions | Width: 45 mm, Height: 107 mm, Depth: 53 mm |
| WTC-ES: WTC-IS: WTC-ISMR: | Contact thermostat with external adjustment Contact thermostat with internal adjustment Contact thermostat with internal adjustment and manual reset |
DESCRIPTION

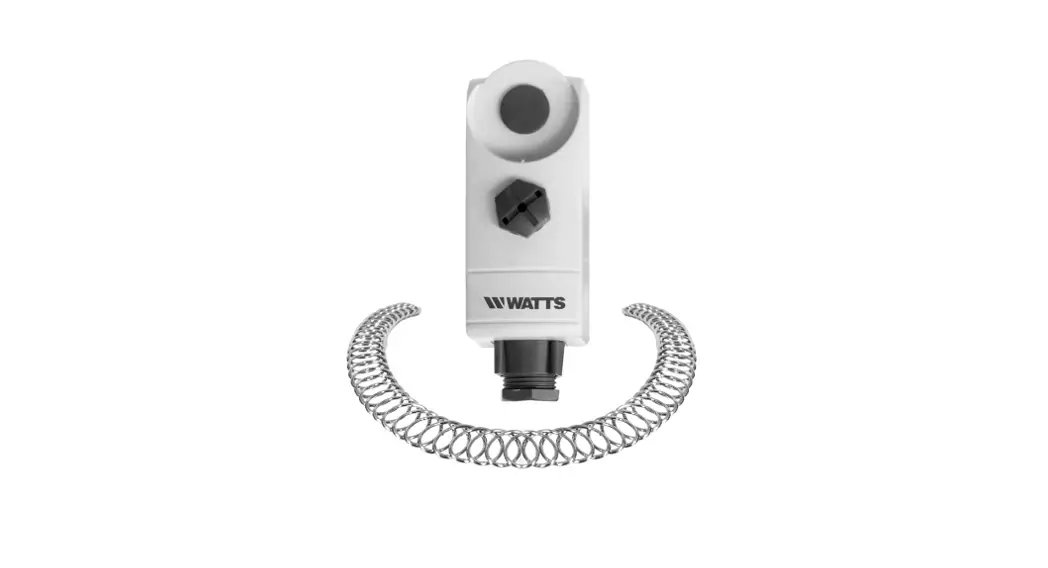

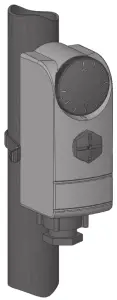

Contact the thermostat with a bulb to control the water tem- perature of your water floor heating system or others. The fixation with the spring clip (provided L=230mm) facilitates the assembly and assures a very good thermal contact between the thermostat and pipe.
EU Declaration of conformity
Hereby, Watts electronics declares that the wired equipment is in compliance with the relevant Community harmonization legislation:
- Directive 2001/95/EC on General Products Safety
- Low Voltage Directive 2014/35/EU
- EMC Directive 2014/30/EU
- ROHS Directive 2011/65/EU
Safety warnings and operating instructions
- This product should be installed preferably by a qualified professional. Subject to the observation of the above terms, the manufacturer shall assume the liability for the equipment as provided by legal stipulations. All instructions in this Installation & Operation manual should be observed when working with the controller.
- Failures due to improper installation, improper use, or poor maintenance are void manufacturer liability
- Any attempt to repair voids the responsibility and the obligation to guarantee and replace from the manufacturer.
Disposal and recycling information
The full text of the EU declaration of conformity is available at the following internet address: www.https://wattswater.eu
• 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return his product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see:
www.recyclethis.info
The descriptions and photographs contained in this product specification sheet are supplied by way of information only and are not binding. Watts Industries reserves the right to carry out any technical and design improvements to its products without prior notice.” Warranty: All sales and contracts for sale are expressly conditioned on the buyer’s assent to Watts terms and conditions found on its website at www.wattsindustries.com Watts hereby objects to any term, different from or additional to Watts terms, contained in any buyer communication in any form, unless agreed to in a writing signed by an officer of Watts.
Watts Electronics S.A.S
B.P. N°10 – Z.A. des Tourettes, 43800 ROSIERES, France,
T: +33(0) 471 57 40 49, F: +33(0) 471 57 40 90,
www.wattsindustries.com
© 2019 / 10 Watts
