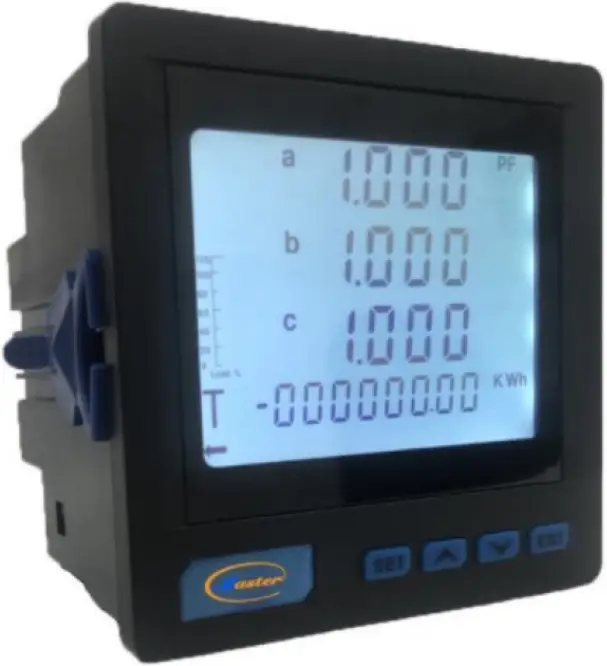

MASTER ELECTRIC MT-DP96FHMF Series Digital Clock Instructions

MT-DP96FHMF meter with high ability and precision. It’s can measures important electrical parameter as V, A, F, PF, P, Q, S, KWh, KVARh, KWh (-), KVARh(-), Total Harmonic Distortion (THD), Harmonic Distrortion from 2nd to 31st order, multi rate function…/

With integration RS-485 communication port, complete with each kinds intelligent distribute system and power energy manage system, share abundance monitor data/

Contents hide

1 FUNCTION INTRODUCE

2 TECHNICAL PARAMETER

3 DIMENSION

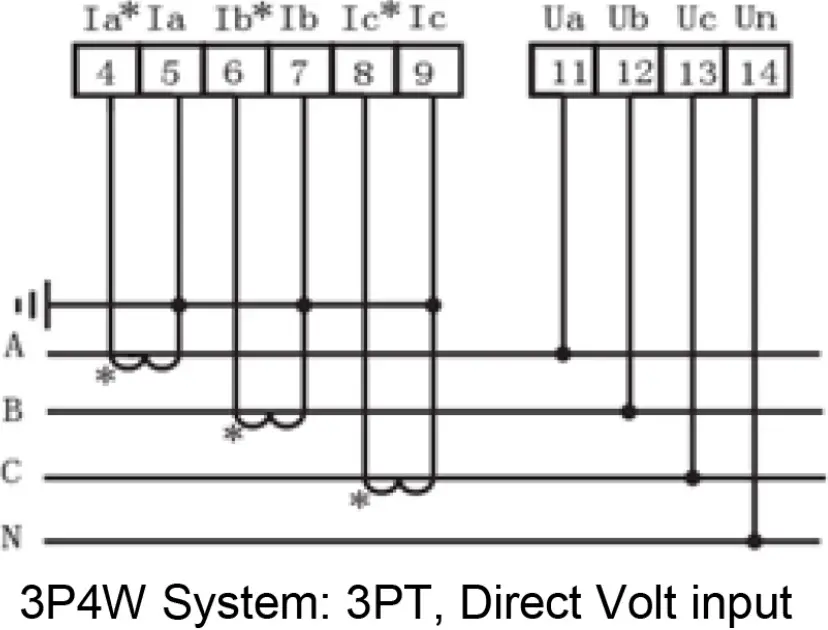

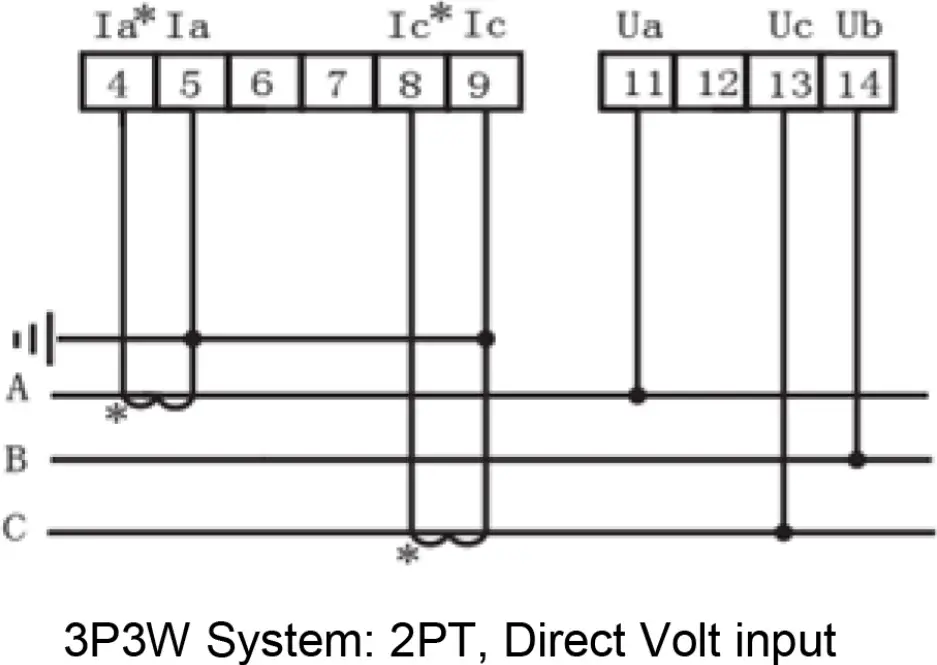

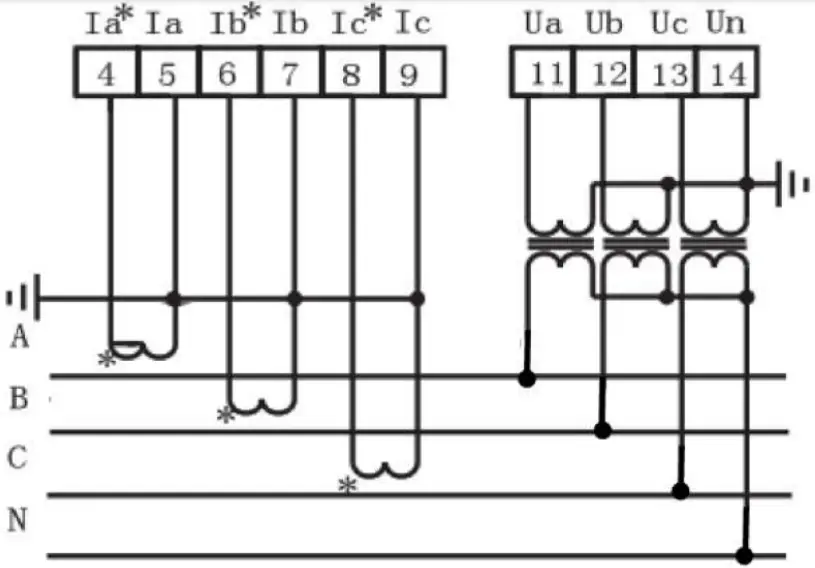

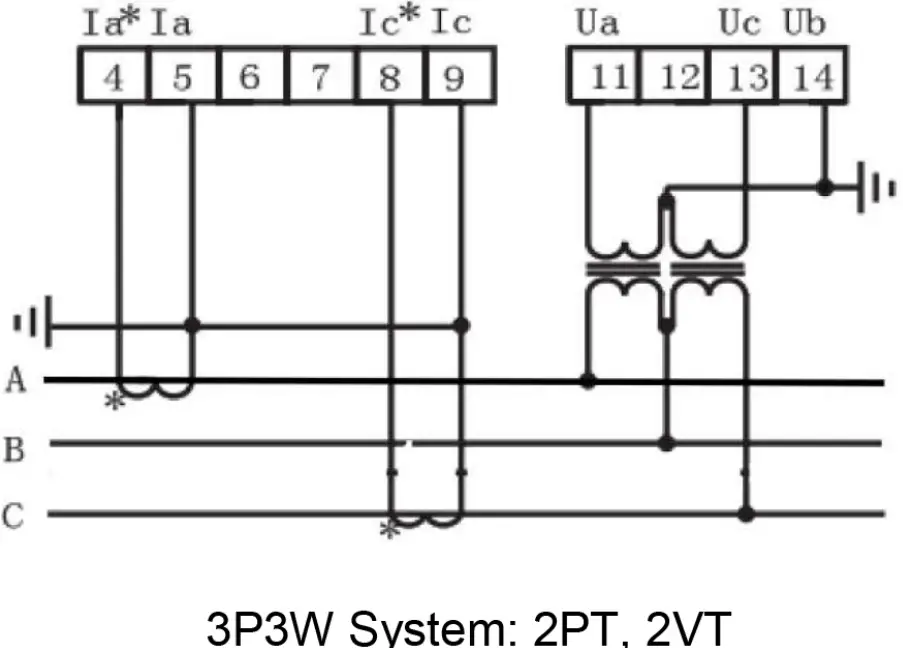

4 CONNECTION

5 Documents / Resources

6 Related Posts

FUNCTION INTRODUCE

Measure function
Remark
Realtime measure
Three phase voltage (L-L, L-N)
Three phase current and neutral current
System Frequence
P, Q, S, PF (per phase & total
Electric energry
KWh import
KVARh import
KWh export, KVARh export
Multi rate function/
Da ti gia
8 period/ 8 khoang theyi gian 4 kind of multi rate/ 4 ti gia
Harmonics/ Song hai
THDU per phase/ T6ng hai ap tren tang pha
THDI per phase/ Tong hai dung ten t&ng pha
HDI per phase from 2″d to 318′ order/ Hai clang ter bac 2-31 tren trung pha
HDU per phase from 2nd to 318′ order/ Hai ap ter bac 2-31 hen ti:rng pha
Communication/ Truyen than Maximen Demand Ngo ra analog Digital input/ Ng6 vao so Relay output
RS485 Port MODBUS-RTU
U,I,P,Q
Basic function
0-20mA/ 4-20mA/ 0-5V/ 0-10V
Dry contact type
AC250V 5A Remote
Expanded option
Display type

Measure function		Remark
Realtime measure	Three phase voltage (L-L, L-N)	Basic function
	Three phase current and neutral current
	System Frequence
	P, Q, S, PF (per phase & total
Electric energry	KWh import
	KVARh import
	KWh export, KVARh export
Multi rate function	8 period
Harmonics	THDU per phase
	THDI per phase
	HDI per phase from 2^nd to 31^st order
	HDU per phase from 2^nd to 31^st order
Communication	RS485 PortMODBUS-RTU
Maximen Demand	U,I,P,Q
Analog output	0-20mA	Expanded option
Digital input	Dry contact type
Relay output	AC250V 5A Remote
Display type		Special display, LCDscreen

TECHNICAL PARAMETER

			Parameter
Signal Inpu	Connection system		3P3W
	Voltage	Measurementrange	519V
		Over load	Continous: 1.2 Vn; Instantaneous: 2Vn
		Powerconsumption	< 1VA
	Current	Measurementrange	5A/ 1A
		Over load	Continous: 1.2In; Instantaneous: 2In
		Powerconsumption	< 1VA
	Frequence		45 – 65Hz
Auxiliary power suply			AC 85-265V DC100-300V
Communication			RS485 communication port, physical layer isolation.According international standard MODBUS-RTU agreement. Communication speed 1200-38400 (Default 9600)Test type N81, E81, 081 (Default N81)
Analog output			0-20mA/ 4-20mA
Relay output			Programme remoteCapacity 5A at 250VAC
Digital input			Remote switch input signal, dry contact input. Programrelate alarm output
Measure class			Current/ VoltageFrequency/ Tan so: +0.1HzActive power Reactive powerEnergy
IP protection			IP53 for indoor type and PI65 for outdoor type
Evernionment			Working temperature -10+55°C Store temperatureRelative Humidity
Safe			Isolation: Signal, auxiliary power suply, output terminalcrust resistance >5MU and withstand voltage pulse>AC2KV

Parameters	MT-DP96FHMF	MT-DP96HMF	MT-DP96MF	MT-DP96MFA	MT-DP96V	MT-DP96A
Voltage						x
Voltage						x
Neutral voltage						x
Line current					x
Neutral current					x
Average current					x	x
					x	x
Power factor					x	x
Averga power factor					x	x
Active Power					x	x
Total active power					x	x
Reactive power					x	x
Total reactive power					x	x
Apparent power (L1, L2, L3)					x	x
Total apparent power					x	x
Maximum voltage demand		x	x	x	x	x
Maximum current demand		x	x	x	x	x
Maximum power demand		x	x	x	x	x
Maximum demand time		x	x	x	x	x
Active import energy					x	x
Active export energy					x	x
Reactive import energy					x	x
Reactive export energy					x	x
Setting time (year, month,day, hour…)					x	x
Multi rate function					x	x
THD voltage (L1, L2, L3)/			x	x	x	x
THD current(L1, L2, L3)			x	x	x	x
Voltage harmonics (2nd to 31 torder)			x	x	x	x
Current harmonics (2nd to 31storder)			x	x	x	x

Communication MOBUS RS-485					x	x
Active pulse					x	x
Reactive pulse					x	x
Digital input	Option	Option	Option	Option	Option	Option
Relay output	Option	Option	Option	Option	Option	Option
Analog output	Option	Option	Option	Option	Option	Option

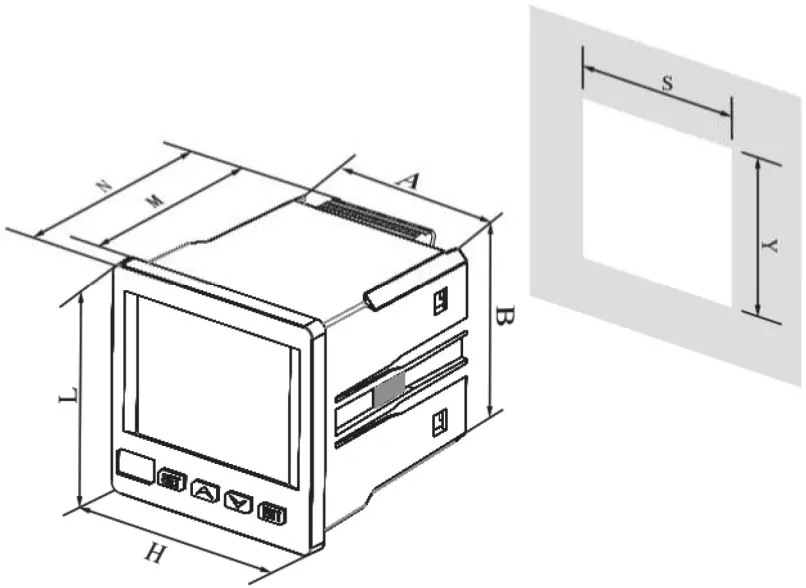

DIMENSION

Model	LxH (mm)	AxB (mm)	SxY (mm)	SxY (mm)IP65	N (mm)	M(mm)
MT-DP96VMT-DP96A MT-DP96MFA MT-DP96MF MT-DP96HMFMT-DP96FHMF	96×96	90.5×90.5	91×91	91.5×91.5	94	88
MT-DP72VMT-DP72A MT-DP72MFA MT-DP72MF MT-DP72HMFMT-DP72FHMF	72×72	65.6×65.6	66×66	67×67	97	91
MT-DP48VMT-DP48A MT-DP48MAF	48×48	44×44	45×45		90	84
MT-DP49VMT-DP49A MT-DP49MAF	48×96	43.2×90.2	43.5×90.5		95	89
