Rocam Cr01001e Digital Clock For Bedroom User Manual

CR1001E
Alarm Clock with USB Charger
CREATE YOUR PERFECT SLEEP ENVIRONMENT

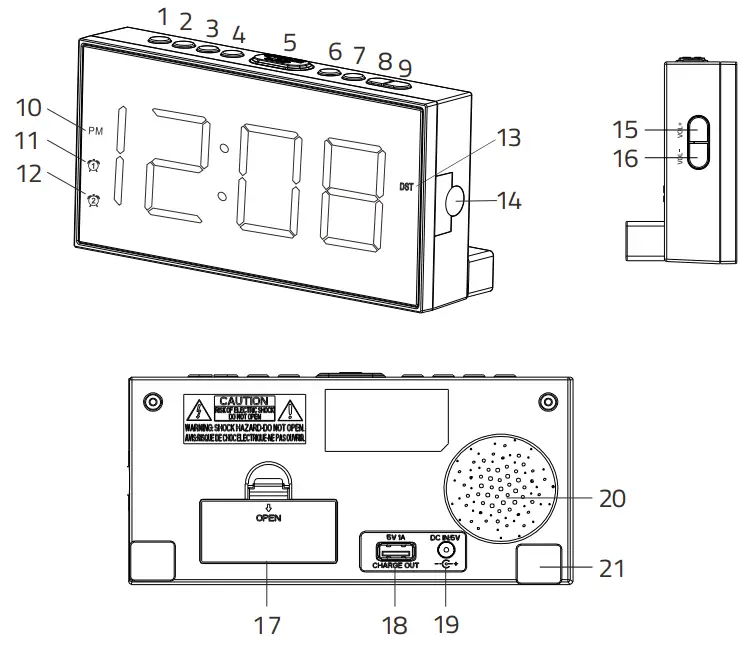

Chapter 1 LOCATION OF CONTROLS

Note: Battery is not included

Chapter 2 POWER RESOURCES

1. Install 2pcs 1.5V “AAA” size batteries to the proper terminals in the battery compartment to memorize the time setting in case of a power outage.
   NOTE: Batteries(not included) don’t support time display but can back up time & alarm setting and trigger an alarm in case of AC power failure.

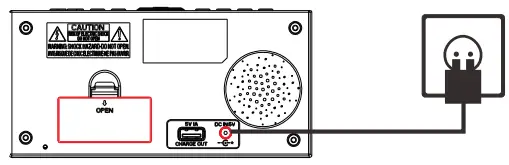

2. Connect the adapter line to the DC jack, then plug into a 100~240V AC wall power outlet.

Chapter 3 TIME SETTING

1. Press button once, display starts flashing.
2. Press the button to set the hour. Press the button to set the minute.
3. Press the button or button to save time or wait for another 5 seconds to confirm automatically.
   To change 12H/24H time format 12/24H &DST Press button to change 12H/24H time format.

Chapter 3 ALARM SETTING

1. Press button, the alarm indicator (11) will light up, the display starts flickering.
   2. Press the button to set the hour, press the button to set the minute.
   3. Press the button or button to save alarm time or just wait for another 5 seconds to confirm automatically.
   4. Push button to adjust the alarm volume.
   Setting ALARM 2 is the same as ALARM 1.

Turn off Alarm

When the alarm goes off:

1. Press the button to temporarily turn off the alarm for 9 minutes. The alarm will ring every next 9 minutes.
2. Press the button to turn off the alarm for 24 hours. The alarm indicator or is still on, which means the alarm is still activated and will ring after 24 hours.
3. Cancel Alarm Press button to turn off alarm1 or alarm 2 permanently. And corresponding indicator or will turn off. If alarm 1 goes off, then press the button, just turn it off alarm1 permanently. indicator (11) will turn off. If alarm 2 goes off, then press the button, just turn off alarm 2 permanently. indicator (12) will turn off.

Chapter 4 DIMMER

Repeat the button to adjust the brightness of the display for your DIMMER preference.
There are 5 levels, The sequence is as follows: 01-02-03-04-05-04-03-02-01……..

Chapter 5 DST

Hold press 12/24H &DST button to switch DST function.
DST indicator will turn on.
Hold press 12/24H &DST the button again to turn off the DST function.
DST indicator will turn off.

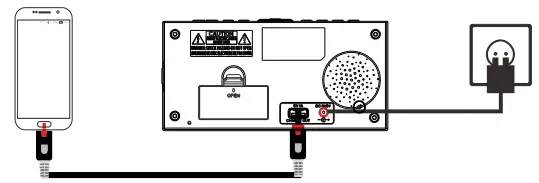

Chapter 6 USB CHARGING

Plug charging cable into devices such as phones or tablets.
The device can charge both your phone and tablet at the same time.
The maximum charge current is 1 Ampere.
