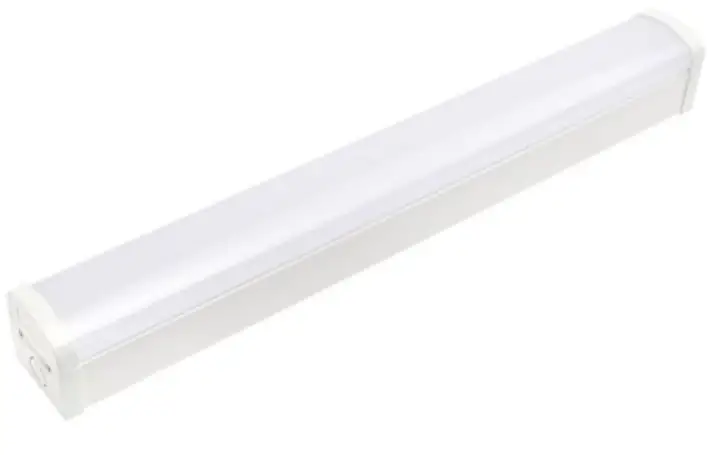

HANECO VSL20W06-TRI Indoor LED Batten Range
Installation
Thank you for choosing Haneco VistaLINE LED batten.
We strongly recommend that you read this manual carefully before installation.
WARNING
- Installation must be carried out by a licenced electrician and in accordance with these instructions and relevant Australian standards and local regulations.
- Ensure input voltage conforms within product specifications.
- Ensure wires are securely connected.
- Before switching on, ensure all wires are correctly connected.
- The warranty is void if product is not installed according to the instructions.
Note: Product technical information and specification may change over time without prior notice. For latest information, please contact our customer service or visit our website
www.haneco.com.au
Specifications
| Model | Power | Beam Angle | Frequency | IP Rating |
| VSL20W06-TRI | 20W | 120° | 50/60Hz | IP20 |
| VSL20W06-TRI-EM | 20W | 120° | 50/60Hz | IP20 |
| VSL20W40W12-TRI | 20/40W | 120° | 50/60Hz | IP40 |
| VSL20W40W12-TRI-EM | 20/40W | 120° | 50/60Hz | IP40 |
Installation Instructions
- Switch off power

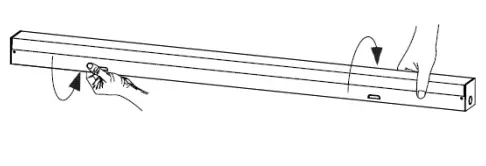

- Remove diffuser as shown

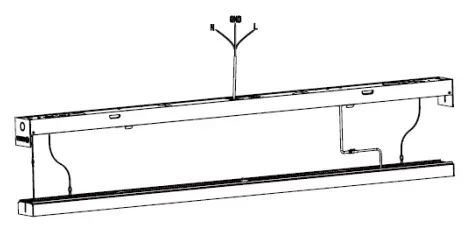

- Connection wires
- Fasten chassis to surface

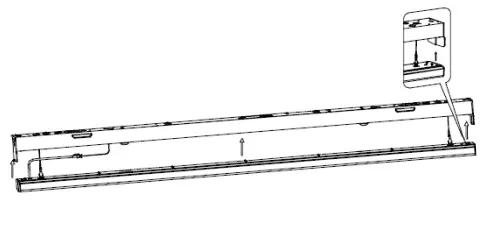

- Fasten diffuser to chassis
- Switch power on
PRODUCT CODE:
- VSL20W06-TRI
- VSL20W06-TRI-EM
- VSL20W40W12-TRI
- VSL20W40W12-TRI-EM
For more information
www.haneco.com.au
(08)8297 6373
