IdeaPad Flex 5 Chromebook 5 (13”) 2 in 1 Laptop
User Guide

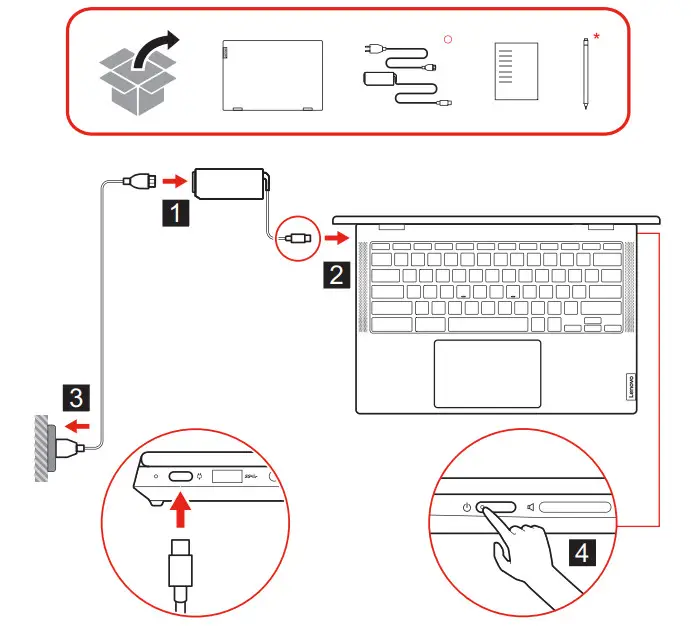

Initial Setup
A customer replaceable unit (CRU). See User Guide for detailed definition.

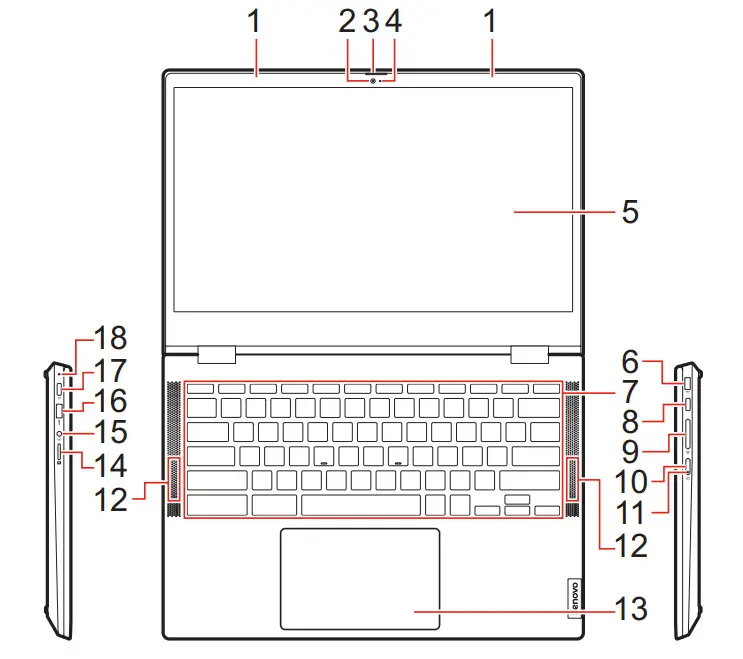

Overview
The illustrations in this guide are for your reference only.
The illustrations in this guide are for your reference only.
| 1. Microphones | 11. Power light |
| 2. Camera | 12. Speakers |
| 3. Camera cover slider | 13. Touchpad |
| 4. Camera light | 14. microSD card slot |
| 5. Screen | 15. Combo audio jack |
| 6. Mini security-lock slot | 16. USB (3.2 Gen 1) Type-A connector |
| 7. Keyboard | 17. Power connector/USB-C™ connector |
| 8. USB-C™ connector | 18. Charging light |

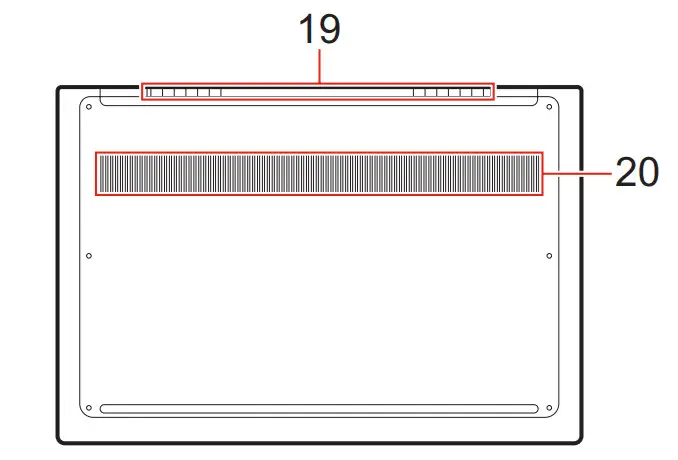

| 9. Volume buttons | 19. Ventilation slots (outlet) |
| 10. Power button | 20. Ventilation slots (inlet) |
Read the statement on USB transfer rate in the User Guide. Refer to the Safety and Warranty Guide for accessing the User Guide.
Additional information
Specific absorption rate for European Union
YOUR DEVICE MEETS INTERNATIONAL GUIDELINES FOR EXPOSURE TO RADIO WAVES.
The Europe 10g Specific Absorption Rate (SAR) limit for mobile devices is 2.0 W/kg. To view your product specific SAR value, go to https://support.lenovo.com/us/en/solutions/sar.
If you are interested in further reducing your RF exposure then you can easily do so by limiting your usage or simply keeping the device away from the body.
European Union — compliance with the Radio Equipment Directive
Hereby, Lenovo (Singapore) Pte. Ltd., declares that the radio equipment type
IdeaPad Flex 5 CB 13IML05 is in compliance with Directive 2014/53/EU.
The full text of the system EU declaration of conformity is available at the following Internet address: https://www.lenovo.com/us/en/compliance/eudoc
This radio equipment operates with the following frequency bands and maximum radio-frequency power:
| Technology | Frequency band [MHz] | Maximum transmit power |
| WLAN 802.11b/g/n/ax | 2400 – 2483.5 | < 20 dBm |
| WLAN 802.11a/n/ac/ax | 5150 – 5725 | < 23 dBm |
| WLAN 802.11a/n/ac/ax | 5725 – 5875 | <13.98 dBm |
| Bluetooth BR/EDR/LE | 2400 – 2483.5 | < 20 dBm |
Usage of all the radio devices is limited to indoor in the band 5150 MHz to 5350 MHz (channels 36, 40, 44, 48, 52, 56, 60, 64)
E-manual
https://support.lenovo.com/docs/flex_5cb_13iml05
First Edition (March 2020) © Copyright Lenovo 2020.
LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant to a General Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. GS-35F-05925.
