IdeaPad Duet 3i (10″, 5)
Setup Guide
Printed in China
For Barcode Position Only
PN: SP41E71494
IdeaPad Duet 3i Super Versatile 2 In 1 Laptop
Access User Guide
https://support.lenovo.com/docs/ideapad_duet_3_10igl_05
The illustrations are for your reference.
See User Guide for USB transfer rate.
* For selected models
* * Customer replaceable units (CRUs). See User Guide for definition.

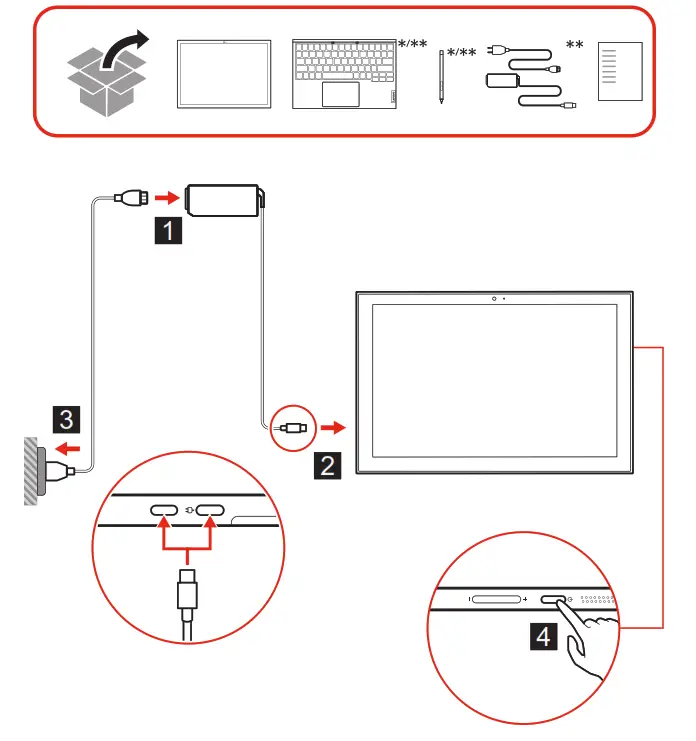

Initial setup
Configuration initiale

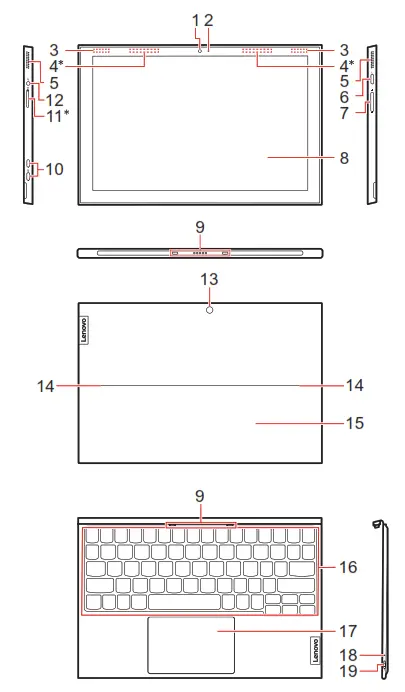

Overview
Présentation
| 1. Front camera 2. Camera light 3. Wi-Fi antennas * 4. Wireless WAN antennas 5. Speakers 6. Power button (with a light) 7. Volume buttons 8. Screen 9. Pogo pin with guide pin 10. Power connector/USB-C TM connector (2) | 11. Nano SIM card slot* /microSD card slot 12. Combo audio jack 13. Rear camera 14. Kickstand hinges 15. Kickstand 16. Keyboard 17. Touchpad 18. Bluetooth indicator 19. Bluetooth folio keyboard switch |
Additional information
Informations complémentaires
Specific absorption rate for European Union
YOUR DEVICE MEETS INTERNATIONAL GUIDELINES FOR EXPOSURE TO RADIO WAVES.
The Europe 10g Specific Absorption Rate )SAR( limit for mobile devices is 2.0 W/kg. To view your product specific SAR value, go to
https://support.lenovo.com/us/en/solutions/sar. If you are interested in further reducing your RF exposure then you can easily do so by limiting your usage or simply keeping the device away from the body.
European Union (EU) / United Kingdom (UK) —
Radio Equipment Compliance
Hereby, Lenovo declares that the radio
equipment types IdeaPad Duet 3 10IGL5 and IdeaPad Duet 3 10IGL5-LTE are in compliance with Directive 2014/53/EU, as well as UK Radio Equipment Regulations SI 2017 No. 1206.
The full texts of the system declarations of conformity are available at: https://www.lenovo.com/us/en/compliance/eu-docfor EU and https://www.lenovo.com/us/en/compliance/uk-doc for UK. This radio equipment operates with the following frequency bands and maximum radio-frequency power:
| Technology | Frequency band [MHz] | Maximum transmit power |
| WLAN 802.11b/g/n/ax | 2400 – 2483.5 | < 20 dBm |
| WLAN 802.11a/n/ac/ax | 5150 – 5725 | < 23 dBm |
| WLAN 802.11a/n/ac/ax | 5725 – 5875 | < 13.98 dBm |
| Bluetooth BR/EDR/LE | 2400 – 2483.5 | < 20 dBm |
Usage of this device is limited to indoor use in the WLAN band 5150 – 5350 MHz.
First Edition (July 2021) © Copyright Lenovo 2021.
LIMITED AND RESTRICTED RIGHTS NOTICE:
If data or software is delivered pursuant to a General Services Administration “GSA” contract, use, reproduction, or
disclosure is subject to restrictions set forth in Contract No. GS-35F-05925. Reduce I Reuse I Recycle
