IdeaCentre AIO 3
* For selected models
¿ The illustrations are for your reference.

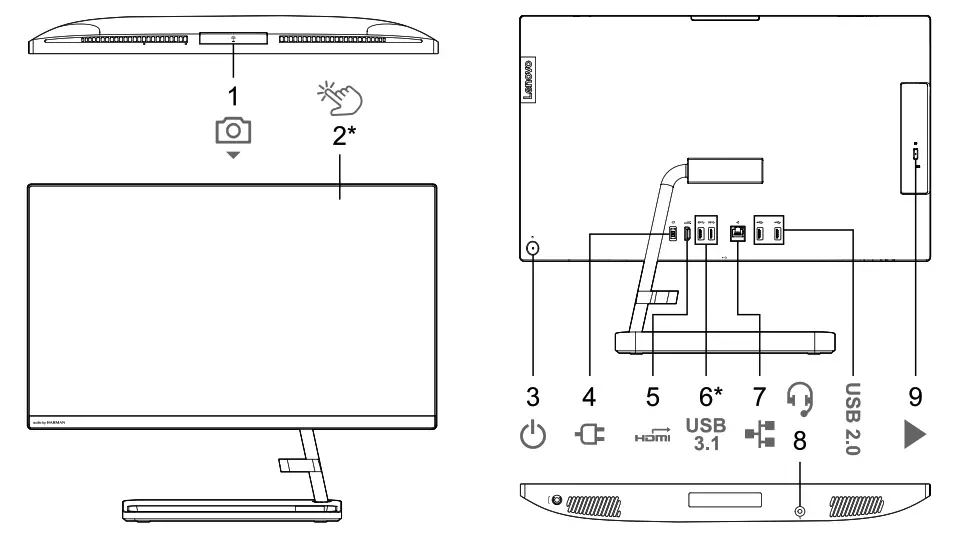

1 |  | Camera |
2 |  | Multi-touch screen |
3 |  | Power button/Power button indicator |
4 |  | Power connector |
5 |  | HDMI™ out connector |
6 |  | USB (3.1 Gen 1) Type-A connectors |
6 |  | USB (3.1 Gen 2) Type-A connectors |
7 |  | Ethernet connector |
8 |  | Combo audio jack |
9 |  | Optical drive eject button |
USB transfer rate
Read the statement on USB transfer rate in the User Guide. To access the User Guide, go to https://pcsupport.lenovo.com.
European Union (EU) / United Kingdom (UK) — Radio Equipment Compliance
Hereby, Lenovo (Singapore) Pte. Ltd., declares that the radio equipment type IdeaCentre AIO 3 22ADA6, IdeaCentre AIO 3 22ITL6, IdeaCentre AIO 3 24ADA6, IdeaCentre AIO 3 24ALC6, IdeaCentre AIO 3 24ITL6, IdeaCentre AIO 3 27ALC6, and IdeaCentre AIO 3 27ITL6 are in compliance with Directive 2014/53/EU, as well as UK Radio Equipment Regulations SI 2017 No. 1206.
The full texts of the system declarations of conformity are available at: https://www.lenovo.com/us/en/compliance/eu-doc for EU and https://www.lenovo.com/us/en/compliance/uk-doc for the UK.
This radio equipment operates with the following frequency bands and maximum radiofrequency power:
| Technology | Frequency band [MHz] | Maximum transmit power |
| WLAN 802.11b/g/n/ax | 2400 – 2483.5 | < 20 dBm |
| WLAN 802.11a/n/ac/ax | 5150 – 5725 | < 23 dBm |
| WLAN 802.11a/n/ac/ax | 5725 – 5875 | < 13.98 dBm |
| Bluetooth BR/EDR/LE | 2400 – 2483.5 | < 20 dBm |
Usage of this device is limited to indoor use in the WLAN band 5150 – 5350 MHz.
First Edition (May 2021)
© Copyright Lenovo 2021.
LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant to a General Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. GS-35F-05925.
Trademarks
LENOVO, LENOVO logo, IdeaCentre, and IdeaCentre logo are trademarks of Lenovo. HDMI is a trademark of HDMI Licensing LLC in the United States and other countries. All other trademarks are the property of their respective owners. © 2021 Lenovo.
Reduce I Reuse I Recycle
