IdeaCentre AIO 3 24ALC6
Product Specifications
Reference

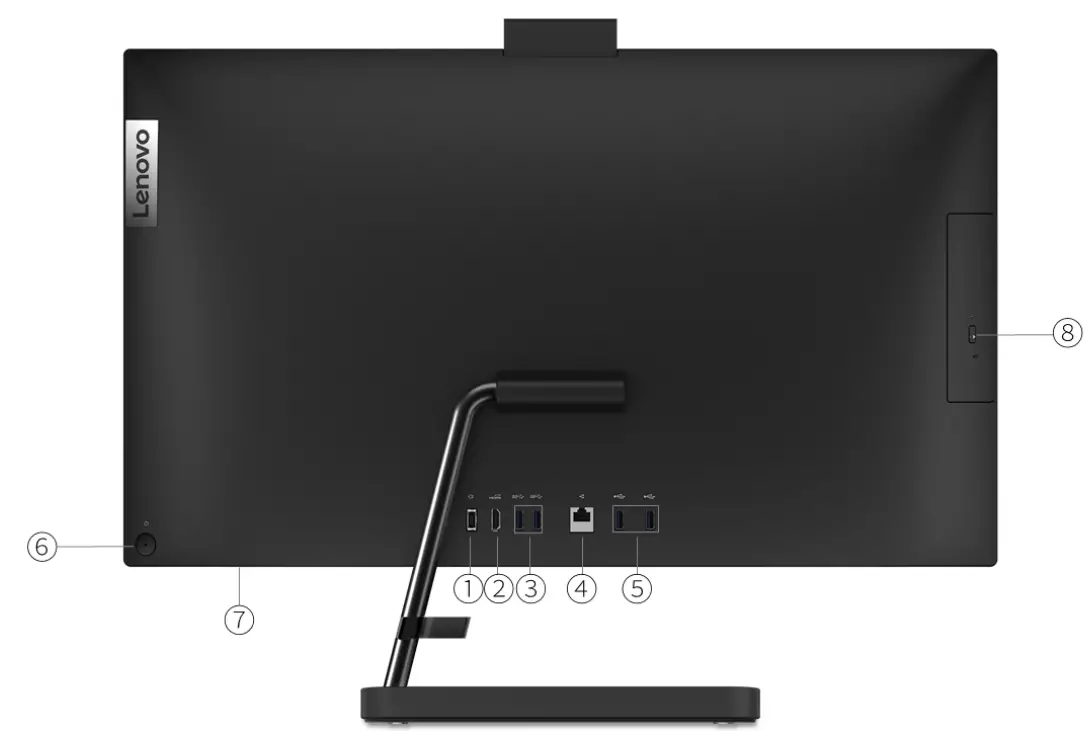

OVERVIEW
- Power connector
- HDMI 1.4
- 2x USB 3.2 Gen 1
- Ethernet (RJ-45)
- 2x USB 2.0
- Power button
- Headphone/microphone combo jack (3.5mm)
- Optical drive eject button
PERFORMANCE
Processor
| Processor Name | Cores | Threads | Base Frequency | Max Frequency | Cache | Memory Support | Processor Graphics |
| AMD Ryzen™ 3 5300U | 4 | 8 | 2.6GHz | 3.8GHz | 2MB L2 / 4MB L3 | DDR4-3200 | AMD Radeon™ Graphics |
| AMD Ryzen 5 5500U | 6 | 12 | 2.1GHz | 4.0GHz | 3MB L2 / 8MB L3 | DDR4-3200 | AMD Radeon Graphics |
| AMD Ryzen 7 5700U | 8 | 16 | 1.8GHz | 4.3GHz | 4MB L2 / 8MB L3 | DDR4-3200 | AMD Radeon Graphics |
Operating System
- Windows® 10 Home 64
- No operating system
Graphics
| Graphics | Type | Memory | Connector | Max Resolution | Key Features | Remark |
| AMD Radeon Graphics | Integrated | Shared | 1x HDMI® 1.4 | 1920×1080@60Hz(HDMI) | DirectX® 12 | – |
Notes:
- The information on integrated graphics is not applicable to the models without integrated graphics (for the details, please refer to the processor section)
Monitor Support
Supports up to 2 independent displays via native display and 1 external monitor; supports external monitor via HDMI
Chipset
AMD SoC (System on Chip) platform
Memory
Memory Type
DDR4-3200
Memory Slots
Two DDR4 SO-DIMM slots, dual-channel capable
Memory Protection
Non-ECC
Max Memory[1]
Up to 16GB DDR4-3200
Notes:
- The max memory is based on the test results with current Lenovo® memory offerings. The system may support more memory as the technology develops.
Storage
Storage Support
Up to 2 drives, 1x 2.5″ HDD + 1x M.2 SSD
- 2.5″ HDD up to 1TB
- M.2 SSD up to 512GB
RAID
Not support
Storage Type
| Disk Type | Interface | RPM | Offering | Security |
| 2.5″ SATA HDD | SATA 6Gb/s | 5.4K | – | – |
| M.2 2242 SSD | PCIe NVMe | – | – | – |
| M.2 2280 SSD | PCIe NVMe | – | – | – |
Removable Storage
Optical
- DVD burner (DVD±RW), SATA 5Gb/s, slim (9.0mm)
- None
Card Reader
No card reader
Multi-Media
Audio Chip
High Definition (HD) Audio, Realtek® ALC233 codec
Speakers
Stereo speakers, 3W x2, HARMAN-branded
Microphone
- Single microphone
- Dual array microphone
Camera
- 720p, fixed focus
- IR & 0-megapixel, fixed focus
- No camera
Power Supply
Power Supply
| Power | Type | Efficiency | Key Features |
| 90W | Adapter | 88% | 100V – 240V |
DESIGN
Display[1]
| Size | Resolution | Touch | Type | Brightness | Surface | Aspect Ratio | Contrast Ratio | Color Gamut | Viewing Angle | Key Features |
| 23.8″ | FHD (1920×1080) | None | IPS | 250 nits | Antiglare | 16:9 | 1000:1 | – | horizontal: +/- 89°, vertical: +/-89° | Borderless design, antiglare |
Touchscreen
Non-touch
Notes:
- California Electronic Waste Recycling Fee
In California, per state law, Lenovo charges an electronic waste recycling fee on this covered device at the time of sale of the product. For more information, go to https://www.calrecycle.ca.gov/Electronics/Consumer
Input Device
Keyboard
- Lenovo Calliope Keyboard (USB connector), black
- Lenovo Calliope Keyboard (USB connector), white
- Lenovo Calliope Wireless Keyboard, black
- Lenovo Calliope Wireless Keyboard, silver
- Lenovo Calliope Wireless Keyboard, white
Mouse
- Lenovo Calliope Wireless Mouse (2.4GHz via USB receiver), black
- Lenovo Calliope Mouse (USB connector), black
- Lenovo Calliope Mouse (USB connector), white
- Lenovo Calliope Wireless Mouse (2.4GHz via USB receiver), white
Mechanical
Buttons
- Power button
- Optical drive eject button(for the models with ODD)
Form Factor
AIO (24 inches)
Dimensions (WxDxH)
WxDxH: 541 x 185.34 x 433.56 (21.3 x 7.3 x 17.07 inches)
Weight 6.81 kg (15.01 lbs)
Case Color
- Black
- White
Bays
- 1x slim ODD bay
- 1x 5″ disk bay
Expansion Slots
Two M.2 slots (one for WLAN, one for SSD)
Stand
- Monitor stand, supports -5° to +25° tilt
- AIO stand
CONNECTIVITY
Network
Onboard Ethernet
Gigabit Ethernet, 1x RJ45
WLAN + Bluetooth™
802.11ax 2×2 Wi-Fi + Bluetooth 5.0, M.2 Card
Ports[1]
Rear Ports[2]
- 2x USB 0
- 2x USB 2 Gen 1
- 1x Ethernet (RJ-45)
- 1x HDMI 4
- 1x power connector
Bottom Ports
1x headphone/microphone combo jack (3.5mm)
Notes:
- The transfer speed of the following ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes, and other factors related to system configuration and your operating environment, will be slower than theoretical USB 2.0: 480 Mbit/s;
USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formely USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s;
USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formely USB 3.1 Gen 2): 10 Gbit/s; USB 3.2 Gen 2×2 (SuperSpeed USB 20Gbps): 20 Gbit/s;
Thunderbolt™ 3: 40 Gbit/s;
FireWire 400: 400 Mbit/s;
FireWire 800: 800 Mbit/ - For video ports on discrete graphics, please see graphics section
SECURITY & PRIVACY
Security
BIOS Security
- Power-on password
- Administrator password
- Hard disk password
SERVICE
Warranty
Base Warranty
- 1-year depot service
- 2-year depot service
ENVIRONMENTAL
Operating Environment
Temperature
- Storage and transportation: -20°C to 55°C (-4°F to 131°F)
- Operating: 10⁰C to 35⁰C (50⁰F to 95⁰F)
Humidity
Operating: 20% to 80% (non-condensing)
Storage: 20% to 93% (non-condensing)
Atmospheric Pressure
86 kPa to 106 kPa
CERTIFICATIONS
Green Certifications
- ENERGY STAR® 0
- ERP Lot 3 and Lot 7
- RoHS compliant
