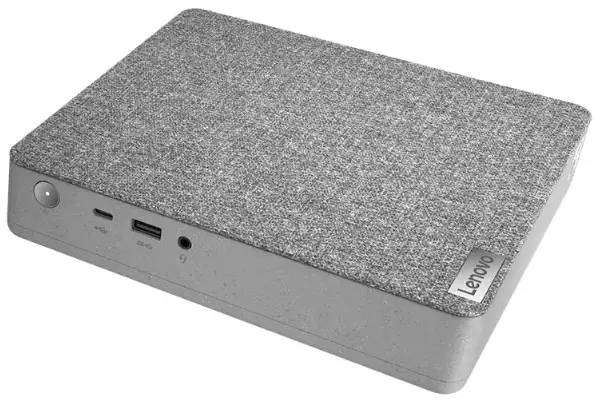

Idea Centre Mini 5i
User Guide
Idea Centre Mini 5i (1L, 7)
Idea Centre Mini 5i

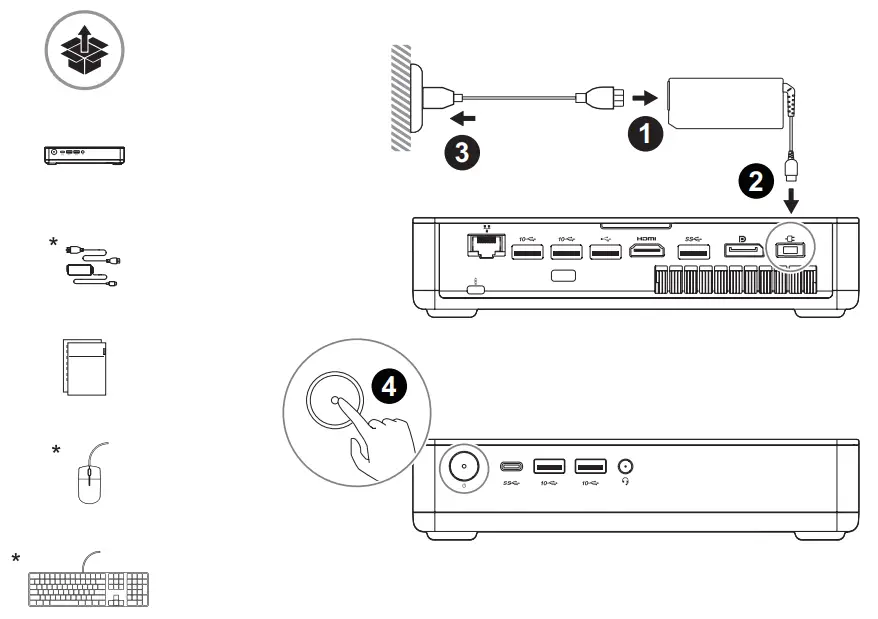

*For selected models

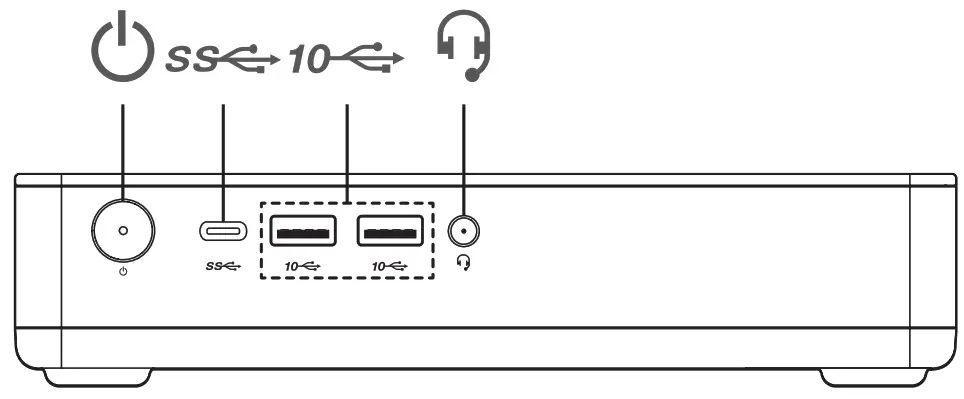

 | Power button |
 | USB-C® connector (USB 3.2 Gen 1) |
 | USB 3.2 connectors Gen 2 |
 | Headset connector |
The illustrations are for your reference.

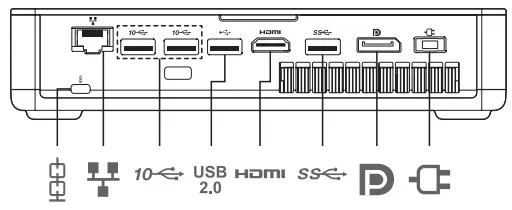

 | Security-lock slot |
 | Ethernet connector |
| USB 3.2 connectors Gen 2 |
 | HDMI out connector |
| USB 3.2 connector Gen 1 |
 | DisplayPort™ out connector |
 | Power connector |
USB transfer rate
Read the statement on USB transfer rate in the User Guide. Refer to the Safety and Warranty Guide for accessing the User Guide.
European Union (EU) / United Kingdom (UK) — radio frequency and power
This radio equipment operates with the following frequency bands and maximum radiofrequency power:
| Technology | Frequency band [MHz] | Maximum transmit power |
| WLAN 802.11b/g/n/ax | 2400 – 2483.5 | < 20 dBm |
| WLAN 802.11a/n/ac/ax | 5150 – 5725 | < 23 dBm |
| WLAN 802.11a/n/ac/ax | 5725 – 5875 | < 13.98 dBm |
| Bluetooth BR/EDR/LE | 2400 – 2483.5 | < 20 dBm |
First Edition (April 2022)
© Copyright Lenovo 2022.
LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant to a General Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. GS-35F-05925.
Trademarks
LENOVO, LENOVO logo, IDEACENTRE, and IDEACENTRE logo are trademarks of Lenovo. DisplayPort is a trademark of the Video Electronics Standards Association. The terms HDMI and HDMI High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. USB-C is a registered trademark of USB Implementers Forum. All other trademarks are the property of their respective owners.
Reduce I Reuse I Recycle
