IdeaPad Slim 5 (14″, 8), IdeaPad Slim 5i (14″, 8)
IdeaPad Slim 5 (16″, 8), IdeaPad Slim 5i (16″, 8)

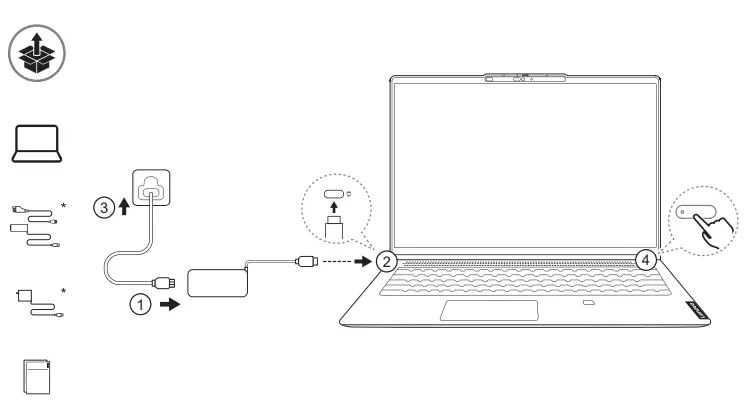

Get it started
Get it started
Selected models may come with a wall-mounted ac power adapter. Power plugs vary by country or region. Product illustrations may not be exactly the same as the actual product
For selected models

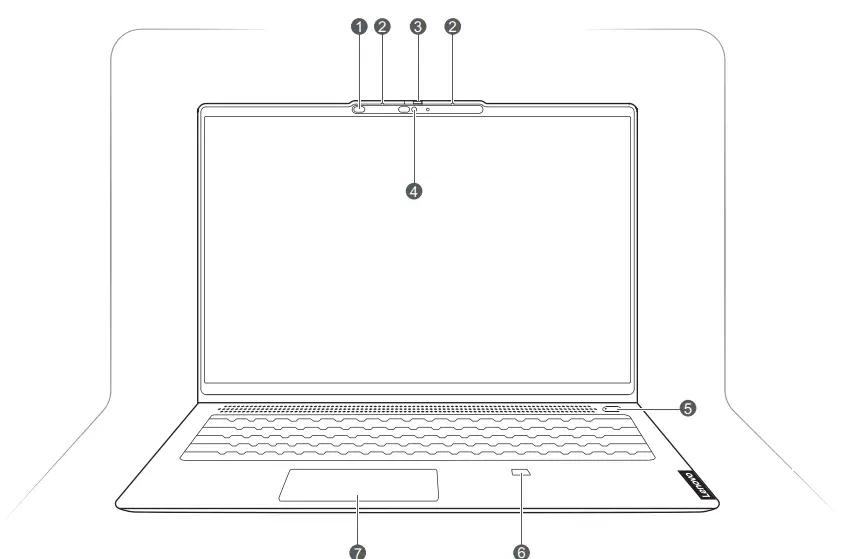

Overview
Overview- Time of flight (ToF) sensor*
Microphones.
Camera cover
Camera
Power button
Fingerprint reader*
Touchpad
Microphones.
Camera cover
Camera
Power button
Fingerprint reader*
Touchpad

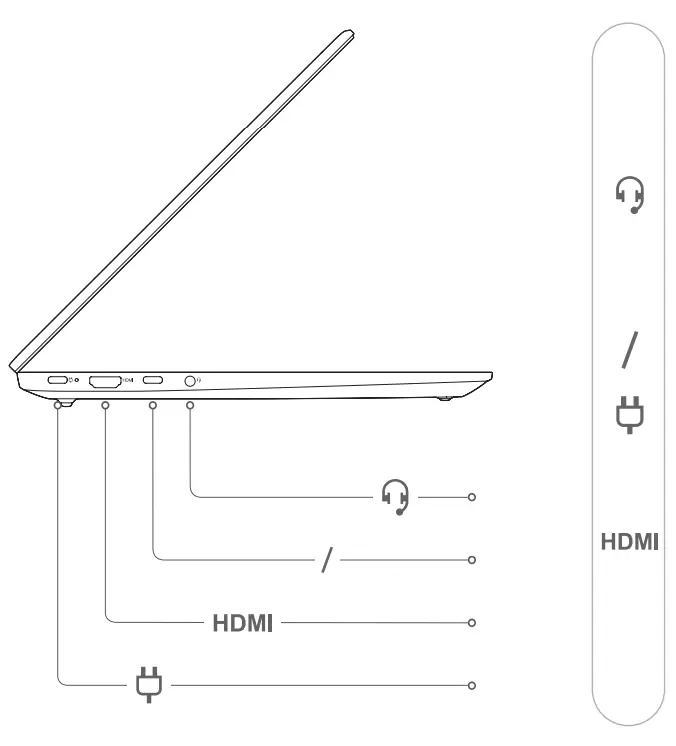

Combo audio jack
Multi-purpose USB Type-C® connector
HDMI™ connector
The USB Type-C connector with a plug icon
next to it also functions as the PC’s power input connector

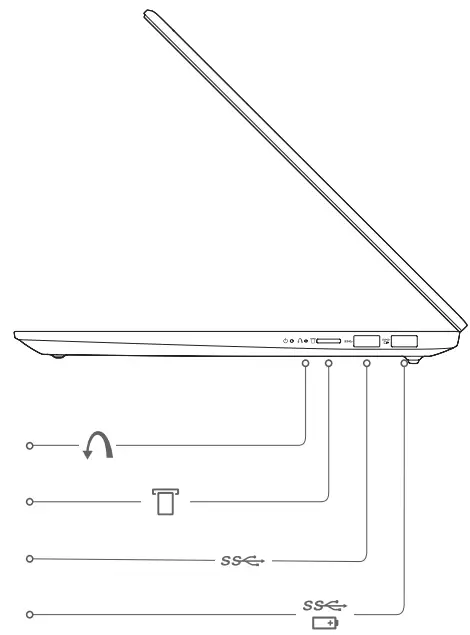

 | Novo button hole |
 | SD card slot |
 | USB (3.2 Gen 1) Type-A connector |
 | USB (3.2 Gen 1) Type-A connector (always-on) |
Always-on USB port supports power output in sleep or powered-off state

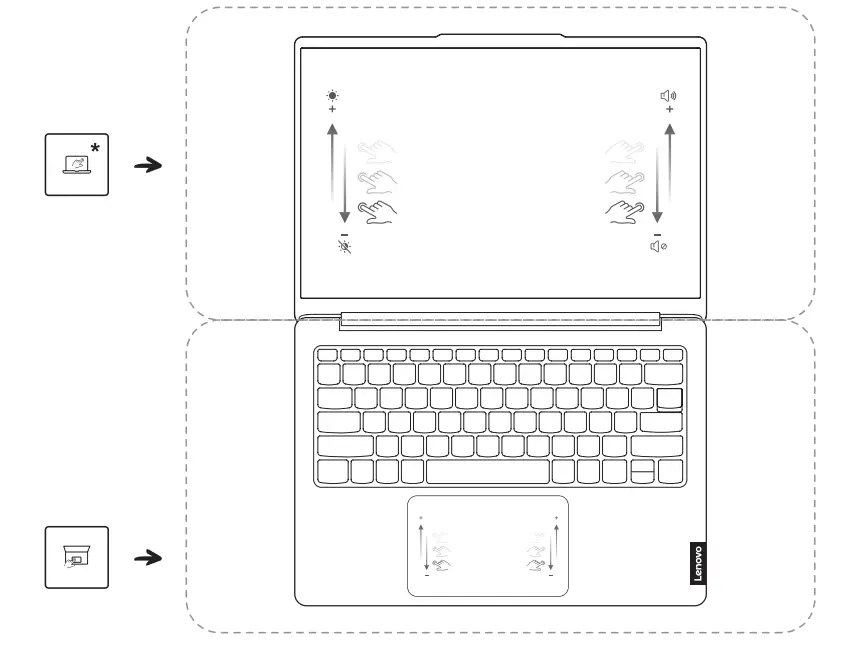

Gesture Controls
Gesture Controls

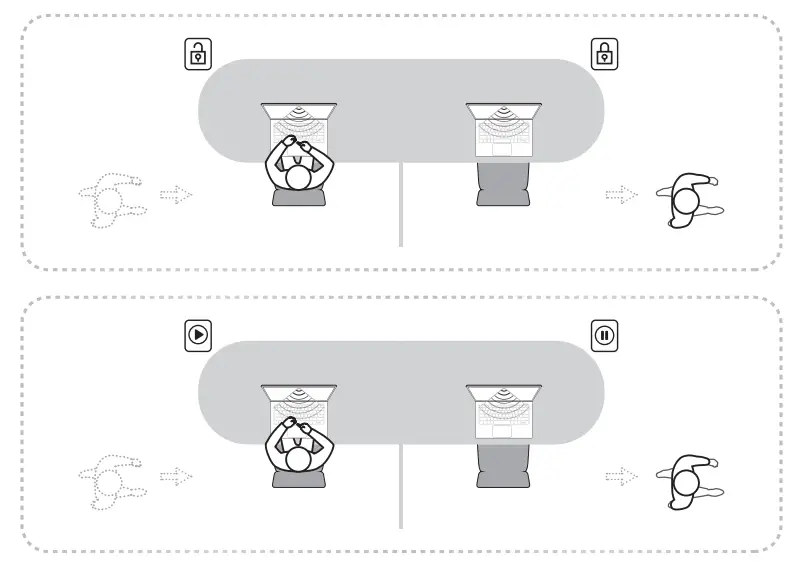

Presence Detection*
Presence Detection*
https://support.lenovo.com/docs/ip_slim5_14_16
Scan the User Guide QR code to read more about the intelligent features and statement on USB transfer rates
Specific absorption rate (SAR)
Specific absorption rate (SAR)YOUR DEVICE MEETS INTERNATIONAL GUIDELINES FOR EXPOSURE TO RADIO WAVES.
Refer to the following for 10g SAR limit and maximum reported SAR values:
| Item | Body-worn SAR | Limb SAR |
| 10g SAR limit | 2 W/kg | 4 W/kg |
| Maximum SAR with 0 mm separation distanc(IdeaPad Slim 5 14ABR8) | 0.694 W/kg | 0.694 W/kg |
| Maximum SAR with 0 mm separation distance (IdeaPad Slim 5 16ABR8) | 0.822 W/kg | 0.822 W/kg |
| Maximum SAR with 0 mm separation distance (IdeaPad Slim 5 14IAH8/IdeaPad Slim 5 14IRL8) | 0.327 W/kg | 0.327 W/kg |
| Maximum SAR with 0 mm separation distance (IdeaPad Slim 5 16IAH8/IdeaPad Slim 5 16IRL8) | 0.335 W/kg | 0.335 W/kg |
For more information about SAR, refer to the Safety and Warranty Guide that came with your device.
European Union (EU) / United Kingdom (UK) — radio frequency and power
This radio equipment operates with the following frequency bands and maximum radio frequency power.
| Technology | Frequency band [MHz] | Maximum transmit power |
| WL AN 802.11b/g/n/ax | 2400 – 2483.5 | < 20 dBm |
| WLAN 802.11a/n/ac/ax | 5150 – 5725 | < 23 dBm |
| WLAN 802.11a/n/ac/ax | 5725 – 5875 | <13.98 dBm |
| WL AN 802.11ax | 5945 – 6425 | < 23 dBm |
| Bluetooth BR/EDR/LE | 2400 – 2483.5 | < 20 dBm |
Note: Not all wireless bands may be enabled depending on your product configuration.
Usage of this device is limited to indoor locations in the bands 5150 – 5350 MHz and 5945 –6425 MHz.
For Barcode Position Only
Printed in China
PN: SP41K97711
First Edition (January 2023)
© Copyright Lenovo 2023.
Lenovo, the Lenovo logo, and IdeaPad are trademarks of Lenovo. USB Type-C is a registered trademark of USB Implementers Forum. The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries. All other trademarks are the property of their respective owners.
