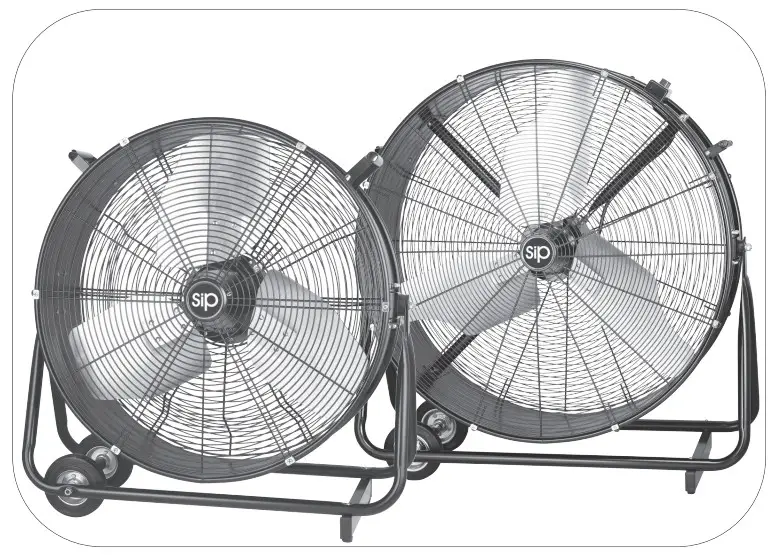

Sip Industrial 05638 Drum Fans User Manual

05638 Drum Fans
User Manual

SAFETY SYMBOLS USED THROUGHOUT THIS MANUAL

Danger/Caution: Indicates risk of personal injury and/or the possibility of damage.
Warning: Risk of electrical injury or damage!
Note: Supplementary Information.

SAFETY INSTRUCTIONS

Important: Please read the following instructions carefully, failure to do so could lead to serious personal injury and / or damage to the drum fan.
When using your fan, basic safety precautions should always be followed to reduce the risk of fire, electric shock, personal injury and / or damage to the fan.
Read all of these instructions before operating the fan and save this user manual for future reference.
The fan should not be modified or used for any application other than that for which it was designed; It was designed to safely and quietly move air in large volumes.
If you are unsure of its relative applications do not hesitate to contact us and we will be more than happy to advise you.
Before operating the fan always check no parts are broken, that all screws are completely tight and that no parts are missing.
Always operate the fan safely and correctly.  KNOW YOUR FAN: Read and understand the owner’s manual and labels affixed to the fan.
Learn its applications and limitations, as well as the  potential hazards specific to it. DO NOT USE THE FAN IN DANGEROUS ENVIRONMENTS: Do not use your fan in damp or wet locations, or expose it to rain. Always provide adequate space around the drum fan.
STAY ALERT: Always watch what you are doing and  use common sense when placing and operating the  fan.
DISCONNECT THE FAN FROM THE MAINS SUPPLY: When not in use. NEVER LEAVE THE FAN UNATTENDED: During operation.
DO NOT ABUSE THE MAINS LEAD:
Never pull the mains lead to remove the plug from the mains socket, or to move the fan from place to place. Keep the mains lead away from heat, oil and sharp edges. If the mains lead is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid unwanted hazards.
HAVE YOUR FAN REPAIRED BY A QUALIFIED PERSON:
The fan is in accordance with the relevant safety requirements. Repairs should only be carried out by qualified persons using original spare parts, otherwise this may result in  considerable danger to the user and void the warranty.
USE RECOMMENDED PARTS ONLY: Unapproved and untested parts may be dangerous and will invalidate the warranty.

• DANGER!
  Check that the fan is in sound condition and good working order. Take immediate action to repair or replace damaged parts.
• WARNING! Only operate on a level and stable surface.
• WARNING! Do not allow untrained persons to operate the fan and do not operate the fan without all covers etc. correctly fitted.
• WARNING! RISK OF ELECTRIC SHOCK. Do not expose the fan to water spray, rain, dripping water or moisture of any kind.
• Do not leave the fan unattended when in use. Switch the fan off and unplug from the mains supply before leaving the work area.
• Do not allow children or animals near the drum fan, particularly when in use.
• Ensure that the drum fan is correctly turned off when not in use and store in a safe, dry area, out of reach of children.
• Keep all combustible materials away from this drum fan.
• Never stand on the fan.
• DO NOT dismantle or tamper with the fan, this may be dangerous and will invalidate the warranty.

WARNING: Risk of Electric Shock!

• Use only the electrical power (voltage and frequency) specified on the model plate of the drum fan. If in doubt contact the manufacturer.
• Use only a three-prong, grounded (earthed) outlet.
• Do not touch, or operate the fan when your hands are wet.
• Those who are not qualified electricians / engineers should not disassemble, repair or rebuild the fan.
• DO NOT unplug the fan by pulling the mains lead. Unplug by holding the plug.
• DO NOT use the fan when there is damage to the mains lead or plug.
• DO NOT use the fan close to the fires.
• To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device.
• DO NOT use the fan outdoors.
• Always check all guards to make sure they are secure before starting the fan.
• Never insert fingers or any other object/s through the grill guard when the fan is in operation.
• Never leave the fan unattended and ensure that children and pets are kept a safe distance from the fan.
• Turn the fan off and disconnect it from the mains supply when moving from one location to another.
• Turn the fan off and disconnect it from the mains supply when carrying out any repairs, maintenance or cleaning.
• Do not use petrol or other corrosive liquids for cleaning as they may damage the fan or outer casing / grill.
• Do not operate the fan near an open window, such as on a window sill; rain or moisture may create an electrical hazard.
• Never modify the fan in any way.
• Never operate the fan without all guards in place.
• Before each use; always check that the moving parts move freely and do not catch or bind.
• Stop operation immediately if abnormalities are noticed.
• Always clear the surface around where the fan is to be used to avoid unwanted dust or debris being pulled through the fan.

If a problem with the drum fan is experienced, or if the mains lead or plug become damaged, contact your distributor for repair.
If the drum fan is used in a place of work all rules and laws etc. relating to the use of portable electrical appliances should be followed.
Understand the operating environment; Before each use the operator should assess, understand and where possible reduce the specific risks and dangers associated with the  operating environment. Bystanders should also be made aware of any risks associated with the operating environment.

CAUTION: The warnings and cautions mentioned in this user manual can not cover all possible conditions and situations that may occur. It must be understood by the  operator that common sense and caution are factors which cannot be built into this product, but must be applied.

ELECTRICAL CONNECTION

WARNING! It is the responsibility of the owner and the operator to read, understand and comply with the following:
You must check all electrical products, before use, to ensure that they are safe.
You must inspect power cables, plugs, sockets and any other connectors for wear or damage.
You must ensure that the risk of electric shock is minimised by the installation of appropriate safety devices; A residual current circuit  Breaker (RCCB) should be incorporated in the main distribution board. We also recommend that a residual current device (RCD) is used. It is particularly important to use an RCD with portable  products that are plugged into a supply.

Connecting to the power supply:
These SIP drum fans are fitted with a standard 230v ~ 13 amp type plug. Before using the drum fan, inspect the mains lead and plug to ensure that neither are damaged. If any damage is visible have the drum fan inspected/repaired by a suitably qualified person. If it is necessary to replace the plug a heavy duty impact resistant plug would be  preferable.

The wires for the plug are coloured in the following way:

As the colours of the wires may not correspond with the markings in your plug, pro-ceed as follows: The wire which is coloured blue, must be connected to the terminal marked with N or coloured black. The wire which is coloured brown, must be connect-ed to the terminal, which is marked L or coloured red. The wire which is coloured yel-low/green should be connected to the terminal which is coloured the same or marked.
Always secure the wires in the plug terminal carefully and tightly. Secure the cable in the cord grip carefully.

Warning: Never connect live or neutral wires to the earth terminal of the plug.
Only fit an approved plug with the correct rated fuse. If in doubt consult a qualified electrician.
Note: Always make sure the mains supply is of the correct voltage and the correct fuse protection is used. In the event of replacing the fuse always replace the fuse with the  same value as the original.
Note: If an extension lead is required in order to reach the mains supply; ensure that this too is rated for the correct voltage and fuse rating.
Note: The cross section of the extension lead should be checked so that it is of sufficient size so as to reduce the chances of voltage drops.

TECHNICAL SPECIFICATION

GUARANTEE

These SIP drum fans are covered by a 12 month parts and labour warranty covering failure due to manufacturers defects. This does not cover failure due to misuse or operating the fan outside the scope of this manual – any claims deemed to be outside the scope of the warranty may be subject to charges Including, but not limited to parts, labour and carriage costs. Consumables items such as fuses are not covered by the warranty.
In the unlikely event of warranty claims, contact your distributor as soon as possible.
Note: Proof of purchase will be required before any warranty can be honoured.

CONTENTS & ACCESSORIES

1x Drum Fan.
1x Instruction Manual.
Note: If any of the above are missing or damaged, contact your distributor immediately.

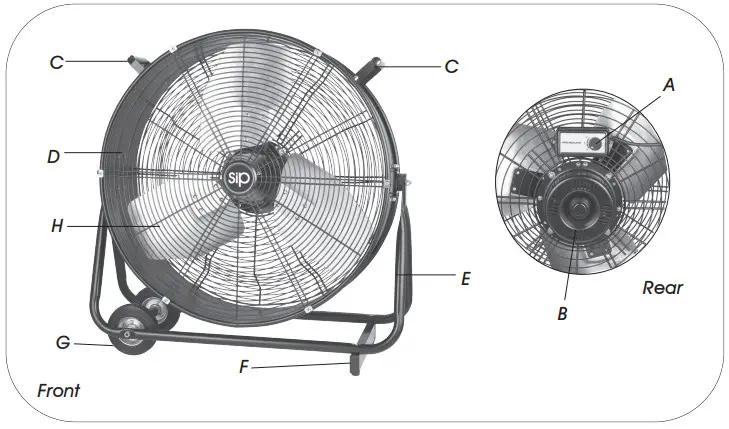

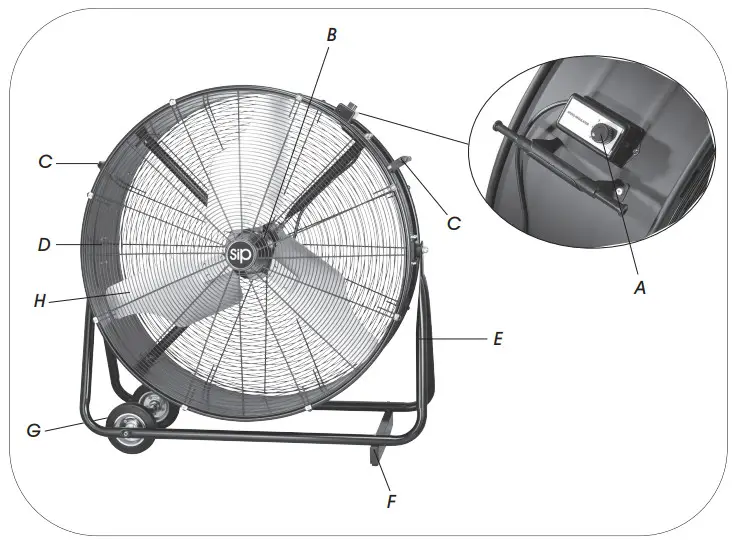

GETTING TO KNOW YOUR DRUM FAN

05634

05636 & 03638

OPERATING INSTRUCTIONS

• Note: Always allow at least 1 metre clearance around the fan, failure to adhere to this will stop the cooling air flowing through the drum fan, this could damage the motor and void your warranty.

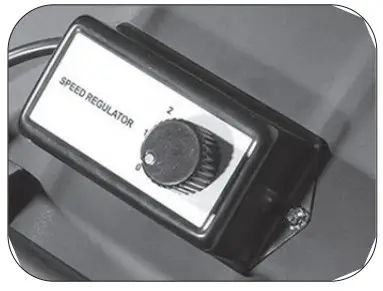

  The drum fan has 2 different speed settings:

0 — Stop
1 — Low
2 — High

• Turn the switch to the desired position1 or 2 to start the fan.
• Turn the switch to “0” to stop the fan running.

Note: Never Run this fan whilst it`s raining, or in any damp or wet locations, and never place it on the window sill.

WIRING DIAGRAM

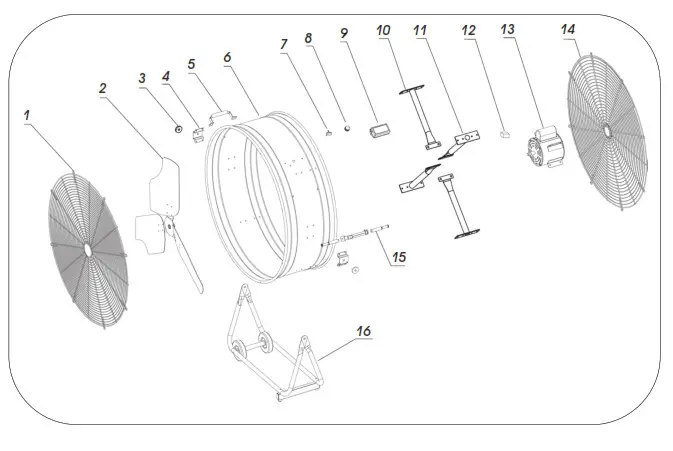

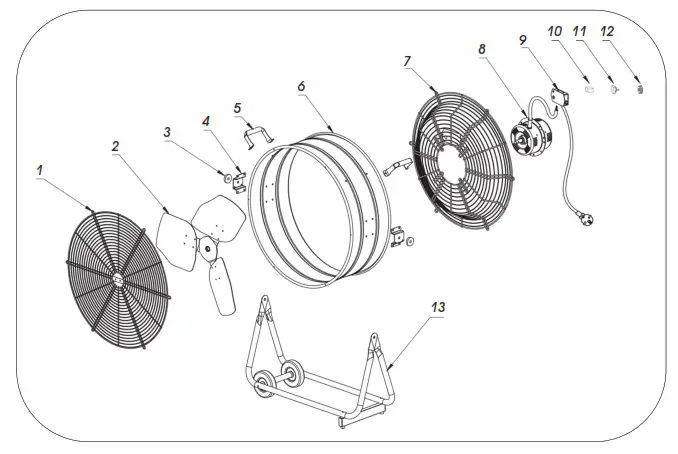

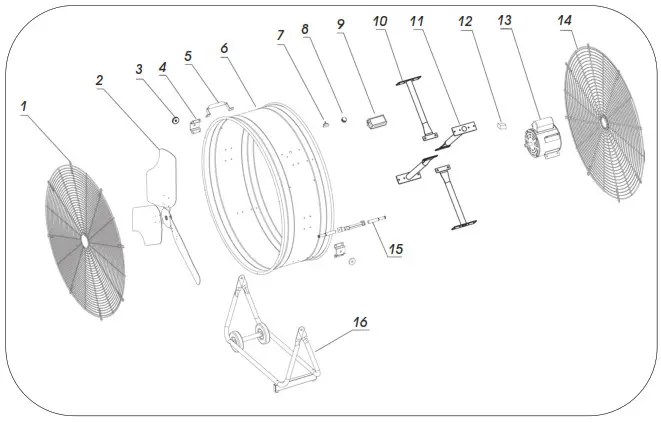

EXPLODED DRAWING/PARTS LIST

05634

05636

05638

NOTES

UK-DECLARATION OF CONFORMITY

Declaration of Conformity
We
SIP (Industrial Products Ltd
Gelders Hall Road
Shepshed
Loughborough
Leicestershire
LE12 9NH
England
As the manufacturer within the UK, England, Scotland & Wales, declare that the
24″ Drum Fan – SIP Part. No. 05634
30″ Drum Fan – SIP Part. No. 05636
36″ Drum Fan – SIP Part. No. 05638
Conforms to the requirements of the following regulation(s), as indicated
Electrical Equipment (Safety) Regulations 2016
Electromagnetic Compatibility Regulations 2016
The Restriction of the Use of Certain Hazardous Substances in
Electrical and Electronic Equipment Regulations 2012
The Ecodesign for Energy-Related Products and Energy Information
(Amendment) (EU Exit) Regulations 2019
and the relevant harmonsed standards
BS EN 55014-1:2017
BS EN 55014-2:2015
BS EN 61000-3-2:2014
BS EN 61000-3-3:2013
BS EN 60335-1+A11:2014+A13:2017
BS EN 60335-2-80:2003+A1:2004+A2:2009
BS EN 62233:2008
Signed: Mr P. Ippaso – Director – SIP (Industrial Products) Ltd
Date: 23/06/2021

Please dispose of packaging for the product in a responsible manner. It is suitable for recycling. Help to protect the environment, take the packaging to the local amenity tip  and place into the appropriate recycling bin.
Never dispose of electrical equipment or batteries in with your domestic waste. If your supplier offers a disposal facility please use it or alternatively use a recognised re- cycling agent. This will allow the recycling of raw materials and help protect the environment.
