Clarke Camax24 36 Inch Drum Fans Instruction Manual

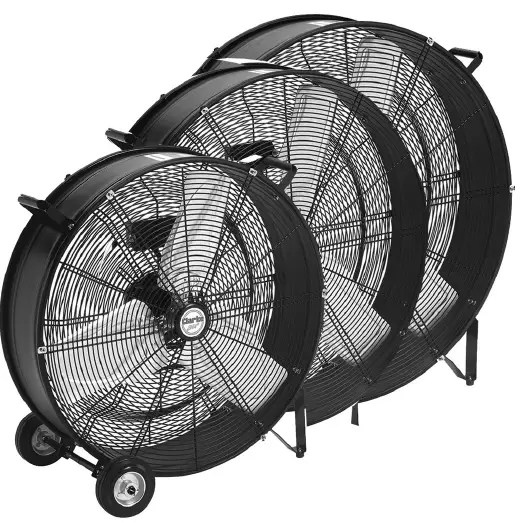

Clarke CAMAX24 36 Inch Drum Fans

MODEL NO: CAMAX24, 30 & 36
PART NO: 3231700 / 3231705/ 3231710

INTRODUCTION

Thank you for purchasing this CLARKE Drum Fan.
Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service.

SPECIFICATIONS

ELECTRICAL CONNECTIONS

WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY.

• Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 230VAC 50Hz. Connecting it to any other power source may cause damage.
• This product may be fitted with a non-rewireable plug. If it is necessary to change the fuse in the plug, the fuse cover must be refitted. If the fuse cover becomes lost or damaged, the plug must not be used until a suitable replacement is obtained.

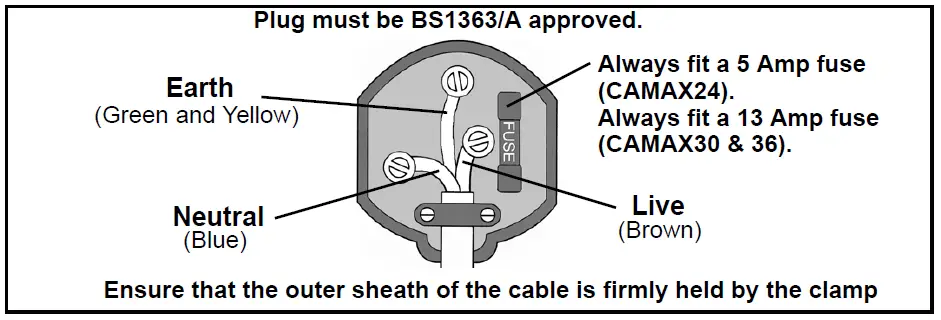

• If the plug has to be changed because it is not suitable for your socket, or due to damage, it should be cut off and a replacement fitted, following the wiring instructions shown below. The old plug must be disposed of safely, as insertion into a mains socket could cause an electrical hazard.

WARNING! THE WIRES IN THE POWER CABLE OF THIS PRODUCT ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE: Blue = Neutral Brown = Live Yellow and Green = Earth

If the colours of the wires in the power cable of this product do not correspond with the markings on the terminals of your plug, proceed as follows.

• The wire which is coloured Blue must be connected to the terminal which is marked N or coloured Black.
• The wire which is coloured Brown must be connected to the terminal which is marked L or coloured Red.
• The wire which is coloured Yellow and Green must be connected to the terminal which is marked E or or coloured Green.

We strongly recommend that this machine is connected to the mains supply via a Residual Current Device (RCD)

If in any doubt, consult a qualified electrician. DO NOT attempt any repairs yourself

SAFETY PRECAUTIONS

1. Always read this manual before use.
2. Suitable for indoor use only.
3. Avoid using in dusty environments.
4. Do not use in environments containing chemical fumes etc.
5. Do not use as an extractor fan.
6. Do not use in areas of high humidity/water vapour, i.e. bathrooms etc.
7. Do not connect the fan to duct system.
8. Do not cover the fan with clothing or any material that will restrict free airflow through the fan.
9. Never touch the blades with your hand or any object.
10. Always unplug the fan before moving it or performing maintenance.
11. Don’t touch the fan when your hands are wet.
12. Do not disassemble the fan.
13. Always unplug the fan when it is not in use.
14. Never unplug the fan by pulling the cable. Always hold the plug.
15. Never use the fan if the cable or plug are damaged.
16. Never use the fan close to fires.
17. Do not use this fan with any solid-state speed control device to reduce the risk of fire or electric shock.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the obligation to deal with the WEEE in accordance with the WEEE regulations in relation to the treatment, recycling & recovery and environmentally sound disposal of the WEEE. In effect, this means that this product must not be disposed of with general household waste. It must be disposed of according to the laws governing Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal facility.

ADJUSTING THE SPEED

WARNING: NEVER OPERATE THE FAN WITH THE GUARDS REMOVED. ALWAYS UNPLUG THE FAN BEFORE ANY CLEANING OR MAINTENANCE

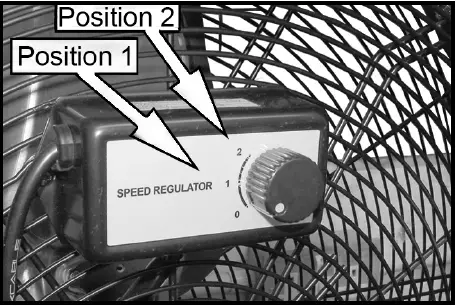

Turn the switch on the speed regulator to select the fan speed required

MAINTENANCE

Have any repairs carried out by a suitably qualified person.
The motor bearings are permanently sealed for life and do notrequire any additional lubrication.

CLEANING

If the fan has been operating for long periods in a very dusty environment, the blades and motor assembly may eventually require cleaning.

1. Disconnect the power cable from the power supply.

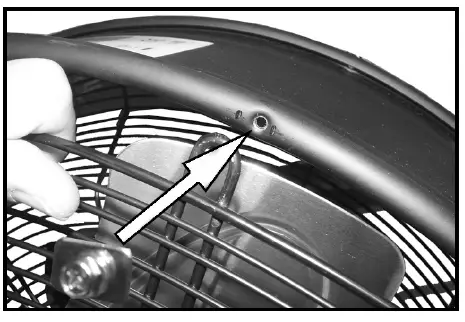

2. Unscrew the front guard and lift it away carefully.
3. Wipe the fan blades with dry cloth and remove any dust from the motor assembly with a soft paintbrush, vacuum cleaner or jet of compressed air.
   1. Never use polish or any corrosive liquid that will damage the surface finish.
4. Replace the guard securely before use

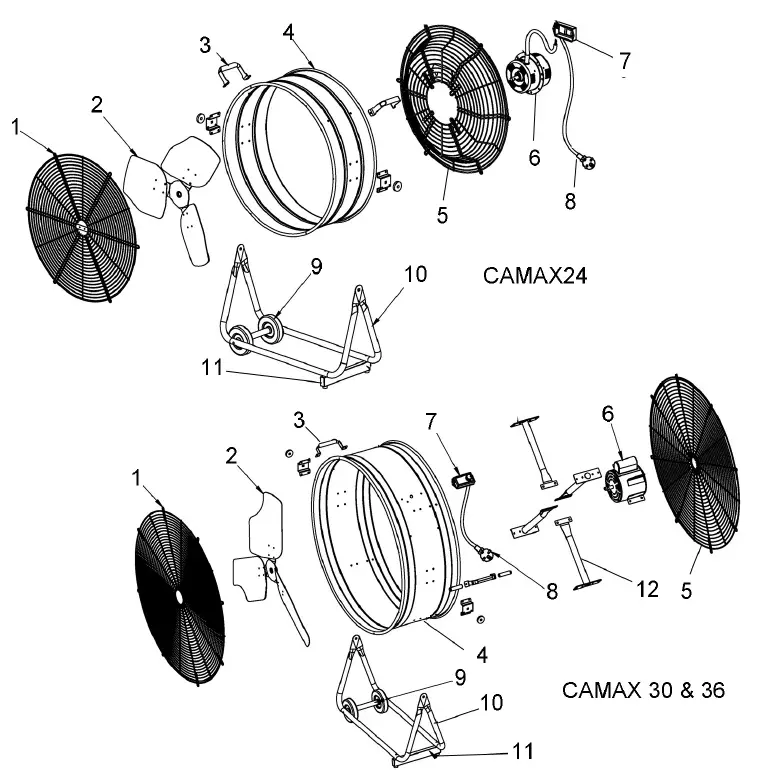

PARTS LIST AND DIAGRAM

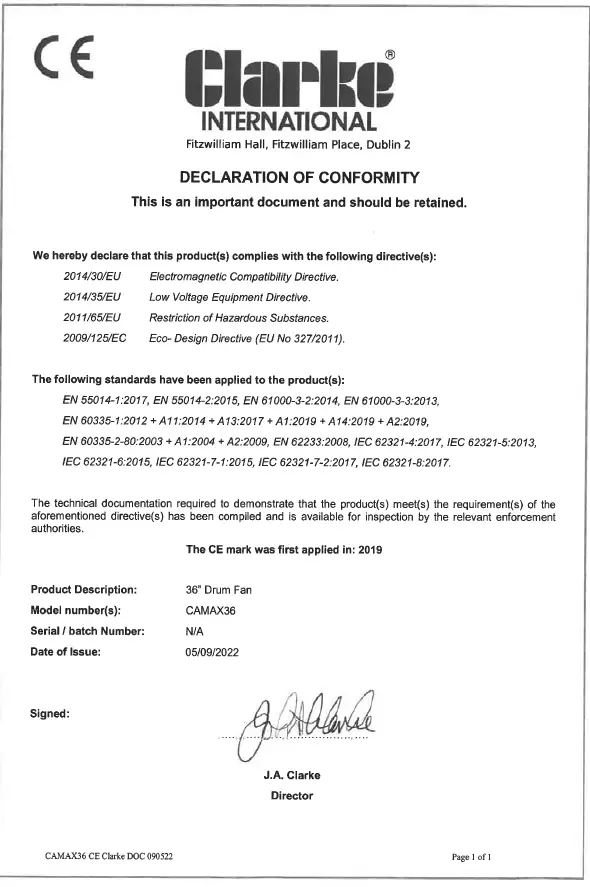

DECLARATION OF CONFORMITY
