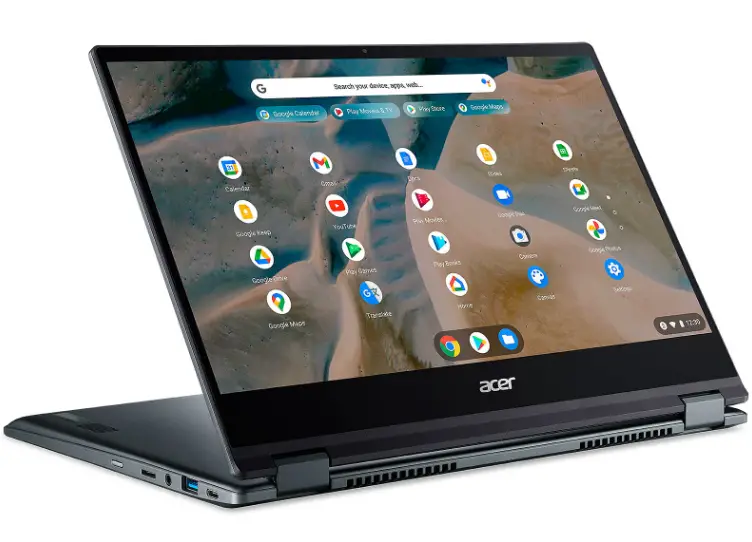

acer Chromebook Spin 514 Portable Laptop
acer Chromebook Spin 514 Portable Laptop
2022. All Rights Reserved. Acer Chromebook Spin 514 / Acer Chromebook Enterprise Spin 514 Covers: CP514-3H / CP514-3HH / CP514-3WH
This manual contains proprietary information that is protected by copyright laws. The information contained in this manual is subject to change without notice. Some features described in this manual may not be supported depending on the Operating System version. Images provided herein are for reference only and may contain information or features that do not apply to your computer. Acer Group shall not be liable for technical or editorial errors or omissions contained in this manual.
ENVIRONMENT
Temperature
- Operating: 5 °C to 35 °C
- Storage: -20 °C to 60 °C
Humidity (non-condensing)
- Operating: 20% to 80%
- Storage: 20% to 60%
Your Acer Chromebook tour

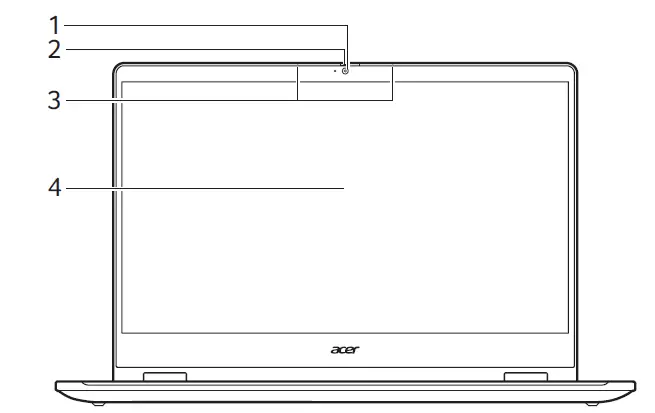

Front view
| # | Icon | Item | Description |
| 1 | Webcam | Web camera for video communication. A light next to the webcam indicates that the webcam is active. | |
| 2 | Webcam shutter | Slide the shutter to the left to cover the webcam. Slide right to open it. | |
| 3 | Microphones | Internal microphones for sound recording. | |
| 4 | Touchscreen | Displays Chromebook output, supports multi- touch input. |

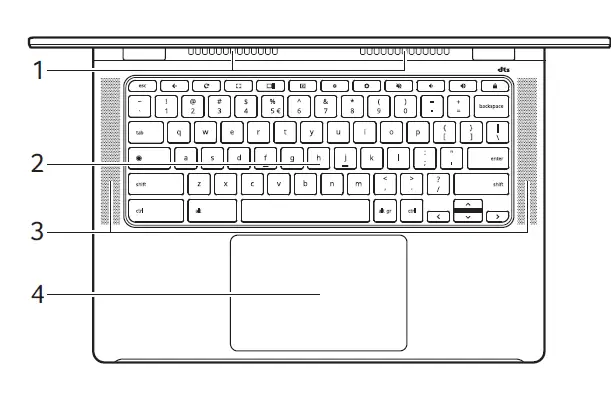

Keyboard view
| # | Icon | Item | Description |
| 1 | Ventilation and cooling fan | Allows the Chromebook to stay cool. Do not cover or obstruct the openings. | |
| 2 | Keyboard | For entering data into your Chromebook. | |
| 3 | Speakers | Deliver stereo audio output. | |
|
4 |
Touchpad / click button | Touch-sensitive pointing device which functions like a Chromebook mouse. Pressing down anywhere on the pad functions like the left button of a mouse. Pressing down anywhere with two fingers functions like the right button of a mouse. |

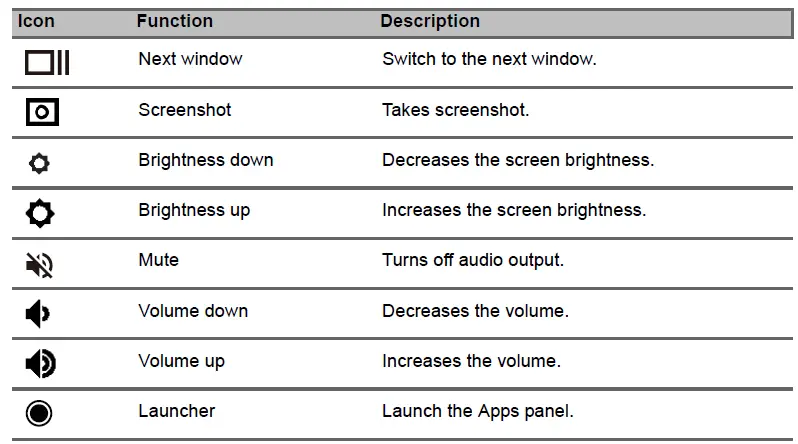

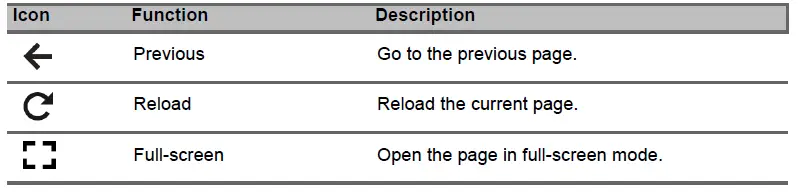

Function keys
The Chromebook uses function keys or key combinations to access some hardware and software controls, such as screen brightness and volume. The dedicated function keys each have a specific function.

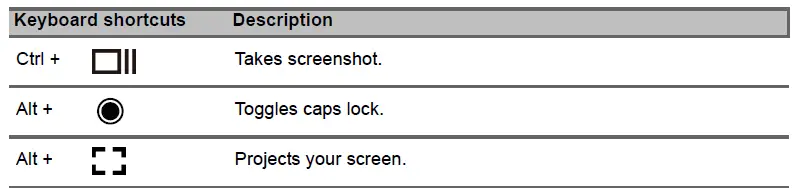

Common keyboard shortcuts
You can use shortcuts to complete some tasks more quickly.
Note: For a complete list of keyboard shortcuts, press Ctrl + Alt + /
Touchpad
The built-in touchpad is a pointing device that senses movement on its surface. This means the cursor responds as you move your fingers across the surface of the touchpad.
- Action GestureClick Press down on any part of the touchpad.
- Two-finger tap (or alt-click)
- Tapping the touchpad with two fingers or pressing (and holding) Alt on the keyboard and tapping the touchpad with one finger both equal a “right-click” on a Chromebook mouse.
- Two-finger swipe Place two fingers on the touchpad and move them up and down to scroll vertically, left and right to scroll horizontally.
- Drag and drop Select the item you want to move with one finger. With a second finger, move the item. Release both fingers to drop the item. (This gesture works for files, not windows or icons.)

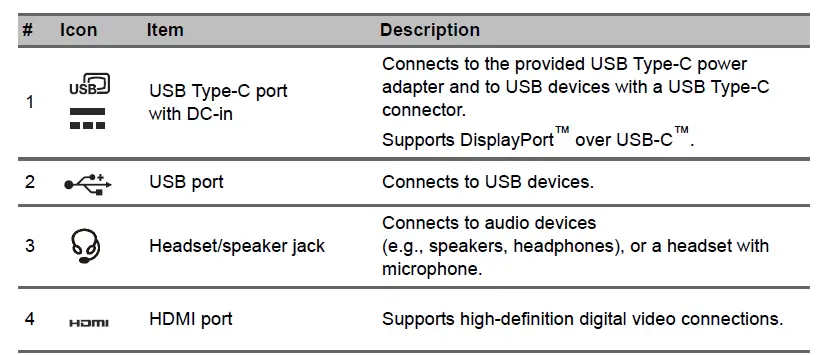

Left view
USB 3.2 Gen 2 information
- USB 3.2 Gen 2 compatible ports are blue.
- Compatible with USB 3.2 Gen 2 and earlier devices.
- For optimal performance, use USB 3.2 Gen 2-certified devices.
- Defined by the USB 3.2 Gen 2 specification (SuperSpeed USB).
USB Type-C information
- Supports DisplayPort™ audio/video output.
- Delivers up to 3 A at 5 V DC for USB charging.
- DC-in requires power adapter or power source providing 45 W at 5~20 V.
- For optimal performance, please use a certified Acer power adapter or USB Power Delivery device.

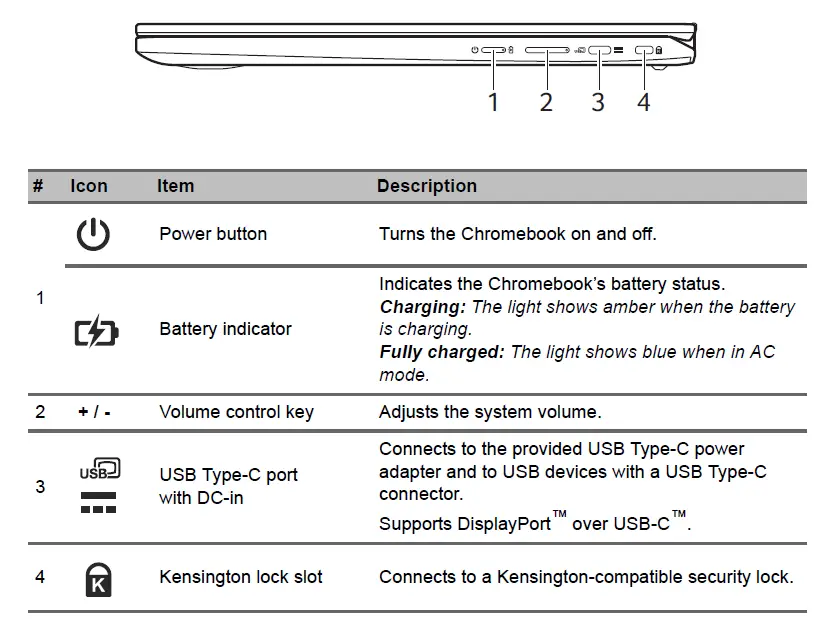

Right view

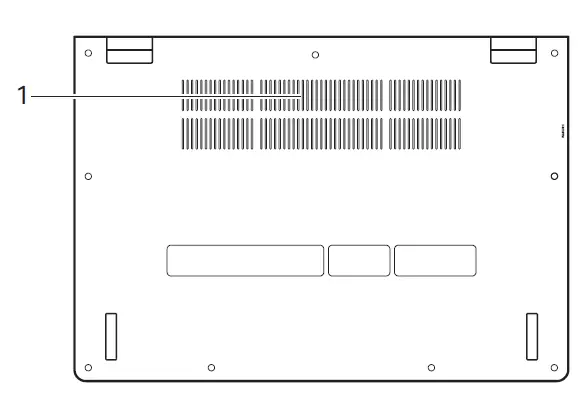

Bottom view
| # | Icon | Item | Description |
| 1 | Ventilation and cooling fan | Allows the Chromebook to stay cool. Do not cover or obstruct the openings. |
