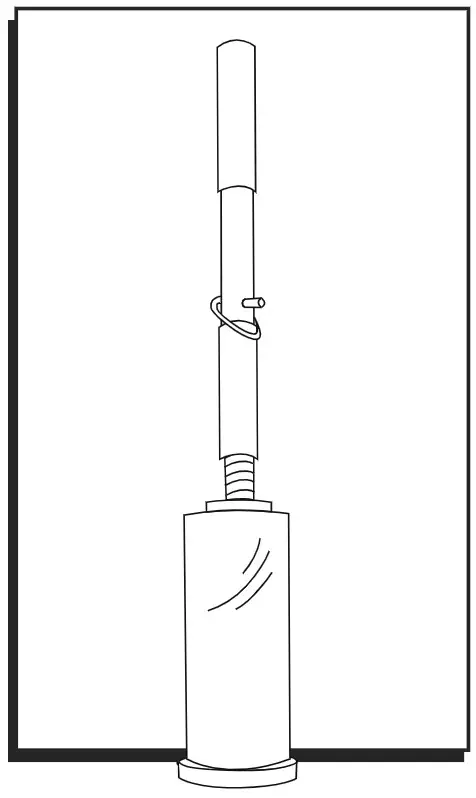

Uline H-9458 Long Handle Handwrapper Instructions

H-9458
LONG HANDLE
HANDWRAPPER
1-800-295-5510
uline.com

INSTRUCTIONS

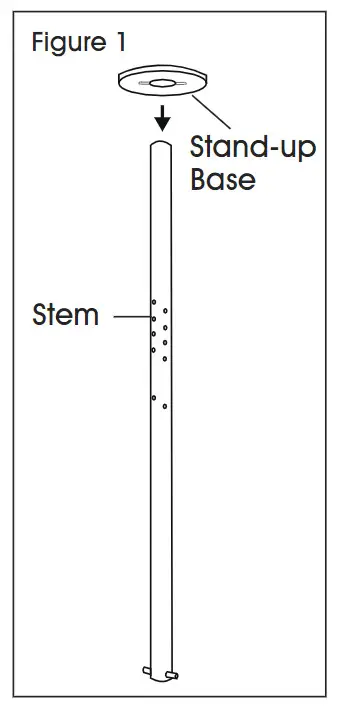

1. Feed stand-up base over the stem, beveled side up. Rotate stand-up base until locked in place. (See Figure 1)

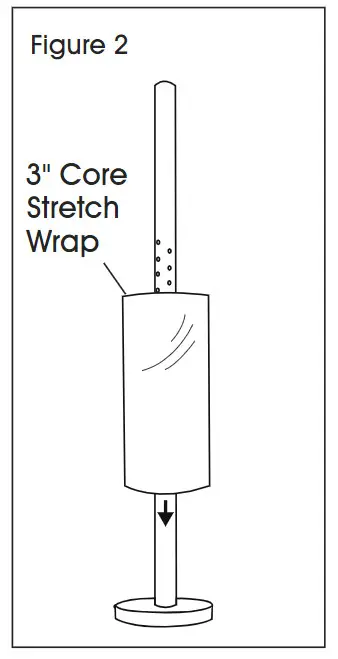

2. Insert 3″ core stretch wrap roll over the stem. (See Figure 2)

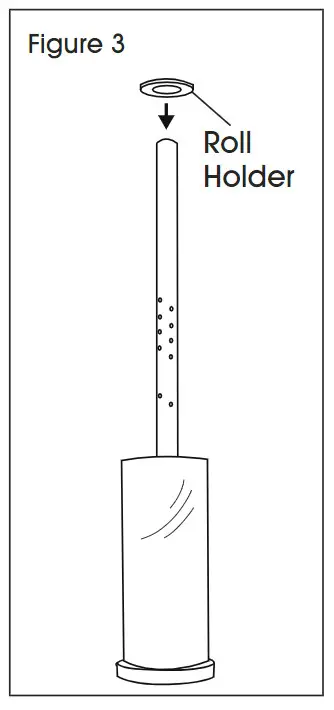

3. Feed roll holder over the stem, beveled side down. (See Figure 3)
   NOTE: Stretch wrap roll should fit snugly between stand-up base and roll holder.

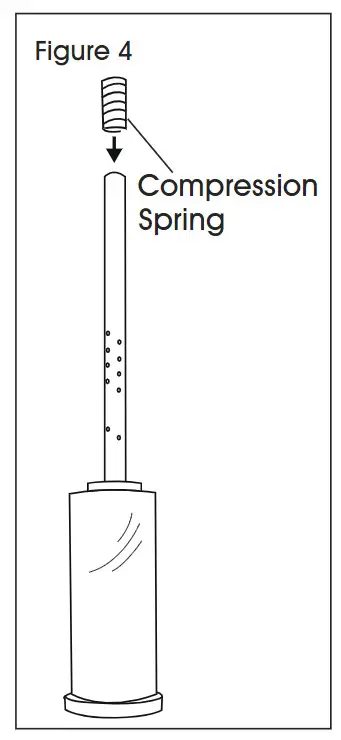

4. Feed compression spring over Figure 4 stem. (See Figure 4)

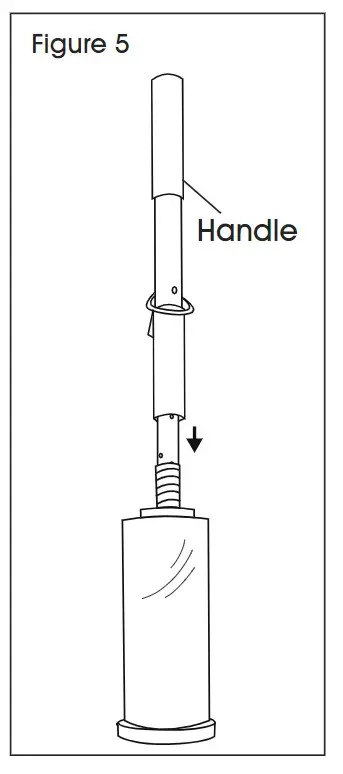

5. Slide handle over the stem. (See Figure 5)

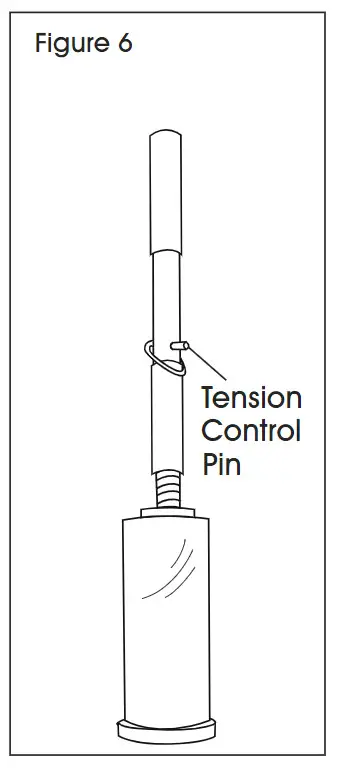

6. Adjust handle to desired tension by compressing spring and inserting tension control pin through desired holes. (See Figure 6)
