ULINE Long Handle Handwrapper H-9458 Instructions
INSTRUCTIONS

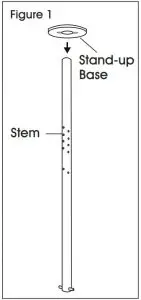

- Feed stand-up base over stem, beveled side Rotate stand-up base until locked in place. (See Figure 1)

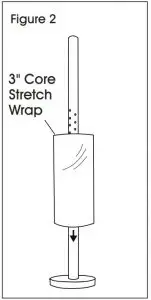

- Insert 3″ core stretch wrap roll over stem. (See Figure 2)

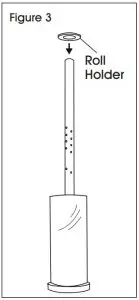

- Feed roll holder over stem, beveled side down.
NOTE: Stretch wrap roll should fit snugly between stand-up base and roll holder. (See Figure 3)

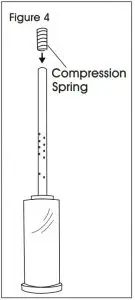

- Feed compression spring over stem. (See Figure 4)

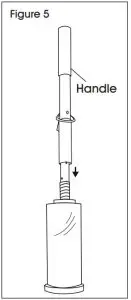

- Slide handle over stem. (See Figure 5)

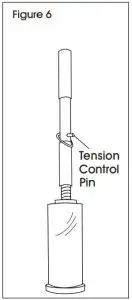

- Adjust handle to desired tension by compressing spring and inserting tension control pin through desired holes. (See Figure 6)
