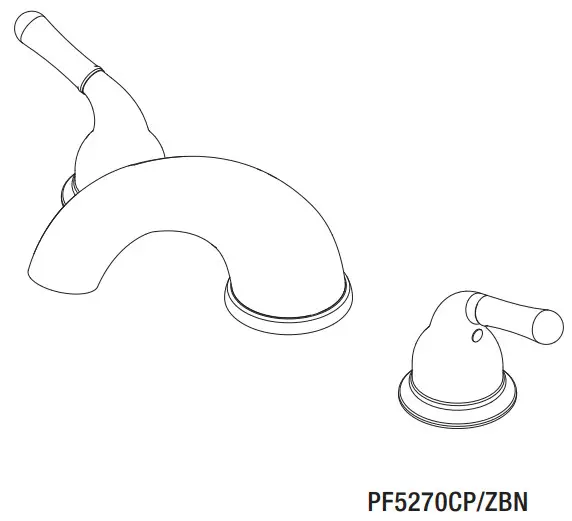

TWO HANDLE ROMAN TUB FAUCET
Installation Instructions
Caution-Tips:
Cover your drain to avoid losing parts.
The fittings should be installed by a licensed plumber.
When installing an flexible hose, there should be no torsion or deformation; do not fold into Shape V or L; do not use if there is any crack or deformation.
Remove old faucet. Clean sink surface in preparation for new faucet.
Care Instructions:
Your new faucet is designed for years of trouble-free performance. Keep it looking new by cleaning it periodically with a soft cloth. Avoid abrasive cleaners,
steel wool and harsh chemicals as these will dull the finish and void your warranty.

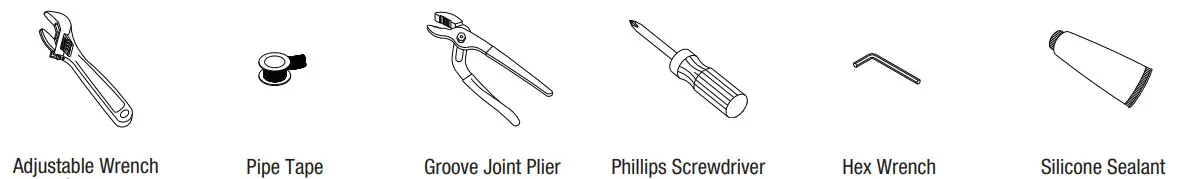

You May Need
Shut off main water supply before installation.
- Apply plumber’s putty around bottom of the spout.
Place spout in the center hole of the sink. Secure with pictured parts.

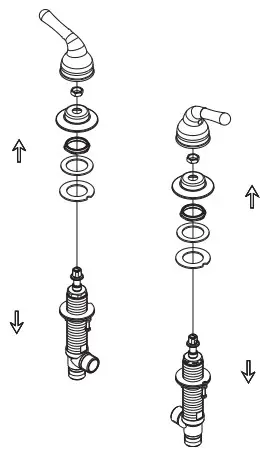

- Remove assembled parts from handle body.

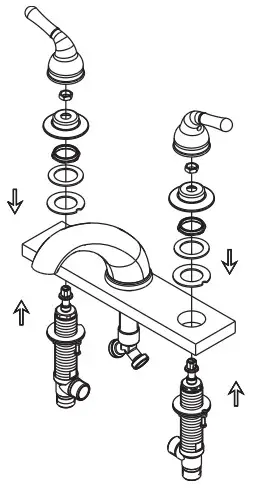

- Place the handle body through right hole.
Re-assemble the parts and screw with the lock nut.
- Connect handle body and faucet body with water supply tube and tighten with lock nut.

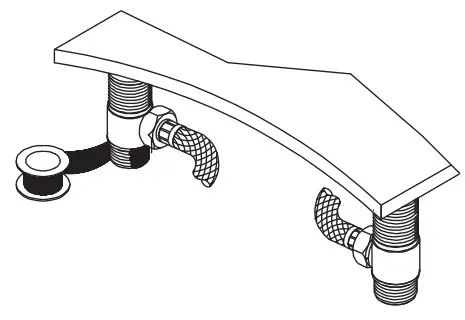

- Apply pipe tape on the thread of inlet port.

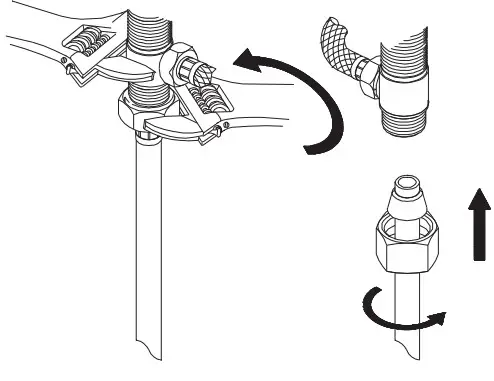

- Tighten end of the shank with a wrench and slip coupling nut onto inlet port.

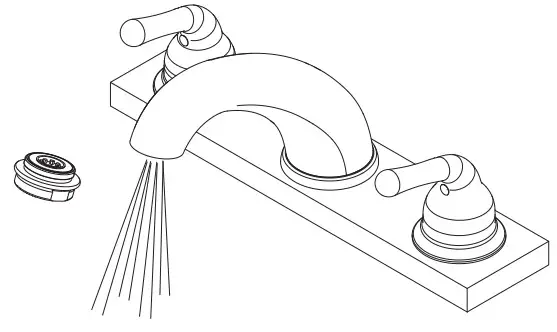

- After installing the faucet, remove the flow straightener and turn on the water to remove any debris. Re-assemble flow straightener
If you’ve followed the instructions carefully and your faucet still does not work properly, take these corrective steps.
Problem/Problème/Problema
Leaks underneath handle.
Hose does not retract.
There are leaks from the hose underneath the deck.
US CUSTOMERS :
The purchaser should contact their local Ferguson location, installing contractor or builder from whom the product was purchased. To find your nearest Ferguson location please visit www.ferguson.com and enter in your address into the Find a Location field.
CANADIAN CUSTOMERS :
The purchaser should contact their local Wolseley Canada location, installing contractor or builder from whom the product was purchased. To find your nearest Wolseley Canada location please visit www.wolseleyinc.ca, then click on Find a Location and enter your address into the location field.

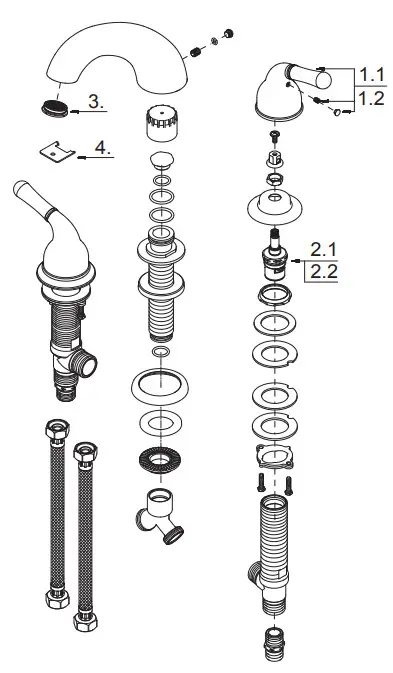

1.1 Metal handle assembly-cold
1.2 Metal handle assembly-hot
2.1 Ceramic disc cartridge
2.2 Ceramic disc cartridge-ho
3 Aerator
4 Flow straighteners were
OBPF7A662589C*
OBPF7A662589H*
OBPF2A507972
OBPF2507971
OBPF5A603646
OBPF1A031214NI
©2021 Ferguson Enterprises, LLC 06/21
