Lexon La127 Wireless Earbuds With Bluetooth Speaker User Guide

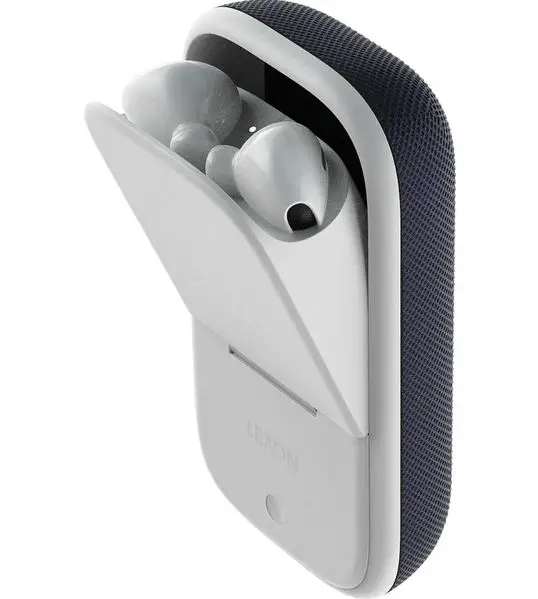

LEXON LA127 Wireless Earbuds with Bluetooth Speaker

Thank you for choosing Speakerbuds.
Before using the appliance, and to ensure the best use, carefully read these instructions. Keep this manual for future reference.

IN THE BOX

• 1xSpeakerbuds
• 1xUSB Type-C cable
• 1x User manual

PRODUCT OVERVIEW

1. Earbuds
2. Speaker
3. Charging case
4. Microphones
5. Bluetooth light indicator
6. Charging lightsindicator
7. USB type-C port

FEATURES

• True Wireless Stereo Earbuds
• 3W Bluetooth® speaker
• Dual microphone
• Environmental noise cancellation
• Rechargeable battery

GETTING STARTED
Make sure to fully charge Speakerbuds:

1. Plug the supplied USB Type-C cable into the charging port of Speakerbuds.
2. Plug the USB end of the cable into any 5V-1A power adapter.
3. Plug the power adapter to a power source for about 2 hours.

When the charging case is powered, the light indicator next to the charging port turns red. When the charging case is fully charged, the light indicator next to the charging port turns off.

PAIRING INSTRUCTIONS Earbuds – Bluetooth pairing

1. Open the charging case and take out both earbuds. The blue LED on either earbud will start flashing to indicate it is in pairing mode.
2. Then go to Bluetooth® settings of your mobile device and choose LEXON BUDS.

Speaker – Bluetooth pairing

1. Press and hold the button for 3 seconds to power on the charging case.
2. Then go to Bluetooth® settings of your mobile device and choose LEXON SPEAKER.

LED information

Good to know

• You can independently use your left or right earbud by storing the one you don’t want to use back in the charging case.
• Bluetooth® pairing mode will automatically stop after 10 minutes of searching for device.
• To resume the pairing mode, please put both earbuds back in the charging case for a few seconds then take them out again.

CHARGE THE EARBUDS

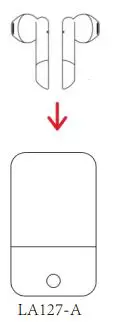

1. To charge the earbuds, place them into the charging case to initiate automatic charging.
2. It will take about 1h30 to fully charge your earbuds in the charging case.
   The earbuds can deliver about 5 hours of battery life.
   When reaching low battery level, you will hear an audio indication in your earbuds inviting you to put them back in the charging case to recharge them.

CHARGE THE CHARGING CASE

1. To charge the charging case (Speaker), plug the supplied USB Type-C cable into the charging port of Speakerbuds.
2. Plug the USB end of the cable into any 5V-1A power adapter.
3. Plug the power adapter to a power source.

The charging case offers a further 20 hours of battery life than the five hours you get from the earbuds alone۔ The speaker only can deliver about 5 hours of battery life.

LED information
There are 4 LED indicators in the charging case to indicate its battery level.
When the charging case is powered, the light indicator next to the charging port turns red. When the charging case is fully charged, the light indicator next to the charging port turns off.

Simply insert the earbuds into the charging case to check the battery level.

OPERATIONS Earbuds

*Use either earbud to conduct these operations

Speaker

Turn On/Off the speaker: Press and hold the button for 3 seconds
Play/Pause the speaker: Press the button once

SAFETY PRECAUTIONS
Read all the instructions before using the device:

• To prevent possible hearing damage, do not listen at high volume levels for long periods of time.
• Use of earbuds will prevent your ability to hear other sounds.
• Use your earbuds with caution when engaging in any activity that requires your full attention.
• This package contains small parts that may be hazardous to children and should be kept out of reach from children. This product is not a toy never allow children to play with this product.
• Use of a power supply or charger that is not recommended may result in a risk of fire or injury.
• Never try to dismantle the product yourself, or push objects of any kind into the products, as this may cause short circuits, which could result in a fire or electric shock.
• None of the components can be replaced or repaired by users. Please contact customer service for any assistance.
• Avoid exposing your product to rain, moisture or other liquids to protect against damage to the product or injury to you.
• Leaving the product in hot or cold places, such as in a closed car in the summer and winter conditions, will reduce the capacity and lifetime of the earbuds.
• Read all the instructions before using the charging case.
• Do NOT submerge the earbuds in water.
• Do NOT expose the earbuds to moving water (e.g., from a faucet, etc.).
• Do NOT wear the earbuds while showering or bathing, or when participating in water sports, e.g., swimming, waterskiing, surfing, etc.
• Do NOT expose charging case to water, rain, liquids or snow.
• Do NOT use the charging case in excess of its output range.
  Risk of explosion if Battery is replaced by an incorrect type.Dispose of used batteries according to the instruction.

CE DIRECTIVE
LEXON  hereby  declares  that  the  device  is  in  compliance  with  the  essential  requirements  and  other relevant provisions of Directives 2014/53/EU & 2011/65/EU.
The  original  EU  declaration  of  conformity  may  be  found  at  https://www.lexon‐design.com/assets/certifications‐ce‐speakerbuds.pdf

UK CONFORMITY ASSESSMENT
The object described above is in conformity with the relevant Union harmonization legislation. The  original  UK  declaration  of  conformity  may  be  found  https://www.lexon‐design.com/assets/certifications‐ukca‐speakerbuds.pdf

DISPOSAL AND RECYCLING INFORMATION

After the implementation of the European Directive 2012/19/EU in the national legal system, the following applies : electrical and electronic devices may not be dis‐posed of with domestic waste. Consumers are obliged by law to return electrical and electronic device at the end of their service lives  to  the  public  collecting  points  set  up  for  this  purpose  or  point  of  sale.  Details  to  this  are  defined by the national law of the respective country. This symbol on the product, the instruction manual  or  the  package  indicates  that  a  product  is  subject  to  these  regulations.  By  recycling,  reusing the materials or other forms of utilizing old devices, you are making an important contribution to protecting our environment.

USA ‐ FCC STATEMENT
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. this  device  must  accept  any  interference  received,  including  interference  that  may  cause undesired operation.

Notice:
Any changes or modifications not expressly approved by the party responsible for
compliance could void your authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help.

RF exposure statements
This equipment complies with FCC radiation exposure requirement set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance.
Canadian Compliance Statement
This  device  complies  with  Industry  Canada  license‐exempt  RSSs.  Operation  is  subject  to  the  following two conditions:

1. This device may not cause interference, and
2. This  device  must  accept  any  interference,  including interference that may cause undesired operation of the device.
   This Class B digital apparatus complies with Canadian ICES‐003.

RF exposure statements
This  device  complies  with  the  ISED  RSS‐102  RF  exposure  requirement  set  forth  for  an  uncontrolled environment and are safe for intended operation as described in this manual.
Cet  appareil  est  conforme  aux  exigences  d’exposition  RF  de  l’ISED  RSS‐102  définies  pour  un  environnement non contrôlé et est sûr pour le fonctionnement prévu comme décrit dans ce manuel.

PRODUCT SPECIFICATIONS

Charging case/Speaker
Material: ABS / PU leather
Dimensions: 9.9 x 5.2 x 2.5 cm / 3.9 x 2 x 1“
Weight: 76 g / 0.16 lbs
Operating temperature: 0-35°
Bluetooth version: 5.0
Bluetooth range: 10m
Bluetooth profiles: HSP, HFP, A2DP,AVRCP
Frequency range: 80Hz – 20kHz
Signal & noise ratio: ≤ 85 dB
Rated power: 3W
Impedance: 4Ω
Battery capacity: Li-polymer 400 mAh
Battery voltage: 3.7V
Charging time: 2h
Battery life: 5h of playtime for speaker only / offers a further 20 hours of battery life for earbuds alone
Input: 5V-1A
Max. output power: 4dB
Connection type: USB Type-C (cable included)
Operation frequency:2402-2480MHz
Transmitter power: -1.63 dBm

Earbuds
Material: ABS
Dimensions: 4.1 x 1.8.7 x 1.7 cm /
Weight: 4 g (each) / 0.01 lbs
Sound: Environmental noise cancellation with dedicated mic Operating temperature: 0-35°C
Bluetooth version: 5.0
Bluetooth range: 10m
Bluetooth profiles: HSP,HFP, A2DP,AVRCP
Frequency range: 20Hz – 20kHz
Signal & noise ratio: ≤ 95 dB
Earbud impedance: 32Ω
Battery capacity: Li-polymer 40 mAh
Battery voltage: 3.7V
Charging time: 1h30
Battery life: 4h of playtime
