JBLV200TWS Bluetooth Earbuds User Guide

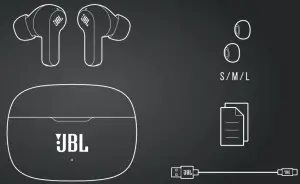

WHAT’S IN THE BOX

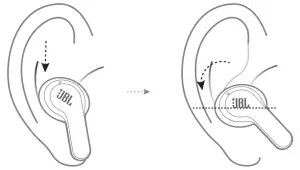

How to wear

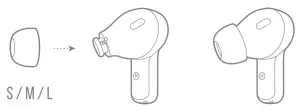

- Try different sizes of eartips for best fit and seal.

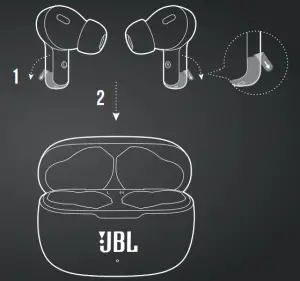

FIRST TIME USE

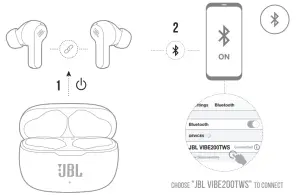

Power on & Connect

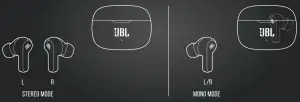

DUAL CONNECT

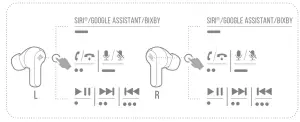

- Stereo Mode
- Mono Mode
Seamless automatic switch
Power off

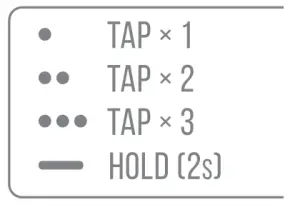

Manual Controls

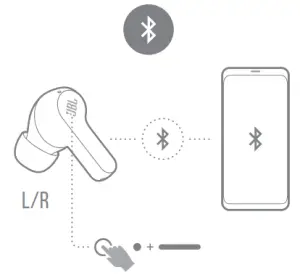

Connect to a new Bluetooth device

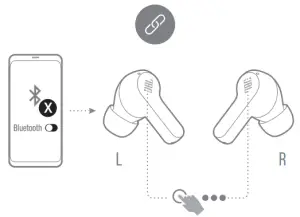

RECONNECT LEFT & RIGHT

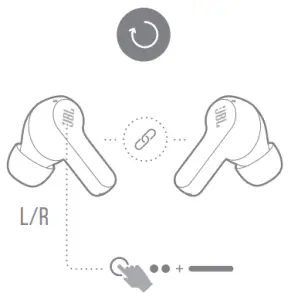

Factory reset

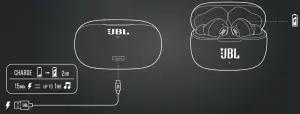

Charging

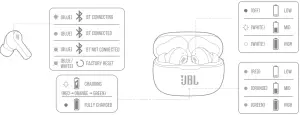

Led behaviors
TECH SPEC
- Model: VIBE200TWS
- Driver size: 8 mm/ 0.315” Dynamic Driver
- Power supply: 5 V 1 A
- Weight: 47.5 g/ 0.105 lbs
- Headset battery type: Lithium-ion Battery (48 mAh/ 3.7 V)
- Charging case battery type: Lithium-ion Battery(500 mAh/ 3.7 V)
- Charging time: 2 hrs from empty
- Music playtime with BT on: up to 5 hrs
- Frequency response: 20 Hz – 20 kHz
- Impedance: 16 ohm
- Sensitivity: 108dB SPL@1 kHz
- Maximum SPL: 93 dB
- Microphone sensitivity: -38 dBV/Pa @1 kHz
- Bluetooth version: 5.0
- Bluetooth profile version: A2DP V1.3, AVRCP V1.6, HFP V1.7
- Bluetooth transmitter frequency range: 2.400 GHz – 2.4835 GHz
- Bluetooth transmitter power: 12 dBm
- Bluetooth transmitter modulation: GFSK, π/4 QPSK, 8DPSK
- Maximum operation temperature: 45°C
IC RF Exposure Information and Statement
The SAR limit of Canada (C) is 1.6 W/kg averaged over one gram of tissue. Device types: (IC: 6132A-JBLV200TWS) has also been tested against this SAR limit According to this standard, the highest SAR value reported during product certification for head use is 0.205W/Kg.The device was tested for typical bodily operations where the product was kept 0 mm from the head. To maintain compliance with IC RF exposure requirements, use accessories that maintain a separation distance of 0mm between the user›s head and the back of the headset. The use of belt clips, holsters and similar accessories shall not contain metal parts in its assembly. Use of accessories that do not meet these requirements may not comply with IC RF exposure requirements and should be avoided.
Head operation
The device was subjected to a typical head manipulation test. In order to comply with RF exposure requirements, a minimum separation distance of 0 cm must be maintained between the user›s ear and the product (including the antenna). Head exposure that do not meet these requirements may not meet RF exposure requirements and should be avoided. Use only the supplied or approved antenna. IC: 6132A-JBLV200TWS
FCC ID: APIJBLV200TWS
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners
