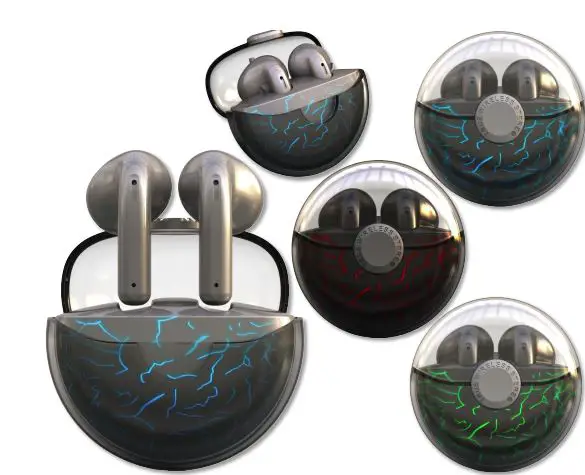

JWD W105 TWS Bluetooth Earbuds
Product Information
The TWS Bluetooth Earbuds – W105 are a wireless earbud product manufactured by JingWah Ballet Digital Technology Co., Ltd. The earbuds are made of ABS and PC and are equipped with JieLi AC6973D chipset. They have a dimension of 52mm*28mm and weigh around 40g. The earbuds are Bluetooth V5.0 + EDR, BLE, Class II enabled with a range of frequency between 2.40GHz-2.4835GHz and a distance of 15M. The earbuds come with a driver size of 13mm, frequency range of 20Hz-20KHz, and an impedance of 16. The product is equipped with a MEMS type microphone with an SNR of 60dB and THD of 0.1% 94dB SPL@1KHz. The earbuds have an output of 3mW and an impedance of 200. The product comes with a charging box that has a power unit of 3.7V / 300mAh and can recharge the earbuds 4-5 times. The earbuds have a battery capacity of 25mAh * 2 and can provide up to 3-4 hours of music.
Product Usage Instructions
- Charge the earbuds and the charging box using the USB Type-C cable provided in the standard packing and accessories.
- Turn on the Bluetooth on your device and search for available devices.
- Select “TWS Bluetooth Earbuds – W105” from the list of available devices.
- The earbuds will automatically pair with your device once connected.
- Once connected, you can start playing music or making phone calls through the earbuds.
- The earbuds come with touch controls that allow you to adjust the volume, skip tracks, and answer or reject calls.
- When not in use, store the earbuds in the charging box to recharge them and protect them from damage.
SPECIFICATION
| Item No. | W105 | |
| ID | * Dimension: φ52mm*28mm, Weight: around 40g * Material: ABS + PC | |
|
Bluetooth | * Chipset: JieLi AC6973D, * V5.0 + EDR, BLE, Class II * HFP1.7, HSP1.2, A2DP1.3, AVRCP1.6, SPP1.2, PDAP1.0 * Range of frequency: 2.40GHz-2.4835GHz * Distance: ≥15M | |
|
Speaker | Driver size | φ13mm |
| Frequency | 20Hz-20KHz | |
| Sensitivity | 103dB (±3dB) @ 1KHz, 126mV | |
| Impedance | 16Ω | |
| Output | 3mW | |
|
MIC | Type | MEMS |
| Sensitivity | -42dB ± 3dB (0dB=1V/Pa @ 1KHz) | |
| SNR | 60dB | |
| THD | ＜0.1% 94dB SPL@1KHz | |
| Impedance | 200Ω | |
|
Power | Earbud | 25mAh * 2 |
| 3-4 hours in music | ||
| Charging Box | 3.7V / 300mAh | |
| 4-5 times recharging of earbuds | ||
| 1-2 hours recharging via USB TYPE-C | ||
| Unit price | USDXXX with standard packing and accessories | |
Remarks:
- TRADE TERM: FOB HK
- PAYMENT: T/T in advance or L/C at sight (30% down payment, balance before shipment)
- LEAD TIME: 4-5 weeks upon final approval and down payment receiption
- MOQ (minimum order quantity): 2000PCS
- WARRANTY: 12 months
