7021988204429 24V 150W
Driver Kit Phase-Cut
Instructions
7021988204429 24V 150W Driver Kit Phase-Cut

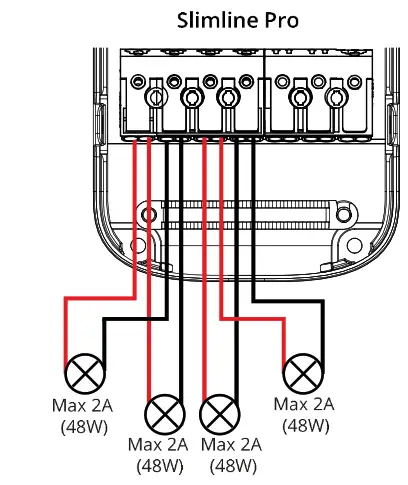

LED load per driver
Stripline
| Stripline 9W/m | 6,7m – 16,6m |
| Stripline 15W/m | 4 – 10m |

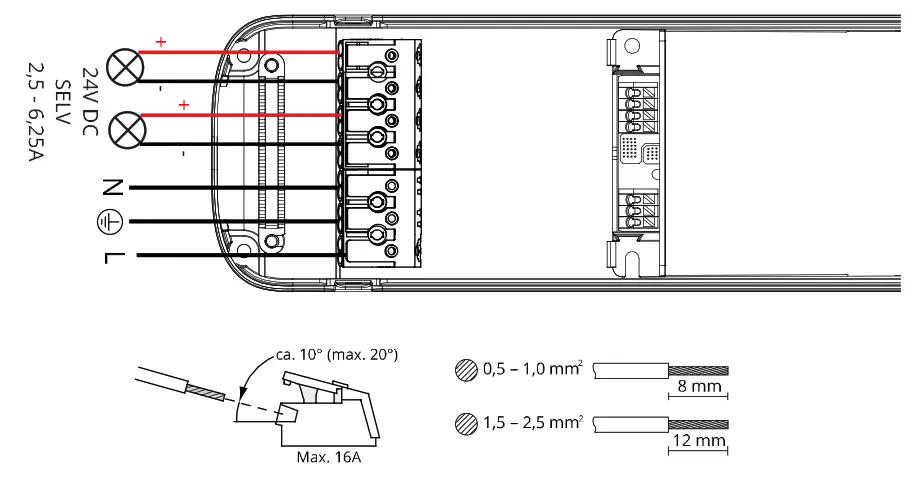

Total load on driver: Min 60w Max 150w
Only to be installed and maintained by an authorized electrician.
Turn off power before installing.
| FRANCE SG Lighting SA/NV Tel: +33(0) 4 94 93 00 00 [email protected] www.sglighting.net | UNITED KINGDOM SG Lighting LTD Tel: +47 37 50 03 00 [email protected] www.sglighting.co.uk | GERMANY SG Leuchten GmbH Tel: +49 40 23 99 44 59 [email protected] www.sg-leuchten.de |
Rev: 29.10.2021
