MASTERVOLT 79007724 24 V Ultra Connection
INTROPDUCTION

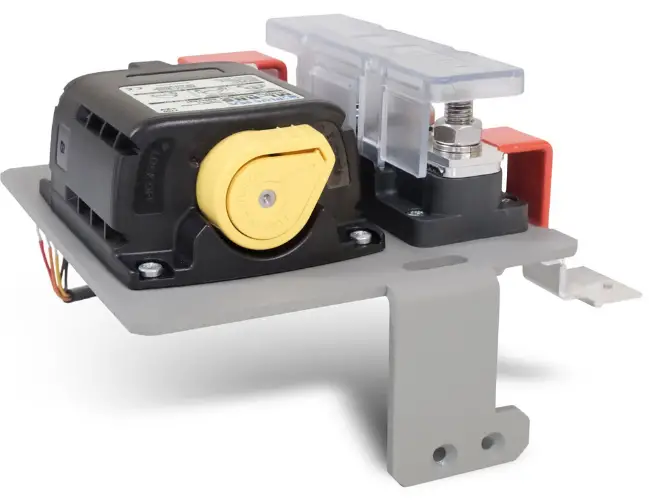

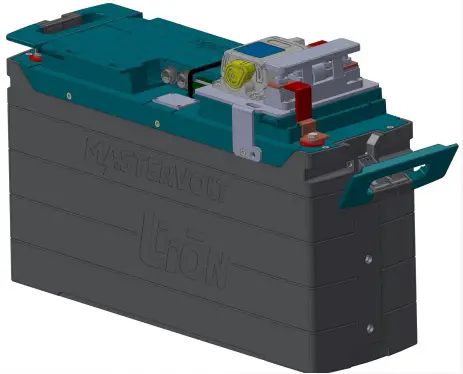

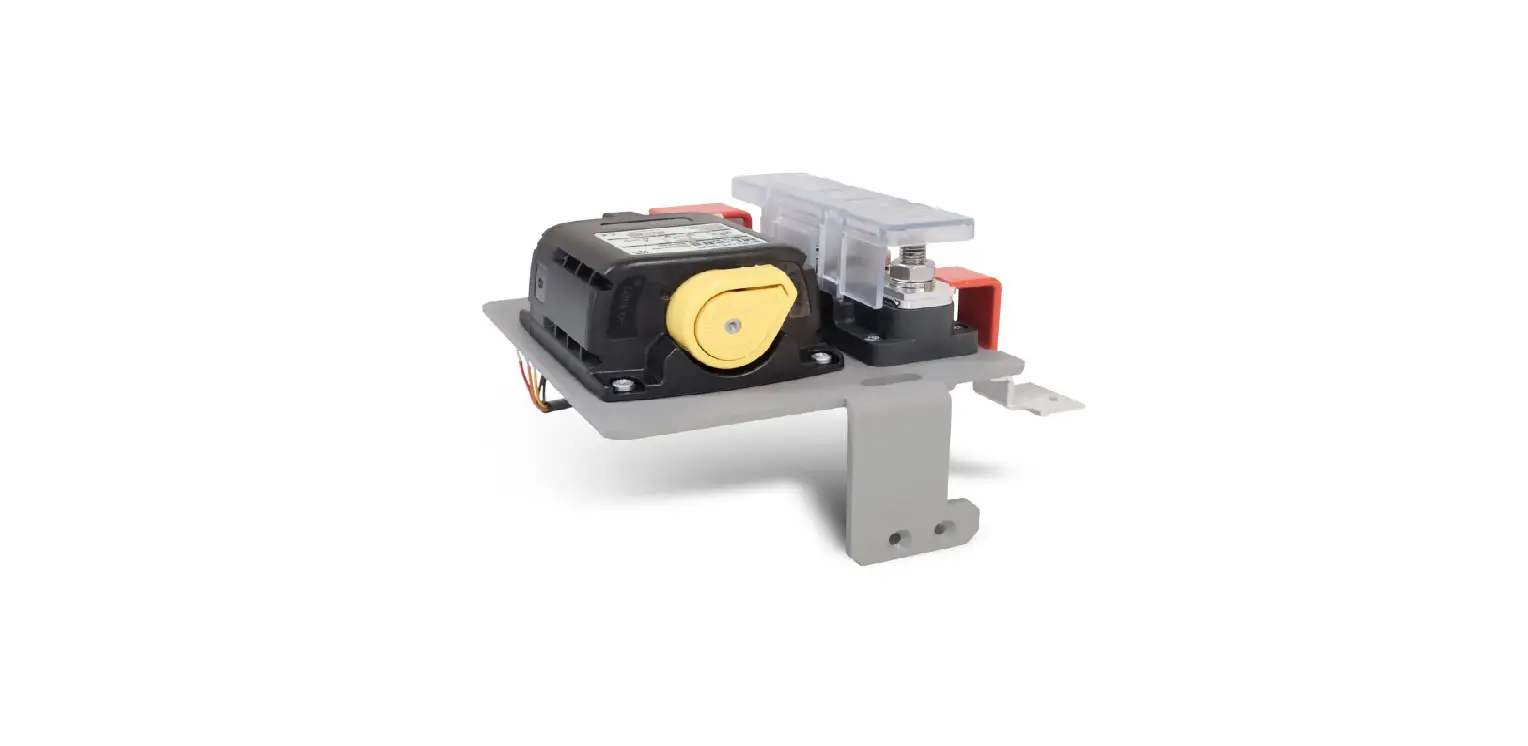

With the MLI Ultra Relay and Fuse Connect Kit, you can easily install all the required safety accessories in a safe, efficient, and compact way right on top of the MLI Ultra battery.
Without the need for power tools, you can get your system, safe and ready in just a few simple steps.
- Fast and easy installation.
- All necessary safety accessories in one kit*.
- Pre-assembled on an easy to mount bracket.
- Perfect fit for MLI Ultra 24/5500.
The T-fuse itself is not included in the kit. Order the right fuse rating (Compatible fuse rating: 225 – 400 Amp Class T-fuse) based on the requirements of your installation.
Specifications
General specifications
- Compatibility
MLI Ultra 24/5500 - Max. current
300 A - Operating temperature
– 25 °C to 50 °C
– 13 to 122 °F - Dimensions
total height increases by 65 mm / 2.5 inch - Weight
total weight increases by 2 kg - Delivered with
0.0 lb
mounting bracket, safety relay, T-fuse holder, busbar conductor (2x)
Technical specifications
- Safety relay
24 V DC – 500 A - Max. voltage
64 V
