Tbs Electronics 48v 350a Remote Battery Switch Instruction Manual

48V 350A Remote Battery Switch
Instruction Manual

DC Modular

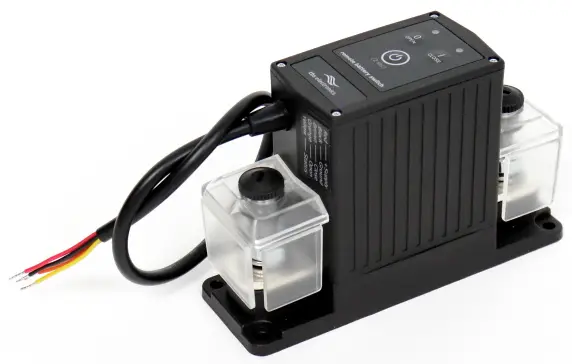

48V 350A Remote Baery Switch (RBS)

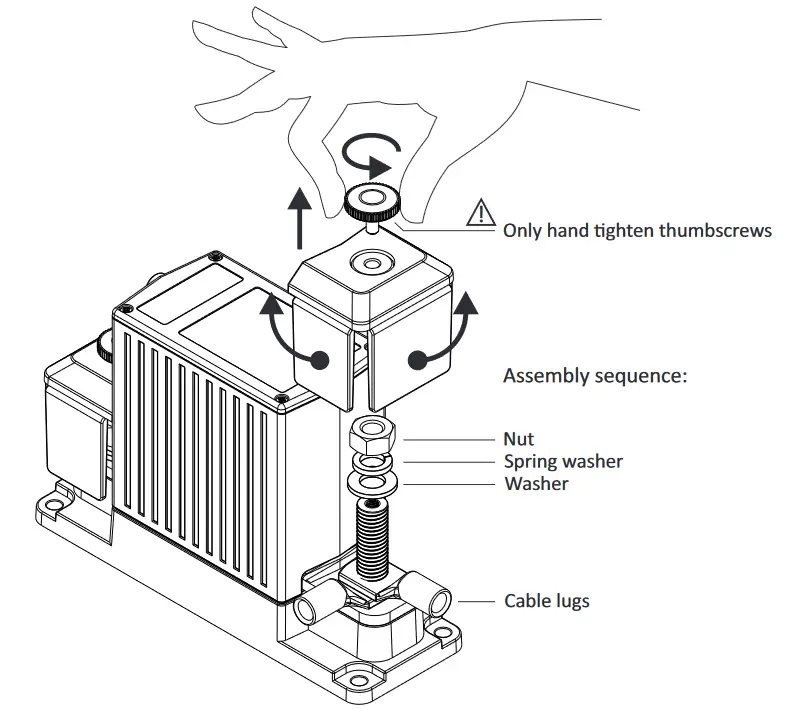

Main cable installation

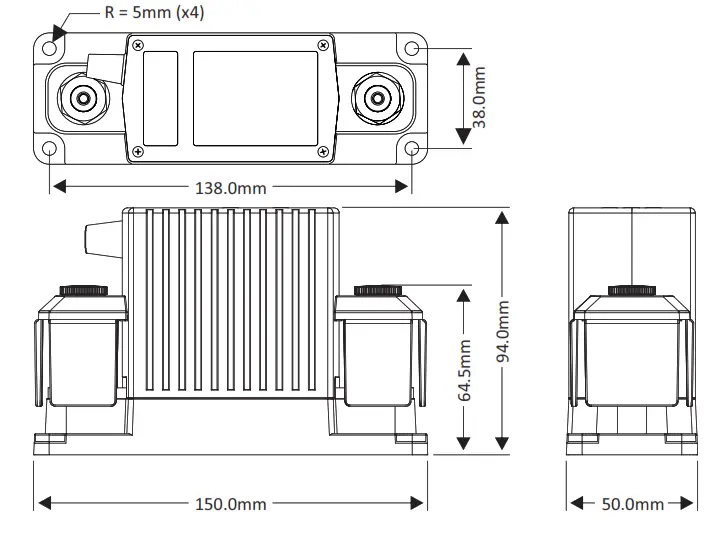

Dimensions

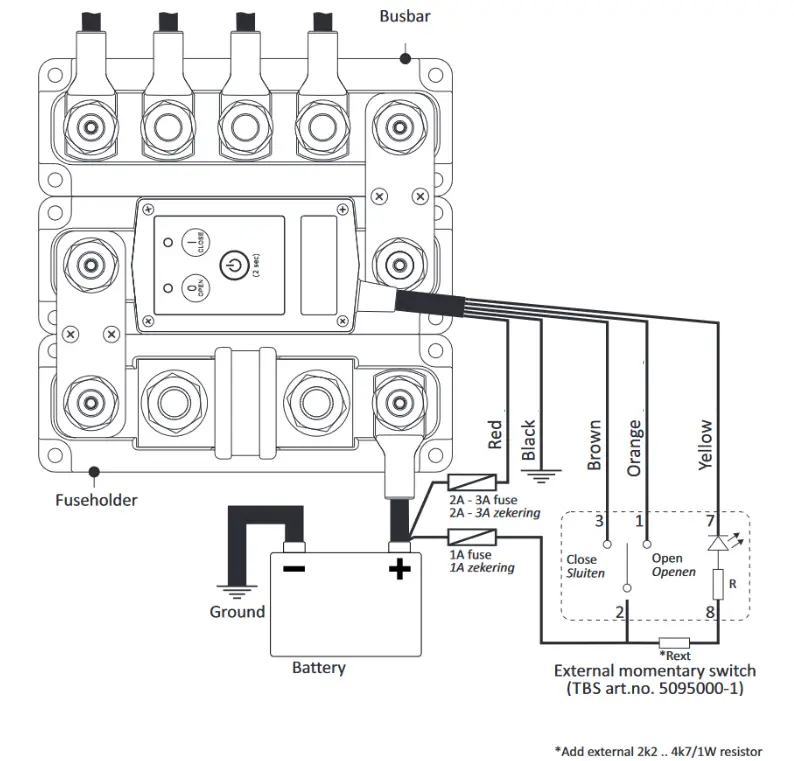

Wiring example

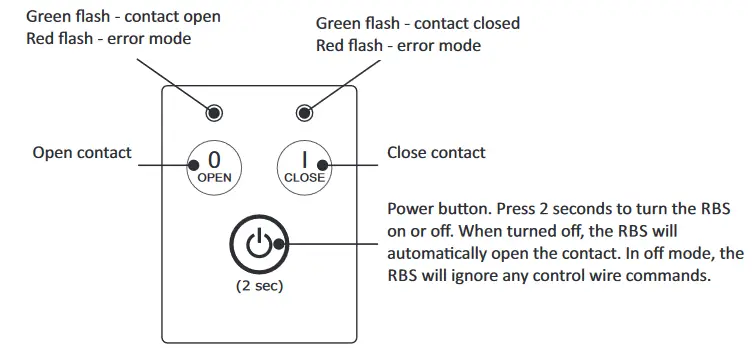

General operation

Wire table

¹⁾ The Status output is a ground referenced open collector port with a maximum switching capacity of 60V / 100mA (Rout ≈ 10 Ω)
Error table

Change control mode
When in off mode, press all three buttons simultaneously for three seconds to enter the setup mode:
Step through the control modes by pressing the OPEN (up) or CLOSE (down) buttons
Control mode table

Mode no.	Open LED	Close LED	Control mode
1			2-wire, no contact change at power-up
2			2-wire, contact closes at power-up
3			2-wire, contact opens at power-up
4			single-wire, normally open contact
5			single-wire, normally closed contact

= LED off
= LED green
= LED orange
When the desired control mode is selected, press the Power button for 2 seconds to save the setting.
Press the Power button again for 2 seconds to activate the RBS with the new control mode.
Modes 1, 2 & 3: +Vdc pulse on brown wire to close, +Vdc pulse on orange wire to open.
Mode 4: +Vdc continuous on brown wire to close, 0Vdc on brown wire to open. Orange wire not used.
Mode 5: +Vdc continuous on brown wire to open, 0Vdc on brown wire to close. Orange wire not used.
Installation details

Precautions

1. Please install this product in a dry indoor location, as close as possible to the battery. To be installed only by qualified technicians.
2. To avoid fire hazards, use correctly sized cables which are suitable to carry the expected load currents in your application. The maximum continuous RBS current rating of 500A is only valid when a total cable size of at least 200mm2 is connected to the M10 studs. Or when the RBS is part of a DC Modular system containing large busbars and fuseholders.
3. To avoid fire hazards or damaging the RBS, please make sure that all nuts are securely tightened. Please apply our recommended torque rating of 22Nm for the M10 nuts.
4. To avoid fire hazards or damaging the RBS, please make sure that spring- and flat washers are always placed directly below the nut. Never place washers between: busbar and cable lug, multiple cable lugs on the same stud, busbar and linkplate or cable lug and linkplate.
5. Please make sure that all connection cables are properly strain relieved, to avoid excessive mechanical stress on the RBS.

RBS features

• Smart high current magnetic latching relay, draws virtually no current in On (Close) or Off (Open) state.
• Silver alloy contacts and silver plated copper busbars, for maximum conductivity and high reliability when switching live loads.
• Local Open and Close buttons on top, to manually override the switch state.
• 5 wire interface cable for external control by panel switch, battery monitor or BMS. Compatible with two wire or single wire
• On/Off control. Includes status wire for controlling indicator light or providing feedback to BMS.
• Stainless steel studs, washers and nuts for optimal corrosion resistance.
• Unique grid optimized footprint allows space saving arrangements with other DC Modular products.
• Special fiber reinforced plastic housing offers excellent high temperature properties, good chemical resistance and high strength.
• Robust transparent covers with breakouts to allow wire access from any direction.
• Smart terminal design allows dual mirrored cable lug connections.

RBS specifications

Note : the given specifications are subject to change without notice.
¹⁾ Install proper pre-charge circuit to keep peak make current significantly below this value
²⁾ Panel switch with LED indicator optionally available (Art. no. 5095000-1)

TBS Electronics BV | De Marowijne 3
1689AR Zwaag | The Netherlands
www.tbs-electronics.com
